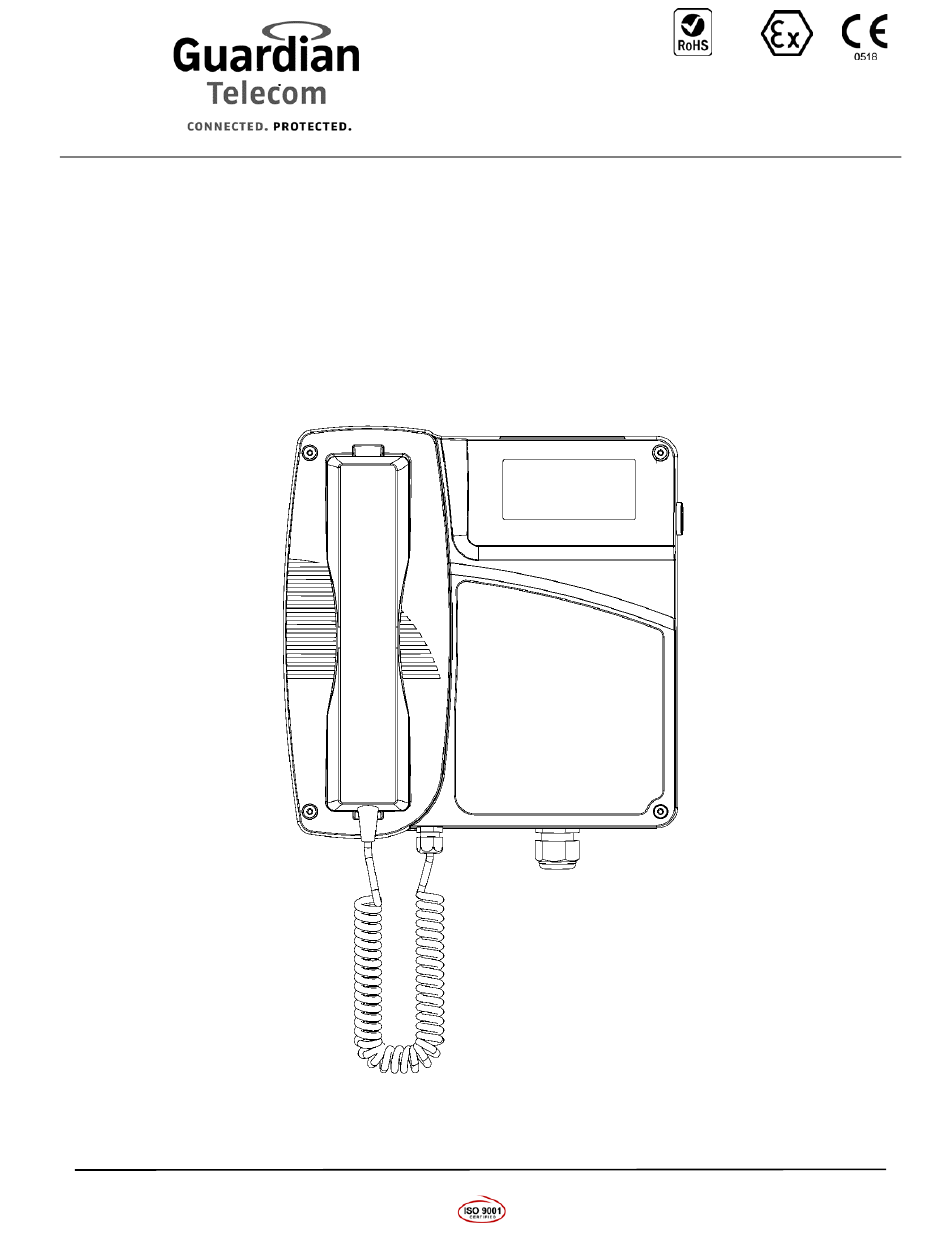

  • Page 1 Desktop Ringdown Telephones DTR-51-Z & DTR-61-Z “ZONE 1” Installation & Operation Manual P006813 Rev. G 160418 4/18/2016 10:12 AM Ph: 403.258.3100 \ email:info@guardiantelecom.com \ www.guardiantelecom.com...
  • Page 2: Table Of Contents

    Guardian Telecom Inc. Installation and Operation Desktop Ringdown Telephones DTR-51-Z & DTR-61-Z Table of Contents Package Contents ................2 Models ....................2 Accessories ..................2 Overview ..................... 3 Features ....................3 Installation ................... 6 Wiring ....................7 Retrofitting Supplemental Receiver, Strobe Light/Ringer ..... 8 Field Repairs &...
  • Page 3: Overview

    Guardian Telecom Inc. Installation and Operation Desktop Ringdown Telephones DTR-51-Z & DTR-61-Z Overview Desk Top Ringdown Telephones ZONE 1 DTR-51-Z and DTR-61-Z referred to as “ZONE 1” Desk Top ringdown telephones provide safe, reliable communications in hazardous areas that are prone to high humidity, chemical vapors, dust and physical abuse.
  • Page 4: Figure 1 - Features

    Guardian Telecom Inc. Installation and Operation Desktop Ringdown Telephones DTR-51-Z & DTR-61-Z ENTRY GLAND(DESK MOUNT) * M20 ENTRY GLAND(DESK MOUNT) * ALERTER DEVICE WIRING PLUG * M20 ALERTER DEVICE WIRING PLUG * HEADSET/AUXILIARY RECEIVER WIRING PLUG GLASS REINFORCED POLYESTER FACEPLATE...
  • Page 5: Figure 3 - Wall Installation Of Base

    Guardian Telecom Inc. Installation and Operation Desktop Ringdown Telephones DTR-51-Z & DTR-61-Z Figure 3 - Wall Installation of Base Figure 4 - Wiring Note the above heading will be DTR-51-Z for P3022 and DTR-61-Z for P3023 Figure 5 - Example of Label...
  • Page 6: Installation

    Guardian Telecom Inc. Installation and Operation Desktop Ringdown Telephones DTR-51-Z & DTR-61-Z Installation • The DTR ZONE 1 ringdown telephone utilizes the features of the PABX to route calls to the desired location. • Follow all appropriate electrical codes and use only approved electrical fittings for the installation.
  • Page 7: Wiring

    Guardian Telecom Inc. Installation and Operation Desktop Ringdown Telephones DTR-51-Z & DTR-61-Z Wiring • WARNING: Use properly sized cable to ensure a gas/dust tight seal at Tip: If cable diameter is not in the range of the the cable gland, (M12 – 2 to 5mm), (M20 – 8 to 13mm). Take care not to M12 or M20 glands lose parts of the gland if the cap is removed.
  • Page 8: Retrofitting Supplemental Receiver, Strobe Light/Ringer

    Guardian Telecom Inc. Installation and Operation Desktop Ringdown Telephones DTR-51-Z & DTR-61-Z Retrofitting Supplemental Receiver, Strobe Light/Ringer • Disconnect telephone wiring at the demarcation block and ring detect relay power at the breaker to avoid shock and explosion hazard. •...
  • Page 9: Field Repairs & Adjustments

    Guardian Telecom Inc. Installation and Operation Desktop Ringdown Telephones DTR-51-Z & DTR-61-Z Field Repairs & Adjustments Field repairs may only be carried out by qualified technicians using OEM parts. See: Replacement Substitution of parts voids warranty and may pose a hazard to users of the Parts equipment.
  • Page 10: Operating The Dtr-Z

    Guardian Telecom Inc. Installation and Operation Desktop Ringdown Telephones DTR-51-Z & DTR-61-Z Fuses • There are no replaceable fuses in the DTR-Z. • The phone line fuse on the circuit board of all models is of the resettable type and is not replaceable. If the fuse trips due to an external event it will reset in a short period of time.
  • Page 11: Product Specifications

    Guardian Telecom Inc. Installation and Operation Desktop Ringdown Telephones DTR-51-Z & DTR-61-Z Product Specifications ERFORMANCE 300 – 3400 H UDIBLE ANGE REQUENCY ESPONSE , 2 dB/S ECEIVER OLUME DJUSTMENT TEPS ESIDENTIAL NDUSTRIAL REAS ETSI TBR 38: M 1998 ( ONFORMS...
  • Page 12: Replacement Parts

    Guardian Telecom Inc. Installation and Operation Desktop Ringdown Telephones DTR-51-Z & DTR-61-Z OMPLIANCE 0518 SIRA CERTIFICATION SERVICES OTIFIED TRAC09ATEX21205X ERTIFICATE UMBER ECLARATION OF OMPLIANCE BY UARDIAN ELECOM VAILABLE ECLARATION OF ONFORMITY ON OLLOWING HEET ATEX coding II 2G Ex e ib mb IIC T5 Gb II 2D Ex ib mb tb IIIC T100°C Db...
  • Page 13: Ec Declaration Of Conformity

    Guardian Telecom Inc. Installation and Operation Desktop Ringdown Telephones DTR-51-Z & DTR-61-Z EC Declaration of Conformity Page 13...
  • Page 14 Guardian Telecom Inc. Installation and Operation Desktop Ringdown Telephones DTR-51-Z & DTR-61-Z Page 14...
  • Page 15: Warranty

    Warranty Guardian Telecom warrants your product to be free of defects in material and workmanship for a period of one year. Guardian Telecom will repair or replace any defective unit that is under warranty free of charge. This warranty is null and void if any non-authorized modifications have been made to this product, or if it has been subjected to misuse, neglect, or accident.
  • Page 16: Guardian Product Return

    When a product has been installed following user manual instructions, and the unit fails to operate, the user must contact Guardian Telecom to obtain authorization to return the product. This can be done by completing a RMA form online at www.guardiantelecom.com, or by calling the service telephone number given in this...
  • Page 17 Guardian Telecom Inc. Installation and Operation Desktop Ringdown Telephones DTR-51-Z & DTR-61-Z Notes: Model No. Part No. Serial No. Date of Purchase Page 17...
  • Page 18 THIS PAGE INTENTIONALLY LEFT BLANK...
  • Page 19 THIS PAGE INTENTIONALLY LEFT BLANK...
  • Page 20 Guardian Telecom Inc. Toll-free 1-800-363-8010 Phone (403) 258-3100 Fax. (403) 253-4967 www.guardiantelecom.com E-mail: sales@guardiantelecom.com (CTRL + Click to open message box) CONNECTED. PROTECTED. © Guardian Telecom Inc. 2016...
