Watertight 4x, ip-66 telephones

Advertisement

Quick Links

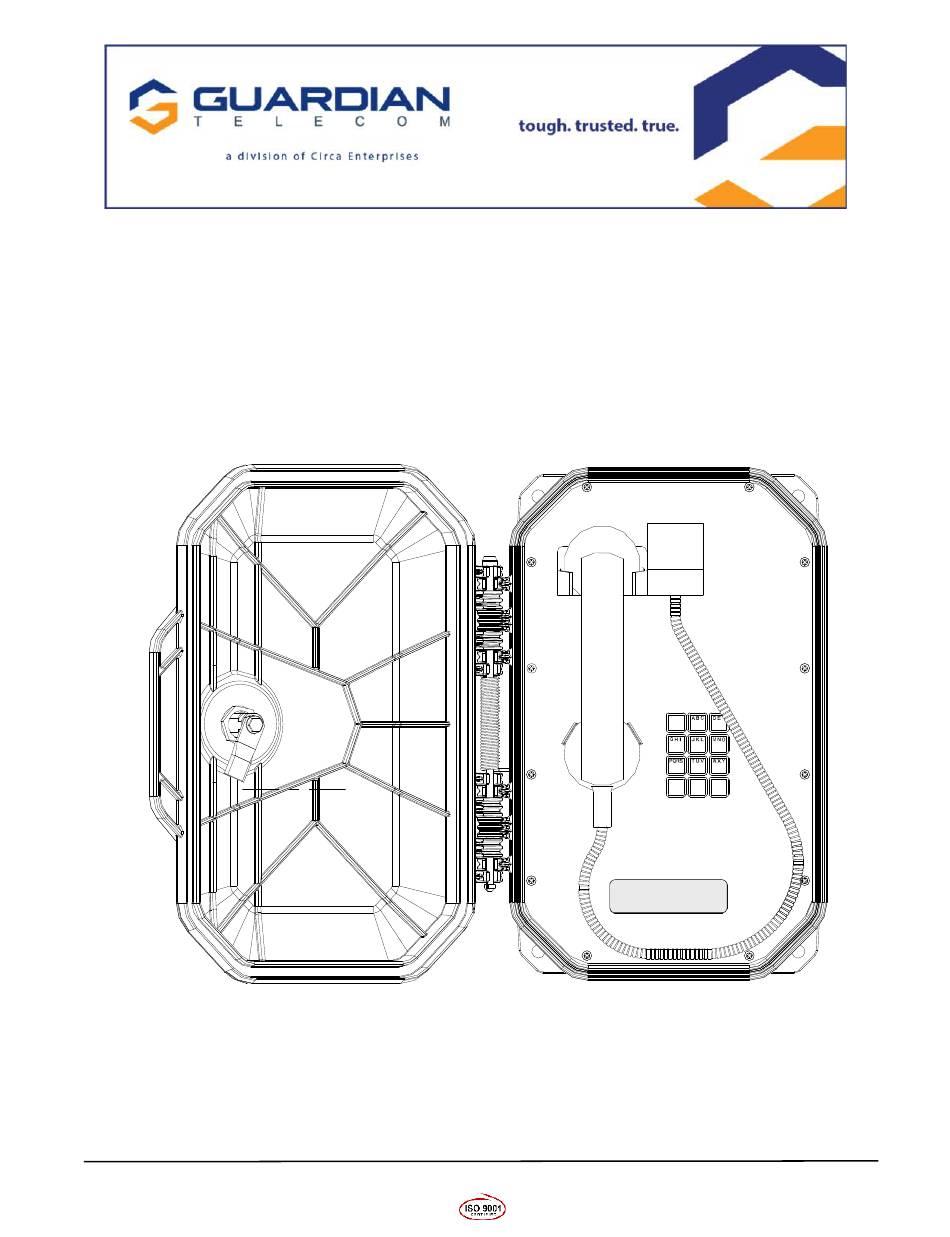

Watertight 4X, IP-66 Telephones
Installation and Operation
Ph: 403.258.3100 \ email:info@guardiantelecom.com \ www.guardiantelecom.com
WTT Series
WTT-40
*
#
Guardian
P005612 Rev. D 180620 6/20/2018 1:46 PM
1
2
3
4
5
6
7
8
9
0
Telecom Inc.
XXXXXXXX
XXXXXXXX
XXXXXXXX
MODEL:
XXX-XX
SN:
XXXXXXXX
REN:
0.9B
IC:
1012 6721 A
FCC: HQHCAN-22517-TE-E
www.guardiantelecom.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WTT-40 and is the answer not in the manual?

Questions and answers

Summary of Contents for Guardian Telecom WTT-40

  • Page 1 Watertight 4X, IP-66 Telephones WTT Series Installation and Operation WTT-40 Ph: 403.258.3100 \ email:info@guardiantelecom.com \ www.guardiantelecom.com Guardian P005612 Rev. D 180620 6/20/2018 1:46 PM Telecom Inc. XXXXXXXX XXXXXXXX XXXXXXXX MODEL: XXX-XX XXXXXXXX REN: 0.9B 1012 6721 A FCC: HQHCAN-22517-TE-E www.guardiantelecom.com...
  • Page 2: Table Of Contents

    (1) Installation and Operation Manual • P5301 WTT-30 Watertight 4X telephone with Coil cord. • P5302 WTT-40 Watertight 4X telephone with armored handset cord. Vandal Resistant Screws Locking door Potted ring detect relay, (internal to telephone) P7224 Potted off-hook detect relay, (internal to telephone)
  • Page 3: Overview

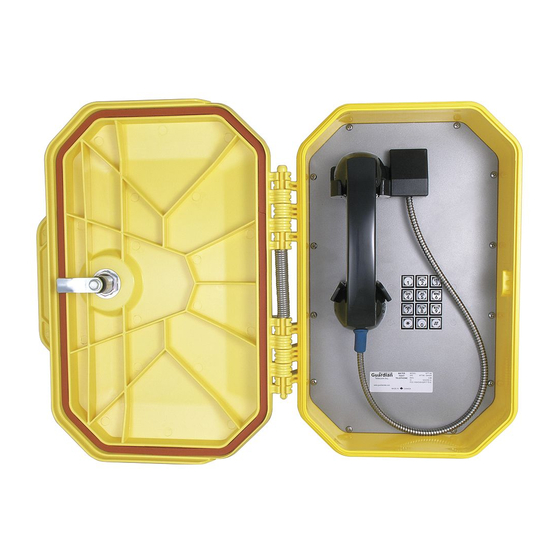

    The WTT-30 is a standard model with a Coil cord and the WTT-40 is a vandal resistant model with an armored handset cord.
  • Page 4: Figure 1 - Features

    Guardian Telecom Installation and Operation WTT Series Figure 1 - Features Figure 2 - Overall Dimensions Page 4 WTT-30 WTT-40 7.9" [200mm] 11.6" [296mm] MAGNETIC REED HOOK SWITCH MAGNETIC REED HOOK SWITCH FACEPLATE-14 GA FACEPLATE-14 GA STEEL, SATIN COAT STEEL, SATIN COAT...
  • Page 5: Figure 3 - Installation

    Guardian Telecom Installation and Operation WTT Series Figure 3 - Installation Figure 4 - Setting Dialing Mode Page 5 TONE/PULSE JUMPER SEE DETAIL 1 DETAIL 1 8.00" [203mm] Ø0.41" [Ø10.4mm] FUSE CONNECT TO CIRCUIT BOARD HARNESS SURGE ARRESTOR PULSE TONE...
  • Page 6: Installation

    Guardian Telecom Installation and Operation WTT Series Installation Operation • Follow all appropriate electrical codes and use only approved electrical fittings for the installation. • For waterproofing purposes apply Teflon tape to all glands and conduits. • Choose a wall location that is free of obstructions and permits space for ½”...
  • Page 7: Field Repairs

    WARNING! Guardian Telecom Installation and Operation WTT Series Field Repairs Field repairs may only be carried out by qualified technicians using OEM parts. Substitution of parts voids warranty and may pose a hazard to users of the equipment. • Disconnect the telephone from Tip and Ring power supplied by the PABX or central office.
  • Page 8: Specifications

    Guardian Telecom Installation and Operation WTT Series Specifications Electrical Performance 300 - 3400 H DTMF or 40/60 P 10 PPS (TOLR) -38 +/- 3 dB +8.1 / -5.1 dB 2.7 dB (ROLR) 50 +/- 3 dB 42 +/- 3 dB 55.4 +/- 3 dB...
  • Page 9: Replacement Parts

    Part No. Description P006513 Faceplate P006499 Faceplate Gasket P005391 Handset assembly C/W 4’ Coil cord for WTT-30 P005699 Handset assembly C/W 22” armored cord for WTT-40 P002786 Handset Cradle P005917 Reed switch P004371 Handset retainer P000028 Noise reducing microphone P002080...
  • Page 10: Government Certification

    Guardian Telecom Installation and Operation WTT Series Government Certification Page 10 Attached to the telephone are labels for Industry Canada and the United States Federal Communications Commission. These identify equipment certifications indicating the 60 and 70 series telephones meet certain telecommunications network protective, operational and safety requirements.
  • Page 11: Warranty

    Guardian Telecom warrants your product to be free of defects in material and workmanship for a period of one year. Guardian Telecom will repair or replace any defective unit that is under warranty This warranty is null and void if any non-authorized modifications have been made to this product, or if it has been subjected to misuse, neglect, or accident.
  • Page 12: Guardian Product Return

    When a product has been installed following user manual instructions, and the unit fails to operate, the user must contact Guardian Telecom to obtain authorization to return the product. This can be done by completing an RMA form online at https://www.guardiantelecom.com/support/rma/, or by calling the service telephone...
  • Page 13: Cleaning Tips For Guardian Telephones

    Guardian Telecom Installation and Operation WTT Series Cleaning Tips for Guardian Telephones Storage Guardian Telephones may occasionally need to be cleaned to maintain appearance. Generally, wiping the surface with a clean, water dampened cloth will remove most films or residues. If the soiling is too stubborn for plain water, a mild detergent solution may be used.
  • Page 14 Guardian Telecom Installation and Operation WTT Series Notes: Model No. Part No. Serial No. Date of Purchase Page 14...
  • Page 15 THIS PAGE INTENTIONALLY LEFT BLANK...
  • Page 16 Tough. Trusted. True. Guardian Telecom, a division of Circa Enterprises Inc. Toll-free 1-800-363-8010 Phone (403) 258-3100 Fax. (403) 253-4967 www.guardiantelecom.com E-mail: sales@guardiantelecom.com (Click to open message box) © Guardian Telecom 2018...
