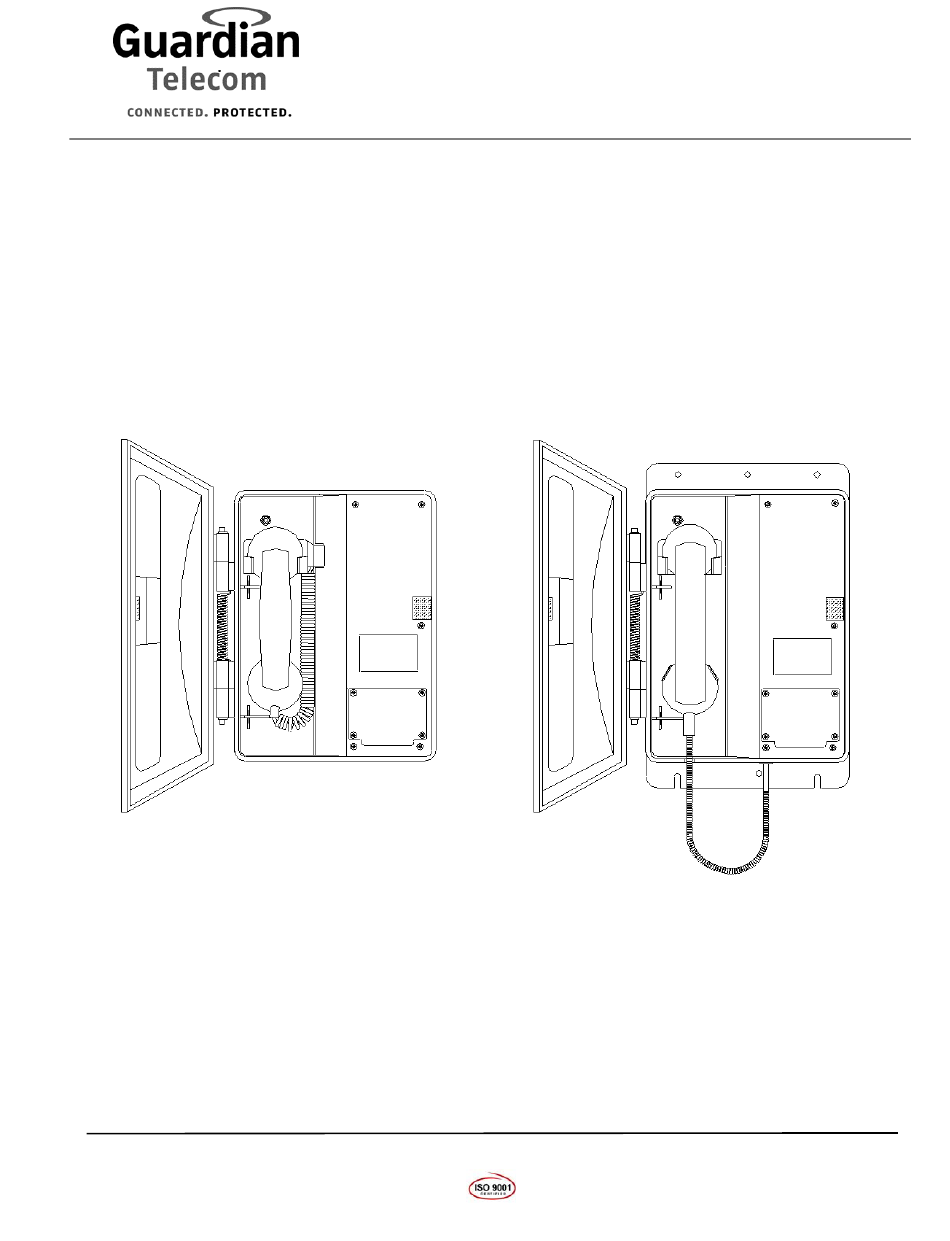

- Page 1 Weatherproof Industrial Ringdown Telephones WRR Series Installation & Operation WRR-11 WRR-41 P005607 Rev. D 141112 11/12/2014 12:30 PM Ph: 403.258.3100 \ email:info@guardiantelecom.com \ www.guardiantelecom.com...
-
Page 2: Table Of Contents
Table of Contents Package Contents.................2 Overview ....................3 Standard Features on All Models............3 Features (Specific Models) ..............4 Options Available ..................4 Accessories...................4 Installing the WRR ................7 Operating the WRR Series..............8 Field Repairs ..................9 Engineering Specifications..............10 Replacement Parts................11 Government Certification ..............12 Warranty....................13 Disclaimer ...................13 Warning....................13 ... -
Page 3: Overview

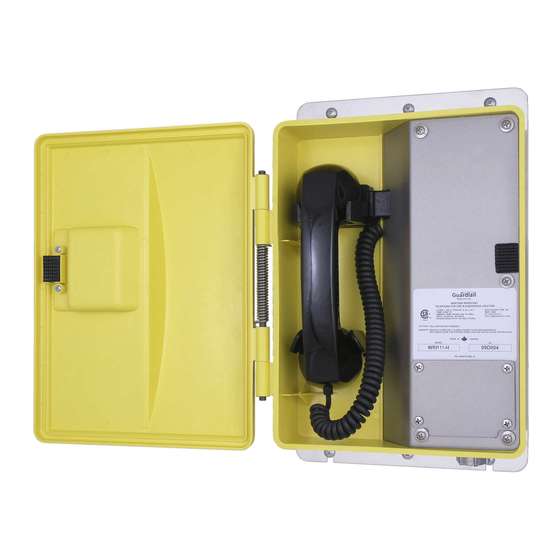

Guardian Telecom Inc. Installation and Operation Model WRR Series Overview WRR Industrial Ringdown Telephone The WRR is a rugged industrial telephone designed to provide safe, reliable, point to point communication in harsh environments such as refineries, mills, plants, warehouses, airports, ski hills or areas with high humidity. -
Page 4: Features (Specific Models)
Guardian Telecom Inc. Installation and Operation Model WRR Series Features (Specific Models) P6076 Model WRR-11 Industrial Weather Resistant Ringdown Telephone 6’ Curly Cord P6077 Model WRR-41 Industrial Weather Resistant Ringdown Telephone 22” Armored Handset Cord Handset Retainer Clips ... -
Page 5: Figure 1 - Wrr-11 Features
Guardian Telecom Inc. Installation and Operation Model WRR Series Figure 1 - WRR-11 Features 9.6 [244.55] 8.8" [224mm] Figure 2 - WRR-11 Overall Dimensions Page 5... -
Page 6: Figure 3 - Wrr-41 Features
Guardian Telecom Inc. Installation and Operation Model WRR Series Figure 3 - WRR-41 Features 9.6" [245mm] 6.0" [152mm] Ø0.3" [Ø7mm] 3.0" [76mm] 4 PLCS. FRONT VIEW OF TELEPHONE WITH DOOR CLOSED FRONT VIEW OF TELEPHONE WITH DOOR OPEN BOTTOM VIEW OF TELEPHONE WITH DOOR CLOSED... -
Page 7: Installing The Wrr
Guardian Telecom Inc. Installation and Operation Model WRR Series Installing the WRR Follow all appropriate electrical codes and use only approved electrical fittings for the installation. Choose a wall location that is free of obstructions and permits space for See: Figure 2 - WRR-11 Overall Dimensions &... -
Page 8: Operating The Wrr Series
GROUND CONNECTION GROUND TIP & RING CONNECTION Figure 5 - Tip & Ring Connection Operating the WRR Series Lift the handset and the telephone will dial automatically. When the call is completed replace the handset in the cradle. Page 8... -
Page 9: Field Repairs
Guardian Telecom Inc. Installation and Operation Model WRR Series Field Repairs Field repairs may only be carried out by qualified technicians using OEM parts. See: Replacement Parts Substitution of parts voids warranty and may pose a hazard to users of the equipment. -
Page 10: Engineering Specifications
Guardian Telecom Inc. Installation and Operation Model WRR Series Engineering Specifications Electrical Performance 300 – 3400 H UDIBLE ANGE REQUENCY ESPONSE (TOLR) -41 +/- 4 dB RANSMIT BJECTIVE OUDNESS ATING (ROLR) 50 +/- 3 dB ECEIVE BJECTIVE OUDNESS ATING YPICAL... -
Page 11: Replacement Parts
Guardian Telecom Inc. Installation and Operation Model WRR Series Compliance 1012 6721 A NDUSTRY ANADA HQHCAN-22517-TE-E NEMA 3R EATHERPROOF NCLOSURE MIL-STD-810E NVIRONMENTAL URVIVABILITY Replacement Parts Part No. Description P005778 Faceplate WRR (All Models) P005479 Handset Shell – C/W 22” Armored Cord & Volume Control P005477 Handset Shell C/W 6’... -
Page 12: Government Certification
Guardian Telecom Inc. Installation and Operation Model WRR Series Government Certification Attached to the telephone are labels for Industry Canada and the United States Federal Communications Commission. These identify equipment certifications indicating the 60 and 70 series telephones meet certain telecommunications network protective, operational and safety requirements. -
Page 13: Warranty
Warranty Guardian Telecom warrants your product to be free of defects in material and workmanship for a period of one year. Guardian Telecom will repair or replace any defective unit that is under warranty free of charge. This warranty is null and void if any non-authorized modifications have been made to this product, or if it has been subjected to misuse, neglect, or accident. -
Page 14: Guardian Product Return
When a product has been installed following user manual instructions, and the unit fails to operate, the user must contact Guardian Telecom to obtain authorization to return the product. This can be done by completing a RMA form online at www.guardiantelecom.com, or by calling the service telephone number given in this... - Page 15 Guardian Telecom Inc. Installation and Operation Model WRR Series Notes: Model No. Part No. Serial No. Date of Purchase Page 15...
- Page 16 Guardian Telecom Inc. Toll-free 1-800-363-8010 Phone (403) 258-3100 Fax. (403) 253-4967 www.guardiantelecom.com E-mail: sales@guardiantelecom.com (Click to open message box) CONNECTED. PROTECTED. © Guardian Telecom Inc. 2014...
