Summary of Contents for Guardian Telecom CIT-40

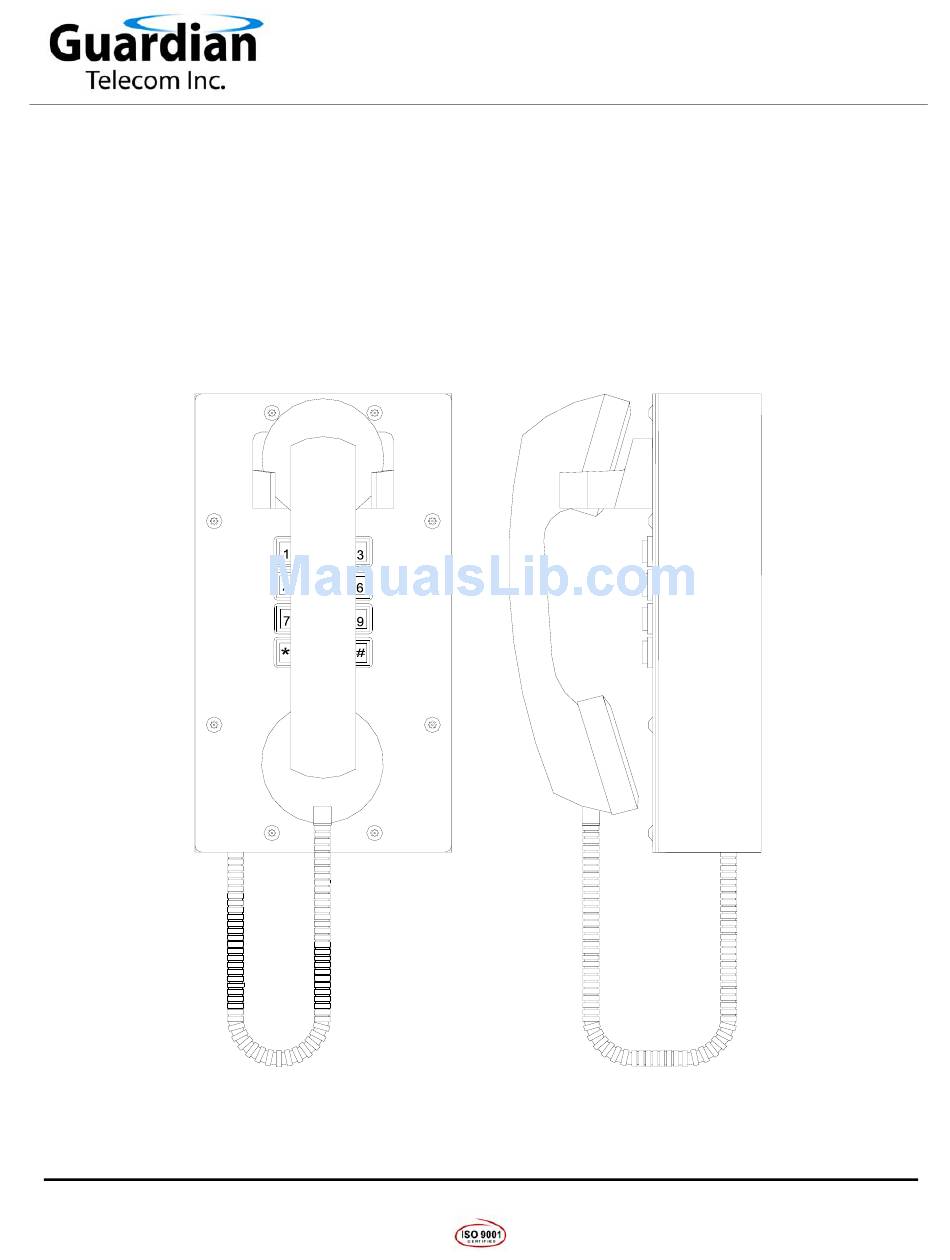

  • Page 1 Industrial Communications Worldwide Correctional Institute Telephone Model CIT-40 Installation & Operation P005687 Rev. B 041122 3/8/2007 8:58 AM 7552 - 10th Street N.E. Calgary, Alberta, Canada T2E 8W1 Ph: 403.258.3100 \ email:info@guardiantelecom.com \ www.guardiantelecom.com...
  • Page 2: Table Of Contents

    Guardian Telecom Inc. Package Contents ...2 Overview ...3 Features ...3 Installing the CIT-40 ...6 Operation...6 Field Repairs ...6 Setting Dialing Mode ...7 Fuse Replacement ...7 Engineering Specifications ...8 Warranty ...9 Disclaimer...9 Warning ...9 Service Telephone Number...9 Feedback...9 Guardian Product Return ...10 Figure 1 - Features ...4...
  • Page 3: Overview

    Guardian Telecom Inc. CIT-40 Correctional Institute Telephone The CIT-40 is a rugged telephone designed to provide safe and reliable communication in locations prone to abuse and vandalism. Enclosure and Faceplate • 16 AWG steel, zinc dichromate plated and powder coated, faceplate secured with vandal resistant screws.
  • Page 4: Figure 1 - Features

    Guardian Telecom Inc. Installation and Operation Model CIT-40 SEALED MAGNETIC REED HOOK SWITCH HIGH IMPACT ABS HANDSET C/W HEARING AID COMPATIBLE EARPIECE AND GLUED ENDCAPS METAL KEYPAD TAMPER RESISTANT SCREWS ARMOURED CORD Figure 1 - Features 5.0" [127mm] 2.1" [54mm]...
  • Page 5: Figure 3 - Mounting

    1.7" [42mm] 1.7" [42mm] 1.5" [38mm] Figure 3 - Mounting FROM HOUSING HARNESS FROM VOLUME CONTROL (OPTIONAL) Figure 4 - Electrical Connections Page 5 Installation and Operation Model CIT-40 CONNECT TO FACEPLATE HARNESS FUSE RJ11 CONNECTOR TIP AND RING GROUND...
  • Page 6: Installing The Cit-40

    • Bring Tip, Ring and Ground wiring to the location where the wiring access opening in the back of the CIT-40 will be when the telephone is installed. • Remove the eight (8) cover screws from the front of the unit and carefully remove the front cover assembly.
  • Page 7: Setting Dialing Mode

    Guardian Telecom Inc. Setting Dialing Mode The CIT-40 is shipped from the factory set for DTMF (Tone) dialing mode. If loop disconnect (Pulse) dialing is required proceed as follows. • Carefully remove the front cover assembly and separate from the housing by disconnecting the harness plug.
  • Page 8: Engineering Specifications

    16 AWG S OWDER MPACT OISE OISE EARING ERTICAL TAINLESS Page 8 Installation and Operation Model CIT-40 40/60 P 10 PPS ULSE AT 47 +/- 3 dB 10 +/- 4 dB OMINAL (4,600 M) 22 AWG C OPPER RJ11 C...
  • Page 9: Warranty

    Guardian personnel will supply you with an RMA (return materials authorization) number over the telephone or through our web site product return page. This number must be included with your return address and the name of the person to contact.
  • Page 10: Guardian Product Return

    • Connecting a telephone to a standard power source, rather than tip & ring, will blow the telephone’s internal, user-replaceable fuse. In the event of fuse burn-out, disconnect the telephone from the power source, replace the fuse, and reconnect following the wiring diagrams provided with the product.
  • Page 11 Guardian Telecom Inc. Installation and Operation Model CIT-40 Notes: Model No. Part No. Serial No. Date of Purchase Page 11...
  • Page 12 Guardian Telecom Inc. 7552 - 10th Street N.E. Calgary, Alberta, Canada T2E 8W1 Toll-free 1-800-363-8010 Ph. (403) 258-3100 Fax. (403) 253-4967 www.guardiantelecom.com E-mail: sales@guardiantelecom.com Industrial Communications Worldwide © Guardian Telecom Inc. 2004...
