Icom IC-M505 Instruction Manual page 36

6

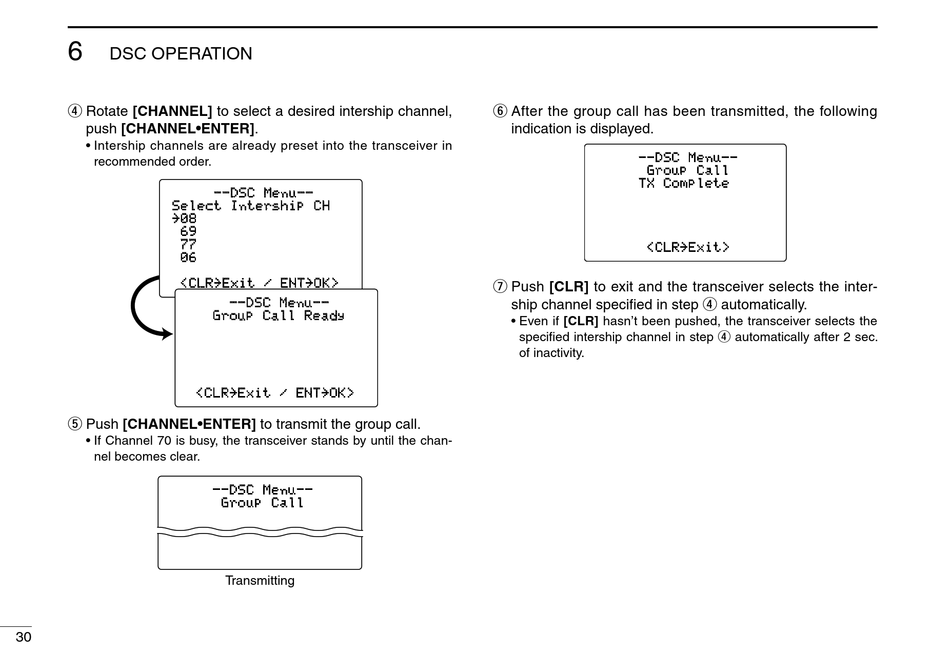

DSC OPERATION
r Rotate [CHANNEL] to select a desired intership channel,
push [CHANNEL•ENTER].
• Intership channels are already preset into the transceiver in
recommended order.
Select Intership CH
˘08
69
77
06
<CLR˘Exit / ENT˘OK>
t Push [CHANNEL•ENTER] to transmit the group call.
• If Channel 70 is busy, the transceiver stands by until the chan-
nel becomes clear.
30
--DSC Menu--
--DSC Menu--
Group Call Ready
<CLR˘Exit / ENT˘OK>
--DSC Menu--
Group Call
Transmitting
y After the group call has been transmitted, the following
indication is displayed.
--DSC Menu--
Group Call
TX Complete
<CLR˘Exit>
u Push [CLR] to exit and the transceiver selects the inter-
ship channel specified in step r automatically.
• Even if [CLR] hasn't been pushed, the transceiver selects the
specified intership channel in step r automatically after 2 sec.
of inactivity.
