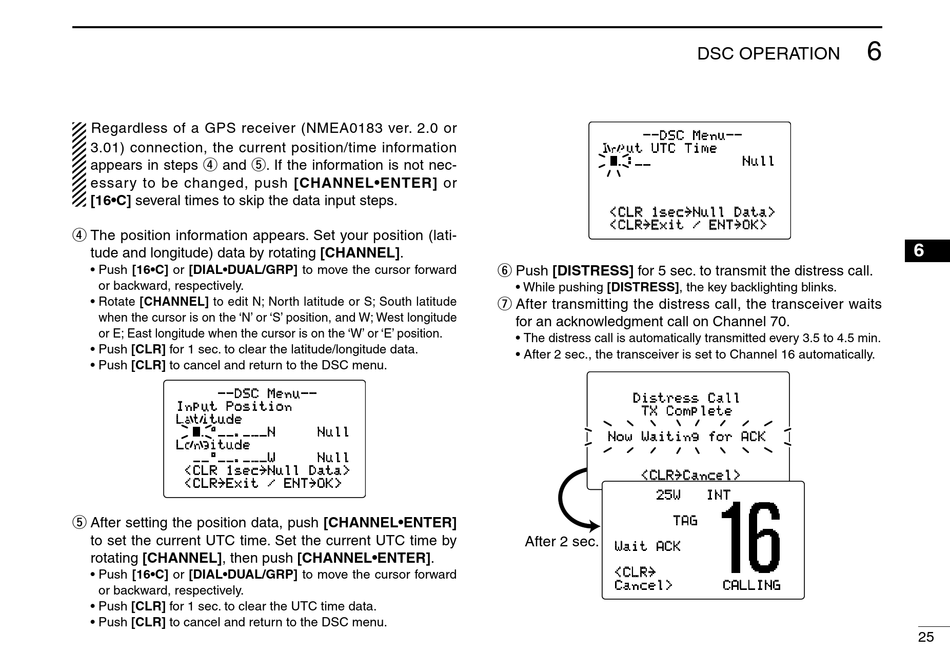

Regardless of a GPS receiver (NMEA0183 ver. 2.0 or
3.01) connection, the current position/time information
appears in steps r and t. If the information is not nec-
essary to be changed, push [CHANNEL•ENTER] or
[16•C] several times to skip the data input steps.
r The position information appears. Set your position (lati-
tude and longitude) data by rotating [CHANNEL].
• Push [16•C] or [DIAL•DUAL/GRP] to move the cursor forward
or backward, respectively.
• Rotate [CHANNEL] to edit N; North latitude or S; South latitude
when the cursor is on the 'N' or 'S' position, and W; West longitude
or E; East longitude when the cursor is on the 'W' or 'E' position.
• Push [CLR] for 1 sec. to clear the latitude/longitude data.
• Push [CLR] to cancel and return to the DSC menu.
--DSC Menu--
Input Position
Latitude
__°__.___N
Longitude
__°__.___W
<CLR 1sec ˘ Null Data>
<CLR ˘ Exit / ENT ˘ OK>
t After setting the position data, push [CHANNEL•ENTER]
to set the current UTC time. Set the current UTC time by
rotating [CHANNEL], then push [CHANNEL•ENTER].
• Push [16•C] or [DIAL•DUAL/GRP] to move the cursor forward
or backward, respectively.
• Push [CLR] for 1 sec. to clear the UTC time data.
• Push [CLR] to cancel and return to the DSC menu.
Null
Null
--DSC Menu--
Input UTC Time
__:__
<CLR 1sec ˘ Null Data>
<CLR ˘ Exit / ENT ˘ OK>
y Push [DISTRESS] for 5 sec. to transmit the distress call.
• While pushing [DISTRESS], the key backlighting blinks.
u After transmitting the distress call, the transceiver waits
for an acknowledgment call on Channel 70.
• The distress call is automatically transmitted every 3.5 to 4.5 min.
• After 2 sec., the transceiver is set to Channel 16 automatically.
Distress Call
TX Complete
Now Waiting for ACK
<CLR ˘ Cancel>
25W
TAG
After 2 sec.
Wait ACK
<CLR ˘
Cancel>
6
DSC OPERATION
Null
INT
CALLING
6
25
