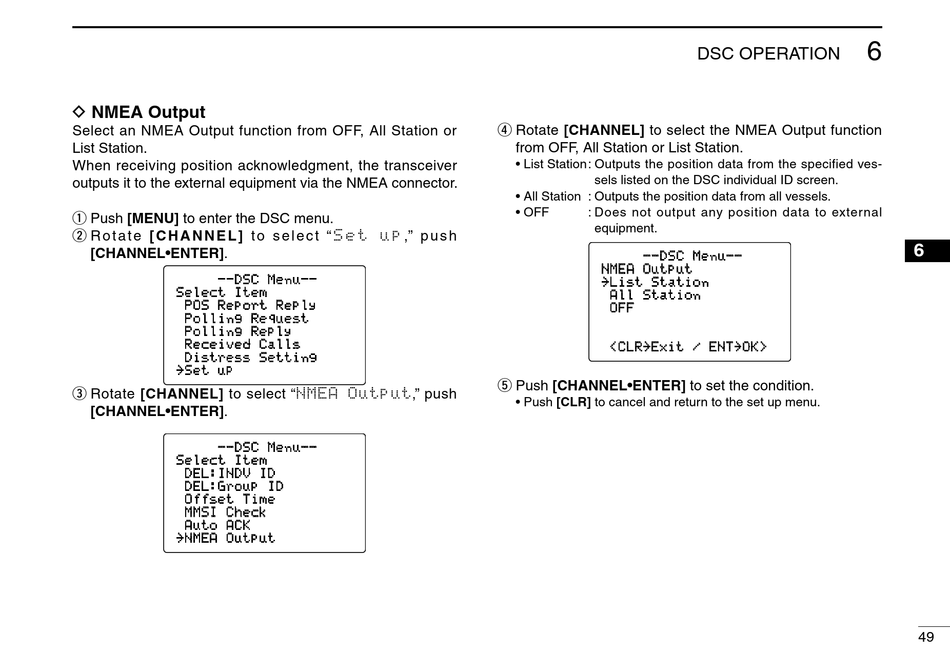

D NMEA Output
Select an NMEA Output function from OFF, All Station or
List Station.
When receiving position acknowledgment, the transceiver
outputs it to the external equipment via the NMEA connector.
q Push [MENU] to enter the DSC menu.
w R o t a t e [ C H A N N E L ] t o s e l e c t " S e t u p ," p u s h
[CHANNEL•ENTER].
--DSC Menu--
Select Item
POS Report Reply
Polling Request
Polling Reply
Received Calls
Distress Setting
˘Set up
e Rotate [CHANNEL] to select "NMEA Output," push
[CHANNEL•ENTER].
--DSC Menu--
Select Item
DEL:INDV ID
DEL:Group ID
Offset Time
MMSI Check
Auto ACK
˘NMEA Output
r Rotate [CHANNEL] to select the NMEA Output function
from OFF, All Station or List Station.
• List Station: Outputs the position data from the specified ves-
sels listed on the DSC individual ID screen.
• All Station : Outputs the position data from all vessels.
• OFF : Does not output any position data to external
equipment.
--DSC Menu--
NMEA Output
˘List Station
All Station
OFF
<CLR ˘ Exit / ENT ˘ OK>
t Push [CHANNEL•ENTER] to set the condition.
• Push [CLR] to cancel and return to the set up menu.
