Ingersoll-Rand PD30X-X-B Operator's Manual

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to Model Description Chart to match the pump material options.
637303-XX for fluid section repair (see page 4). Note: This kit also con-
tains several air motor seals which will need to be replaced.
637302 for air section repair (see page 6).
67089-X major air valve assembly (see page 7)
PUMP DATA
Models . . . . . . . . . . . . .
Pump Type . . . . . . . . . . Metallic Air Operated Double Diaphragm
Material . . . . . . . . . . . . . see Model Description Chart.
Weight . . . . PD30A-XAX-XXX-B( )
PD30A-XCX-XXX-B( )
PD30A-XHX-XXX-B( )
PD30A-XSX-XXX-B( )
(add 40 lbs [18.1 kg] for stainless steel air motor section)
Maximum Air Inlet Pressure
Ball check models . . . . . . . . . . . . .
Cone check models . . . . . . . . . . . .
Maximum Material Inlet Pressure
Maximum Outlet Pressure
Ball check models . . . . . . . . . . . . .
Cone check models . . . . . . . . . . . .
Maximum Flow Rate
(flooded inlet)
Ball check models . . . . . . . . . . . . .
Cone check models . . . . . . . . . . . .
Displacement / Cycle @ 100 p.s.i.g.
Maximum Particle Size
Ball check models . . . . . . . . . . . . .
Cone check models . . . . . . . . . . . .
Maximum Temperature Limits (diaphragm / ball / seal material)
E.P.R. / EPDM . . . . . . . . . . .
R
Hytrel . . . . . . . . . . . . . . . .
Nitrile . . . . . . . . . . . . . . . . .
R
P.V.D.F. (Kynar ) . . . . . . . .
R
Santoprene . . . . . . . . . . .
PTFE . . . . . . . . . . . . . . . . .
R
Viton . . . . . . . . . . . . . . . .
Dimensional Data . . . . . . . . . . . . . . . .
Mounting Dimensions . . . 10-5/32" x 12-1/16" (258 mm x 306 mm)
Noise Level @ 70 p.s.i., 50 c.p.m.
Tested with 67263 muffler assembly installed.
The pump sound pressure levels published here have been updated to an Equivalent
Continuous Sound Level (L ) to meet the intent of ANSI S1.13-1971, CAGI-PNEU-
Aeq
ROP S5.1 using four microphone locations.
NOTICE: All possible options are shown in the chart however certain com-
binations may not be recommended, consult a representative or the fac-
tory if you have questions concerning availability.
INGERSOLL RAND COMPANY
209 NORTH MAIN STREET- BRYAN, OHIO 43506
D
(800) 276-4658 FAX (800) 266-7016
www.ingersollrandproducts.com

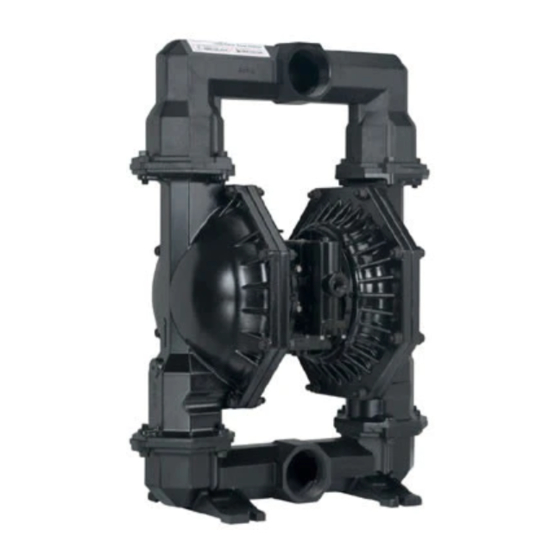

3" DIAPHRAGM PUMP
1:1 RATIO (METALLIC)
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
see Model Description Chart for "-XXX".
. . . 113 lbs (51.3 kgs)
. . . 197 lbs (89.4 kgs)
. . . 203 lbs (92.1 kgs)
. . . 203 lbs (92.1 kgs)
120 p.s.i.g. (8.3 bar)
100 p.s.i.g. (6.9 bar)
. . . . . 10 p.s.i.g. (.69 bar)
120 p.s.i.g. (8.3 bar)
100 p.s.i.g. (6.9 bar)
275 g.p.m. (1041 l.p.m.)
195 g.p.m. (738.1 l.p.m.)
. . . 2.8 gal. (10.6 lit.)
3/8" dia. (9.5 mm)
3/4" dia. (18.75 mm)
-60_ to 280_ F (-51_ to 138_ C)
-20_ to 150_ F (-29_ to 66_ C)
10_ to 180_ F (-12_ to 82_ C)
10_ to 200_ F (-12_ to 93_ C)
-40_ to 225_ F (-40_ to 107_ C)
40_ to 225_ F (4_ to 107_ C)
-40_ to 350_ F (-40_ to 177_ C)
see page 8
. . . . 83.0 db(A)
E
2010 CCN 99756587
MODEL DESCRIPTION CHART
PD30 X - X X X - X X X - B 03
CENTER SECTION MATERIAL
A - Aluminum S - Stainless Steel
THREAD
A - N.P.T.F. B - BSP
FLUID CAPS & MANIFOLD MATERIAL
A - Aluminum H - Hastelloy
C - Cast Iron S - Stainless Steel
HARDWARE MATERIAL
P - Plated Steel S - Stainless Steel
SEAT MATERIAL
A - Santoprene H - Hard 440 Stainless Steel
C - Hytrel K - PVDF (Kynar)
E - Carbon Steel L - Hastelloy
F - Aluminum S - 316 Stainless Steel
G - Nitrile 0 - (Cone Check)
BALL MATERIAL
( ) Cone Check models
=
A - Santoprene J - Nitrile
( = )
C - Hytrel K - E.P.R.
( =
G - Nitrile L - Viton
( = )
DIAPHRAGM MATERIAL
A - Santoprene G - Nitrile
C - Hytrel T - PTFE
CONE CHECK FLOW
03 - Bottom Discharge
FLUID SECTION SERVICE KIT SELECTION
EXAMPLE: MODEL # PD30A-ACS-SAA-B
FLUID SECTION SERVICE KIT # 637303-AA
PD30X-X-B
RELEASED: 8-14-98
REVISED:
(REV. P)
3" DIAPHRAGM PUMP
PD30X-XXX-XXX-B( )
T - PTFE
V - Viton
)
V - Viton
PD30X - XXX - X X X - B( )
637303 - X X
Ball Diaphragm
5-7-10
