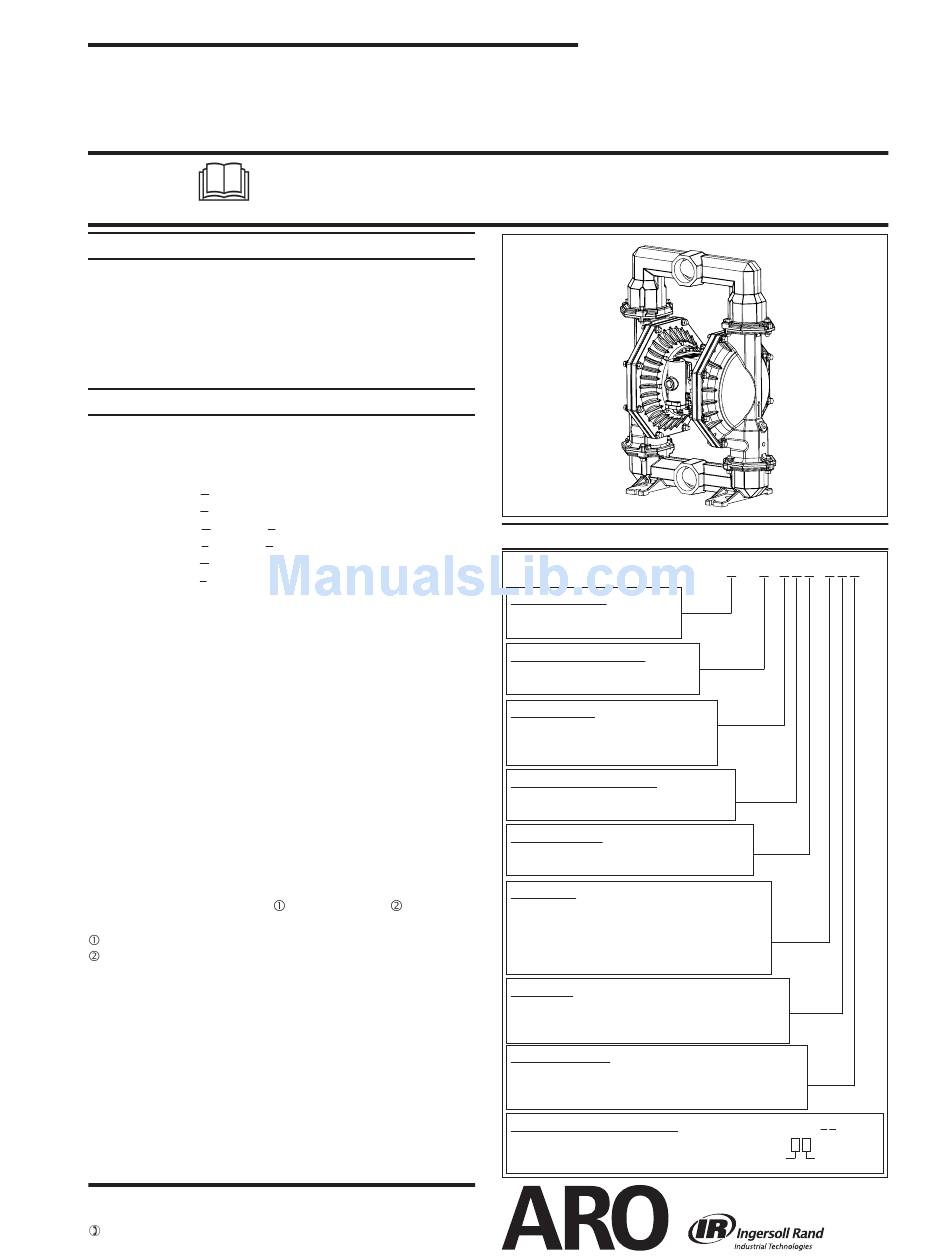

Ingersoll-Rand PE30X-XXX-XXX-C Operator's Manual

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to Model Description Chart to match the pump material op-
tions.
637303-XX for fl uid section repair (see page 4). NOTE: This kit also
contains several air motor seals which will need to be replaced.
637374-X major air valve assembly (see page 7).
637421 for air section repair (see page 6).
PUMP DATA
Models . . . . . . . . . . . . . . . . . see Model Description Chart for "-XXX"
Pump Type . . . . . . . . . . . . . Metallic Air Operated Double Diaphragm
Material . . . . . . . . . . . . . . . . see Model Description Chart
Weight . . PX30A-XAX-XXX-C . . . . . . . . . . . . 129.5 lbs (58.8 kgs)
PX30A-XCX-XXX-C . . . . . . . . . . . . 216.6 lbs (98.2 kgs)
PX30A-AHX-XXX-C, -BHX . . . . . 249.8 lbs (113.3 kgs)
PX30A-ASX-XXX-C, -BSX . . . . . . 228.8 lbs (103.8 kgs)
PX30A-FHX-XXX-C . . . . . . . . . . . . 269.6 lbs (122.3 kgs)
PX30A-FSX-XXX-C . . . . . . . . . . . . 245.6 lbs (111.4 kgs)
(add 40.0 lbs [18.2 kg] for stainless steel air motor section)
Maximum Air Inlet Pressure . . . . . . . . . . . 120 p.s.i.g. (8.3 bar)
Maximum Material Inlet Pressure . . . . . . 10 p.s.i.g. (0.69 bar)
Maximum Outlet Pressure . . . . . . . . . . . . . 120 p.s.i.g. (8.3 bar)
Maximum Flow Rate . . . . . . . . . . . . . . . . . . . 237 g.p.m. (897 l.p.m.)
fl ooded inlet . . . . . . . . . . . 275 g.p.m. (1041 l.p.m.)
Displacement / Cycle @ 100 p.s.i.g. . . . . 2.8 gal. (10.6 lit.)
Maximum Particle Size . . . . . . . . . . . . . . . . 3/8" dia. (9.5 mm)
Maximum Temperature Limits (diaphragm / ball / seal material)
E.P.R. / EPDM . . . . . . . . . . . . . . . . . . . -60° to 280° F (-51° to 138° C)
Hytrel® . . . . . . . . . . . . . . . . . . . . . . . . . -20° to 150° F (-29° to 66° C)
Kynar® PVDF . . . . . . . . . . . . . . . . . . . 10° to 200° F (-12° to 93° C)
Nitrile . . . . . . . . . . . . . . . . . . . . . . . . . . 10° to 180° F (-12° to 82° C)
Santoprene® . . . . . . . . . . . . . . . . . . . -40° to 225° F (-40° to 107° C)
PTFE . . . . . . . . . . . . . . . . . . . . . . . . . . . 40° to 225° F (4° to 107° C)
Viton® . . . . . . . . . . . . . . . . . . . . . . . . . . -40° to 350° F (-40° to 177° C)
Dimensional Data . . . . . . . . . . . . . . . . . . . . . . see page 8
Mounting Dimensions . . 10-5/32" x 12-1/16" (258 mm x 306 mm)
Noise Level @ 70 p.s.i., 50 c.p.m.
Tested with 67263 muffl er assembly installed.
The pump sound pressure levels published here have been updated to
an Equivalent Continuous Sound Level (L
S1.13-1971, CAGI-PNEUROP S5.1 using four microphone locations.
NOTICE: All possible options are shown in the chart, however, certain
combinations may not be recommended, consult a representative or
the factory if you have questions concerning availability.
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 495-0276 FAX(800) 892-6276
www.ingersollrandproducts.com

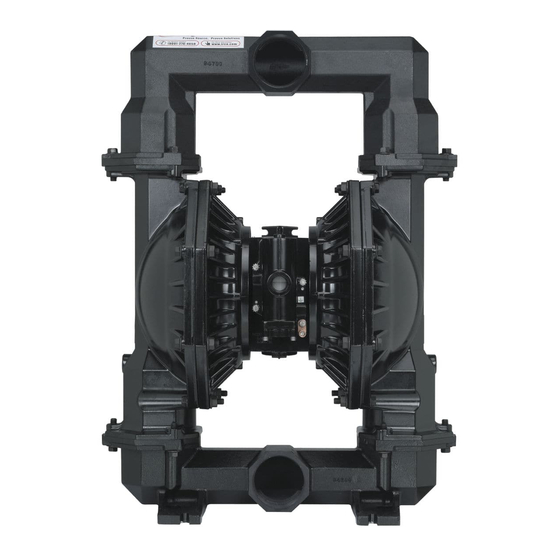

3" DIAPHRAGM PUMP
1:1 RATIO (METALLIC)
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
. . . . . . 83.0 db(A)
) to meet the intent of ANSI
Aeq
© 2011 CCN 15227648
PD30X-XXX-XXX-C
PE30X-XXX-XXX-C
MODEL DESCRIPTION CHART
Electronic Interface
D - None
E - Available
Air Motor / Air Cap Material
A - Aluminum / Aluminum
S - Stainless steel / Stainless steel
Fluid Connection
A - 3 - 8 N.P.T.F. - 1
B - Rp 3 (3 - 11 BSP parallel)
F - 3" ANSI / DIN Flange
Fluid Cap & Manifold Material
A - Aluminum H - Hastelloy®- C
C - Cast Iron S - Stainless steel
Hardware Material
P - Carbon steel
S - Stainless steel
Seat Material
A - Santoprene H - Hard 440 stainless steel
C - Hytrel K - Kynar PVDF
E - Carbon steel L - Hastelloy - C
F - Aluminum S - 316 Stainless steel
G - Nitrile
Ball Material
A - Santoprene T - PTFE
C - Hytrel V - Viton
G - Nitrile
Diaphragm Material
A - Santoprene G - Nitrile
B - Santoprene (backer) T - PTFE / Santoprene
C - Hytrel V - Viton
Fluid Section Service Kit Selection
Example: Model #PD30A-ACS-SVT-C
Fluid Section Service Kit # 637303-VT
RELEASED: 2-9-05
REVISED: 1-16-11
(REV. 07)
Figure 1
P X 30 X - X X X - X X X - C
PD30X - XXX - X X X - C
637303 - X X
Ball Diaphragm
