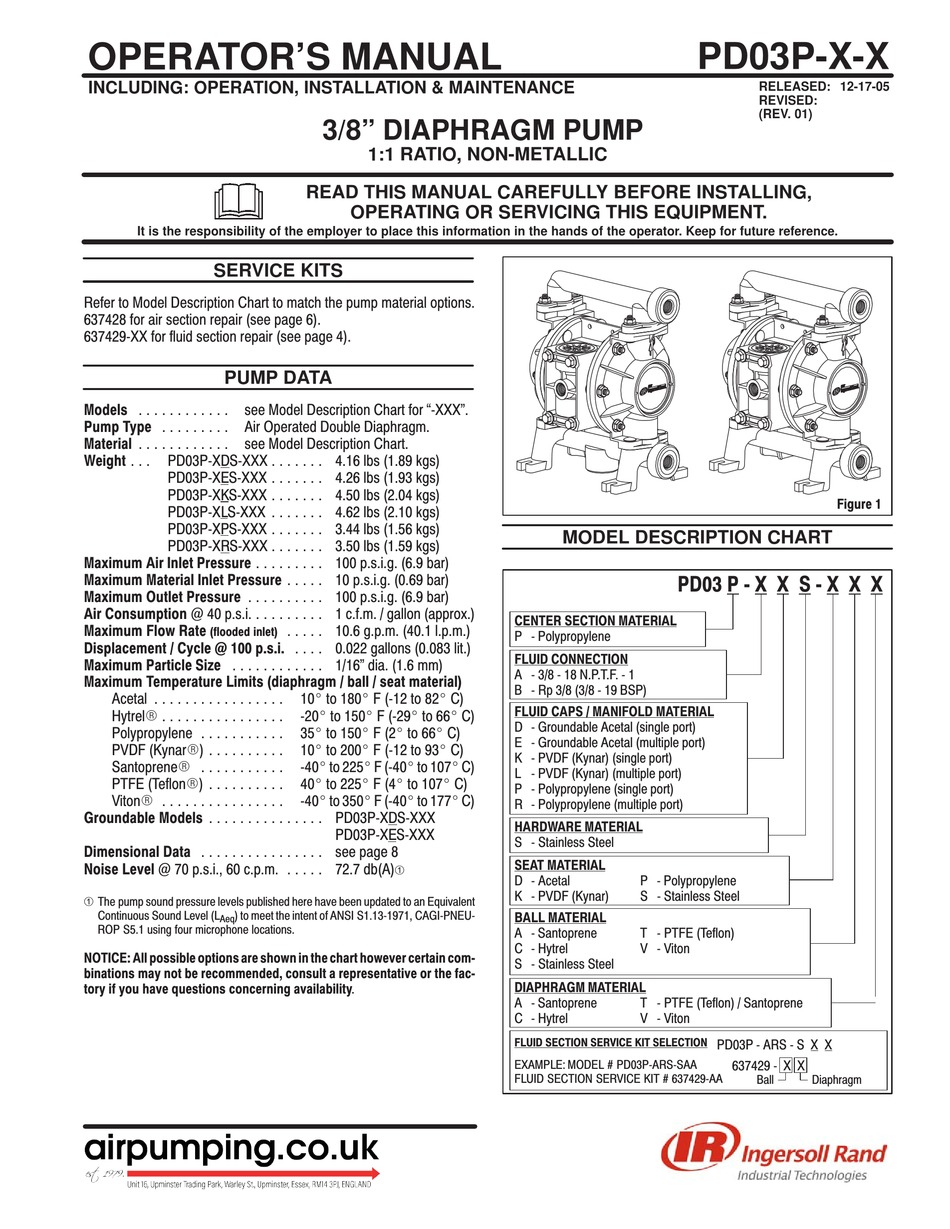

Ingersoll-Rand PD03P Series Operator's Manual

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to Model Description Chart to match the pump material options.
637428 for air section repair (see page 6).
637429 XX for fluid section repair (see page 4).
PUMP DATA
Models . . . . . . . . . . . . see Model Description Chart for  XXX".
Pump Type . . . . . . . . . Air Operated Double Diaphragm.
Material . . . . . . . . . . . . see Model Description Chart.
Weight . . . PD03P XDS XXX
PD03P XES XXX
PD03P XKS XXX
PD03P XLS XXX
PD03P XPS XXX
PD03P XRS XXX
Maximum Air Inlet Pressure . . . . . . . . .
Maximum Material Inlet Pressure
Maximum Outlet Pressure . . . . . . . . . .
Air Consumption @ 40 p.s.i. . . . . . . . . .
Maximum Flow Rate
(flooded inlet)
Displacement / Cycle @ 100 p.s.i.
Maximum Particle Size . . . . . . . . . . . .
Maximum Temperature Limits (diaphragm / ball / seat material)
Acetal . . . . . . . . . . . . . . . . .
HytrelR . . . . . . . . . . . . . . . .
Polypropylene . . . . . . . . . . .
PVDF (KynarR) . . . . . . . . . .
SantopreneR . . . . . . . . . . .
PTFE (TeflonR) . . . . . . . . . .
VitonR . . . . . . . . . . . . . . . .
Groundable Models . . . . . . . . . . . . . . .
Dimensional Data . . . . . . . . . . . . . . . .
Noise Level @ 70 p.s.i., 60 c.p.m.
À The pump sound pressure levels published here have been updated to an Equivalent
Continuous Sound Level (L ) to meet the intent of ANSI S1.13 1971, CAGI PNEU
Aeq
ROP S5.1 using four microphone locations.
NOTICE: All possible options are shown in the chart however certain com
binations may not be recommended, consult a representative or the fac
tory if you have questions concerning availability.
3/8" DIAPHRAGM PUMP
1:1 RATIO, NON-METALLIC
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
. . . . . . . 4.16 lbs (1.89 kgs)
. . . . . . . 4.26 lbs (1.93 kgs)
. . . . . . . 4.50 lbs (2.04 kgs)
. . . . . . . 4.62 lbs (2.10 kgs)
. . . . . . . 3.44 lbs (1.56 kgs)
. . . . . . . 3.50 lbs (1.59 kgs)
100 p.s.i.g. (6.9 bar)
. . . . . 10 p.s.i.g. (0.69 bar)
100 p.s.i.g. (6.9 bar)
1 c.f.m. / gallon (approx.)
. . . . . 10.6 g.p.m. (40.1 l.p.m.)
. . . . 0.022 gallons (0.083 lit.)
1/16" dia. (1.6 mm)
10_ to 180_ F ( 12 to 82_ C)
20_ to 150_ F ( 29_ to 66_ C)
35_ to 150_ F (2_ to 66_ C)
10_ to 200_ F ( 12 to 93_ C)
40_ to 225_ F ( 40_ to 107_ C)
40_ to 225_ F (4_ to 107_ C)
40_ to 350_ F ( 40_ to 177_ C)
PD03P XDS XXX
PD03P XES XXX
see page 8
. . . . . 72.7 db(A)
À
MODEL DESCRIPTION CHART
PD03 P X X S X X X
CENTER SECTION MATERIAL
P Polypropylene
FLUID CONNECTION
A 3/8 18 N.P.T.F. 1
B Rp 3/8 (3/8 19 BSP)
FLUID CAPS / MANIFOLD MATERIAL
D Groundable Acetal (single port)
E Groundable Acetal (multiple port)
K PVDF (Kynar) (single port)
L PVDF (Kynar) (multiple port)
P Polypropylene (single port)
R Polypropylene (multiple port)
HARDWARE MATERIAL
S Stainless Steel
SEAT MATERIAL
D Acetal P Polypropylene
K PVDF (Kynar) S Stainless Steel
BALL MATERIAL
A Santoprene T PTFE (Teflon)
C Hytrel V Viton
S Stainless Steel
DIAPHRAGM MATERIAL
A Santoprene T PTFE (Teflon) / Santoprene
C Hytrel V Viton
FLUID SECTION SERVICE KIT SELECTION
EXAMPLE: MODEL # PD03P ARS SAA
FLUID SECTION SERVICE KIT # 637429 AA
PD03P-X-X
RELEASED: 12-17-05
REVISED:
(REV. 01)

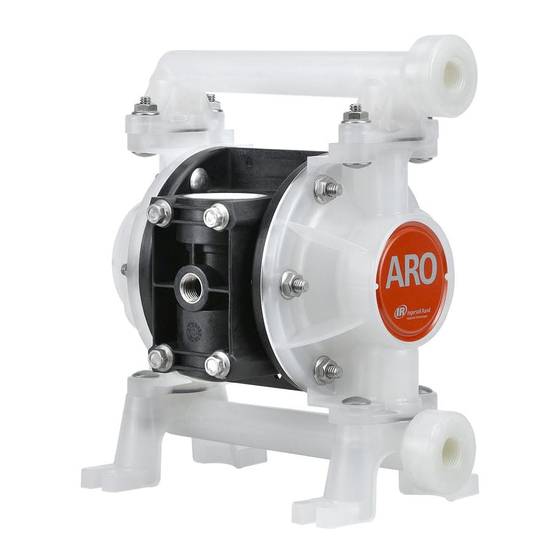

Figure 1
PD03P ARS S X X
637429 X X
Ball Diaphragm
