Ingersoll-Rand ARO PD30R-B Series Operator's Manual

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to Model Description Chart to match the pump material options.
637303-XX for fluid section repair (see page 4). Note: This kit also con-
tains several air motor seals which will need to be replaced.
637369 for air section repair (see page 6).
637374 major air valve assembly (see page 7).
PUMP DATA
Models . . . . . . . . . . . . . see Model Description Chart for "-XXX".
Pump Type . . . . . . . . . . Metallic Air Operated Double Diaphragm
Material . . . . . . . . . . . . . see Model Description Chart.
Weight . . . . PD30R-XCX-XXX-B
PD30R-XSX-XXX-B
Maximum Air Inlet Pressure
Maximum Material Inlet Pressure
Maximum Outlet Pressure . . . . . . . . . .
Maximum Flow Rate
(flooded inlet)
Displacement / Cycle @ 100 p.s.i.g.
Maximum Particle Size . . . . . . . . . . . .
Maximum Temperature Limits (diaphragm / ball / seal material)
E.P.R. / EPDM . . . . . . . . . . .
R
Hytrel . . . . . . . . . . . . . . . .
Nitrile . . . . . . . . . . . . . . . . .
Polypropylene . . . . . .
PVDF (Kynar R ) . . . . . . . . . .
Santoprene R . . . . . . . . . . . .
PTFE . . . . . . . . . . . . . . . . .
R
Viton . . . . . . . . . . . . . . . .
Dimensional Data . . . . . . . . . . . . . . . .
Mounting Dimensions . . . 10-5/32" x 12-1/16" (258 mm x 306 mm)
Noise Level @ 70 p.s.i., 50 c.p.m.
Tested with 67263 muffler assembly installed.
The pump sound pressure levels published here have been updated to an Equivalent
Continuous Sound Level (L ) to meet the intent of ANSI S1.13-1971, CAGI-PNEU-
Aeq
ROP S5.1 using four microphone locations.
NOTICE: All possible options are shown in the chart however certain com-
binations may not be recommended, consult a representative or the fac-
tory if you have questions concerning availability.
INGERSOLL RAND COMPANY
209 NORTH MAIN STREET- BRYAN, OHIO 43506
D
(800) 276-4658 FAX (800) 266-7016
www.ingersollrandproducts.com
3" DIAPHRAGM PUMP
1:1 RATIO (METALLIC)
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
. . . . . 235 lbs (106.6 kgs)
. . . . . 241 lbs (109.3 kgs)
. . . . . . . . . 120 p.s.i.g. (8.3 bar)
. . . . . 10 p.s.i.g. (0.69 bar)
120 p.s.i.g. (8.3 bar)
. . . . . 275 g.p.m. (1041 l.p.m.)
. . . 2.8 gal. (10.6 lit.)
3/8" dia. (9.5 mm)
-60 to 280_ F (-51 to 138_ C)
-20 to 150_ F (-29 to 66_ C)
10 to 180_ F (-12 to 82_ C)
35 to 175_ F (2 to 79_ C)
10 to 200_ F (-12 to 93_ C)
-40 to 225_ F (-40 to 107_ C)
40 to 225_ F (4 to 107_ C)
-40 to 350_ F (-40 to 177_ C)
see page 8
. . . . 83.0 db(A)
E
2010 CCN 15199086
MODEL DESCRIPTION CHART
AIR MOTOR / AIR CAP MATERIAL
R - Polypropylene / Stainless Steel
THREAD
A - N.P.T.F.
B - BSP
FLUID CAPS & MANIFOLD MATERIAL
C - Cast Iron
S - Stainless Steel
HARDWARE MATERIAL
P - Plated Steel
S - Stainless Steel
SEAT MATERIAL
A - Santoprene H - Hard 440 Stainless Steel
C - Hytrel K - PVDF (Kynar)
E - Carbon Steel S - 316 Stainless Steel
G - Nitrile
BALL MATERIAL
A - Santoprene G - Nitrile
C - Hytrel T - PTFE
DIAPHRAGM MATERIAL
A - Santoprene G - Nitrile
C - Hytrel T - PTFE / Santoprene
FLUID SECTION SERVICE KIT SELECTION
EXAMPLE: MODEL # PD30R-ASS-SAA-B
FLUID SECTION SERVICE KIT # 637303-AA
PD30R-X-B
RELEASED: 6-17-03
11-11-10
REVISED:
(REV. 06)
3" DIAPHRAGM PUMP
PD30R-XXX-XXX-B

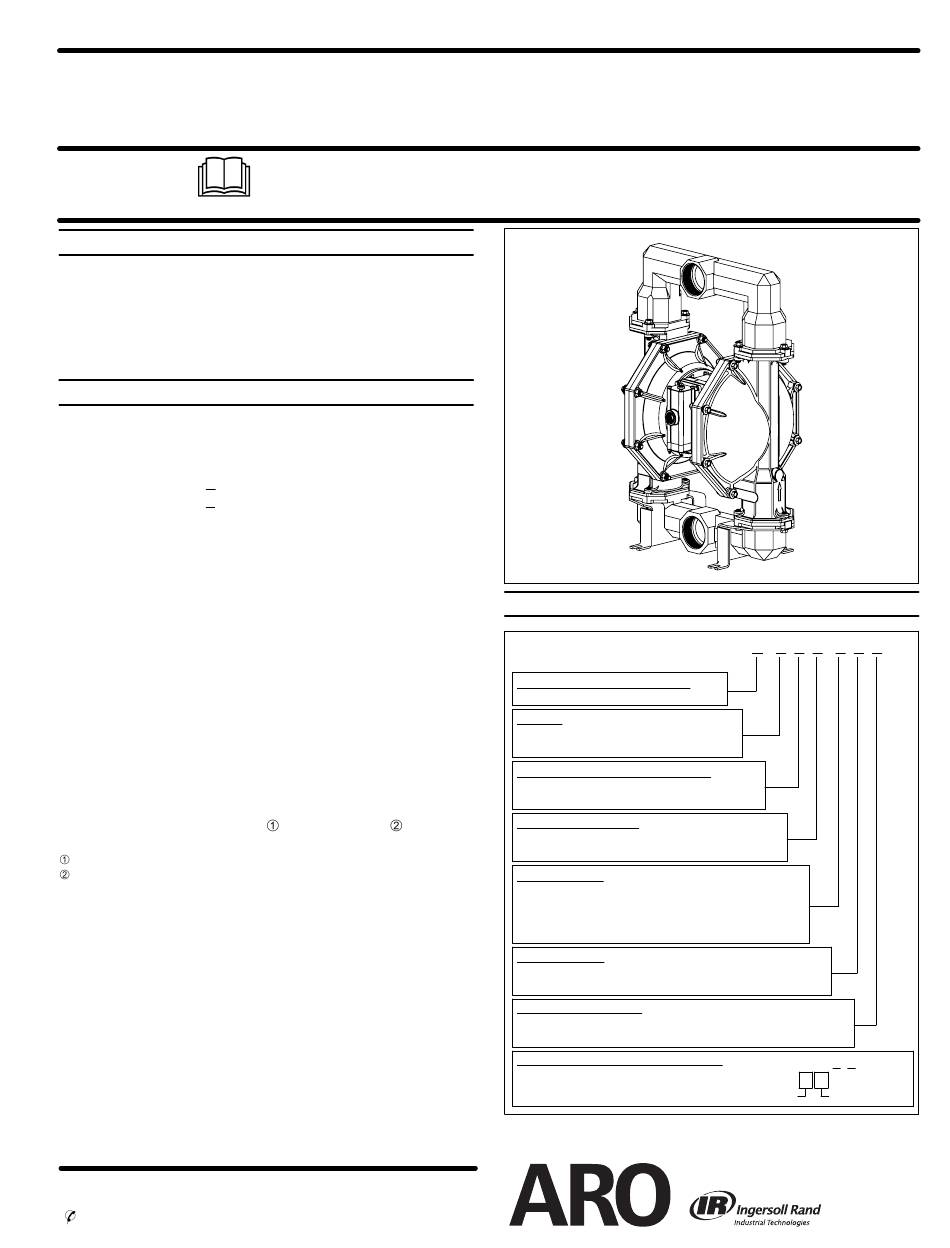

Figure 1
PD30 R - X X X - X X X - B
PD30R - XXX - X X X - B
637303 - X X
Ball Diaphragm
