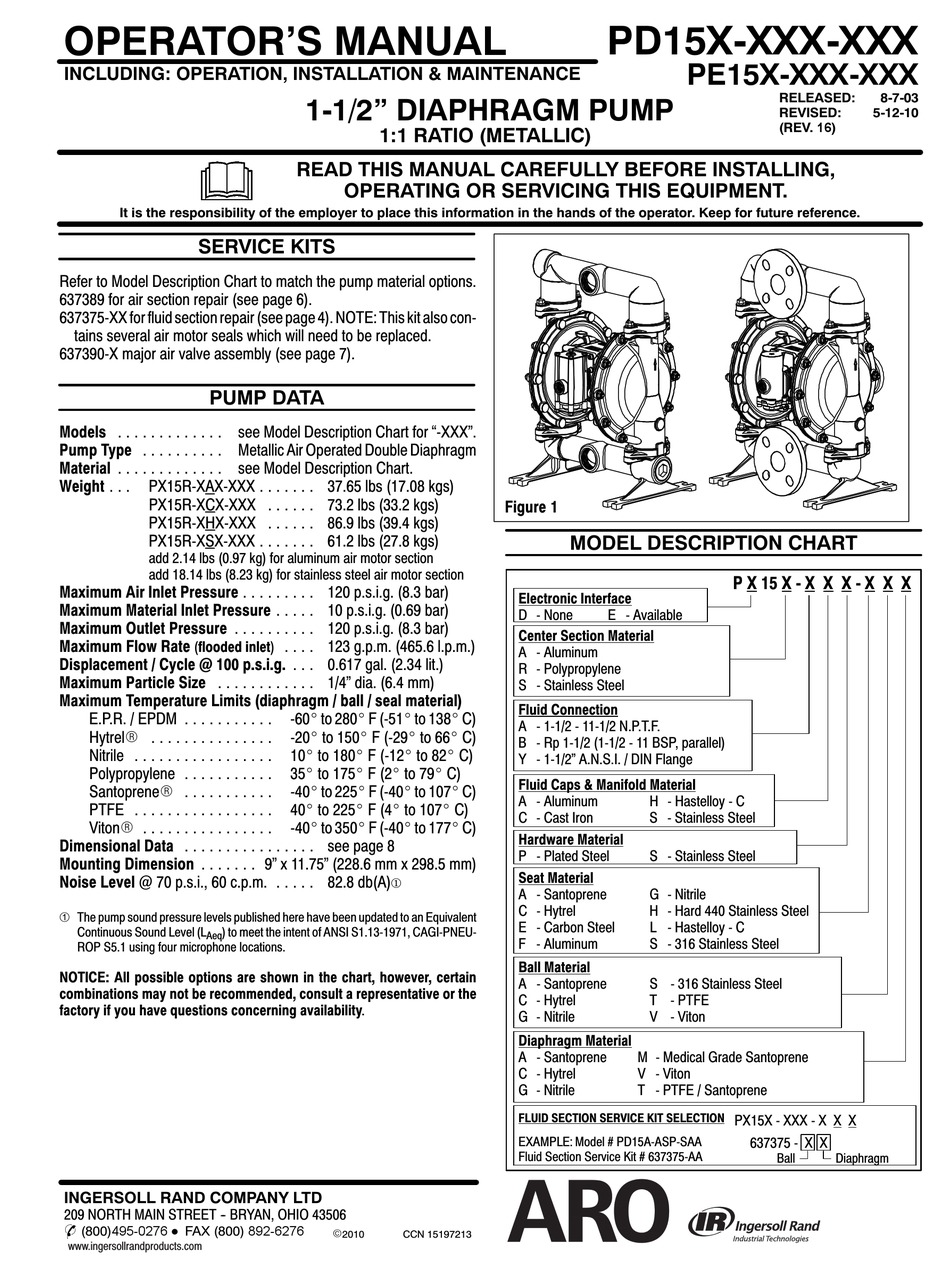

Ingersoll-Rand PD15X-XXX-XXX Operator's Manual

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to Model Description Chart to match the pump material options.
637389 for air section repair (see page 6).
637375-XX for fluid section repair (see page 4). NOTE: This kit also con-
tains several air motor seals which will need to be replaced.
637390-X major air valve assembly (see page 7).
PUMP DATA
Models . . . . . . . . . . . . . see Model Description Chart for "-XXX".
Pump Type . . . . . . . . . . Metallic Air Operated Double Diaphragm
Material . . . . . . . . . . . . . see Model Description Chart.
Weight . . . PX15R-XAX-XXX
PX15R-XCX-XXX
PX15R-XHX-XXX
PX15R-XSX-XXX
add 2.14 lbs (0.97 kg) for aluminum air motor section
add 18.14 lbs (8.23 kg) for stainless steel air motor section
Maximum Air Inlet Pressure
Maximum Material Inlet Pressure
Maximum Outlet Pressure . . . . . . . . . .
Maximum Flow Rate
(flooded inlet)
Displacement / Cycle @ 100 p.s.i.g.
Maximum Particle Size . . . . . . . . . . . .
Maximum Temperature Limits (diaphragm / ball / seal material)
E.P.R. / EPDM . . . . . . . . . . .
HytrelR . . . . . . . . . . . . . . .
Nitrile . . . . . . . . . . . . . . . . .
Polypropylene . . . . . . . . . . .
SantopreneR . . . . . . . . . . .
PTFE . . . . . . . . . . . . . . . . .
VitonR . . . . . . . . . . . . . . . .
Dimensional Data . . . . . . . . . . . . . . . .
Mounting Dimension . . . . . . .
Noise Level @ 70 p.s.i., 60 c.p.m.
The pump sound pressure levels published here have been updated to an Equivalent
Continuous Sound Level (L ) to meet the intent of ANSI S1.13-1971, CAGI-PNEU-
Aeq
ROP S5.1 using four microphone locations.
NOTICE: All possible options are shown in the chart, however, certain
combinations may not be recommended, consult a representative or the
factory if you have questions concerning availability.
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET -- BRYAN, OHIO 43506
FAX (800) 892-6276
D
(800)495-0276
www.ingersollrandproducts.com

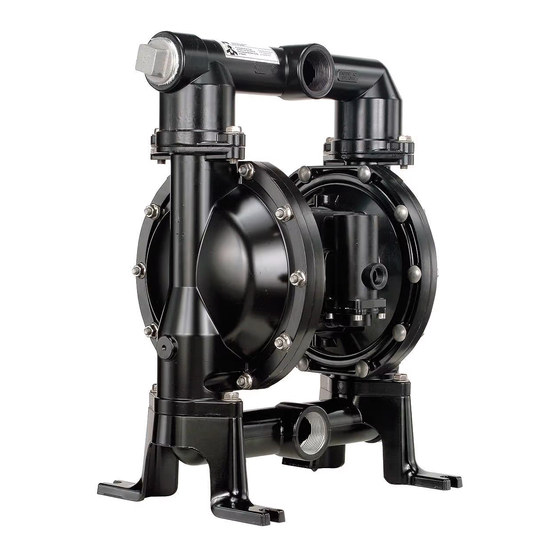

1-1/2" DIAPHRAGM PUMP
1:1 RATIO (METALLIC)
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
. . . . . . . 37.65 lbs (17.08 kgs)
. . . . . . 73.2 lbs (33.2 kgs)
. . . . . . 86.9 lbs (39.4 kgs)
. . . . . . . 61.2 lbs (27.8 kgs)
. . . . . . . . . 120 p.s.i.g. (8.3 bar)
. . . . . 10 p.s.i.g. (0.69 bar)
120 p.s.i.g. (8.3 bar)
. . . . 123 g.p.m. (465.6 l.p.m.)
. . . 0.617 gal. (2.34 lit.)
1/4" dia. (6.4 mm)
-60_ to 280_ F (-51_ to 138_ C)
-20_ to 150_ F (-29_ to 66_ C)
10_ to 180_ F (-12_ to 82_ C)
35_ to 175_ F (2_ to 79_ C)
-40_ to 225_ F (-40_ to 107_ C)
40_ to 225_ F (4_ to 107_ C)
-40_ to 350_ F (-40_ to 177_ C)
see page 8
9" x 11.75" (228.6 mm x 298.5 mm)
. . . . .
82.8 db(A)
E
2010 CCN 15197213
PD15X-XXX-XXX
Figure 1
MODEL DESCRIPTION CHART
Electronic Interface
D - None E - Available
Center Section Material
A - Aluminum
R - Polypropylene
S - Stainless Steel
Fluid Connection
A - 1-1/2 - 11-1/2 N.P.T.F.
B - Rp 1-1/2 (1-1/2 - 11 BSP, parallel)
Y - 1-1/2" A.N.S.I. / DIN Flange
Fluid Caps & Manifold Material
A - Aluminum H - Hastelloy - C
C - Cast Iron S - Stainless Steel
Hardware Material
P - Plated Steel S - Stainless Steel
Seat Material
A - Santoprene G - Nitrile
C - Hytrel H - Hard 440 Stainless Steel
E - Carbon Steel L - Hastelloy - C
F - Aluminum S - 316 Stainless Steel
Ball Material
A - Santoprene S - 316 Stainless Steel
C - Hytrel T - PTFE
G - Nitrile V - Viton
Diaphragm Material
A - Santoprene M - Medical Grade Santoprene
C - Hytrel V - Viton
G - Nitrile T - PTFE / Santoprene
FLUID SECTION SERVICE KIT SELECTION
EXAMPLE: Model # PD15A-ASP-SAA
Fluid Section Service Kit # 637375-AA
PE15X-XXX-XXX
RELEASED:
REVISED:
(REV. 16)
P X 15 X - X X X - X X X
PX15X - XXX - X X X
637375 - X X
Ball Diaphragm
8-7-03
5-12-10
