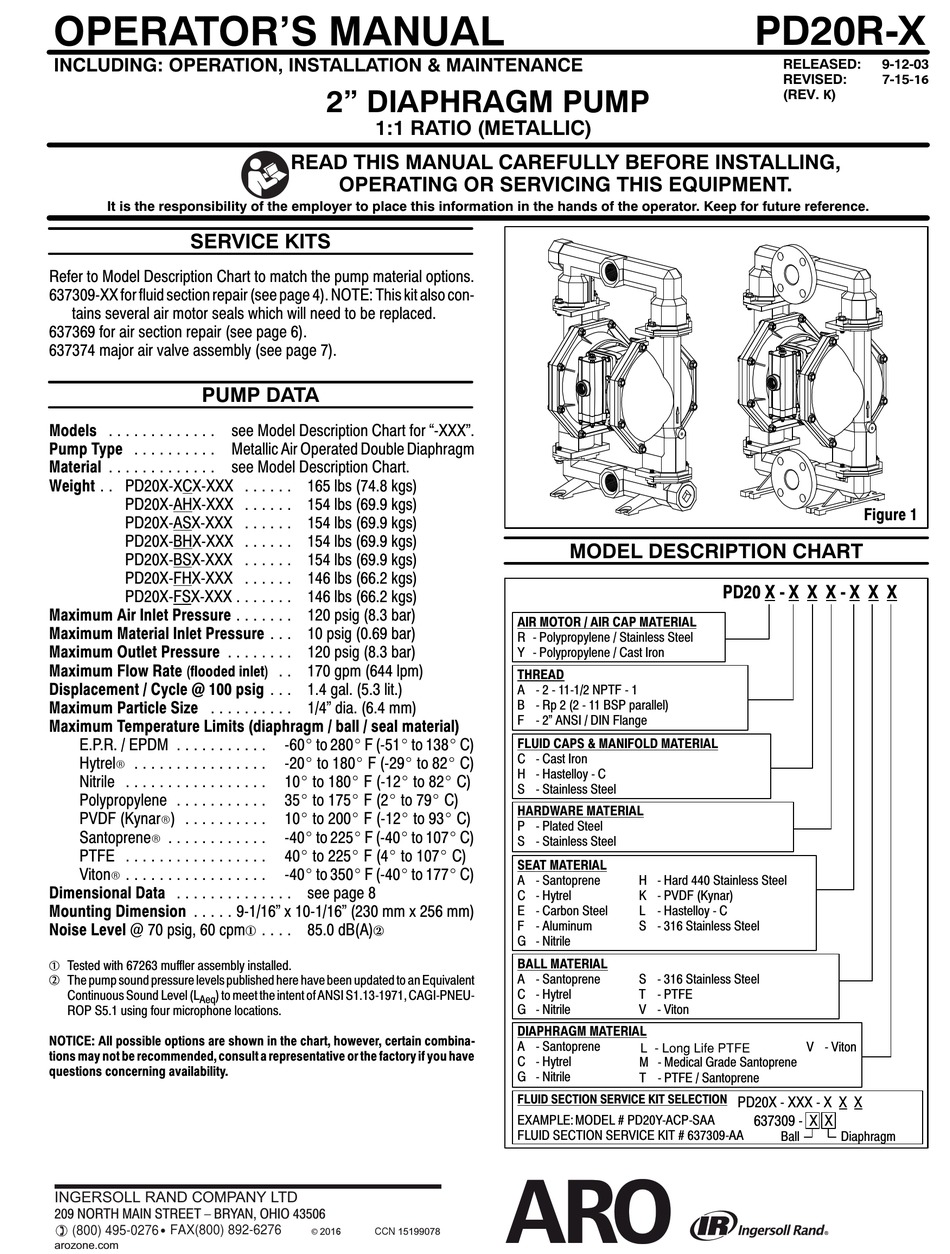

Ingersoll-Rand PD20R-X-XCX Series Operator's Manual

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to Model Description Chart to match the pump material options.
637309-XX for fluid section repair (see page 4). NOTE: This kit also con-
tains several air motor seals which will need to be replaced.
637369 for air section repair (see page 6).
637374 major air valve assembly (see page 7).
PUMP DATA
Models . . . . . . . . . . . . .
Pump Type . . . . . . . . . .
Material . . . . . . . . . . . . .
Weight . . PD20X-XCX-XXX
PD20X-AHX-XXX
PD20X-ASX-XXX
PD20X-BHX-XXX
PD20X-BSX-XXX
PD20X-FHX-XXX
PD20X-FSX-XXX
Maximum Air Inlet Pressure
Maximum Material Inlet Pressure
Maximum Outlet Pressure . . . . . . . .
Maximum Flow Rate
(flooded inlet)
Displacement / Cycle @ 100 psig
Maximum Particle Size . . . . . . . . . .
Maximum Temperature Limits (diaphragm / ball / seal material)
E.P.R. / EPDM . . . . . . . . . . .
Hytrel . . . . . . . . . . . . . . . .
R
Nitrile . . . . . . . . . . . . . . . . .
Polypropylene . . . . . . . . . . .
PVDF (Kynar ) . . . . . . . . . .
R
Santoprene . . . . . . . . . . . .
R
PTFE . . . . . . . . . . . . . . . . .
Viton . . . . . . . . . . . . . . . . .
R
Dimensional Data . . . . . . . . . . . . . .
Mounting Dimension . . . . .
Noise Level @ 70 psig, 60 cpm
➀ Tested with 67263 muffler assembly installed.
➁ The pump sound pressure levels published here have been updated to an Equivalent
Continuous Sound Level (L ) to meet the intent of ANSI S1.13-1971, CAGI-PNEU-
Aeq
ROP S5.1 using four microphone locations.
NOTICE: All possible options are shown in the chart, however, certain combina-
tions may not be recommended, consult a representative or the factory if you have
questions concerning availability.
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 495-0276 FAX(800) 892-6276
arozone.com
2" DIAPHRAGM PUMP
1:1 RATIO (METALLIC)
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
see Model Description Chart for "-XXX".
Metallic Air Operated Double Diaphragm
see Model Description Chart.
. . . . . . 165 lbs (74.8 kgs)
. . . . . . 154 lbs (69.9 kgs)
. . . . . . 154 lbs (69.9 kgs)
. . . . . . 154 lbs (69.9 kgs)
. . . . . . 154 lbs (69.9 kgs)
. . . . . . 146 lbs (66.2 kgs)
. . . . . . . 146 lbs (66.2 kgs)
. . . . . . . 120 psig (8.3 bar)
. . . 10 psig (0.69 bar)
120 psig (8.3 bar)
. . 170 gpm (644 lpm)
. . . 1.4 gal. (5.3 lit.)
1/4" dia. (6.4 mm)
-60_ to 280_ F (-51_ to 138_ C)
-20_ to 180_ F (-29_ to 82_ C)
10_ to 180_ F (-12_ to 82_ C)
35_ to 175_ F (2_ to 79_ C)
10_ to 200_ F (-12_ to 93_ C)
-40_ to 225_ F (-40_ to 107_ C)
40_ to 225_ F (4_ to 107_ C)
-40_ to 350_ F (-40_ to 177_ C)
see page 8
9-1/16" x 10-1/16" (230 mm x 256 mm)
. . . . 85.0 dB(A)
① ②
© 2016 CCN 15199078
MODEL DESCRIPTION CHART
AIR MOTOR / AIR CAP MATERIAL
R - Polypropylene / Stainless Steel
Y - Polypropylene / Cast Iron
THREAD
A - 2 - 11-1/2 NPTF - 1
B - Rp 2 (2 - 11 BSP parallel)
F - 2" ANSI / DIN Flange
FLUID CAPS & MANIFOLD MATERIAL
C - Cast Iron
H - Hastelloy - C
S - Stainless Steel
HARDWARE MATERIAL
P - Plated Steel
S - Stainless Steel
SEAT MATERIAL
A - Santoprene H - Hard 440 Stainless Steel
C - Hytrel K - PVDF (Kynar)
E - Carbon Steel L - Hastelloy - C
F - Aluminum S - 316 Stainless Steel
G - Nitrile
BALL MATERIAL
A - Santoprene S - 316 Stainless Steel
C - Hytrel T - PTFE
G - Nitrile V - Viton
DIAPHRAGM MATERIAL
L - Long Life PTFE
A - Santoprene
C - Hytrel
M - Medical Grade Santoprene
G - Nitrile
T - PTFE / Santoprene
FLUID SECTION SERVICE KIT SELECTION
EXAMPLE: MODEL # PD20Y-ACP-SAA
FLUID SECTION SERVICE KIT # 637309-AA
PD20R-X
RELEASED: 9-12-03
REVISED: 7-15-16
(REV. K)

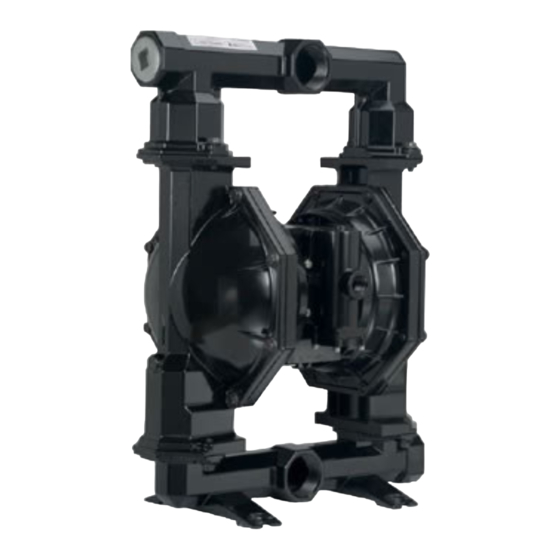

Figure 1
PD20 X - X X X - X X X
V - Viton
PD20X - XXX - X X X
637309 - X X
Ball Diaphragm
