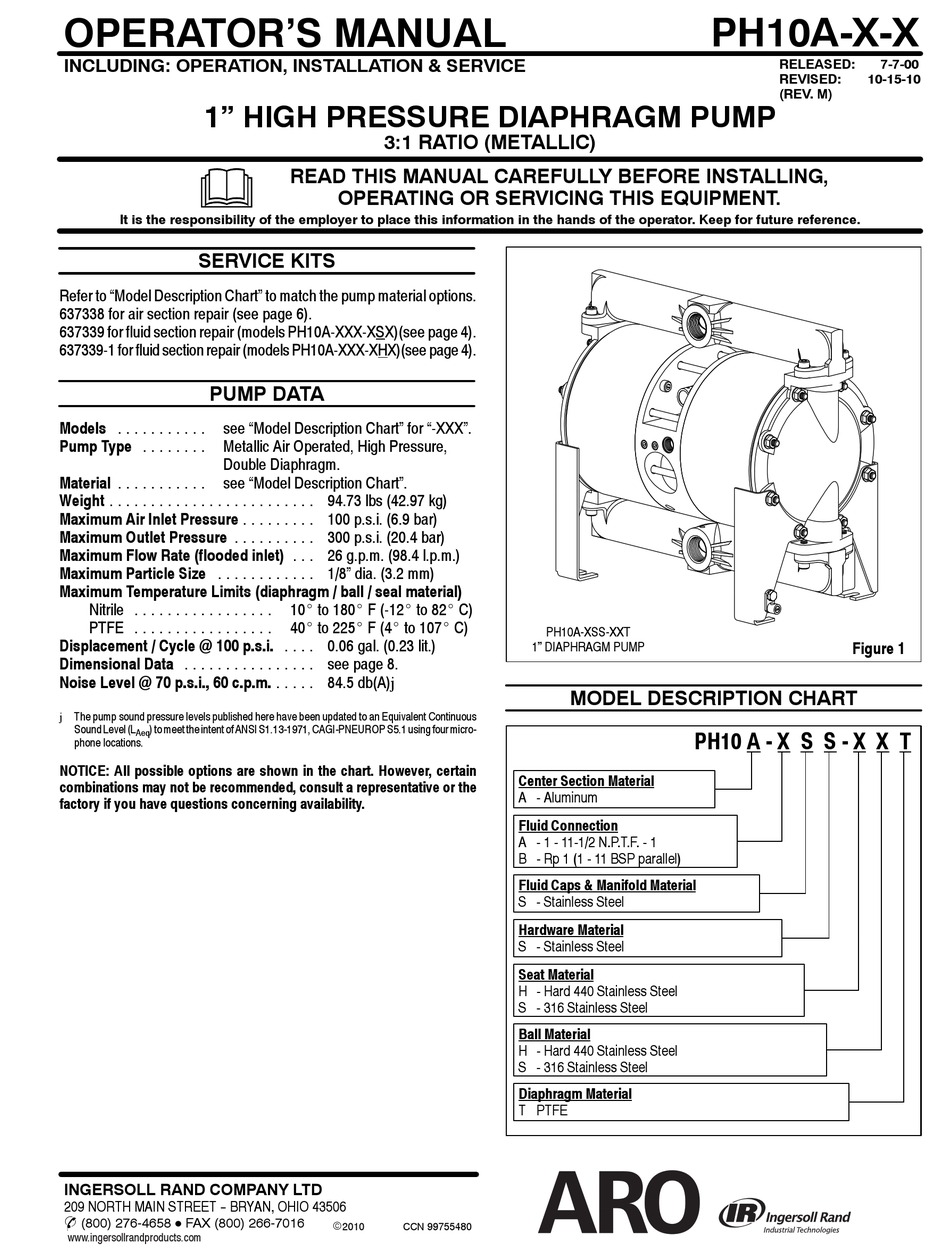

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & SERVICE
1" HIGH PRESSURE DIAPHRAGM PUMP
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to "Model Description Chart" to match the pump material options.
637338 for air section repair (see page 6).
637339 for fluid section repair (models PH10A-XXX-XSX)(see page 4).
637339-1 for fluid section repair (models PH10A-XXX-XHX)(see page 4).
PUMP DATA
Models . . . . . . . . . . . see "Model Description Chart" for "-XXX".
Pump Type . . . . . . . . Metallic Air Operated, High Pressure,
Double Diaphragm.
. . . . . . . . . . . see "Model Description Chart".
Material
Weight . . . . . . . . . . . . . . . . . . . . . . . . .
Maximum Air Inlet Pressure
Maximum Outlet Pressure . . . . . . . . . .
Maximum Flow Rate (flooded inlet)
Maximum Particle Size . . . . . . . . . . . .
Maximum Temperature Limits (diaphragm / ball / seal material)
Nitrile . . . . . . . . . . . . . . . . .
PTFE . . . . . . . . . . . . . . . . .
Displacement / Cycle @ 100 p.s.i.
. . . . . . . . . . . . . . . .
Dimensional Data
Noise Level @ 70 p.s.i., 60 c.p.m.
j The pump sound pressure levels published here have been updated to an Equivalent Continuous
Sound Level (L ) to meet the intent of ANSI S1.13-1971, CAGI-PNEUROP S5.1 using four micro-
Aeq
phone locations.
NOTICE: All possible options are shown in the chart. However, certain
combinations may not be recommended, consult a representative or the
factory if you have questions concerning availability.
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET -- BRYAN, OHIO 43506
(800) 276-4658 FAX (800) 266-7016
D
www.ingersollrandproducts.com
3:1 RATIO (METALLIC)
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
94.73 lbs (42.97 kg)
. . . . . . . . . 100 p.s.i. (6.9 bar)
300 p.s.i. (20.4 bar)
. . . 26 g.p.m. (98.4 l.p.m.)
1/8" dia. (3.2 mm)
10_ to 180_ F (-12_ to 82_ C)
40_ to 225_ F (4_ to 107_ C)
. . . . 0.06 gal. (0.23 lit.)
see page 8.
. . . . . 84.5 db(A)j
2010 CCN 99755480
E
PH10A-XSS-XXT
1" DIAPHRAGM PUMP
MODEL DESCRIPTION CHART
PH10 A - X S S - X X T
Center Section Material
A - Aluminum
Fluid Connection
A - 1 - 11-1/2 N.P.T.F. - 1
B - Rp 1 (1 - 11 BSP parallel)
Fluid Caps & Manifold Material
S - Stainless Steel
Hardware Material
S - Stainless Steel
Seat Material
H - Hard 440 Stainless Steel
S - 316 Stainless Steel
Ball Material
H - Hard 440 Stainless Steel
S - 316 Stainless Steel
Diaphragm Material
T PTFE
PH10A-X-X
RELEASED: 7-7-00
REVISED: 10-15-10
(REV. M)
Figure 1
