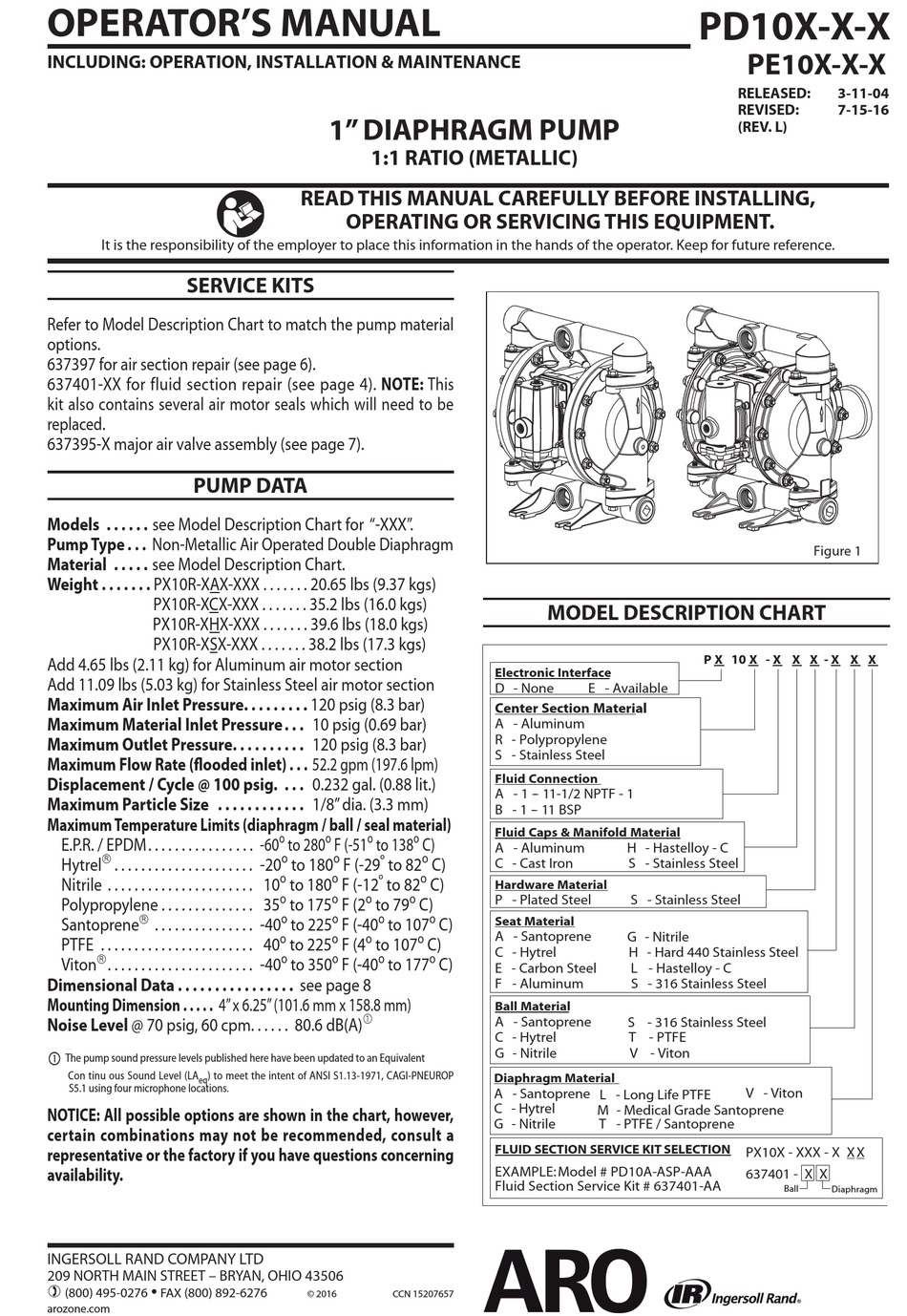

ARO PX10R-XAX series Operator's Manual

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to Model Description Chart to match the pump material
options.
637397 for air section repair (see page 6).
637401-XX for fluid section repair (see page 4). NOTE: This
kit also contains several air motor seals which will need to be
replaced.
637395-X major air valve assembly (see page 7).
PUMP DATA
Models . . . . . . see Model Description Chart for "-XXX".
Pump Type . . . Non-Metallic Air Operated Double Diaphragm
Material . . . . . see Model Description Chart.
Weight . . . . . . . PX10R-XAX-XXX . . . . . . . 20.65 lbs (9.37 kgs)
PX10R-XCX-XXX . . . . . . . 35.2 lbs (16.0 kgs)
PX10R-XHX-XXX . . . . . . . 39.6 lbs (18.0 kgs)
PX10R-XSX-XXX . . . . . . . 38.2 lbs (17.3 kgs)
Add 4.65 lbs (2.11 kg) for Aluminum air motor section
Add 11.09 lbs (5.03 kg) for Stainless Steel air motor section
Maximum Air Inlet Pressure . . . . . . . . . 120 psig (8.3 bar)
Maximum Material Inlet Pressure . . . 10 psig (0.69 bar)
Maximum Outlet Pressure . . . . . . . . . . 120 psig (8.3 bar)
Maximum Flow Rate (flooded inlet) . . . 52.2 gpm (197.6 lpm)
Displacement / Cycle @ 100 psig. . . . 0.232 gal. (0.88 lit.)
Maximum Particle Size . . . . . . . . . . . . 1/8" dia. (3.3 mm)
Maximum Temperature Limits (diaphragm / ball / seal material)
E.P.R. / EPDM . . . . . . . . . . . . . . . . -60

Hytrel . . . . . . . . . . . . . . . . . . . . . -20
Nitrile . . . . . . . . . . . . . . . . . . . . . . 10
Polypropylene . . . . . . . . . . . . . . 35

Santoprene . . . . . . . . . . . . . . . -40
PTFE . . . . . . . . . . . . . . . . . . . . . . . 40

Viton . . . . . . . . . . . . . . . . . . . . . . -40
Dimensional Data . . . . . . . . . . . . . . . . see page 8
Mounting Dimension . . . . . 4" x 6.25" (101.6 mm x 158.8 mm)
Noise Level @ 70 psig, 60 cpm. . . . . . 80.6 dB(A)

The pump sound pressure levels published here have been updated to an Equivalent
Con tinu ous Sound Level (LA ) to meet the intent of ANSI S1.13-1971, CAGI-PNEUROP
eq
S5.1 using four microphone locations.
NOTICE: All possible options are shown in the chart, however,
certain combinations may not be recommended, consult a
representative or the factory if you have questions concerning
availability.
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506


(800) 495-0276 FAX (800) 892-6276
arozone.com
1" DIAPHRAGM PUMP
1:1 RATIO (METALLIC)
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
   
to 280 F (-51 to 138 C)
  º 
to 180 F (-29 to 82 C)
  º 
to 180 F (-12 to 82 C)
   
to 175 F (2 to 79 C)
   
to 225 F (-40 to 107 C)
   
to 225 F (4 to 107 C)
   
to 350 F (-40 to 177 C)

© 2016 CCN 15207657
MODEL DESCRIPTION CHART
Electronic Interface
D - None E - Available
Center Section Material
A - Aluminum
R - Polypropylene
S - Stainless Steel
Fluid Connection
A - 1 -- 11-1/2 NPTF - 1
B - 1 -- 11 BSP
Fluid Caps & Manifold Material
H - Hastelloy - C
A - Aluminum
C - Cast Iron S - Stainless Steel
Hardware Material
P - Plated Steel S - Stainless Steel
Seat Material
A - Santoprene G - Nitrile
C - Hytrel H - Hard 440 Stainless Steel
E - Carbon Steel L - Hastelloy - C
F - Aluminum S - 316 Stainless Steel
Ball Material
A - Santoprene
S - 316 Stainless Steel
C - Hytrel T - PTFE
G - Nitrile V - Viton
Diaphragm Material
A - Santoprene
L - Long Life PTFE
C - Hytrel
M - Medical Grade Santoprene
G - Nitrile T - PTFE / Santoprene
FLUID SECTION SERVICE KIT SELECTION
EXAMPLE: Model # PD10A-ASP-AAA
Fluid Section Service Kit # 637401-AA
PD10X-X-X
PE10X-X-X
RELEASED: 3-11-04
REVISED: 7-15-16
(REV. L)
Figure 1
P X 10 X - X X X - X X X
V - Viton
PX10X - XXX - X X X
637401 - X X
Ball
Diaphragm
