ARO PD10E Series Operator's Manual

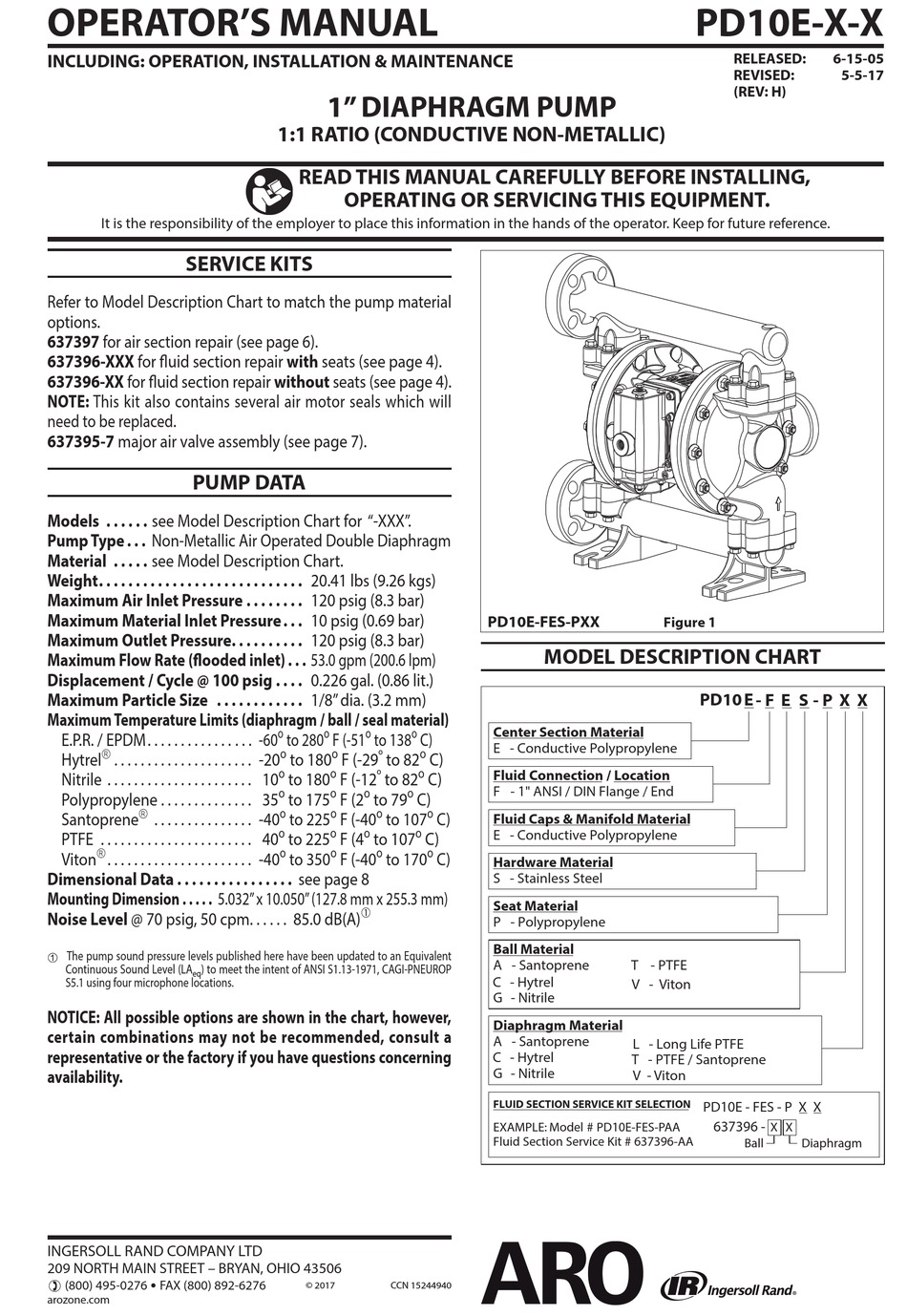

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to Model Description Chart to match the pump material
options.
637397 for air section repair (see page 6).
637396-XXX for fluid section repair with seats (see page 4).
637396-XX for fluid section repair without seats (see page 4).
NOTE: This kit also contains several air motor seals which will
need to be replaced.
637395-7 major air valve assembly (see page 7).
PUMP DATA
Models . . . . . . see Model Description Chart for "-XXX".
Pump Type . . . Non-Metallic Air Operated Double Diaphragm
Material . . . . . see Model Description Chart.
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20.41 lbs (9.26 kgs)
Maximum Air Inlet Pressure . . . . . . . . 120 psig (8.3 bar)
Maximum Material Inlet Pressure . . . 10 psig (0.69 bar)
Maximum Outlet Pressure . . . . . . . . . . 120 psig (8.3 bar)
Maximum Flow Rate (flooded inlet) . . . 53.0 gpm (200.6 lpm)
Displacement / Cycle @ 100 psig . . . . 0.226 gal. (0.86 lit.)
Maximum Particle Size . . . . . . . . . . . . 1/8" dia. (3.2 mm)
Maximum Temperature Limits (diaphragm / ball / seal material)
E.P.R. / EPDM . . . . . . . . . . . . . . . . -60

Hytrel . . . . . . . . . . . . . . . . . . . . . -20
Nitrile . . . . . . . . . . . . . . . . . . . . . . 10
Polypropylene . . . . . . . . . . . . . . 35

Santoprene . . . . . . . . . . . . . . . -40
PTFE . . . . . . . . . . . . . . . . . . . . . . . 40

Viton . . . . . . . . . . . . . . . . . . . . . . -40
Dimensional Data . . . . . . . . . . . . . . . . see page 8
Mounting Dimension . . . . . 5.032" x 10.050" (127.8 mm x 255.3 mm)
Noise Level @ 70 psig, 50 cpm. . . . . . 85.0 dB(A)
The pump sound pressure levels published here have been updated to an Equivalent
Continuous Sound Level (LA ) to meet the intent of ANSI S1.13-1971, CAGI-PNEUROP
eq
S5.1 using four microphone locations.
NOTICE: All possible options are shown in the chart, however,
certain combinations may not be recommended, consult a
representative or the factory if you have questions concerning
availability .
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506

(800) 495-0276  FAX (800) 892-6276
arozone.com
1" DIAPHRAGM PUMP
1:1 RATIO (CONDUCTIVE NON-METALLIC)
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
   
to 280 F (-51 to 138 C)
  º 
to 180 F (-29 to 82 C)
  º 
to 180 F (-12 to 82 C)
   
to 175 F (2 to 79 C)
   
to 225 F (-40 to 107 C)
   
to 225 F (4 to 107 C)
   
to 350 F (-40 to 170 C)

© 2017 CCN 15244940
PD10E-FES-PXX
MODEL DESCRIPTION CHART
Center Section Material
E - Conductive Polypropylene
Fluid Connection / Location
F - 1" ANSI / DIN Flange / End
Fluid Caps & Manifold Material
E - Conductive Polypropylene
Hardware Material
S - Stainless Steel
Seat Material
P - Polypropylene
Ball Material
A - Santoprene T - PTFE
C - Hytrel
V - Viton
G - Nitrile
Diaphragm Material
A - Santoprene
L - Long Life PTFE
C - Hytrel
T - PTFE / Santoprene
G - Nitrile
V - Viton
FLUID SECTION SERVICE KIT SELECTION
EXAMPLE: Model # PD10E-FES-PAA
Fluid Section Service Kit # 637396-AA
PD10E-X-X
RELEASED: 6-15-05
REVISED:
(REV: H)

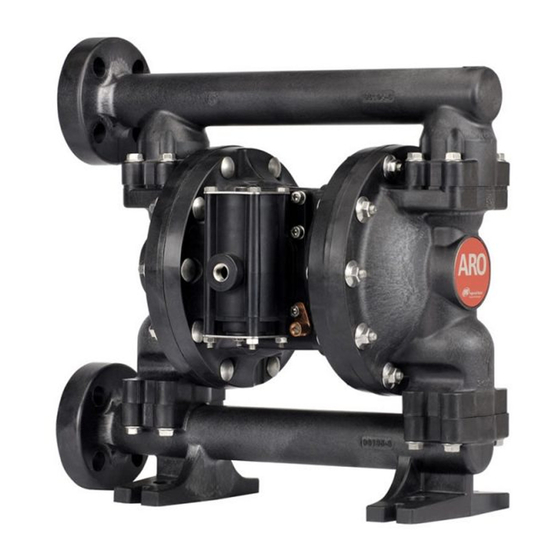

Figure 1
PD10 - F E E
S - P X X
PD10E - FES - P X X
637396 -
X X
Ball Diaphragm
5-5-17
