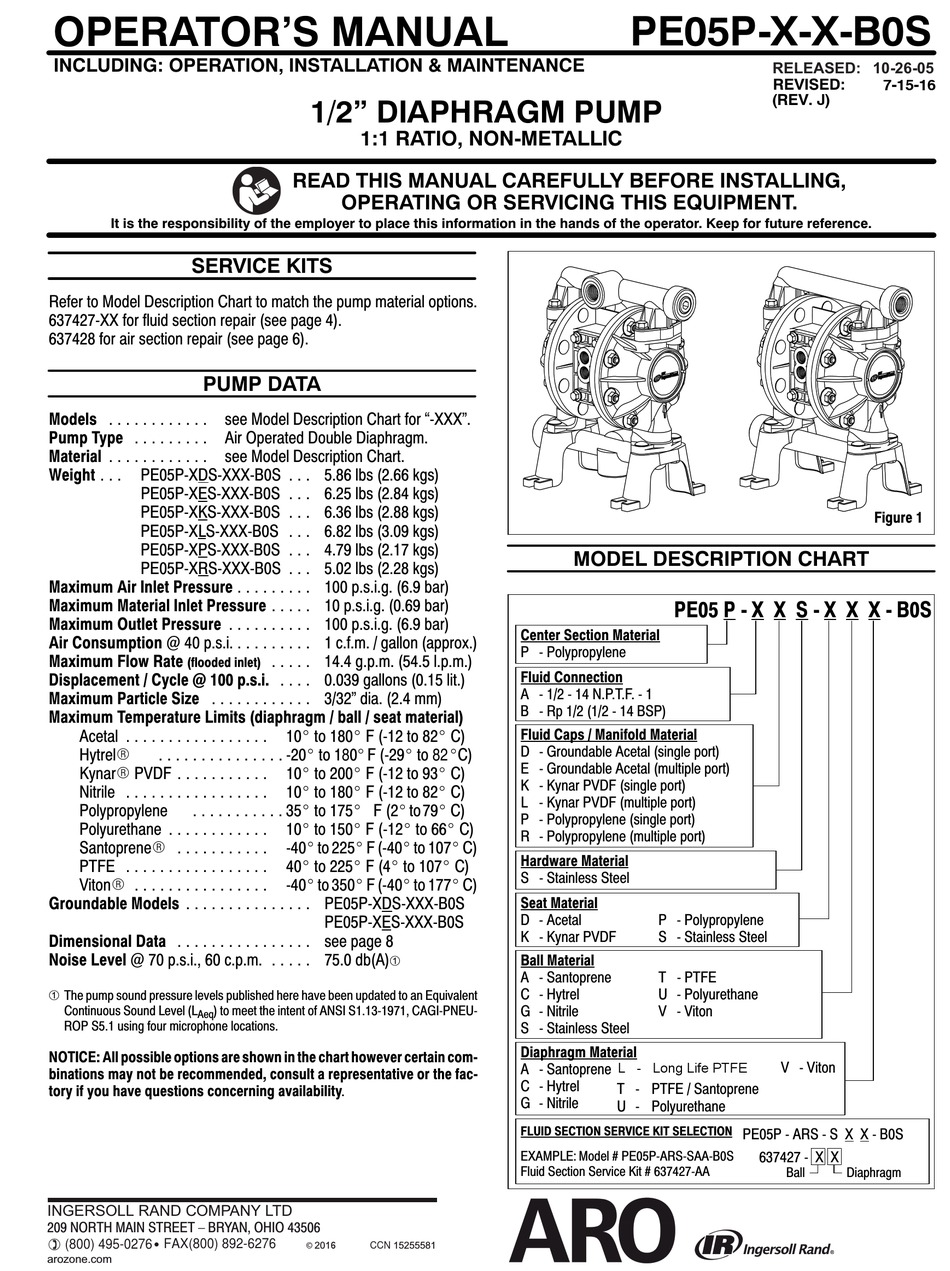

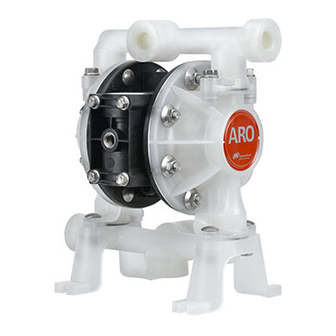

ARO PE05P-X-X-B0S Series Operator's Manual

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to Model Description Chart to match the pump material options.
637427-XX for fluid section repair (see page 4).
637428 for air section repair (see page 6).
PUMP DATA
Models . . . . . . . . . . . . see Model Description Chart for "-XXX".
Pump Type . . . . . . . . . Air Operated Double Diaphragm.
Material . . . . . . . . . . . . see Model Description Chart.
Weight . . . PE05P-XDS-XXX-B0S
PE05P-XES-XXX-B0S
PE05P-XKS-XXX-B0S
PE05P-XLS-XXX-B0S
PE05P-XPS-XXX-B0S
PE05P-XRS-XXX-B0S
Maximum Air Inlet Pressure
Maximum Material Inlet Pressure
Maximum Outlet Pressure
Air Consumption @ 40 p.s.i.
Maximum Flow Rate
(flooded inlet)
Displacement / Cycle @ 100 p.s.i.
Maximum Particle Size . . . . . . . . . . . .
Maximum Temperature Limits (diaphragm / ball / seat material)
Acetal . . . . . . . . . . . . . . . . .
HytrelR . . . . . . . . . . . . . . .
KynarR PVDF . . . . . . . . . . .
Nitrile . . . . . . . . . . . . . . . . .
Polypropylene . . . . . . . . . . .
Polyurethane . . . . . . . . . . . .
SantopreneR . . . . . . . . . . .
PTFE . . . . . . . . . . . . . . . . .
VitonR . . . . . . . . . . . . . . . .
Groundable Models . . . . . . . . . . . . . . .
Dimensional Data . . . . . . . . . . . . . . . .
Noise Level @ 70 p.s.i., 60 c.p.m.
The pump sound pressure levels published here have been updated to an Equivalent
Continuous Sound Level (L ) to meet the intent of ANSI S1.13-1971, CAGI-PNEU-
Aeq
ROP S5.1 using four microphone locations.
NOTICE: All possible options are shown in the chart however certain com-
binations may not be recommended, consult a representative or the fac-
tory if you have questions concerning availability.
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 495-0276 FAX(800) 892-6276
arozone.com
1/2" DIAPHRAGM PUMP
1:1 RATIO, NON-METALLIC
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
. . . 5.86 lbs (2.66 kgs)
. . . 6.25 lbs (2.84 kgs)
. . . 6.36 lbs (2.88 kgs)
. . . 6.82 lbs (3.09 kgs)
. . . 4.79 lbs (2.17 kgs)
. . . 5.02 lbs (2.28 kgs)
. . . . . . . . . 100 p.s.i.g. (6.9 bar)
. . . . . 10 p.s.i.g. (0.69 bar)
. . . . . . . . . . 100 p.s.i.g. (6.9 bar)
. . . . . . . . . 1 c.f.m. / gallon (approx.)
. . . . . 14.4 g.p.m. (54.5 l.p.m.)
. . . . 0.039 gallons (0.15 lit.)
3/32" dia. (2.4 mm)
10_ to 180_ F (-12 to 82_ C)
-20_ to 180_ F (-29_ to 82_C)
10_ to 200_ F (-12 to 93_ C)
10_ to 180_ F (-12 to 82_ C)
35_ to 175_ F (2_ to79_ C)
10_ to 150_ F (-12_ to 66_ C)
-40_ to 225_ F (-40_ to 107_ C)
40_ to 225_ F (4_ to 107_ C)
-40_ to 350_ F (-40_ to 177_ C)
PE05P-XDS-XXX-B0S
PE05P-XES-XXX-B0S
see page 8
. . . . . 75.0 db(A)
© 2016
CCN 15255581
PE05P-X-X-B0S
MODEL DESCRIPTION CHART
PE05 P - X X S - X X X - B0S
Center Section Material
P - Polypropylene
Fluid Connection
A - 1/2 - 14 N.P.T.F. - 1
B - Rp 1/2 (1/2 - 14 BSP)
Fluid Caps / Manifold Material
D - Groundable Acetal (single port)
E - Groundable Acetal (multiple port)
K - Kynar PVDF (single port)
L - Kynar PVDF (multiple port)
P - Polypropylene (single port)
R - Polypropylene (multiple port)
Hardware Material
S - Stainless Steel
Seat Material
D - Acetal P - Polypropylene
K - Kynar PVDF S - Stainless Steel
Ball Material
A - Santoprene T - PTFE
C - Hytrel U - Polyurethane
G - Nitrile V - Viton
S - Stainless Steel
Diaphragm Material
L - Long Life PTFE
A - Santoprene
C - Hytrel
T - PTFE / Santoprene
G - Nitrile
U - Polyurethane
FLUID SECTION SERVICE KIT SELECTION
EXAMPLE: Model # PE05P-ARS-SAA-B0S
Fluid Section Service Kit # 637427-AA
RELEASED: 10-26-05
7-15-16
REVISED:
(REV. J)
Figure 1
V - Viton
PE05P - ARS - S X X - B0S
637427 - X X
Ball Diaphragm
