ARO PD10P-X Operator's Manual

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to Model Description Chart to match the pump material
options.
637397 for air section repair (see page 6).
637396-XX for fluid section repair (see page 4). NOTE: This
kit also contains several air motor seals which will need to be
replaced.
637395-7 major air valve assembly (see page 7).
PUMP DATA
Models . . . . . . see Model Description Chart for "-XXX".

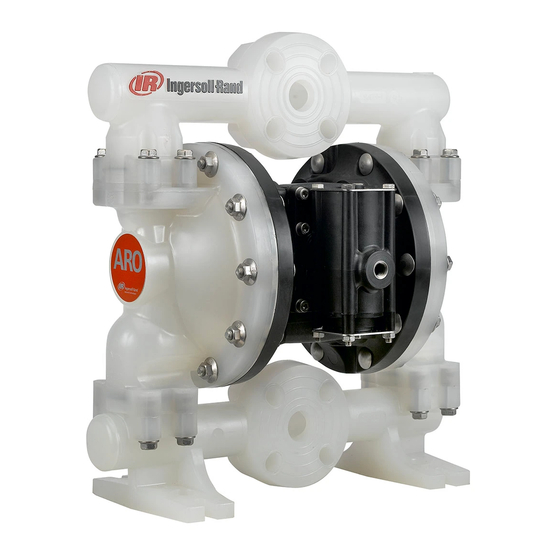

Pump Type . . . Non-Metallic Air Operated Double Diaphragm
Material . . . . . see Model Description Chart.
Weight . . . . . . . PX10P-FKS-XXX . . . . . . . 27.15 lbs (12.32 kgs)
PX10P-FPS-XXX . . . . . . . 19.87 lbs (9.01 kgs)
PX10P-YKS-XXX . . . . . . . 26.72 lbs (12.12 kgs)
PX10P-YPS-XXX . . . . . . . 19.59 lbs (8.89 kgs)
PX10P-AKS-XXX, -BKS . . 25.83 lbs (11.72 kgs)
PX10P-APS-XXX, -BPS . . 19.35 lbs (8.78 kgs)
Maximum Air Inlet Pressure . . . . . . . . 120 p.s.i.g. (8.3 bar)
Maximum Material Inlet Pressure . . . 10 p.s.i.g. (0.69 bar)
Maximum Outlet Pressure . . . . . . . . . . 120 p.s.i.g. (8.3 bar)
Maximum Flow Rate (fl ooded inlet) . . . 53.0 g.p.m. (200.6 l.p.m.)
Displacement / Cycle @ 100 p.s.i.g. . . 0.226 gal. (0.86 lit.)
Maximum Particle Size . . . . . . . . . . . . 1/8" dia. (3.2 mm)
Maximum Temperature Limits (diaphragm / ball / seal material)
E.P.R. / EPDM . . . . . . . . . . . . . . . . -60
Hytrel . . . . . . . . . . . . . . . . . . . . . -20
Nitrile . . . . . . . . . . . . . . . . . . . . . . 10
Polypropylene . . . . . . . . . . . . . . 35
PVDF (Kynar ) . . . . . . . . . . . . . 10
Santoprene . . . . . . . . . . . . . . . -40
PTFE . . . . . . . . . . . . . . . . . . . . . . . . . 40
Viton . . . . . . . . . . . . . . . . . . . . . -40
Dimensional Data . . . . . . . . . . . . . . . . see page 8
Mounting Dimension . . . . . 5.032" x 10.050" (127.8 mm x 255.3 mm)
Noise Level @ 70 p.s.i., 60 c.p.m. . . . . . 79.7 db(A)
The pump sound pressure levels published here have been updated to an Equivalent
Continuous Sound Level (L ) to meet the intent of ANSI S1.13-1971, CAGI-PNEUROP
Aeq
S5.1 using four microphone locations.
NOTICE: All possible options are shown in the chart, however,
certain combinations may not be recommended, consult a
representative or the factory if you have questions concerning
availability.
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 276-4658 FAX (800) 266-7016
www.ingersollrandproducts.com
1" DIAPHRAGM PUMP
1:1 RATIO (NON-METALLIC)
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
0 0 0 0
to 280 F (-51 to 138 C)
0 0 º 0
to 150 F (-29 to 66 C)
0 0 º 0
to 180 F (-12 to 82 C)
0 0 0 0
to 175 F (2 to 79 C)
0 0 0 0
to 200 F (-12 to 93 C)
0 0 0 0
to 225 F (-40 to 107 C)
0 0 0 0
to 225 F (4 to 107 C)
0 0 0 0
to 350 F (-40 to 170 C)
© 2010 CCN 15206378
PX10P-AXS-XXX
PX10P-BXS-XXX
PX10P-FXS-XXX
MODEL DESCRIPTION CHART
Electronic Interface
D - None E - Available
Center Section Material
P - Polypropylene
Fluid Connection / Location
A - 1" N.P.T.F. - 1
B - Rp 1 - 11 BS
F - 1" A.N.S.I. / DIN Flange / End
Y - 1" A.N.S.I. / DIN Flange / Center
Fluid Caps & Manifold Material
K - PVDF (Kynar)
P - Polypropylene
Hardware Material
S - Stainless Steel
Seat Material
H - Hard 440 Stainless Steel
K - PVDF (Kynar)
P - Polypropylene
Ball Material
A - Santoprene G - Nitrile
C - Hytrel T - PTFE
Diaphragm Material
A - Santoprene M - Medical Grade Santoprene
C - Hytrel T - PTFE / Santoprene
G - Nitrile V - Viton
FLUID SECTION SERVICE KIT SELECTION
EXAMPLE: MODEL # PD10P-FPS-PAA
FLUID SECTION SERVICE KIT # 637396-AA
PD10P-X
PE10P-X
11-10-03
RELEASED:
REVISED: 8-13-10
(REV. 12)
PX10P-YXS-XXX

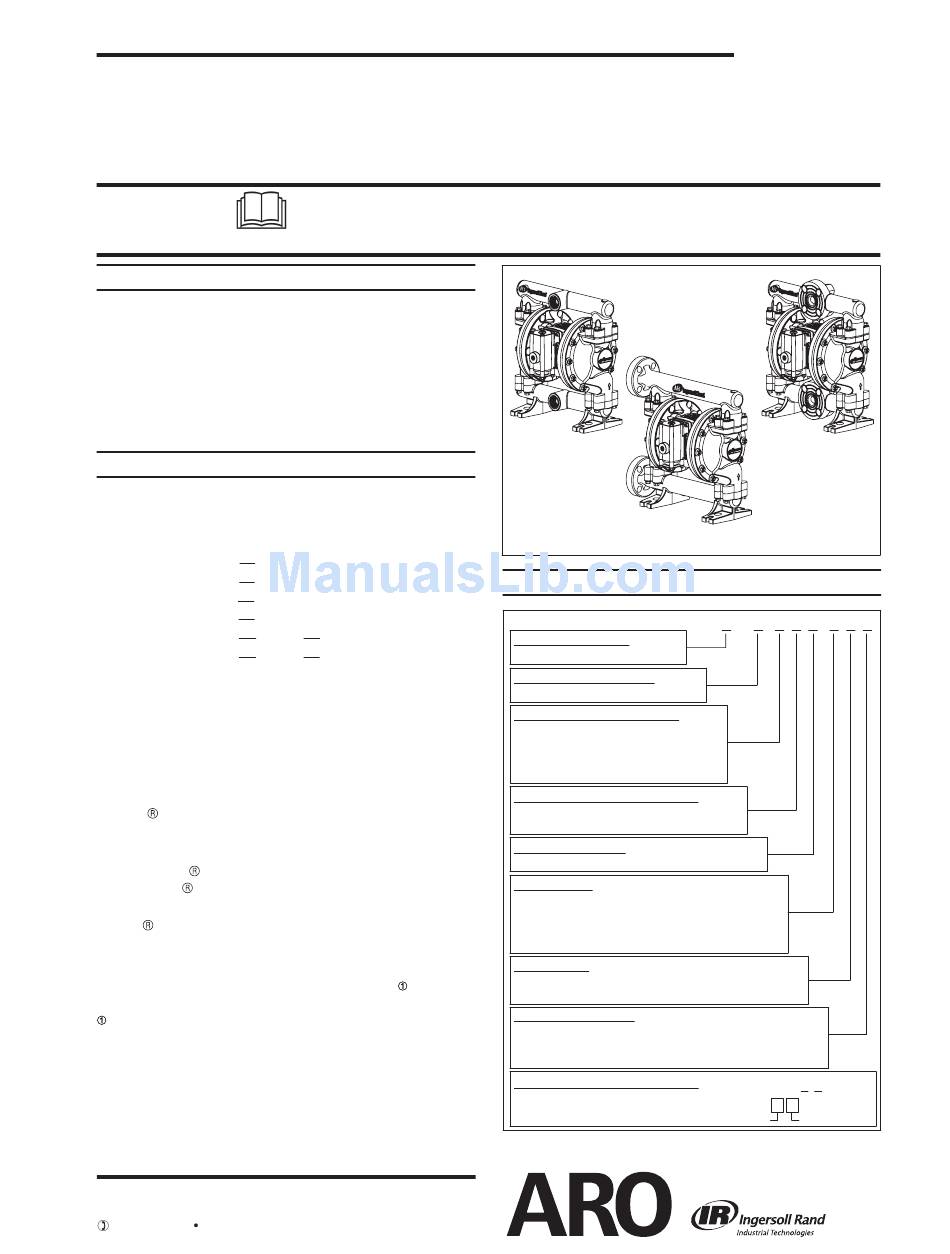

Figure 1
P X 10 P - X X S - X X X
V - Viton
PX10P - XXS - X X X
637396 - X X
Ball Diaphragm
