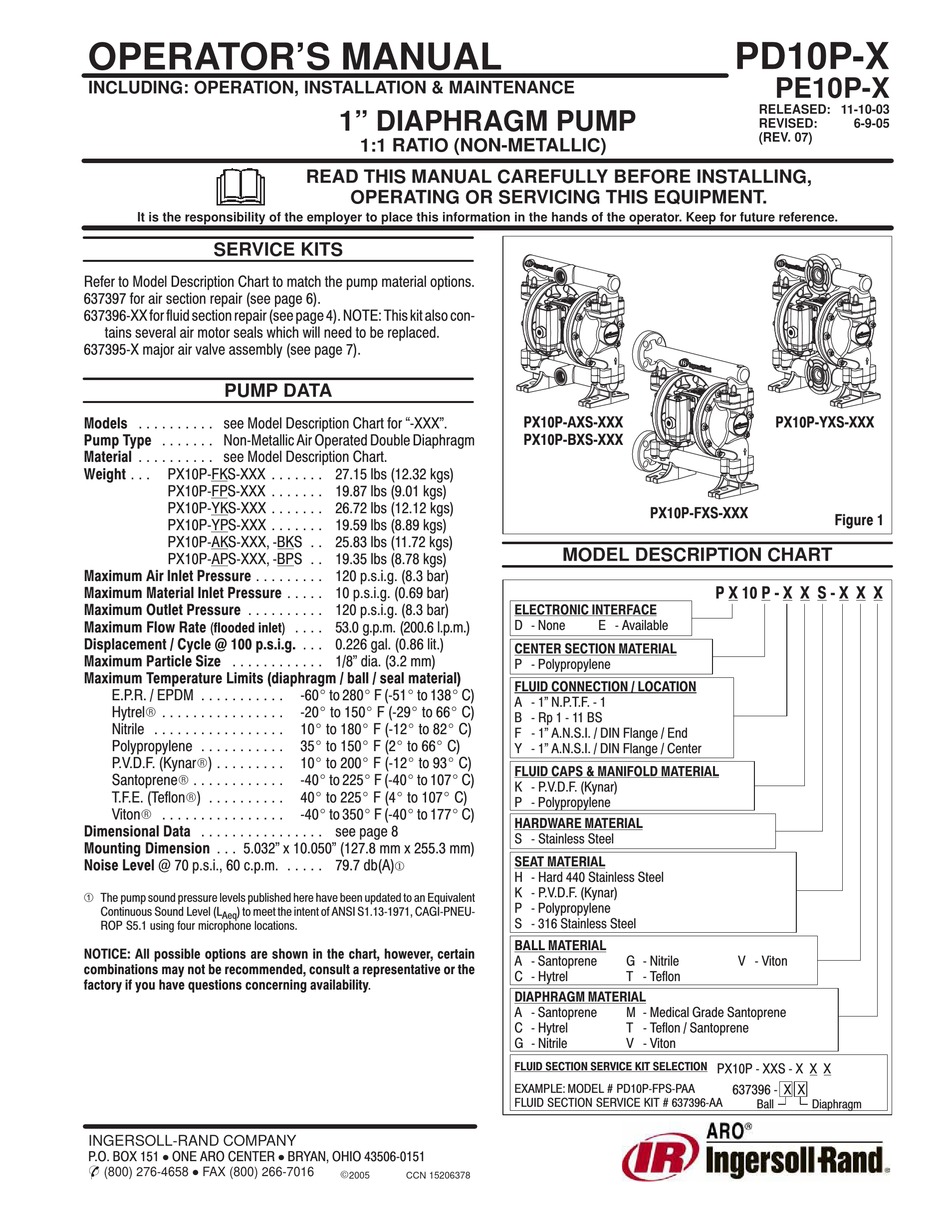

ARO Ingersoll-Rand PX10P-FKS Series Operator's Manual

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to Model Description Chart to match the pump material options.
637397 for air section repair (see page 6).
637396 XX for fluid section repair (see page 4). NOTE: This kit also con
tains several air motor seals which will need to be replaced.
637395 X major air valve assembly (see page 7).
PUMP DATA
Models . . . . . . . . . . see Model Description Chart for  XXX".
Pump Type . . . . . . . Non Metallic Air Operated Double Diaphragm
Material . . . . . . . . . . see Model Description Chart.
Weight . . . PX10P FKS XXX
PX10P FPS XXX
PX10P YKS XXX
PX10P YPS XXX
PX10P AKS XXX, BKS
PX10P APS XXX, BPS
Maximum Air Inlet Pressure . . . . . . . . .
Maximum Material Inlet Pressure
Maximum Outlet Pressure . . . . . . . . . .
Maximum Flow Rate
(flooded inlet)
Displacement / Cycle @ 100 p.s.i.g.
Maximum Particle Size . . . . . . . . . . . .
Maximum Temperature Limits (diaphragm / ball / seal material)
E.P.R. / EPDM . . . . . . . . . . .
Hytrel . . . . . . . . . . . . . . . .
R
Nitrile . . . . . . . . . . . . . . . . .
Polypropylene . . . . . . . . . . .
P.V.D.F. (Kynar ) . . . . . . . . .
R
Santoprene . . . . . . . . . . . .
R
T.F.E. (Teflon ) . . . . . . . . . .
R
Viton . . . . . . . . . . . . . . . .
R
Dimensional Data . . . . . . . . . . . . . . . .
Mounting Dimension . . . 5.032" x 10.050" (127.8 mm x 255.3 mm)
Noise Level @ 70 p.s.i., 60 c.p.m.
À The pump sound pressure levels published here have been updated to an Equivalent
Continuous Sound Level (L ) to meet the intent of ANSI S1.13 1971, CAGI PNEU
Aeq
ROP S5.1 using four microphone locations.
NOTICE: All possible options are shown in the chart, however, certain
combinations may not be recommended, consult a representative or the
factory if you have questions concerning availability.
INGERSOLL-RAND COMPANY
P.O. BOX 151 ONE ARO CENTER
D
&
D
(800) 276-4658 FAX (800) 266-7016

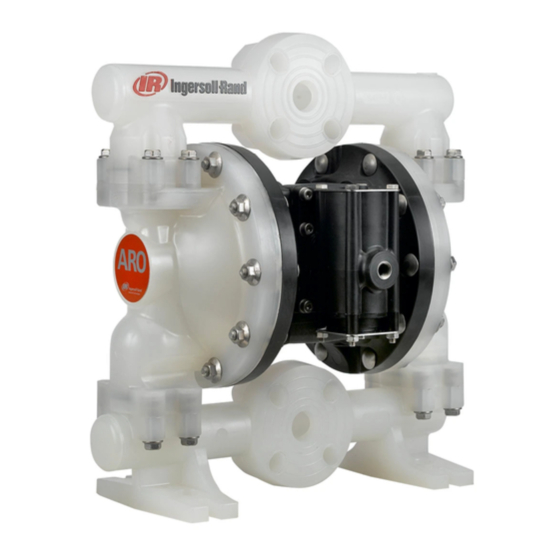

1" DIAPHRAGM PUMP
1:1 RATIO (NON-METALLIC)
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
. . . . . . . 27.15 lbs (12.32 kgs)
. . . . . . . 19.87 lbs (9.01 kgs)
. . . . . . . 26.72 lbs (12.12 kgs)
. . . . . . . 19.59 lbs (8.89 kgs)
. . 25.83 lbs (11.72 kgs)
. . 19.35 lbs (8.78 kgs)
120 p.s.i.g. (8.3 bar)
. . . . . 10 p.s.i.g. (0.69 bar)
120 p.s.i.g. (8.3 bar)
. . . . 53.0 g.p.m. (200.6 l.p.m.)
. . . 0.226 gal. (0.86 lit.)
1/8" dia. (3.2 mm)
60_ to 280_ F ( 51_ to 138_ C)
20_ to 150_ F ( 29_ to 66_ C)
10_ to 180_ F ( 12_ to 82_ C)
35_ to 150_ F (2_ to 66_ C)
10_ to 200_ F ( 12_ to 93_ C)
40_ to 225_ F ( 40_ to 107_ C)
40_ to 225_ F (4_ to 107_ C)
40_ to 350_ F ( 40_ to 177_ C)
see page 8
. . . . . 79.7 db(A)
¬
BRYAN, OHIO 43506 0151
D
E
2005 CCN 15206378
PX10P AXS XXX
PX10P BXS XXX
PX10P FXS XXX
MODEL DESCRIPTION CHART
ELECTRONIC INTERFACE
D None E Available
CENTER SECTION MATERIAL
P Polypropylene
FLUID CONNECTION / LOCATION
A 1" N.P.T.F. 1
B Rp 1 11 BS
F 1" A.N.S.I. / DIN Flange / End
Y 1" A.N.S.I. / DIN Flange / Center
FLUID CAPS & MANIFOLD MATERIAL
K P.V.D.F. (Kynar)
P Polypropylene
HARDWARE MATERIAL
S Stainless Steel
SEAT MATERIAL
H Hard 440 Stainless Steel
K P.V.D.F. (Kynar)
P Polypropylene
S 316 Stainless Steel
BALL MATERIAL
A Santoprene G Nitrile
C Hytrel T Teflon
DIAPHRAGM MATERIAL
A Santoprene M Medical Grade Santoprene
C Hytrel T Teflon / Santoprene
G Nitrile V Viton
FLUID SECTION SERVICE KIT SELECTION
EXAMPLE: MODEL # PD10P FPS PAA
FLUID SECTION SERVICE KIT # 637396 AA
PD10P-X
PE10P-X
RELEASED: 11-10-03
REVISED: 6-9-05
(REV. 07)
PX10P YXS XXX
Figure 1
P X 10 P X X S X X X
V Viton
PX10P XXS X X X
637396 X X
Ball Diaphragm
