OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION AND MAINTENANCE
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to Model Description Chart to match the pump mate-
rial options.
637309-XXX for Fluid Section Repair with seats (see page 5).
637309-XX for Fluid Section Repair without seats
(see page 5).
NOTE: This kit also contains several air motor seals which will
need to be replaced.
637421 for Air Section Repair (see page 7).
637374-X Major Air Valve Assembly (see page 8).
PUMP DATA
Models . . . . . . . . . . . .see Model Description Chart for "-XXX"
Pump Type . . . . . . . .Metallic Air Operated Diaphragm Pump
Material . . . . . . . . . . .see Model Description Chart
Weight . . . PM20A-CSS-XXX-BXX . . . . . 142.8 lbs (64.8 kgs)
PM20S-CSS-XXX-BXX . . . . . 171.7 lbs (77.9 kgs)
Maximum Air Inlet Pressure . . . . . . . . 120 psig (8.3 bar)
Maximum Material Inlet Pressure. . . 10 psig (0.69 bar)
Maximum Outlet Pressure . . . . . . . . . . 120 psig (8.3 bar)
Maximum Flow Rate
(Flooded inlet) . . . . .
Displacement / Cycle @ 100 psig . . . . 1.4 gal. (5.3 lit.)
Maximum Particle Size . . . . . . . . . . . . . 1/4" dia. (6.4 mm)
Maximum Temperature Limits
E.P.R . . . . . . . . . . . . . . . . . . . . . . -60
Santoprene
. . . . . . . . . . . . . -40
PTFE. . . . . . . . . . . . . . . . . . . . . . 40
Dimensional Data . . . . . . . . . . . . . . . . . . . see page 9
Mounting Dimension . 9-1/16" x 10-1/16" (230 mm x 256 mm)
Noise Level @ 70 psig, 60 cpm
Tested with 67263 muffler assembly installed.
The pump sound pressure levels published here have been updated to
an Equivalent Continuous Sound Level (LA
S1.13-1971, CAGI-PNEUROP S5.1 using four microphone locations.
INGERSOLL RAND COMPANY INC
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 495-0276
FAX (800) 892-6276
arozone.com

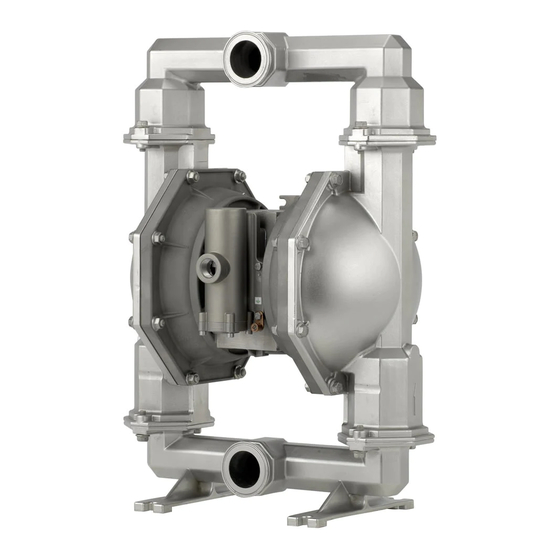

2" DIAPHRAGM PUMP
1:1 RATIO (METALLIC)
OPERATING OR SERVICING THIS EQUIPMENT.
170 gpm (644 lpm)
(diaphragm / ball / seat materials)
to 280
F (-51
to 138
to 225
F (-40
to 107
to 225
F (4
to 107
. . . . . . 85.0 dB(A)
) to meet the intent of ANSI
eq
© 2021
CCN 15227689
C)
C)
C)
PM20X-X-X-BXX
RELEASED:
REVISED:
(REV: L)
Figure 1
2-8-05
7-23-21
Advertisement
Table of Contents
Related Manuals for ARO PM20 Series
Summary of Contents for ARO PM20 Series

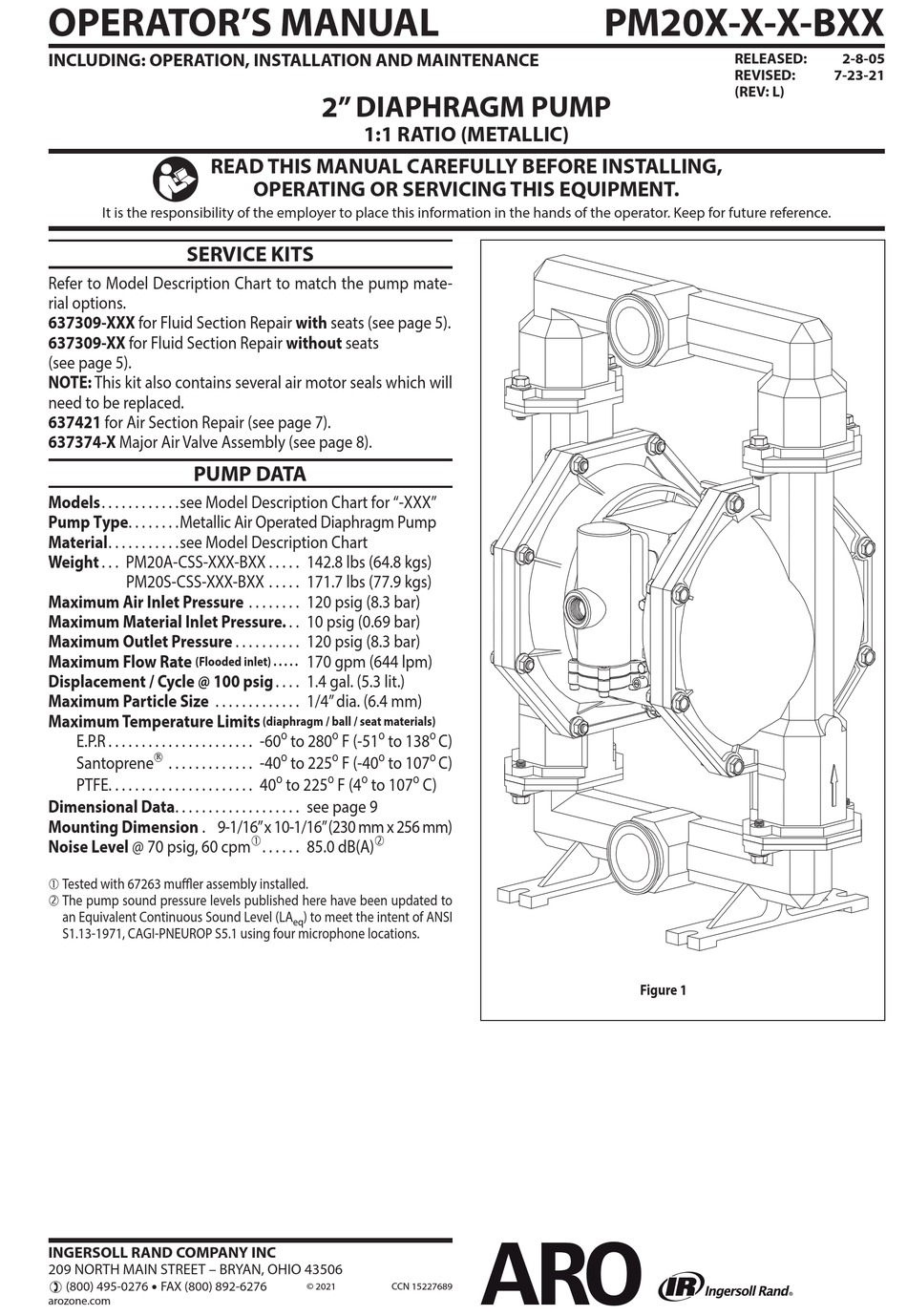

- Page 1 OPERATOR’S MANUAL PM20X-X-X-BXX INCLUDING: OPERATION, INSTALLATION AND MAINTENANCE RELEASED: 2-8-05 REVISED: 7-23-21 (REV: L) 2” DIAPHRAGM PUMP 1:1 RATIO (METALLIC) READ THIS MANUAL CAREFULLY BEFORE INSTALLING, OPERATING OR SERVICING THIS EQUIPMENT. It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference. SERVICE KITS Refer to Model Description Chart to match the pump mate- rial options.
-
Page 2: Model Description Chart
MODEL DESCRIPTION CHART Model Code Explanation PM20 Center Section Material A - Aluminum S - Stainless Steel Port C - Sanitary Flange Fluid Caps and Manifold Material S - Stainless Steel Hardware Material Stainless Steel Seat Material M - Medical Grade Santoprene S - 316 Stainless Steel Ball Material M - Medical Grade Santoprene... -
Page 3: Operating And Safety Precautions
Chemical compatibility may Use the pump grounding screw terminal provided. change with temperature and concentration of the Use ARO® part no. 66885-1 ground kit or connect a chemical(s) within the substances being pumped, suitable ground wire (12 ga. minimum) to a good flushed or circulated. -
Page 4: General Description
Loctite® and 242® are registered trademarks of Henkel Loctite Corporation y ARO® is a registered trademark of Ingersoll-Rand Company y y Santoprene® is a registered trademark of ExxonMobil y Lubriplate® is a registered trademark of Lubriplate Lubricants Company y... -
Page 5: Common Parts
PARTS LIST / PM20X-X-X-BXX FLUID SECTION FLUID SECTION SERVICE KITS (637309-XXX or 637309-XX) For Fluid Kits With Seats: 637309-XXX Fluid Section Service Kits include: Seats (see SEAT Option, refer to -XXX in chart below), Balls (see BALL Option, refer to -XXX in chart below), Dia- phragms (see DIAPHRAGM Option, refer to -XXX in chart below), and items: 19, 70, 144, 175, (listed below) plus 174 and 94276 Lubriplate FML-2 grease (page 7). -
Page 6: Torque Requirements
PARTS LIST / PM20X-X-X-BXX FLUID SECTION COLOR CODE DIAPHRAGM BALL MATERIAL COLOR COLOR Santoprene Santoprene Green N / A (Backup) PTFE White White FOR THE AIR MOTOR SECTION SEE PAGES 7 AND 8 Torque Sequence )TORQUE REQUIREMENTS( VIEW OF TWO PIECE PTFE DIAPHRAGM NOTE: DO NOT OVERTIGHTEN FASTENERS. -
Page 7: Pilot Valve Disassembly
Service Tools - To aid in the installation of (168) “O” rings spool. onto the (167) pilot piston, use tool #204130-T, available MAJOR VALVE REASSEMBLY from ARO. 1. Install new (138 and 139) “U” cups on (111) spool - LIPS PILOT VALVE DISASSEMBLY MUST FACE EACH OTHER. - Page 8 4. Install (140) valve insert, (141) valve plate, (199) gasket 5. Assemble (200 and 241) gaskets and (233) adapter plate to (135) valve housing, securing with (240) screws. NOTE: and (231, 243 and 244) “O” rings into (135) valve housing. NOTE: Assemble (140) valve insert with “dished”...
-
Page 9: Troubleshooting
TROUBLESHOOTING Product discharged from exhaust outlet. Low output volume, erratic flow, or no flow. Check for diaphragm rupture. Check air supply. Check tightness of (14) diaphragm screw. Check for plugged outlet hose. Air bubbles in product discharge. Check for kinked (restrictive) outlet material hose. Check connections of suction plumbing. - Page 10 Page 10 of 12 PM20X-X-X-BXX (en)
- Page 11 PM20X-X-X-BXX (en) Page 11 of 12...
- Page 12 PN 97999-1114 Page 12 of 12 PM20X-X-X-BXX (en)
