ARO PD01X Operator's Manual

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
PUMP DATA
Models. . . . . . see Model Description Chart on page 2 for
"-XXX" options
Pump Type. . Non-Metallic Air Operated Double Diaphragm
Material. . . . . see Model Description Chart
Weight . . . . . . Polypropylene. . . . . . . . 2.86 lbs (1.30 kgs)
PVDF . . . . . . . . . . . . . . . . . 3.88 lbs (1.76 kgs)
Acetal . . . . . . . . . . . . . . . . 3.52 lbs (1.60 kgs)
Maximum Air Inlet Pressure . . . . . . . . 125 psig (8.6 bar)
Minimum Air Inlet Pressure. . . . . . . . . 10 psig (0.69 bar)
Maximum Outlet Pressure . . . . . . . . . . 125 psig (8.6 bar)
Maximum Flow Rate . . . . . . . . . . . . . . . . 5.3 gpm (20 lpm)
Maximum Material Inlet Pressure. . . . 10 psig (0.69 bar)
Displacement / Cycle @ 125 p.s.i.g . . 0.019 gal / 0.072 ltrs
Maximum Particle Size . . . . . . . . . . . . . 1/16" dia.(1.6 mm)
Maximum Temperature Limits (diaphragm / ball / seat
material)
Acetal . . . . . . . . . . . . . . . . . . . . 10° to 180° F (-12° to 82° C)
E.P.R. / EPDM. . . . . . . . . . . . . . -60° to 280° F (-51° to 138° C)
Kynar® PVDF . . . . . . . . . . . . . . 10° to 200° F (-12° to 93° C)
Hytrel® . . . . . . . . . . . . . . . . . . . -20° to 150° F (-29° to 66° C)
Neoprene . . . . . . . . . . . . . . . . 0° to 200° F (-18° to 93° C)
Nitrile® . . . . . . . . . . . . . . . . . . . 10° to 180° F (-12° to 82° C)
Polypropylene . . . . . . . . . . . . 35° to 175° F (2° to 79° C)
Viton® . . . . . . . . . . . . . . . . . . . . -40° to 350° F (-40° to 177° C)
Santoprene®. . . . . . . . . . . . . . -40° to 225° F (-40° to 107° C)
PTFE. . . . . . . . . . . . . . . . . . . . . . 40° to 225° F (4° to 107° C)
Dimensional Data. . . . . . . . . . . . . . . . . . . see page 10
Noise Level @ 70 p.s.i., 60 c.p.m.. . . . . . 62.3 db(A)
The pump sound pressure levels published here have been updated to
an Equivalent Continuous Sound Level (L
S1.13-2005, CAGI-PNEUROP S5.1.
Mounting Adapter Plate Optional Accessory Kit (24123879) available.
Please contact your nearest ARO / Ingersoll Rand customer service or
distributor for details.
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 495-0276 FAX (800) 892-6276
www.ingersollrandproducts.com
MARTELI BOMBAS Y
EQUIPOS S.A. DE C.V.
RELEASED 28/Apr/2014 16:33:18 GMT
1/4" DIAPHRAGM PUMP
1:1 RATIO (NON-METALLIC)
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
) to meet the intent of ANSI
Aeq
© 2014 CCN 80448053
www.marteli.com.mx
Tel.(81)800-804-11 y 12
PX01X-XXX-XXX-AXXX
Model PD01X
Model PE01X

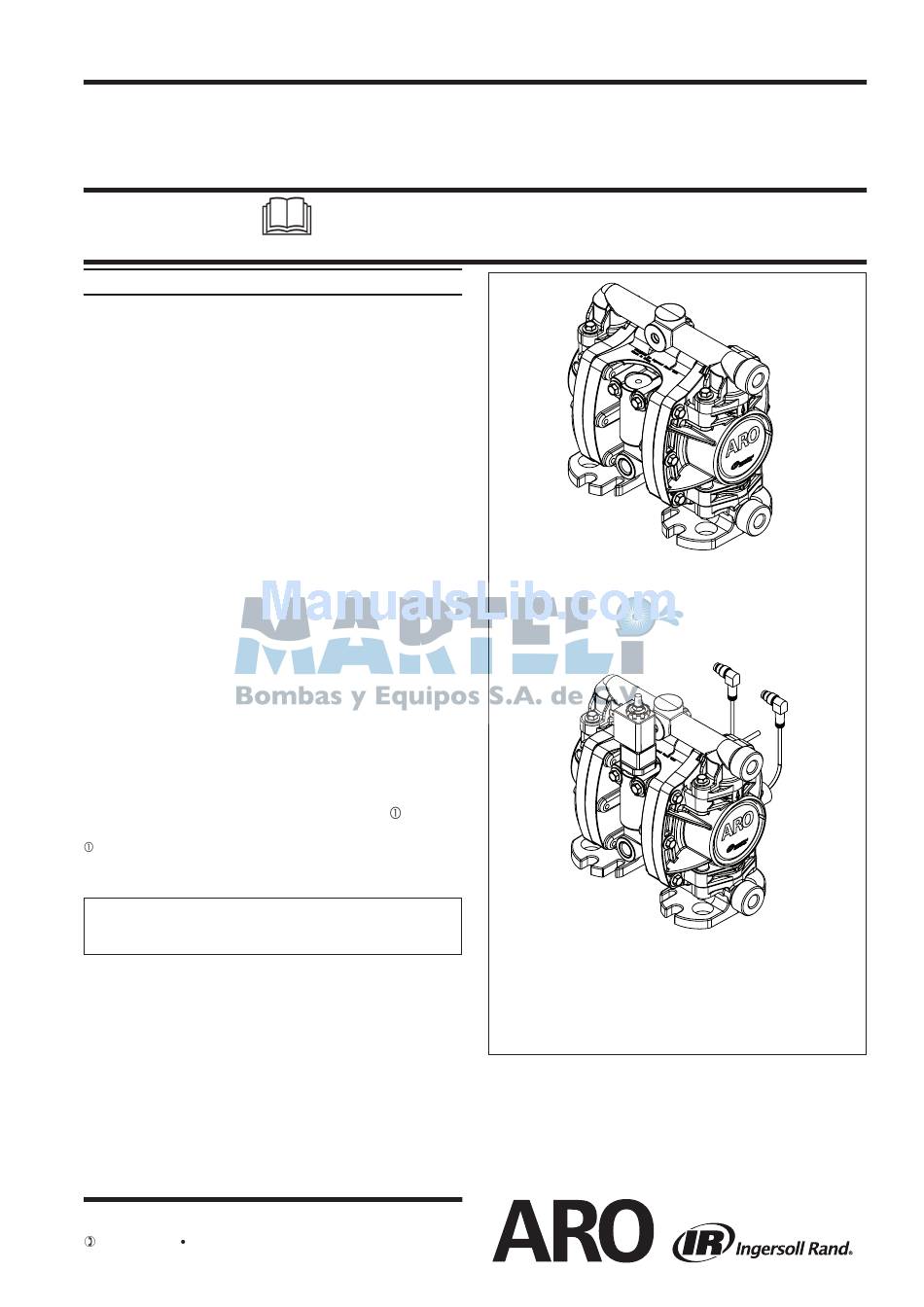

Figure 1
RELEASED: 3-7-13
REVISED: 4-25-14
(REV. F)
