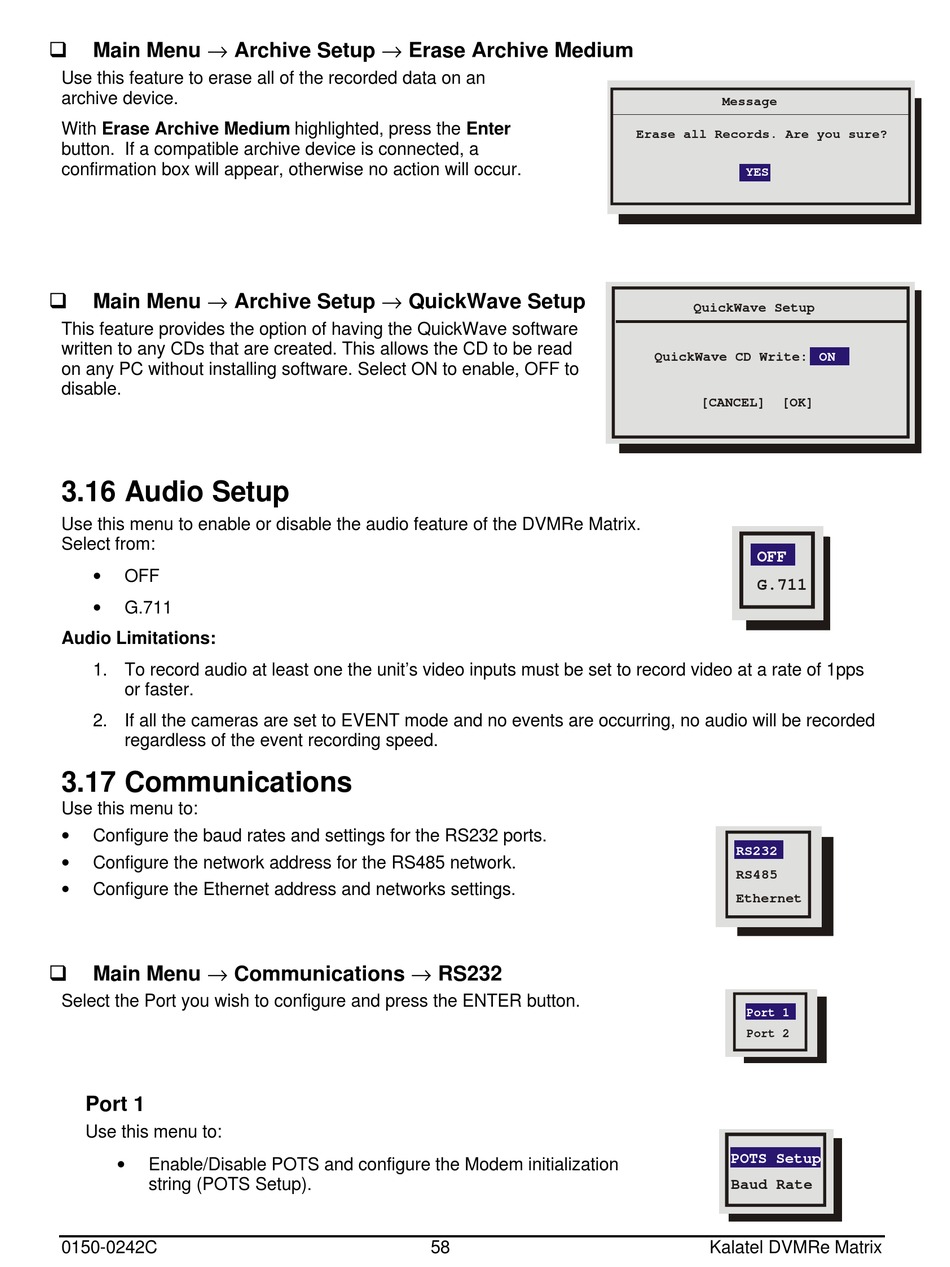

Main Menu → Archive Setup → Erase Archive Medium
q
Use this feature to erase all of the recorded data on an
archive device.
With Erase Archive Medium highlighted, press the Enter
button. If a compatible archive device is connected, a
confirmation box will appear, otherwise no action will occur.
Main Menu → Archive Setup → QuickWave Setup
q
This feature provides the option of having the QuickWave software
written to any CDs that are created. This allows the CD to be read
on any PC without installing software. Select ON to enable, OFF to
disable.

3.16 Audio Setup

Use this menu to enable or disable the audio feature of the DVMRe Matrix.
Select from:
•
OFF
•
G.711
Audio Limitations:
1. To record audio at least one the unit's video inputs must be set to record video at a rate of 1pps
or faster.
2. If all the cameras are set to EVENT mode and no events are occurring, no audio will be recorded
regardless of the event recording speed.

3.17 Communications

Use this menu to:
•
Configure the baud rates and settings for the RS232 ports.
•
Configure the network address for the RS485 network.
•
Configure the Ethernet address and networks settings.
Main Menu → Communications → RS232
q
Select the Port you wish to configure and press the ENTER button.
Port 1
Use this menu to:
•
Enable/Disable POTS and configure the Modem initialization
string (POTS Setup).
0150-0242C 58
Message
Erase all Records. Are you sure?
YES
QuickWave Setup
QuickWave CD Write:
[CANCEL] [OK]
OFF
G.711
RS232
RS485
Ethernet
Port 1
Port 2
POTS Setup
Baud Rate
Kalatel DVMRe Matrix
ON
