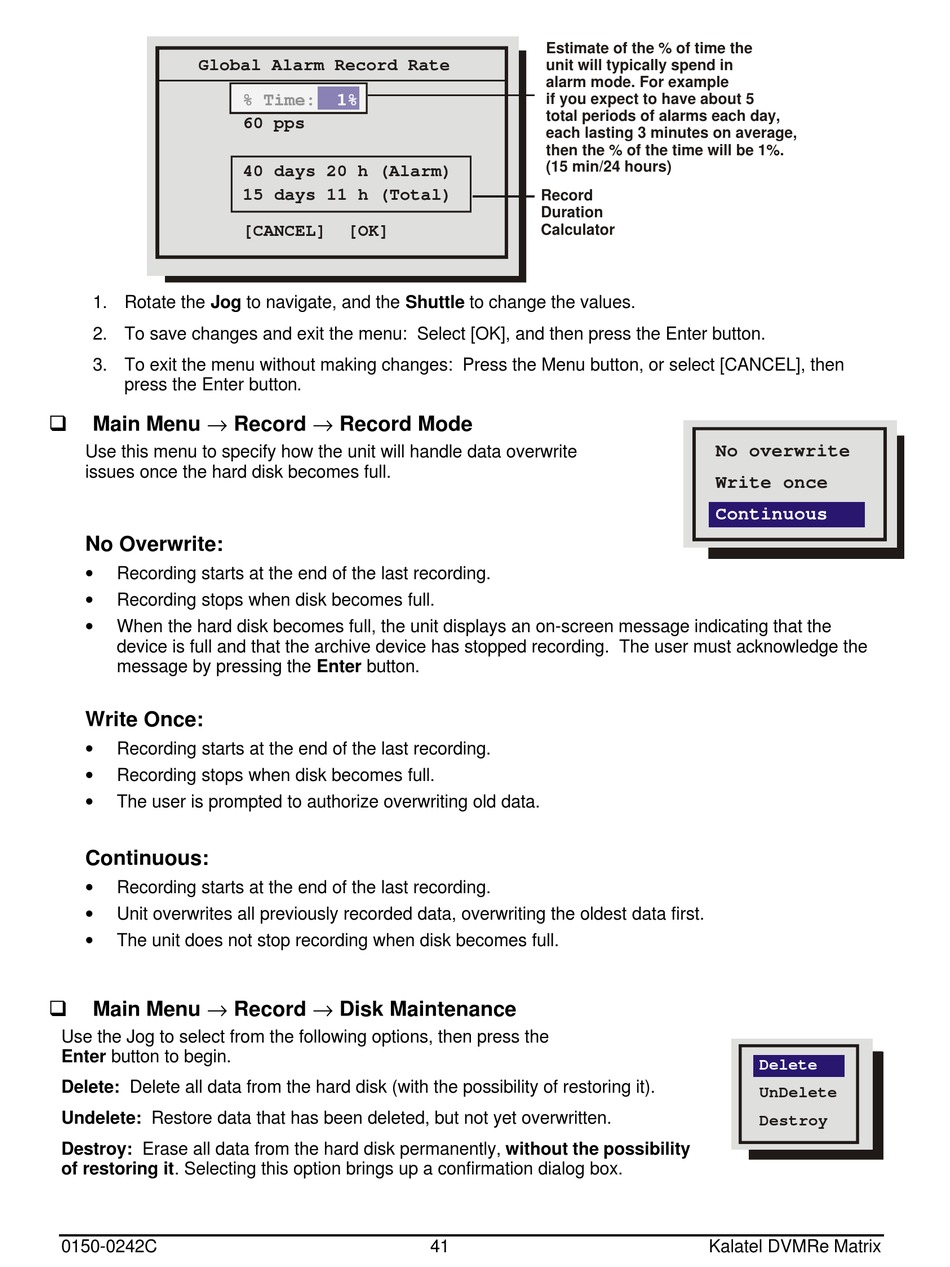

Global Alarm Record Rate
1. Rotate the Jog to navigate, and the Shuttle to change the values.
2. To save changes and exit the menu: Select [OK], and then press the Enter button.
3. To exit the menu without making changes: Press the Menu button, or select [CANCEL], then
press the Enter button.
Main Menu → Record → Record Mode
q
Use this menu to specify how the unit will handle data overwrite
issues once the hard disk becomes full.
No Overwrite:
•
Recording starts at the end of the last recording.
•
Recording stops when disk becomes full.
•
When the hard disk becomes full, the unit displays an on-screen message indicating that the
device is full and that the archive device has stopped recording. The user must acknowledge the
message by pressing the Enter button.
Write Once:
•
Recording starts at the end of the last recording.
•
Recording stops when disk becomes full.
•
The user is prompted to authorize overwriting old data.
Continuous:
•
Recording starts at the end of the last recording.
•
Unit overwrites all previously recorded data, overwriting the oldest data first.
•
The unit does not stop recording when disk becomes full.
Main Menu → Record → Disk Maintenance
q
Use the Jog to select from the following options, then press the
Enter button to begin.
Delete: Delete all data from the hard disk (with the possibility of restoring it).
Undelete: Restore data that has been deleted, but not yet overwritten.
Destroy: Erase all data from the hard disk permanently, without the possibility
of restoring it. Selecting this option brings up a confirmation dialog box.
0150-0242C
% Time:
1%
60 pps
40 days 20 h (Alarm)
15 days 11 h (Total)
[CANCEL]
[OK]
Estimate of the % of time the
unit will typically spend in
alarm mode. For example
if you expect to have about 5
total periods of alarms each day,
each lasting 3 minutes on average,
then the % of the time will be 1%.
(15 min/24 hours)
Record
Duration
Calculator
41
No overwrite
Write once
Continuous
Delete
UnDelete
Destroy
Kalatel DVMRe Matrix
