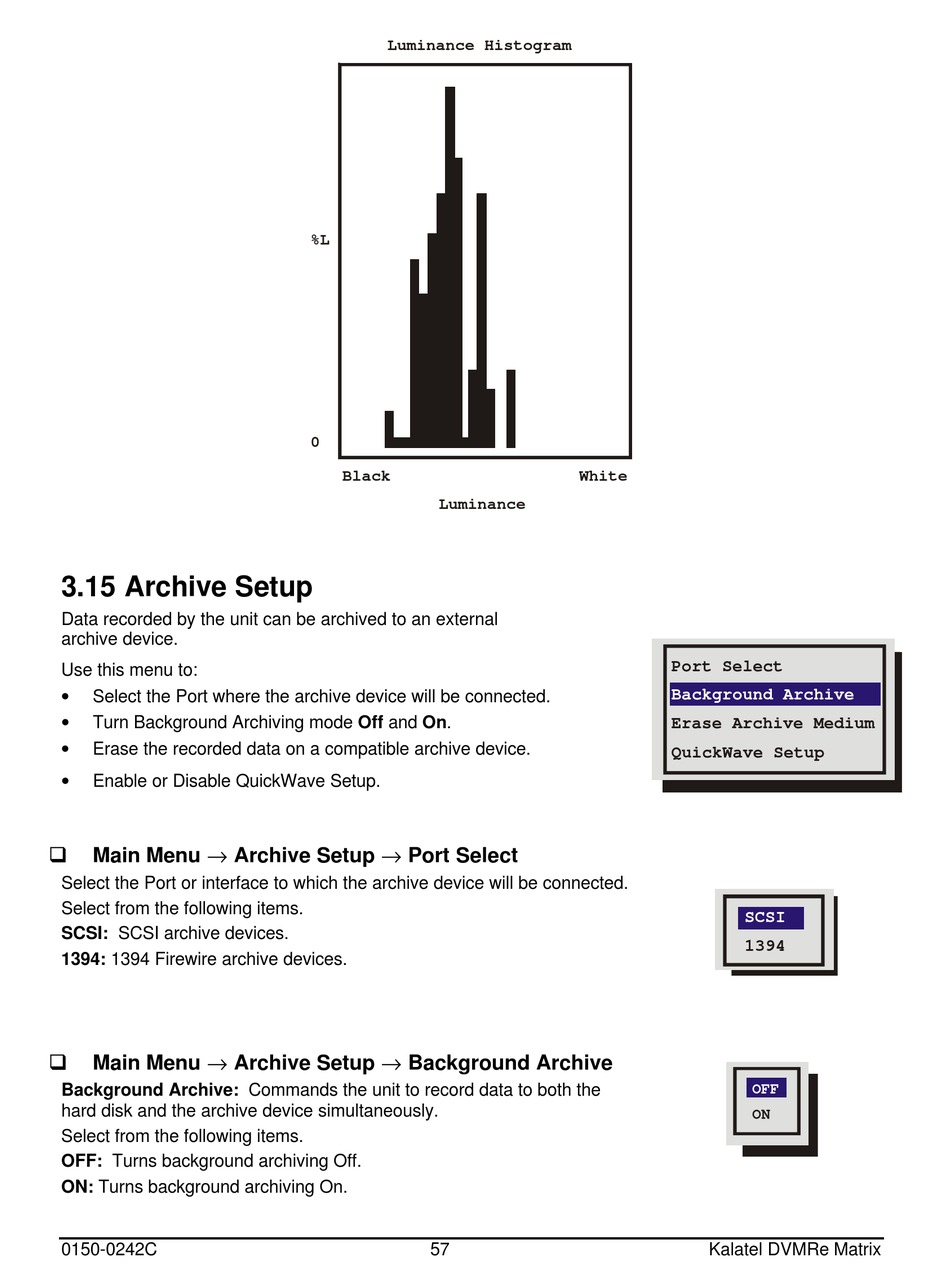

3.15 Archive Setup

Data recorded by the unit can be archived to an external
archive device.
Use this menu to:
•
Select the Port where the archive device will be connected.
•
Turn Background Archiving mode Off and On.
•
Erase the recorded data on a compatible archive device.
•
Enable or Disable QuickWave Setup.
Main Menu → Archive Setup → Port Select
q
Select the Port or interface to which the archive device will be connected.
Select from the following items.
SCSI: SCSI archive devices.
1394: 1394 Firewire archive devices.
Main Menu → Archive Setup → Background Archive
q
Background Archive: Commands the unit to record data to both the
hard disk and the archive device simultaneously.
Select from the following items.
OFF: Turns background archiving Off.
ON: Turns background archiving On.
0150-0242C
Luminance Histogram
%L
0
Black
Luminance
57
White
Port Select
Background Archive
Erase Archive Medium
QuickWave Setup
SCSI
1394
OFF
ON
