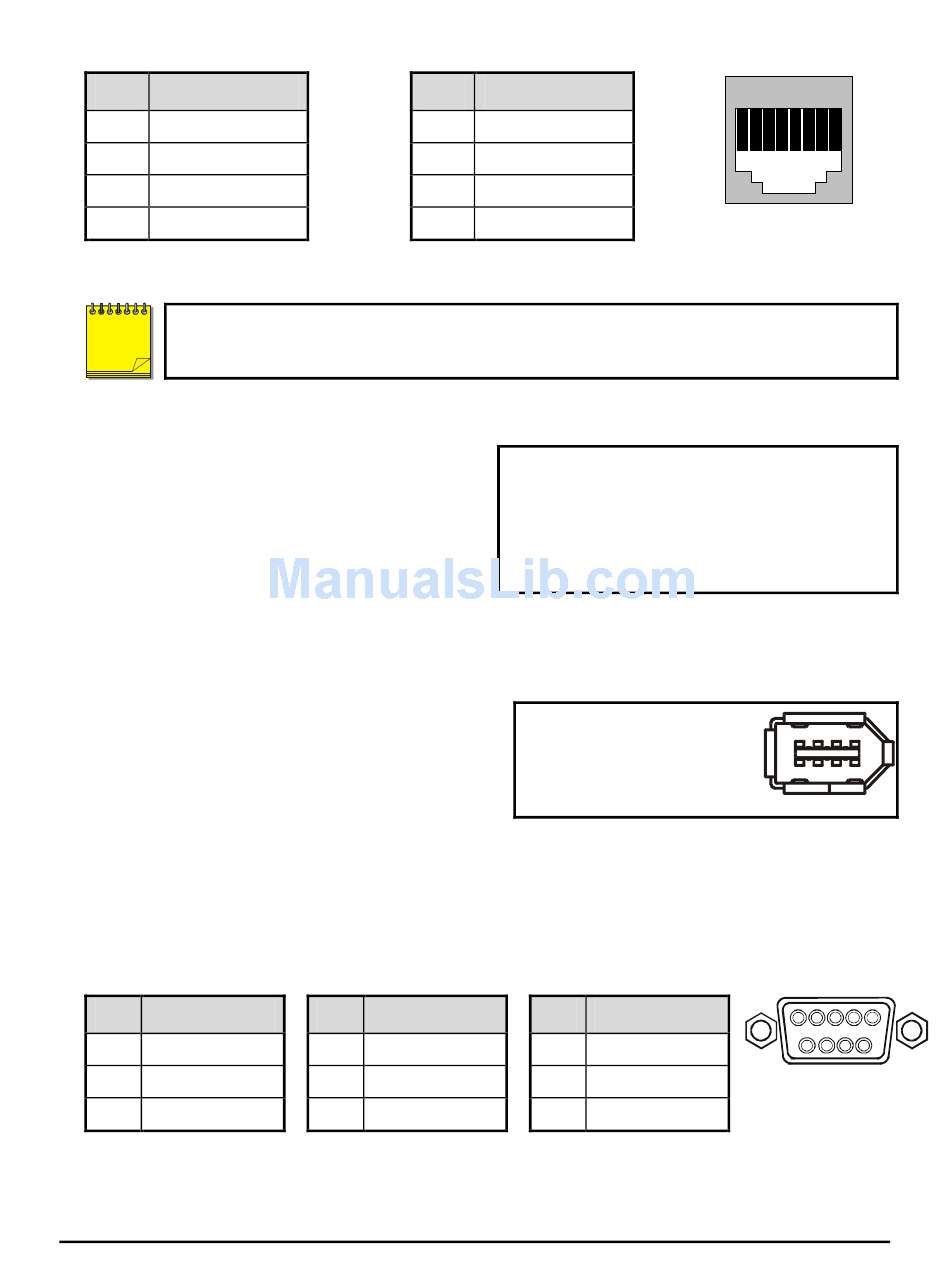

RJ-45 Pin Configuration For Ethernet Port
Pin
Use
1
TX+
2
TX-
3
RX+
4
Not Connected
SCSI and IEEE 1394 archiving devices should not be connected to the Kalatel DVMRe
NOTE
Matrix simultaneously. Archiving support is only available for one or the other type of
interface at a time.
SCSI Port
The unit is equipped with a SCSI port for
connecting external archive devices. The unit only
supports a single SCSI device. The SCSI ID of the
archive device must be set to 0.
The SCSI bus must be terminated, otherwise the
system will not operate properly.
Additional menu setup may be necessary to
configure archive device. See section 3.15.
IEEE 1394 Firewire Port
The unit is equipped with an IEEE 1394 Firewire port
for connecting Firewire compatible external archive
devices. For information on the approved devices,
please refer to the Archiving Addendum manual that
is supplied with this unit.
RS232 Port 1
For a Modem connection or remote control of unit. See section 3.17 for information about configuring
the modem settings in the menu system. See section 9 for RS232 Remote Control Protocols.
DB-9 Pin Configuration For Port 1
Pin
Use
1
DCD
2
RX
3
TX
0150-0242C
Pin
5
Not Connected
6
7
Not Connected
8
Not Connected
Pin
Use
4
DTR
5
Ground
6
Not Connected
14
Use
RX-
Connector: 50 Pin, High Density SCSI-2.
Gender (on unit) : Female
Compatible devices : DVSe, RAID, DAT, AIT,
CD-R, CD-RW
SCSI ID : 0
Cable: 6 position Firewire
Connectors: 6 position DIP
Pin
Use
7
RTS
8
CTS
9
Not Connected
1
2 3 4 5 6 7
8
RJ-45 socket on
back panel.
1
6
DB-9 on back panel.
Kalatel DVMRe Matrix
5
9
