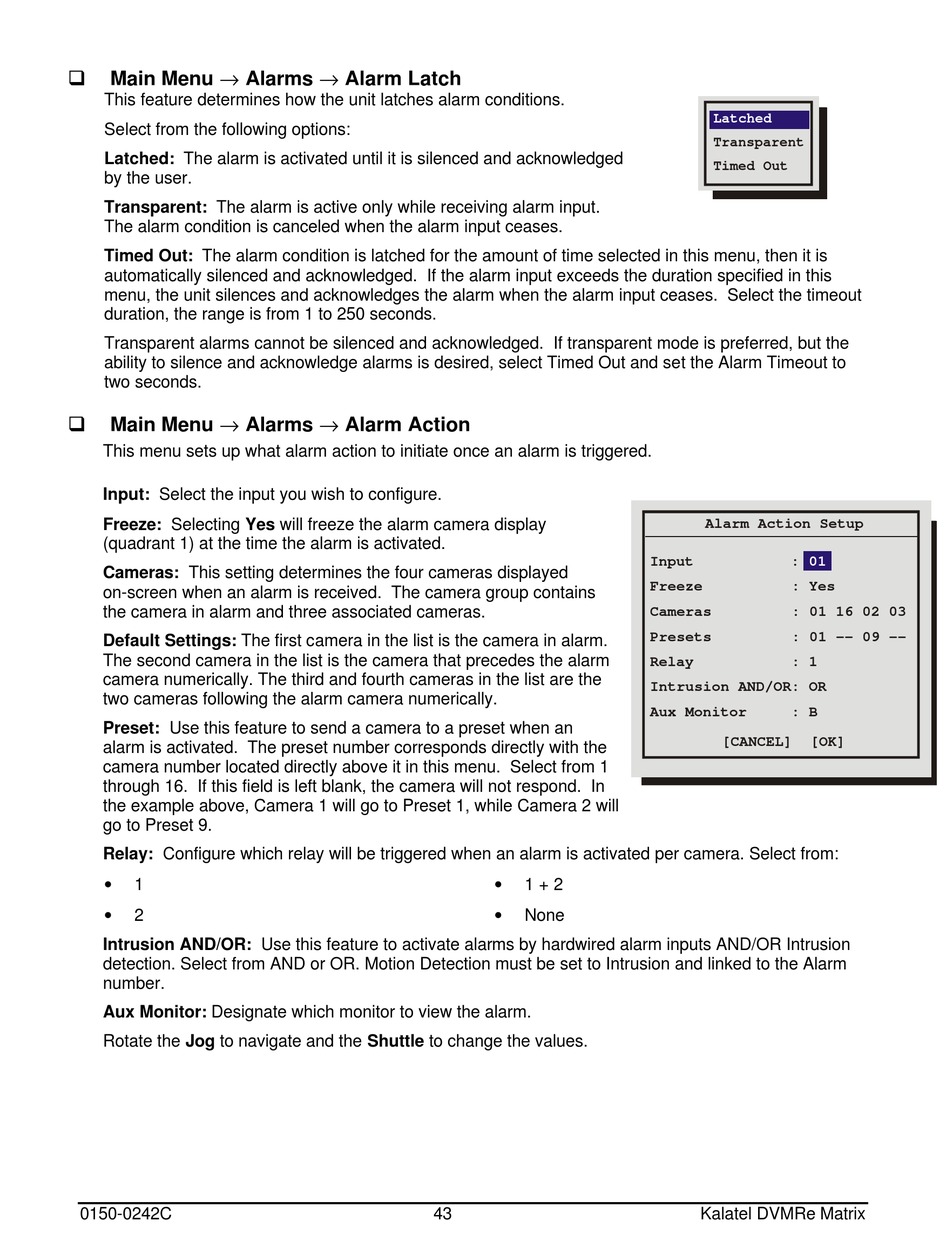

Main Menu → Alarms → Alarm Latch
q
This feature determines how the unit latches alarm conditions.
Select from the following options:
Latched: The alarm is activated until it is silenced and acknowledged
by the user.
Transparent: The alarm is active only while receiving alarm input.
The alarm condition is canceled when the alarm input ceases.
Timed Out: The alarm condition is latched for the amount of time selected in this menu, then it is
automatically silenced and acknowledged. If the alarm input exceeds the duration specified in this
menu, the unit silences and acknowledges the alarm when the alarm input ceases. Select the timeout
duration, the range is from 1 to 250 seconds.
Transparent alarms cannot be silenced and acknowledged. If transparent mode is preferred, but the
ability to silence and acknowledge alarms is desired, select Timed Out and set the Alarm Timeout to
two seconds.
Main Menu → Alarms → Alarm Action
q
This menu sets up what alarm action to initiate once an alarm is triggered.
Input: Select the input you wish to configure.
Freeze: Selecting Yes will freeze the alarm camera display
(quadrant 1) at the time the alarm is activated.
Cameras: This setting determines the four cameras displayed
on-screen when an alarm is received. The camera group contains
the camera in alarm and three associated cameras.
Default Settings: The first camera in the list is the camera in alarm.
The second camera in the list is the camera that precedes the alarm
camera numerically. The third and fourth cameras in the list are the
two cameras following the alarm camera numerically.
Preset: Use this feature to send a camera to a preset when an
alarm is activated. The preset number corresponds directly with the
camera number located directly above it in this menu. Select from 1
through 16. If this field is left blank, the camera will not respond. In
the example above, Camera 1 will go to Preset 1, while Camera 2 will
go to Preset 9.
Relay: Configure which relay will be triggered when an alarm is activated per camera. Select from:
•
1
•
2
Intrusion AND/OR: Use this feature to activate alarms by hardwired alarm inputs AND/OR Intrusion
detection. Select from AND or OR. Motion Detection must be set to Intrusion and linked to the Alarm
number.
Aux Monitor: Designate which monitor to view the alarm.
Rotate the Jog to navigate and the Shuttle to change the values.
