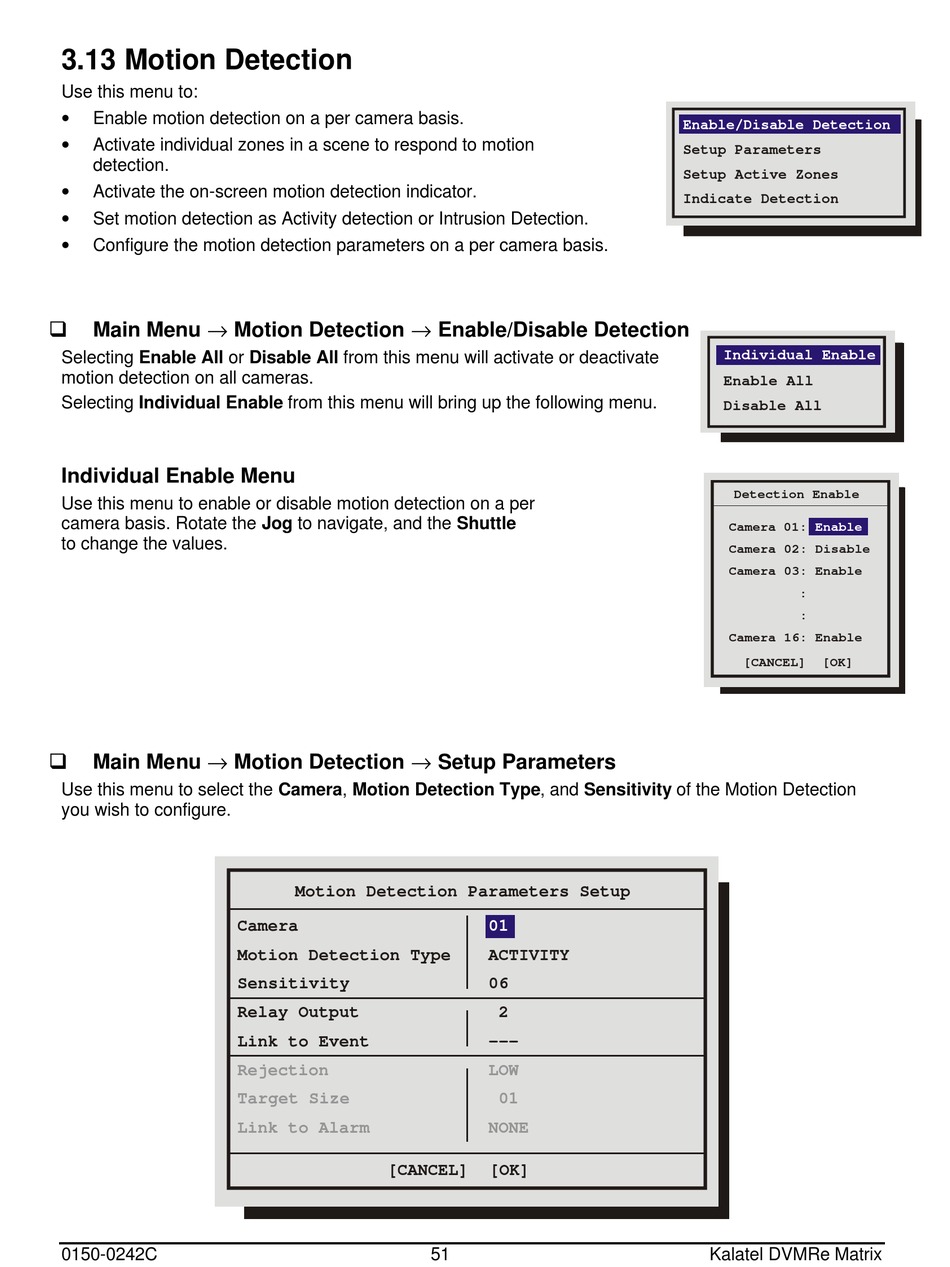

3.13 Motion Detection

Use this menu to:
•
Enable motion detection on a per camera basis.
•
Activate individual zones in a scene to respond to motion
detection.
•
Activate the on-screen motion detection indicator.
•
Set motion detection as Activity detection or Intrusion Detection.
•
Configure the motion detection parameters on a per camera basis.
Main Menu → Motion Detection → Enable/Disable Detection
q
Selecting Enable All or Disable All from this menu will activate or deactivate
motion detection on all cameras.
Selecting Individual Enable from this menu will bring up the following menu.
Individual Enable Menu
Use this menu to enable or disable motion detection on a per
camera basis. Rotate the Jog to navigate, and the Shuttle
to change the values.
Main Menu → Motion Detection → Setup Parameters
q
Use this menu to select the Camera, Motion Detection Type, and Sensitivity of the Motion Detection
you wish to configure.
0150-0242C
Motion Detection Parameters Setup
Camera
Motion Detection Type
Sensitivity
Relay Output
Link to Event
Rejection
Target Size
Link to Alarm
[CANCEL]
01
ACTIVITY
06
2
---
LOW
01
NONE
[OK]
51
Enable/Disable Detection
Setup Parameters
Setup Active Zones
Indicate Detection
Individual Enable
Enable All
Disable All
Detection Enable
Camera 01: Enable
Camera 02: Disable
Camera 03: Enable
:
:
Camera 16: Enable
[CANCEL] [OK]
