Alarm Relay Output
The alarm relay output is activated when an alarm condition
exists. The alarm output is only active for the duration of the
alarm.
Alarm relays can be programmed in the menu system to
respond to macros, and video loss. See section 3.11 for
information about configuring the alarms in the menu system.

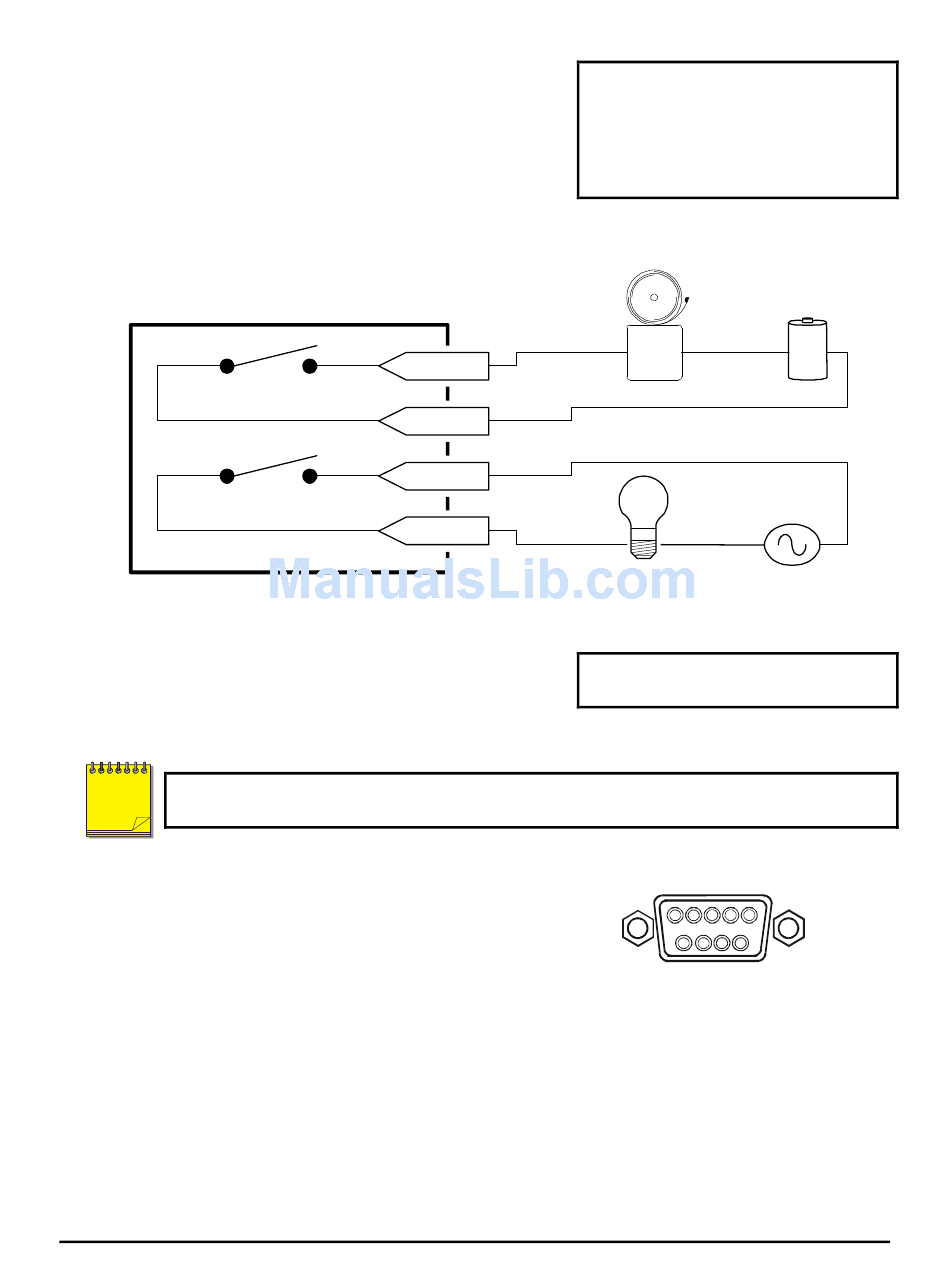

Typical wiring for Alarm Relays. Relays may be
programmed Normally Open or Normally Closed.
Output Relay No. 1
Output Relay No. 2
DVMRe Matrix DB25 Connector
External Alarm Acknowledge Input
Connect a switch or similar device to ground this pin in order
to acknowledge an alarm condition, and silence associated
buzzers and relays. Connect from pin 23 to either pin 18, 19,
or 20 (ground pins).
NOTE
All specifications subject to change without notice. GE-Interlogix believes all specifications
to be correct at time of printing, but no liability is assumed for omissions or errors.
AUX Port
The back panel of the unit is equipped with an Aux Port
(DB-9 style connector).
Do not attempt to wire directly to the DB-9
connector on the back panel.
Matrix Audio PCB
The Matrix Audio PCB connects to the DVMRe Matrix via the Aux Port. The Matrix Audio PCB
provides connectors for the Audio Input and Output, and BNC connectors for Monitors C, D, and E.
0150-0242C
pin 17
Alarm
Device
pin 21
pin 22
Controlled
Device
pin 25
DB-9 Connector on Back Panel
12
Output: Zero potential relay contacts,
programmable in menu system as
Normally Open or Normally Closed.
Voltage: 30V (Max)
Current: 500mA (Max)
Power
Source
Power
Source
External Device: Normally Open
Zero potential relay contact.
1
6
Kalatel DVMRe Matrix
5
9
