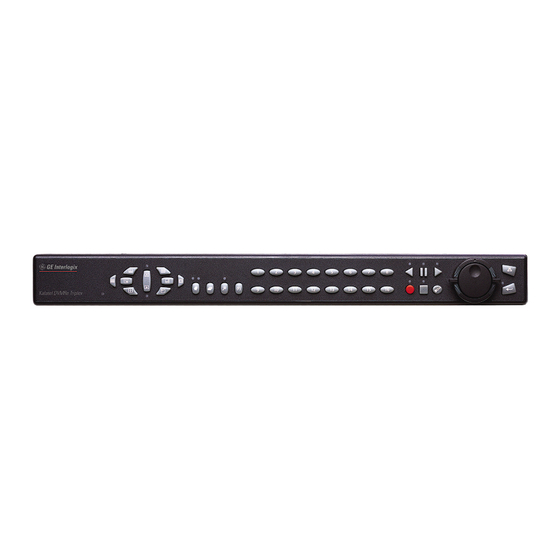

Digital Video Multiplexer Recorder
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVMRe and is the answer not in the manual?

Questions and answers

Related Manuals for GE Interlogix DVMRe

Summary of Contents for GE Interlogix DVMRe

  • Page 1 © Digital Video Multiplexer Recorder User Manual...
  • Page 2 It may be illegal to dispose of this battery improperly under local, state, or federal laws. Check with your local waste management officials for disposal and recycling options. CAUTION! Electrostatic-Sensitive Device! components, from electric discharge. WARNING! accompanying the product. ATTENTION Kalatel DVMRe Triplex...
  • Page 3 GE-Interlogix Kalatel Division, Corvallis, Oregon, USA. The software/firmware are not to be copied or disclosed in any manner without the express written consent of GE-Interlogix. All information and specifications furnished by GE-Interlogix are believed to be accurate and reliable.

  • Page 4: Table Of Contents

    Contents DVMRe Triplex Overview ... 7 Products Featured In This Manual ... 7 Product Description... 7 Passwords... 8 Unpacking ... 9 Installation Environment ... 9 Associated Equipment... 10 The Back Panel ... 10 Power-Up... 16 Minimum Recommended Menu Setup ... 17 DMVRe Triplex Basic Operations...
  • Page 5 Motion Search ... 70 Search Filters ... 71 Search Results... 72 WebBrowser... 73 WaveBrowser Overview and Controls ... 74 DVMRe Triplex WaveLink ... 76 Technical Specifications... 78 RS232 Event Generation/Text Insertion Protocol ... 80 Message Structure... 80 Message Type ... 80 Event Field ...
  • Page 6 10.2 Scheduled Macro Table... 85 Warranty and Service... 86 11.1 Factory Service... 86 11.2 Warranty and Return Information ... 87 0150-0193F Kalatel DVMRe Triplex...

  • Page 7: Dvmre Triplex Overview

    Depending on the setup, the DVMRe Triplex can store from a few hours to more than 3 years of color images. Programmable search features eliminate time consuming Fast Forwarding or Rewinding of tapes, searching for critical data.

  • Page 8: Passwords

    Alarm Notification via email and/or TCP/IP. Integrated WaveBrowser Software. Dynamic IP addressing (DHCP). One-touch image printing directly from the DVMRe. 1.3 Passwords Passwords are provided to limit access to menus and certain functions. Two levels of password security are provided: Operator: Limited menu access, only Operator and System View menus are available.

  • Page 9: Unpacking

    If the unit must be returned, it must be shipped in the original packing box. Package Contents The DVMRe Triplex unit. The Alarm Interface Circuit Board (P/N 0090-0077). Accessory PCB (P/N 0900-0127). Audio equipped models only.

  • Page 10: Associated Equipment

    13. RS232 Port 1: For modem connection and external control of the unit. 14. RS485 Port 2 Connector: For connecting to keyboard and other RS485 devices. 15. RS232 Port 2: For Event Generation and ASCII Text insertion. 0150-0193F 12V DC SVHS RS-232/1 SCSI IEEE-1394 Kalatel DVMRe Triplex ETHERNET RS-485/1 10/100 RS-485/2 RS-232/2...
  • Page 11 BNC connector of the same camera input. Make sure there is 75-Ohm termination at the end of the video line if the signal is looped through the DVMRe Triplex. Time base correction is performed during digital capture. As a result, cameras do not require synchronization.

  • Page 12: Alarm Input

    Pin 23: External Alarm Silence and Acknowledge Input. Pin 12: Alarm Input 12. Pin 25: Alarm Output Relay #2 Common. Active alarm inputs vary by DVMRe model. 4 channel units (4CT) have 4 active alarm inputs. 10 channel units (10CT) have 10 active alarm inputs. Alarm Input An alarm condition can be activated by devices such as pressure pads, passive infrared detectors, door switches, or other similar devices.

  • Page 13: Alarm Relay Output

    Connect from pin 23 to either pin 18, 19, or 20 (ground pins). NOTE All specifications subject to change without notice. GE-Interlogix believes all specifications to be correct at time of printing, but no liability is assumed for omissions or errors. AUX Port The back panel of the unit is equipped with an Aux Port (DB-9 style connector).

  • Page 14: Ethernet Port

    Ethernet Port The cable connection configuration depends on your network configuration: For a DVMRe Triplex that connects directly to a Hub or Switch, use a straight through connection. For a DVMRe Triplex that connects directly to a PC, use a cross over connection.
  • Page 15 RJ-45 Pin Configuration For Ethernet Port Not Connected SCSI and IEEE 1394 archiving devices should not be connected to the Kalatel DVMRe NOTE Triplex simultaneously. Archiving support is only available for one or the other type of interface at a time.

  • Page 16: Power-Up

    1. Energize the monitors and all of the cameras. 2. Energize the DVMRe Triplex. Once power is applied to the unit, it will begin its power-up procedure. The unit will begin by displaying the software version on Monitor-A, then the unit will begin recording automatically.

  • Page 17: Minimum Recommended Menu Setup

    Main Menu Location Time/Date Set Time Time/Date Set Date Camera Setup Camera Titles Camera Setup Camera Disable Record Record Quality Passwords Installer Password Camera Setup Camera Disable Section in Manual 3.14 Edit Titles 3.14 3.10 3.20 3.14 Auto Kalatel DVMRe Triplex...

  • Page 18: Dmvre Triplex Basic Operations

    DMVRe Triplex Basic Operations 2.1 Principal Operating Modes The DVMRe Triplex has three principal modes of operation: Live Viewing. Playback. Recording. All three of these modes can operate simultaneously. Each mode is discussed in detail later in this section. 2.2 The Front Panel Kalatel DVMRe Triplex 1.

  • Page 19: Live Viewing

    Individual cameos can be frozen in Active Cameo mode (see section 2.7). Press the Freeze button again or any camera button to cancel Freeze operations. 0150-0193F Multiscreen Buttons Sequence Button Number Button Sequence Button Zoom Button with LED Freeze Button Kalatel DVMRe Triplex...

  • Page 20: Monitor Button

    During Freeze or Pause mode, rotate the Jog (the inner dial) to view the frame directly before or after the frame displayed on-screen. 0150-0193F Monitor Button Play Forward Button Reverse Play Button Jog / Shuttle Freeze Button Kalatel DVMRe Triplex...

  • Page 21: Stop Button

    Searching Recorded Data The DVMRe Triplex has a powerful search interface feature that allows the user to search for data on the internal hard disk or an external archive device. The user may search the data for previous recording sessions, text insertion, alarm conditions, or for motion in a selectable area of the scene.

  • Page 22: Recording

    Monitor Displays During Recording Multiscreen Live and Playback displays on Monitor A and Monitor B are not affected by recording operations. Monitor A LIVE PLAY BACK LIVE PLAY BACK 0150-0193F Monitor B LIVE LIVE LIVE LIVE LIVE Record Button Kalatel DVMRe Triplex...

  • Page 23: Display Options

    Jog selects the next screen up or down a row. Rotating the shuttle selects the next screen in numerical order. The active cameo will always be indicated by the flashing camera number and titles. 0150-0193F 10-Way 9-Way Monitor A Monitor B 4-Way 6-Way 13-Way Enter Button Jog/Shuttle Kalatel DVMRe Triplex...

  • Page 24: Number Button

    Returning To The Default Sequence List The default sequence list is all cameras in numeric order with a three second dwell time. 0150-0193F (a flashing asterisk) on-screen. Number Button Freeze Button Sequence Button Alarm Button and Sequence Button Kalatel DVMRe Triplex...

  • Page 25: On-Screen Indicators

    Time remaining on Hard Disk(s). 0150-0193F Sequencing Position Top Left Top Left Top Left Bottom Left Bottom Left Bottom Left Full Screen Color Black White Gray Black White Gray Title not displayed Small Cameo Kalatel DVMRe Triplex...

  • Page 26: Triplex Mode

    Pressing the Camera Number a third time displays an ATM/POS text display. This feature can be used during live viewing mode to verify that the DVMRe Triplex is receiving ATM/POS text, or in Playback mode to review recorded text and video.
  • Page 27 13-way multiscreen button will result in the center cameo being live and the rest of the cameos being playback images. 0150-0193F Reverse Play Button Jog / Shuttle Freeze Button Stop Button Multiscreen Buttons Kalatel DVMRe Triplex...

  • Page 28: The Print Image Feature

    If any multiscreen is the display mode, the Triplex will switch to a single image display of the last selected fullscreen camera, freeze the image, and send to the default printer. 0150-0193F Sequence Button Number Button Sequence Button Zoom Button with LED Zoom and Function Button Kalatel DVMRe Triplex...

  • Page 29: Printer Setup

    The Triplex must be aware of the Print Server’s IP address. The IP address can be input under Main Menu – Communications – Ethernet – Ethernet Settings (See Section 3.15). The Printer and Print Server must be On-line and Operational. 0150-0193F Kalatel DVMRe Triplex...

  • Page 30: Menu System Overview

    Auto Disable Now Not Selected Time/Date Menu Button SystemView About DVMR View Screen 1 View Screen 2 View Screen 3 View Screen 4 View Screen 5 View Screen 6 View Screen 7 View Screen 8 View Screen 9 Kalatel DVMRe Triplex...

  • Page 31: Menus In This Manual

    Camera Button: In menu lists that provide settings per camera, a particular camera may be accessed directly by pressing on the associated camera button. Rotate the Shuttle to modify the setting. 0150-0193F Shuttle QuickInstall Operator Shuttle SystemView Kalatel DVMRe Triplex...

  • Page 32: The Main Menu

    3.7 The Main Menu Main Menu Overview The Main menu contains the majority of programmable options for the DVMRe Triplex. Each item in the Main menu is described in detail in this section of the manual. Main menu items appear in this section in the same order they appear in the menu.
  • Page 33 Set Date Set Master / Slave Date Format Setup Select Format MM/DD/YY Time Setup HH MM SS 03 05 53 [CANCEL] [OK] Date Setup MM DD YY Day 01 25 60 MON [CANCEL] [OK] Master/Slave Select Master Clock Kalatel DVMRe Triplex...

  • Page 34: Main Menu Time/Date Set Region

    Set Region Network Time Setup Network Time Protocol Setup DISABLE 3. 37. 8. 26 [CANCEL] [OK] Regional Settings Daylight Saving : Time Zone GMT+00:00 SUN, 7 APR 2002 02:00 (+1) SUN, 27 OCT 2002 02:00 (-1) [CANCEL] [OK] Kalatel DVMRe Triplex...

  • Page 35: Sequencing

    Multiscreen Dwell (Time in Seconds) Fullscreen Dwell (Time in Seconds) Record Timer Record Quality Event Settings Timelapse Record Rate Event Record Rate Activity Record Rate Alarm Record Rate Record Mode Disk Maintenance Record Lock Auto Delete Mode Kalatel DVMRe Triplex...
  • Page 36 Camera 03: High Camera 04: High Camera 16: High [CANCEL] [OK] Event Camera Settings Camera Type : Event + TL Pre Event Duration : 00 Post Event Duration : 000 Event Associated Cameras: -- -- -- [CANCEL] [OK] Kalatel DVMRe Triplex...
  • Page 37 3 : 0.34 pps 2.9 spp Camera 4 : 0.57 pps 1.8 spp Camera 15 : 0.40 pps 2.5 spp Camera 16 : 0.40 pps 2.5 spp 8 days 5 h (TL) 8 days 5 h (Total) [CANCEL] [OK] Kalatel DVMRe Triplex...
  • Page 38 Event mode. For example if you expect to have about 20 total events each day, each lasting 3 minutes on average, then the % of the time will be (1 hour/24 hours) Kalatel DVMRe Triplex...
  • Page 39 For example if you expect to have about 20 total periods of activity each day, each lasting 3 minutes on average, then the % of the time will be 4%. (1 hour/24 hours) Kalatel DVMRe Triplex...
  • Page 40 3 minutes on average, then the % of the time will be 1%. (15 min/24 hours) Record Duration Calculator [OK] Record Mode Disk Maintenance No overwrite Write once Continuous Delete UnDelete Destroy Kalatel DVMRe Triplex...

  • Page 41: Alarms

    3.11 Alarms Use this menu to configure the alarm handling features of the unit. Caution! The DVMRe Triplex’s primary function is to furnish video multiplexing and recording with a multiscreen display. Although the unit has alarm handling and motion detection functions, these are considered secondary features.

  • Page 42: Main Menu Alarms Alarm Latch

    Alarm Latch Alarm Action 1 + 2 None Latched Transparent Timed Out Alarm Action Setup Input Freeze : Yes Cameras : 01 16 02 03 Presets : 01 -- 09 -- Relay Intrusion AND/OR: OR [CANCEL] [OK] Kalatel DVMRe Triplex...

  • Page 43: Main Menu Alarms Enable / Disable

    1 4 2 4 3 4 5 4 6 4 7 4 8 4 1 4 Individual Enable Enable All Disable All Alarm History Box 001- 02/04 18:40:32 16 002- 02/15 12:00:10 11 003- 02/28 10:10:20 08 010- 03/15 05:12:16 04 [OK] Kalatel DVMRe Triplex...
  • Page 44 Selecting No from this menu will cause the unit to display the 4-way display configured in the Main Menu Setup menu. This menu selection is not available on 4-channel DVMRe Triplex units, since Fullscreen Alarm Mode is the only alarm mode available. Main Menu...
  • Page 45 0150-0193F Videoloss Action Alarms Buzzer Setup menu, Pre Alarm Duration Notification Videoloss Action Camera : Relay 1: Disable Relay 2: Enable Buzzer : Enable [CANCEL] [OK] Pre Alarm Duration (Time in Seconds) Email TCP/IP Kalatel DVMRe Triplex...
  • Page 46 Notify Connection: DISABLE Email User 1: john.doe Email Domain 1: somecompany.com Email User 2: jane.doe Email Domain 2: somecompany.com SMTP Server: SMTP Port: [CANCEL] Format of email address: user@domain Warning: Region/Time Zone must be set correctly! [OK] Kalatel DVMRe Triplex...

  • Page 47: Macro

    Primary Host: Backup Host: Port: Notification Interval (minutes): [CANCEL] Archive Alarms Macro Record DISABLE DISABLE DISABLE DISABLE DISABLE DISABLE DISABLE Immediate [OK] Archive Alarm Relay 2 ENABLE Macro Record Timed Macro Start Edit Submacro Macro Record Select Macro Kalatel DVMRe Triplex...
  • Page 48 Activate Relay 2 output. Reset Relay 2 output. Program a specific submacro to activate when the macro is run. End macro recording Timed Macro Start Timed Macro Setup Event : : Monday Time : 00:00 Macro : 01 [CANCEL] [OK] Kalatel DVMRe Triplex...

  • Page 49: Motion Detection

    Configure the motion detection parameters on a per camera basis. 0150-0193F Edit Submacro Edit Submacro 01 066 066 010 --- --- --- --- --- --- [CANCEL] [OK] Function and Number Buttons Function and Sequence Buttons Enable/Disable Detection Setup Parameters Setup Active Zones Indicate Detection Kalatel DVMRe Triplex...
  • Page 50 If Activity is selected in Motion Detection Type field, the following parameters are enabled: 0150-0193F Enable/Disable Detection Setup Parameters ACTIVITY NONE [CANCEL] [OK] Individual Enable Enable All Disable All Detection Enable Camera 01: Enable Camera 02: Disable Camera 03: Enable Camera 16: Enable [CANCEL] [OK] Kalatel DVMRe Triplex...
  • Page 51 Use this menu to setup the Active Zones for motion detection. The screen shown below will overlay the current video image allowing for precise activity zone setup. The disabled zones will be tinted. The enabled zones will be clear. Activity Grid Setup Screen 0150-0193F Setup Active Zones Kalatel DVMRe Triplex...

  • Page 52: Camera Setup

    ‘PLAY FORWARD’: Increase the Sensitivity level “PLAY REVERSE’: Decrease the Sensitivity level Play Forward to increase the Sensitivity Indicate Detection Camera Titles Indicate Detection Detection Camera Titles Camera AGC Camera Disable Covert Camera Camera Scope Titles Display Edit Titles Kalatel DVMRe Triplex...

  • Page 53: Edit Titles

    [CANCEL], then press the Enter button. 0150-0193F Camera Title Edit Camera Title : Camera 01 [CANCEL] [OK] @ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^ Titles Display Monitor A: Monitor B: OFF [CANCEL] [OK] Signal Gain Setup Camera 01 Signal Gain 100% [CANCEL] [OK] Kalatel DVMRe Triplex...
  • Page 54 This feature detects which inputs have video signals and which are experiencing videoloss. When this feature is activated, the unit will automatically disable the inputs experiencing videoloss. The DVMRe Triplex will also re-enable video inputs that were previously disabled if a video input signal is detected.

  • Page 55: Archive Setup

    Select the Port or interface to which the archive device will be connected. Select from the following items. SCSI: SCSI archive devices. 1394: 1394 Firewire archive devices. 0150-0193F Camera Scope Luminance Histogram Black Luminance Port Select White Port Select Background Archive Erase Archive Medium QuickWave Setup SCSI 1394 Kalatel DVMRe Triplex...

  • Page 56: Audio Setup

    Select the Port you wish to configure and press the ENTER button. 0150-0193F Background Archive Erase Archive Medium Erase all Records. Are you sure? QuickWave Setup QuickWave CD Write: RS232 Message QuickWave Setup [CANCEL] [OK] G.711 RS232 RS485 Ethernet Port 1 Port 2 Kalatel DVMRe Triplex...
  • Page 57 9. To exit the menu without making changes, select Cancel, then press the Enter button. Pressing the Menu button also exits the menu without making changes. 0150-0193F POTS Setup POTS : DISABLE AT&F1&K3M0E1Q0V1S0=0&R2&C1&D0&H1 [CANCEL] @ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^ POTS Setup Baud Rate [OK] Kalatel DVMRe Triplex...
  • Page 58 19200 Baud 38400 Baud 57600 Baud Network Address Ethernet Settings Enable : D406T2250419 : Disable : Disable 3. 18.173. 60 : 255.255.254. 3. 18.172. 3. 18.173. 12 3. 18.173. 13 3. 18.173. 11 : Standard [CANCEL] [OK] Kalatel DVMRe Triplex...

  • Page 59: Front Panel Lock

    Enter a new Install Password Unlock Keyboard Lock Keyboard 8 1 1 1 4 1 1 1 5 4 1 5 1 4 1 4 English French German Installer Password Operator Password Ethernet Password Password Box ---- Kalatel DVMRe Triplex...

  • Page 60: The Quickinstall Menu

    ---- 1 1 1 1 Change the time Change the date Edit Camera Titles Camera Disable Record Quality Installer Password Auto Disable Now Section In Manual 3.14 Camera Titles 3.14 Camera Disable 3.10 3.20 3.14 Camera Disable Kalatel DVMRe Triplex...

  • Page 61: The Operator Menu

    Section In Manual 3.14 Camera Titles 3.11 3.15 3.20 About DVMR View Screen 1 View Screen 2 View Screen 3 View Screen 4 View Screen 5 View Screen 6 View Screen 7 View Screen 8 View Screen 9 Kalatel DVMRe Triplex...

  • Page 62: View Screen

    Serial Number: Hostname: Software Version: Software Date: Boot Code Version: Disk Size: IP Address: Hardware Address: DHCP Lease Expires: DVMRe-16CT D406-T2-250419 D406T2250419 VER 5.00 Mar 25 2003 16:40:18 VER 1.03 163.93 GB 3.18.173.10 BA-BE-C6-7E-FA-CE No Lease or Date Kalatel DVMRe Triplex...

  • Page 63: Record Rate

    Time Format: 12 or 24 hour Date Format: MM/DD/YY, DD/MM/YY, or YY/MM/DD Master Clock: Yes or No. Multiscreen Dwell: In seconds. 003 Full Screen Dwell: In seconds. 003 Titles Display A: On or Off. Titles Display B: On or Off. 0150-0193F Kalatel DVMRe Triplex...
  • Page 64 Gateway: 3. 18.172. 1 DHCP: Enable or Disable. Name Service: WINS or Disable. Primary Name Server: 3. 18.173. 12 Backup Name Server: 3. 18.173. 13 Print Server: 3. 18.173. 11 TCP MTU Size: Standard, 1200, and 1400. 0150-0193F Kalatel DVMRe Triplex...

  • Page 65: Alarms

    The associated cameras are displayed in the remaining cameos. More than three alarms simultaneously: The unit switches to the maximum multiscreen display, i.e. 16 or 10-way. 0150-0193F 4-Way Single Alarm 10-Way Second Alarm 9-Way Third Alarm Kalatel DVMRe Triplex...

  • Page 66: Alarm Operations During Playback

    Additional Alarms: Unit switches to a sequenced display of all cameras in alarm on Monitor B. LIVE MODE Monitor A LIVE LIVE ALARM LIVE 0150-0193F PLAYBACK MODE Monitor B Monitor A PLAY LIVE BACK LIVE ALARM LIVE ALARM FULL PLAY SCREEN BACK ALARM Monitor B LIVE LIVE ALARM FULL SCREEN ALARM Kalatel DVMRe Triplex...

  • Page 67: Alarm History Box

    Main Menu viewing the Alarm History Box see Alarm History in section 3.11. 4.7 Searching For Recorded Alarms See section 5. 0150-0193F Alarm History. The Alarm History Box Alarm Alarm History. For detailed information about Kalatel DVMRe Triplex...

  • Page 68: Searching

    Searching The Kalatel DVMRe Triplex is equipped with a powerful search interface to access video files stored on the hard disk or an external archive device. Search Menu Overview Search Button Disk Analysis Screen Disk Analysis Screen Disk Analysis Screen...

  • Page 69: Disk Analysis Screen

    Level 1 Level 1 Search Button Disk Time and Date at cursor location. Record Button Write to CD Zoom Level Quick Wave Setup menu Archive Incident 07/31/2003 02:20:06P Start Stop 02:02:51P 02:20:09P Capacity: 557MB ‘RECORD’ to Archive Kalatel DVMRe Triplex...

  • Page 70: Motion Search

    Pressing the Function key while in this screen overlays a help screen with all the available commands. Function Button 0150-0193F ‘MENU’ : Exit Activity Setup ‘ENTER’: Save and Exit Activity Setup ‘PAUSE’: Toggle between Enable and Neutral ‘STOP’ : Toggle between Disable and Neutral ‘ZOOM’ : Disable/Enable all zones Kalatel DVMRe Triplex...

  • Page 71: Search Filters

    3. Copy from Disk to Archive. 4. Copy from Archive to Disk. Selecting these functions displays thumbnails in the Search Results window. Hit Camera buttons to select/deselect individual cameras. Use the Zoom button to globally select/deselect cameras to search. Kalatel DVMRe Triplex...

  • Page 72: Search Results

    Start Time Days HH MM SS 20:07:10 0 04:35:15 20:08:10 0 00:01:55 20:09:10 0 00:00:38 20:10:10 0 01:07:22 20:07:10 0 00:00:07 20:07:10 0 00:08:56 20:07:10 0 00:00:06 20:07:10 0 05:57:31 20:07:10 0 00:46:43 3/20 14:30 3/22 21:01 Kalatel DVMRe Triplex...

  • Page 73: Webbrowser

    WebBrowser The DVMRe Triplex has an integrated WebBrowser interface. The WaveBrowser option allows the user to view video from any ethernet connected Triplexes with software version 4.09 or above. For WaveBrowser to function properly, certain ActiveX controls must be set correctly. To...

  • Page 74: Wavebrowser Overview And Controls

    Choose from the following displays: 16-way Multiscreen Display (Large and Medium) 4-way Display Single Camera Display Large Single Camera Display Medium Single Camera Display Small 0150-0193F Main Viewing Area Drop Down Volume List Kalatel DVMRe Triplex...

  • Page 75: The Button Panel

    21. Time Selection Menu: Click on the Up or Down Arrows to select a specific time to view. The Drop Down Volume List Box Click on the arrow to display a list of available disk volumes on the connected unit. Click on the volume to select. 0150-0193F Kalatel DVMRe Triplex...

  • Page 76: Dvmre Triplex Wavelink

    This feature can be used by Web Developers to link various cameras to specific Web content. It will also be used by the DVMRe Email feature to allow the recipient of an alarm email to click on a link in the email, which causes the WaveBrowser to connect and play back at the time when the alarm occurred.
  • Page 77 1 in medium size. Email Links The DVMRe Triplex is able to send emails when certain events occur (like videoloss, alarms, etc.). When in record mode, the Triplex software version 5.00 will add a WaveBrowser link in the email notification.

  • Page 78: Technical Specifications

    Use Supplied DB-25 PCB connector. 0.5 to 2.0 Volts peak-to-peak with Automatic Gain Control. 1 Volt peak-to-peak into 75-Ohm. 75-Ohm (Auto Terminating) 4 Megabytes Horizontal: 720 Pixels. Vertical: 484 Lines (576 for PAL). 256 levels Y:U:V 4:2:2, 16.8 Million Colors Wavelets Kalatel DVMRe Triplex...

  • Page 79: Part Numbers

    Interleaved, Exclusive, or No Change. Relay Outputs, On-screen Indicators. Status Retrievable via RS232 port. 256: 16 x 16 grid. 10 levels 256 levels Relay Outputs, Link to Alarms, Link to Events, On-screen Indicators. Status retrievable via RS232 port. Kalatel DVMRe Triplex...

  • Page 80: Rs232 Event Generation/Text Insertion Protocol

    This will start the post-event timer** after which, the selected camera will resume recording at the normal record rate*. 0150-0193F MSB 7 Delimiter Class Command Data Length Data Check Sum 0xFF 0x14 0x40 Data Length[0] Data Length[1] Camera Event String[0] String[1] String[n-1] Check Sum LSB 0 Kalatel DVMRe Triplex...
  • Page 81 If both the start and end bits are set, the associated text will be stored with the next recorded field for that camera. The post-event timer will be started** after which the selected camera will resume recording at the normal record rate*. **If enabled. 0150-0193F Kalatel DVMRe Triplex...

  • Page 82: Rs232 Remote Control Protocol

    6 Way Multiscreen 7 Way Multiscreen 9 Way Multiscreen 10 Way Multiscreen 13 Way Multiscreen 25 - 40 16 Way Multiscreen *Must send a “No Button Pressed” command immediately following any of these commands. 45-49 51-63 68-74 92-110 Kalatel DVMRe Triplex...

  • Page 83: Configuration And Status

    Read data from DVMRe Triplex Configuration and status data can be read from the DVMRe Triplex. The data is arranged in the form of 16 byte blocks, numbered from 1 to 213. For details about the contents of each block, contact GE-Interlogix and request the Block Data Structure for the DVMRe Triplex.

  • Page 84: Macro Tables

    Photo copy this page and use it to keep a record of the programmed macro functions. 10.1 Macro Functions Table Macro Description Number Function + Daylight Savings Time: Sets clock ahead one hour in April, and back one hour in October. Sequence 0150-0193F Kalatel DVMRe Triplex...

  • Page 85: Scheduled Macro Table

    10.2 Scheduled Macro Table Event 0150-0193F Time Macro to Run Kalatel DVMRe Triplex...

  • Page 86: Warranty And Service

    3197-C Airport Loop Drive Costa Mesa, CA. 92626 United States of America Telephone: 800-343-3358 (7:00 AM to 4:30 PM, Pacific Time) In Oregon: 541-754-9133 Fax: 541-754-7162 (24 hours a day) For warranty information, see the following page. 0150-0193F Kalatel DVMRe Triplex...

  • Page 87: Warranty And Return Information

    11.2 Warranty and Return Information GE-Interlogix warrants all of its equipment for three years from the date of purchase. This warranty covers any defects in materials and workmanship. Equipment failures that are due to improper installation, modification, abuse, or acts of nature will not be covered by this warranty. The repair department will evaluate all equipment returned for repair to determine warranty coverage.
  • Page 88 0150-0193F...
