Instruction Manual

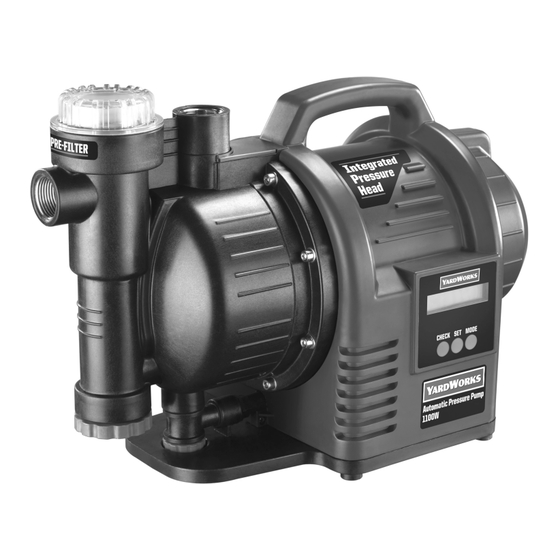

1100W Automatic Pressure Pump
+ Integrated Pressure Head
Model: YW1100PP
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions
for future reference.
0312
Advertisement
Table of Contents
Related Manuals for Yardworks YW1100PP
Summary of Contents for Yardworks YW1100PP
- Page 1 Instruction Manual 1100W Automatic Pressure Pump + Integrated Pressure Head Model: YW1100PP WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS WARRANTY …………………………………………. INTRODUCTION ……………………………………… SPECIFICATIONS ……………………………………. KNOW YOUR PRODUCT ………………………………. PACK CONTENTS ……………………………………. ELECTRICAL SAFETY …………………………………. DESCRIPTION OF SYMBOLS …………………………… GENERAL SAFETY INSTRUCTIONS ………………………. ADDITIONAL SAFETY INSTRUCTIONS FOR PUMPS …………. SET-UP & INSTALLATION ……………………………... OPERATION …………………………………………. MAINTENANCE ………………………………………... -
Page 3: Warranty
WARRANTY YOUR WARRANTY FORM SHOULD BE RETAINED BY YOU AT ALL TIMES. IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE OUR CUSTOMER SERVICE HELPLINE: Australia 1800 069 486 New Zealand 0508 069 486... -
Page 4: Introduction
INTRODUCTION Congratulations on purchasing the YARDWORKS 1100W Automatic Pressure Pump + Integrated Pressure Head. We aim to provide quality products at an affordable price. Before using, it is most important that you read and follow the instructions in this manual, even if you feel you are quite familiar with this type of product. -
Page 5: Know Your Product
WARNING! THIS PRODUCT IS NOT SUITABLE FOR USE WITH DRINKING(POTABLE) WATER. PACKED CONTENTS 1 x Pressure Pump + Integrated Pressure Head (YW1100PP) 1 x 25.4mm (1") Male threaded hose adaptor 1 x Filter Cover Spanner 1 x 25.4mm (1") Male double ended adaptor... -
Page 6: Electrical Safety
ELECTRICAL SAFETY WARNING! When using mains-powered equipment, basic safety precautions, including the following, should always be followed to reduce risk of fire, electric shock, personal injury and material damage. Read and understand the manual prior to operating this pump. Save these instructions and other documents supplied with this pump for future reference. The electric motor has been designed for 230V and 240V only. -
Page 7: Description Of Symbols
DESCRIPTION OF SYMBOLS Volts Hertz Alternating current Watts /min Revolutions or No load speed reciprocation per minute Litres ºC Degrees celsius p/hr Per hour Pressure rating (kilopascals) Pressure rating Insulation class IP44 Ingress protection from water Polyvinyl chloride Regulator compliance mark Warning Read instruction manual... -
Page 8: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS 1) WORK AREA a) Keep work area clean and well lit. Cluttered and dark areas invite accidents. b) Do not operate pumps in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Pumps create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a pump. -
Page 9: Additional Safety Instructions For Pumps
ADDITIONAL SAFETY INSTRUCTIONS FOR PUMPS Caution: Not intended for cleaning and other maintenance of swimming pools. WARNING! This product is intended for pumping water in a Home Domestic application. Do not use it for corrosive, abrasive, explosive or dangerous liquids. Fluids other than water will damage the water pump and/or create a fire hazard. -
Page 10: Set-Up & Installation
SET-UP & INSTALLATION Positioning the Hose or Pipe Position the input hose or pipe so that it rises from the water drawing source to the pump. Avoid positioning the input hose or pipe higher than the pump, as this would delay the escape of air bubbles from the input hose or pipe and impede the priming process (see section ‘starting the pump’... - Page 11 Connecting Hose or Pipe to the Suction Inlet 1. Remove the plastic protection cover from the suction inlet (3) (Fig. 3). Note: The YW1100PP has an integrated non-return valve fitted to the inlet strainer. Fig. 3 Note: Teflon tape (not included) is required on threads to ensure a water tight seal and prevent any leakage.
- Page 12 SET-UP & INSTALLATION (cont.) Discharge Outlet Connecting Hose or Pipe to the Discharge Outlet Caution: Only use the supplied 25.4mm ("1") male threaded hose adaptor or an adaptor similar size & dimensions or damage may occur to the pump. 1. Remove the plastic protection cover from the discharge outlet (1) pump housing (Fig.
- Page 13 SET-UP & INSTALLATION (cont.) Priming 1. Ensure all outlet discharge devices (such as taps and trigger nozzles) are in the fully open position, to allow all the air in the system to escape. 2. Remove transparent filter cover (2) by turning it anti-clockwise using the filter cover spanner (10) (Fig.
- Page 14 SET-UP & INSTALLATION (cont.) Factors that affect the pumps ability to prime: 1. Pump Location a) The further the pump is from the tank the harder it is for the pump to prime, it may take extra time to remove air out of the suction line and/or cause air pockets in the suction line.
-
Page 15: Operation
OPERATION Turning the Pump On and Off Note: When the pump is fully primed and air is flushed out of the suction cycle, the pump is ready to operate. The pump may take several minutes to fully prime air from the suction line and inside the pump. - Page 16 OPERATION (cont.) Operation Function LCD Control Panel Programming 3. Time Mode Depress the 'MODE' button twice and this screen will appear. Preset the timer for the pump to turn on and off at certain times - outside those times it will be on automatic.
-
Page 17: Maintenance
OPERATION (cont.) Operation Function LCD Control Panel Programming 4. Ever-on Mode The pump will be running constantly regardless whether there's water or if the pump has reached maximum pressure. This mode is not recommended as it may damage the motor. Storing the Pump Before storing the pump, it is recommended to empty the pump body of any water. -
Page 18: Troubleshooting
TROUBLE SHOOTING Symptom Possible Cause Suggested Solution Motor does not run There is no power reaching the pump, Check the mains power outlet, ensure that the the LCD is not illuminated electrical plug of the pump has been correctly inserted The motor thermal overload Determine the cause of the problem and press protection is activated...
