Summary of Contents for Yardworks YW1000DW

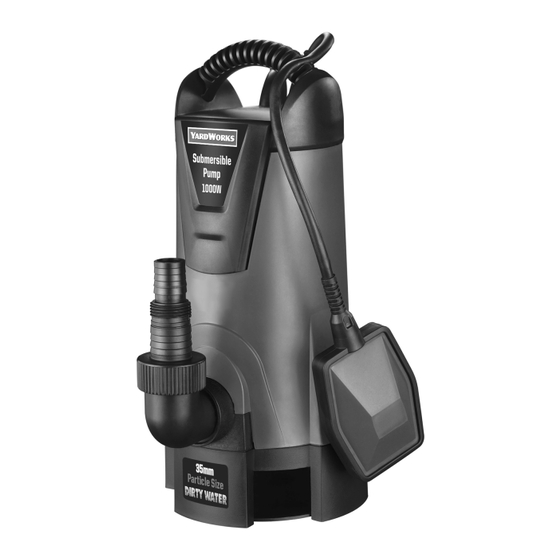

- Page 1 Instruction Manual 1000W Dirty Water Submersible Pump Model: YW1000DW WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS WARRANTY …………………………………………… INTRODUCTION ……………………………………… SPECIFICATIONS ……………………………………… KNOW YOUR PRODUCT ………………………………. PACK CONTENTS ……………………………………… FITTINGS AND TOOLS REQUIRED FOR INSTALLATION ………. ELECTRICAL SAFETY …………………………………. DESCRIPTION OF SYMBOLS …………………………… GENERAL SAFETY INSTRUCTIONS ………………………. ADDITIONAL SAFETY INSTRUCTIONS FOR PUMPS ………… PREPARATION ……………………………………….. -
Page 3: Warranty
WARRANTY YARDWORKS TWO YEARS LIMITED WARRANTY Your YARDWORKS product is covered for a period of 2 years from the ORIGINAL date of purchase and is intended for home use only. The warranty covers faulty parts or workmanship. The warranty is only made available by returning the product to your point of purchase with a confirmed cash register receipt. -
Page 4: Introduction
INTRODUCTION Congratulations on purchasing the YARDWORKS 1000W Dirty Water Submersible Pump. We aim to provide quality products at an affordable price. Before using, it is most important that you read and follow the instructions in this manual, even if you feel you are quite familiar with this type of product. -
Page 5: Know Your Product
9. Power Cable WARNING! THIS PRODUCT IS NOT SUITABLE FOR USE WITH DRINKING (POTABLE) WATER. PACKED CONTENTS 1 x Dirty water submersible pump (YW1000DW) 1 x Universal adaptor 1 x L-shaped connector (2 x O-rings fitted) 1 x Instruction manual FITTINGS AND TOOLS REQUIRED FOR INSTALLATION Note: Recommended items below are not included and are readily available at your local Bunnings store. -
Page 6: Electrical Safety
The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Yardworks pumps are interchangeable for Australia and New Zealand. This pump is earthed in accordance with AS/NZS 60335-2-41. -
Page 7: Description Of Symbols
DESCRIPTION OF SYMBOLS Volts Hertz Alternating current Watts /min Revolutions or No load speed reciprocation per minute Litres ºC Degrees celsius p/hr Per hour Pressure rating (kilopascals) Pressure rating Insulation class IPX8 Ingress protection from water Polyvinyl chloride Regulator compliance mark Warning Read instruction manual... -
Page 8: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS 1) WORK AREA a) Keep work area clean and well lit. Cluttered and dark areas invite accidents. b) Do not operate pumps in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Pumps create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a pump. -
Page 9: Additional Safety Instructions For Pumps
• Before using the water pump, always inspect it visually. Do not use the pump if it is cracked and/or damaged. If the water pump is damaged, contact Yardworks customer service. • The water pump has a built-in thermal protection overload switch. The water pump stops if an overload occurs. -
Page 10: Preparation
PREPARATION WARNING! This product is intended for pumping water in a home domestic application. Do not use it for corrosive, abrasive, explosive or dangerous liquids. Fluids other than water may damage the water pump and/or create a fire hazard. WARNING! Disconnect the plug from the mains power prior to making any adjustments or installation. - Page 11 PREPARATION (cont.) Preparing the Universal Adaptor Fig. 3 The universal adaptor (3) is designed to fit various sizes of pipes and fittings. 25.4mm hose/tube Prepare the universal adaptor (3) as required for the accessory, see options A, B 25.4mm tap adaptor &...
-
Page 12: Set-Up & Installation
SET-UP & INSTALLATION 1. Screw the L-shape connector (4) into the pump housing (2) by rotating in a clockwise direction (Fig. 10). Note: Make sure the L-shape connector (4) is firmly tightened so that the O-ring is compressed between the pump housing (2) and the L-shape connector (4). - Page 13 SET-UP & INSTALLATION (cont.) Adjusting The Float Switch The float switch allows you to adjust the switching On and Off of the pump depending on the application requirements. The float switch can also be set to ensure the pump continues to run. Automatic Mode In automatic mode float heights can be adjusted between max 500mm to 150mm.
-
Page 14: Operation
OPERATION 1. When the float switch (6) is 30° higher than horizontal (start up level) or above the handle (1), the pump will turn ‘on’ and operate (water depth of 530mm) (Fig. 17). Attention: The pump runs as soon as the float switch (6) reaches the start-up level. -
Page 15: Maintenance
Cleaning the Suction Base Gently hose down with low pressured water. Allow to dry thoroughly before storing. Power Cable For all submersible pumps, a H07RN-F cable is required to be fitted. Contact Yardworks customer service for suitable replacement cable. SPARE PARTS Limited spare parts are available subject to availability. -
Page 16: Troubleshooting
The float switch is stuck in the “on” position Ensure that the float switch is free to operate though the water level is low normally. Contact Yardworks customer service if the problem still occurs Hose/tube does not stay on The hose/tube is slightly wider than the...
