Delta Series Audio Controllers

Overview

The Delta Series Audio Controller is an affordable, feature-rich multi-zone audio distribution system
that allows control and distribution of audio from 4 sources and to 4 or 6 zones.
FIG. 1 indicates the front and rear panel components on the Delta Controllers.

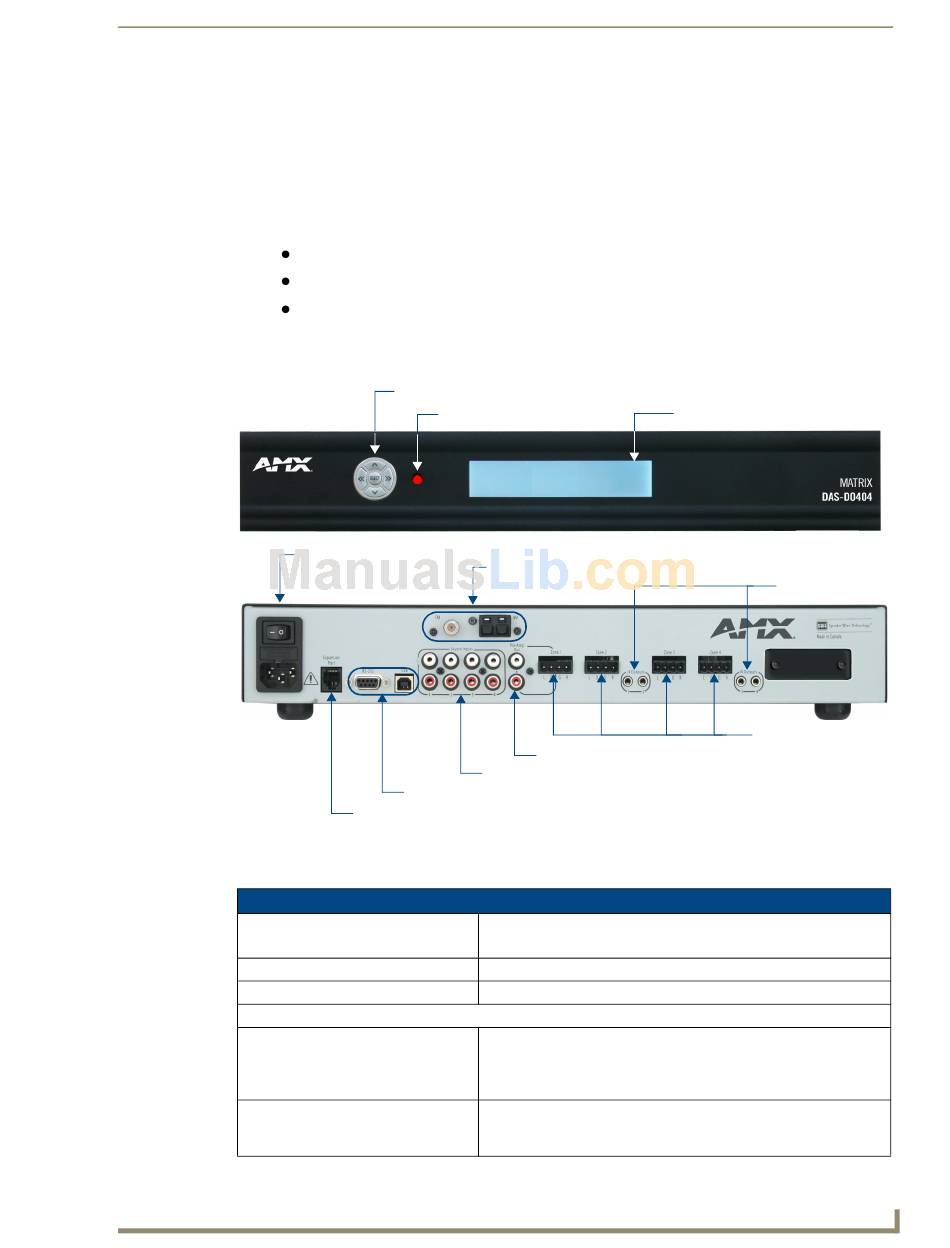

FIG. 1 Delta Controller Layout - Front and Rear Panel Details (DAS-D0404 shown)

Product Specifications

Delta Series Product Specifications
Models Available:
Stereo Output:
Power:
Front Panel Components:
• Navigation Array Buttons
• IR Receiver
Delta Series Audio Controllers
The DAS-D0404 controls of up 4 sources and distributes audio to 4 rooms/zones.
The DAS-D0406 controls of up 4 sources and distributes audio to 6 rooms/zones.
Delta Series Audio Controllers are available in 120V (DAS-D0404 & DAS-D0406),
or 240V versions (DAS-DI0404 & DAS-DI0406).
Navigation Buttons
IR Receiver
Power Switch
& Receptacle
RS-232 and USB
Expansion Port (RJ45)
AM/FM Antenna Inputs
Preamp Outputs
Source Inputs (up to 4)
• DAS-D(I)0404 4 Source, 4 Zone Controller (120V or 240V)
• DAS-D(I)0406 4 Source, 4 Zone Controller (120V or 240V)
25 Watts/CH stereo (20Hz to 20Khz @ .1% THD)
287W max (Actual average usage = 120W)
Allow for front panel programming, selection of sources, and tuning
AM/FM radio stations (when Delta is fitted with the optional tuner
board). The same array appears on the Matrix KP-4e navigational
keypad.
For the IR receiver. This is where you must aim the remotes from
your audio source components so the Delta can learn and emulate
those commands.
Delta Series Audio Controllers
LCD Display Screen
IR Emitter
Outputs (4)
Zone Outputs
(up to 6)
