Delta Installation - Quick Start Steps

2. Connect the Keypads to Delta

Looking at the rear of the keypad with the connectors at the bottom, you will see (2) plug type 4 pin
receptacles. The connector on the right side terminates the 4 conductor wire from the Delta Controller
and the connector on the left side passes the audio to the speakers in the zone (FIG. 2).
Be sure to match the color and position
of the wiring at the keypad with the

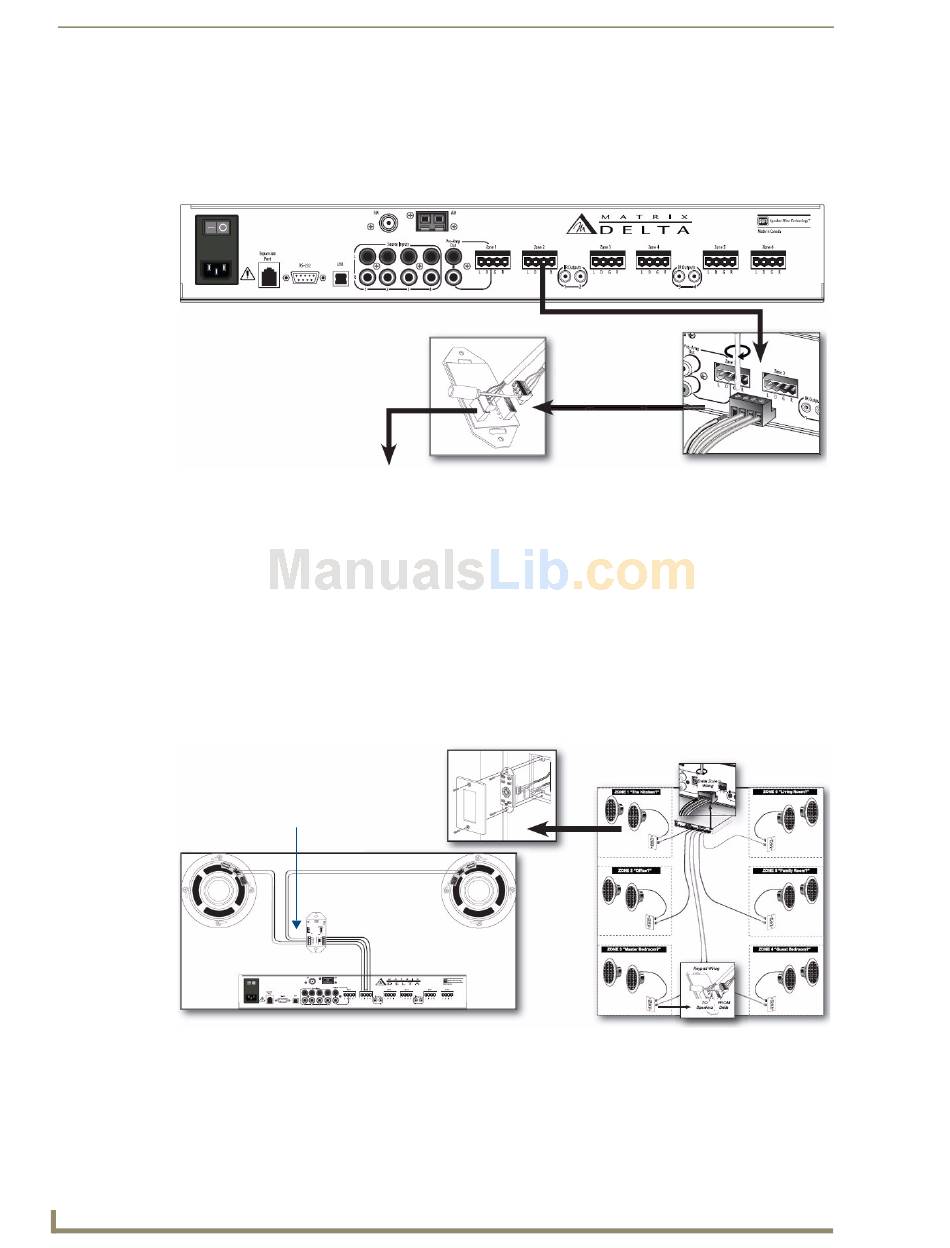

FIG. 2
Connect the Keypads to Delta
Although speaker wire is commonly used, you can also use CAT-5 or other paired wiring.
Please see the complete Delta Installation Manual for details.

3. Connect the Speakers to the Keypads

Speakers will be wired according to their positive and negative terminals, which are usually Red and
Black for each speaker. Once installed in their locations, the speaker wiring is typically run to the keypad
location and is connected into the connector on the left side of the keypad. Repeat this for each zone in
the system (up to six). There are alternative connection schemes for speakers directly to Delta or via
external amplifier.
Wiring to the speakers connects
on the left side of the keypad
FIG. 3 Connect the Keypads to Delta
Please see the complete Delta Installation Manual for details.
4
wiring at the Controller.
To Keypads
Plug in the IR Emitters to the
appropriate source number
Wiring from the
Delta Controller
connects on the
right side of the keypad
Delta Series Quick Start Guide
