AMX Distributed Audio Controllers Delta Series Operation And Reference Manual

Delta series distributed audio controllers
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

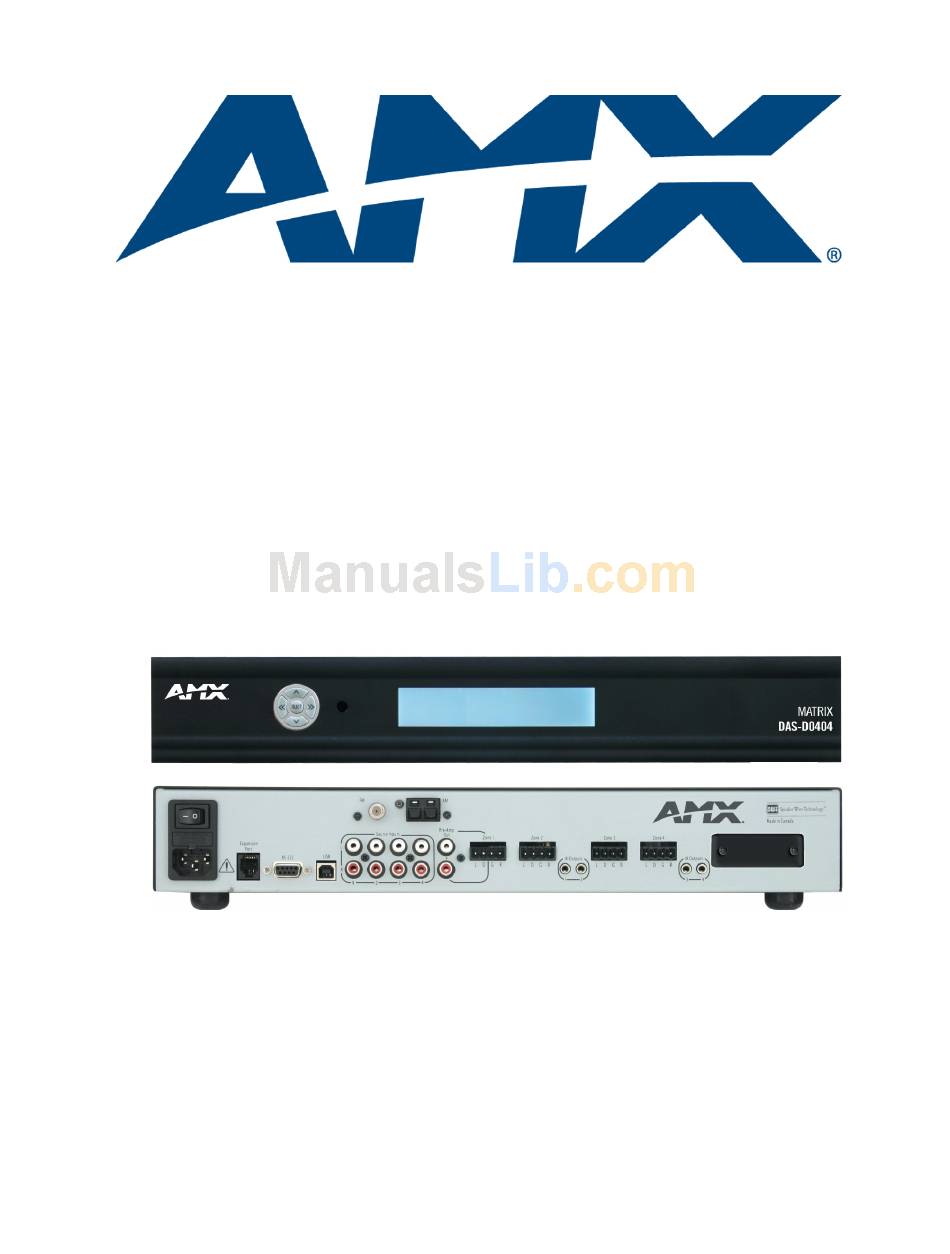

Operation/Reference Guide
Delta Series
Distributed Audio Controllers
DAS-D(I)0404 4 Source, 4 Zone Controller
DAS-D(I)0406 4 Source, 6 Zone Controller
M a t r i x D i s t r i b u t e d A u d i o
L as t R e vi s ed: 7 /1 4 /20 0 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Distributed Audio Controllers Delta Series and is the answer not in the manual?

Questions and answers

Related Manuals for AMX Distributed Audio Controllers Delta Series

Summary of Contents for AMX Distributed Audio Controllers Delta Series

  • Page 1 Operation/Reference Guide Delta Series Distributed Audio Controllers DAS-D(I)0404 4 Source, 4 Zone Controller DAS-D(I)0406 4 Source, 6 Zone Controller M a t r i x D i s t r i b u t e d A u d i o L as t R e vi s ed: 7 /1 4 /20 0 8...
  • Page 2 Products repaired under this policy will carry a ninety (90) day warranty on material and labor. • AMX will notify the AMX Authorized Partner with the cost of repair, if cost is greater than the Standard Repair Fee, within five (5) days of receipt.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Read instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS Delta Series Audio Controllers...

  • Page 5: Table Of Contents

    Table of Contents IMPORTANT SAFETY INSTRUCTIONS ... a Delta Series Audio Controllers ...1 Overview ... 1 Product Specifications ... 1 Tuner Antenna Details... 2 Delta Installation - Quick Start Steps ...3 1. Connect the Source Units to Delta ... 3 Source Inputs (up to 4) ...
  • Page 6 Table of Contents Source Unit to Controller Connections... 10 AM/FM Tuner Connections... 11 Standard 4 Wire Keypad Connections... 13 2 Wire Keypad Connections (Control Only)... 14 Multiple Keypads in a Zone... 15 Matrix Keypad plus Analog Volume Controls... 16 Auxiliary Amplifier Configuration (Zone 1) ... 17 Auxiliary Amplifier Configuration (Zones 2-6) ...
  • Page 7 Check Room Status ... 42 Setting Source Levels ... 43 Tuner Sub Menu ... 44 Setting a Station Preset ... 44 Clock Sub Menu ... 45 Preferences Program Menu ... 45 Backlight Sub Menu ... 45 Display Options Sub Menu... 46 About Program Menu ...
  • Page 8 Table of Contents Delta Audio Controller Status Messages ... 67 Source Command Codes... 70 Troubleshooting ...71 Overview ... 71 Power Connections ... 71 Source Unit Connections... 71 Zone Connection Problems... 72 No Keypad Activity (At All)... 72 Keypad Lights, No Sound ... 72 Troubleshooting Quick Reference ...

  • Page 9: Delta Series Audio Controllers

    Delta Series Audio Controllers Overview The Delta Series Audio Controller is an affordable, feature-rich multi-zone audio distribution system that allows control and distribution of audio from 4 sources and to 4 or 6 zones. The DAS-D0404 controls of up 4 sources and distributes audio to 4 rooms/zones. The DAS-D0406 controls of up 4 sources and distributes audio to 6 rooms/zones.

  • Page 10: Tuner Antenna Details

    Delta Series Audio Controllers Delta Series Product Specifications (Cont.) • LCD Display Screen Rear Panel Components: • Power Switch & Receptacle • AM/FM Antenna Inputs • IR Outputs (4) • Zone Outputs (up to 6) • RJ 45 Port • RS-232 and USB Ports •...

  • Page 11: Delta Installation - Quick Start Steps

    Delta Installation - Quick Start Steps 1. Connect the Source Units to Delta Plug RCA audio cables from each source device into the labeled RCA jacks at the back of the Delta Controller. Ensure that right and left are connected correctly. Then connect the IR emitter leads for each audio source into the appropriate connector on the back of the Delta Controller and run the optical end of the emitter lead to the source device’s IR receiver window.

  • Page 12: Connect The Keypads To Delta

    Delta Installation - Quick Start Steps 2. Connect the Keypads to Delta Looking at the rear of the keypad with the connectors at the bottom, you will see (2) plug type 4 pin receptacles. The connector on the right side terminates the 4 conductor wire from the Delta Controller and the connector on the left side passes the audio to the speakers in the zone (FIG.

  • Page 13: Power Up And Test The Basic System Operation

    Delta Installation - Quick Start Steps 4. Power Up and Test the Basic System Operation Make sure the Delta Controller is plugged into the wall and the power switch on the back panel is in the ON position. The Delta system should now be ready for initial testing. To test the system connections, activate one source from a keypad.

  • Page 14: Tone Control

    Delta Installation - Quick Start Steps Tone Control The tone control mode allows the user to adjust Bass, Treble, and Balance on a “per zone” basis. To enter tone control mode, press VOL UP & VOL DOWN buttons simultaneously until LED’s begin to cycle in a counter-clockwise motion.

  • Page 15: Wiring And Connections

    See the Multiple Keypads in a Zone section on page 26 for details. Note to Professional Installers AMX always recommends professional installation for our products. As with any entertainment product in a home or commercial application, a Delta system installation will go much faster and more smoothly if job plans are completed prior to the actual installation.

  • Page 16: Cable Type

    Wiring and Connections Cable Type The Delta Controller is cabled using standard 4-conductor speaker cable originating at the Delta control unit passing through the keypad and terminating at the speaker location. Matrix Audio Designs generally recommends using a bundled 4 conductor 16 gauge stranded copper wire in a single continuous run. The keypads also function with Cat 5 or basically any 2 conductor wire configuration that is not used for other devices.

  • Page 17: Considerations For Existing Construction

    Wiring and Connections Considerations for Existing Construction For existing construction, successful implementation can be achieved by using retrofit electrical boxes that do not require stud mounting or metal electrical frames which are commonly used for telephone and cable installations. These “afterthought” low voltage electrical boxes can be placed in a standard opening in the wall.

  • Page 18: Considerations For Outdoor Zones

    Keypads installed outside must be inside a weatherproof box with a cover that seals out moisture. Keypads returned to AMX for repair that are found to be corroded will not be covered under the AMX Warranty.

  • Page 19: Am/Fm Tuner Connections

    FIG. 5 Source Unit to Controller Connections Source Input #1 is left open because the default is the internal AM/FM tuner. The Delta Controller learns the IR commands for power on/off during the programming setup. Source components are turned on when they are selected on the keypad. The source remains on until it has been idle in all zones for a duration of 10 minutes, then Delta will automatically turn it off until it is selected again.
  • Page 20 Wiring and Connections Depending on the installation location, it may be necessary to use a powered FM antenna to receive clear FM stations. When an AM/FM tuner has been installed, input #1 will default to the internal tuner and the RCA input jacks will not be active for source #1.

  • Page 21: Standard 4 Wire Keypad Connections

    Wiring and Connections Standard 4 Wire Keypad Connections The standard installation of keypads to the Delta Controller is with 4 wires directly between the Controller’s zone output and the keypad’s input (right side connector of the keypad), as shown in FIG. 7. FIG.

  • Page 22: Wire Keypad Connections (Control Only)

    Wiring and Connections 2 Wire Keypad Connections (Control Only) In some retrofit configurations it is not feasible or possible to re-route the speaker cable through the keypad. In cases such as this, it is possible to run a separate cable pair (CAT- 3 / CAT- 5 / CAT- 6 / Twisted Pair / Other 2 conductor wiring) cable from the Delta Controller to the keypad device for control purposes.

  • Page 23: Multiple Keypads In A Zone

    Multiple Keypads in a Zone Certain situations such as large rooms or rooms with more than one common entrance may require more than one keypad control to conveniently manage the zone. This configuration allows for 2 Matrix keypads to be placed on the control circuit. Make sure that the second (AUX) keypad has the wire loop cut so that it’s addressed to the Delta Controller as an auxiliary keypad, rather than a “MAIN”...

  • Page 24: Matrix Keypad Plus Analog Volume Controls

    Wiring and Connections Matrix Keypad plus Analog Volume Controls In cases of split zones where more than one set of speakers are driven from the same zone output (such as a master bath off of the master bedroom) it is sometimes desirable to place independent volume controls in the split zones while retaining the Delta Keypad for source control and ON/OFF functions.

  • Page 25: Auxiliary Amplifier Configuration (Zone 1)

    Wiring and Connections Auxiliary Amplifier Configuration (Zone 1) In some cases you may require more power for a given zone than the Delta Controller can provide. FIG. 11 shows how to utilize the preamp RCA outputs on the Delta Controller for an external amplifier. This may be useful when outdoor or large rooms make up the zone, or in situations where the number of speakers will require a multi-channel amplifier to safely power them all.

  • Page 26: Auxiliary Amplifier Configuration (Zones 2-6)

    Wiring and Connections Auxiliary Amplifier Configuration (Zones 2-6) In cases where you require more power for a given zone than the Delta Controller can provide and it is other than in Zone 1, use this diagram. It shows use of a Matrix LLC device designed to reduce the “speaker level”...

  • Page 27: Connecting The Rs-232 Serial Port

    Connecting the RS-232 Serial Port Delta Audio Controllers provide an RS-232 (DB9) port for receiving RS-232 Controller Commands. Refer to the RS-232 Controller Command Messages section on page 55 for a complete listing of supported commands. Connector: DB9 Male Communications: 4800 Baud, 8 data bits, 1 stop bit, no parity The Matrix Distributed Audio, multi-room audio control systems can be externally controlled by sending ASCII text command strings to the Bi-Directional RS-232 serial interface.

  • Page 28: Preparing The Wires

    Wiring and Connections Wiring TO the speakers in the zone connects here FIG. 13 Orientation of Connectors Preparing the Wires When working with the SWT connector, only strip away about 1/4” inch (about 6mm) of the insulation from each wire. Most common electrical problems occur when the wire is stripped too long, and they short out against neighboring wires behind the wall.

  • Page 29: Installation Into The Wall Cavity

    Installation into the Wall Cavity 1. After wiring is complete, simply push the wiring back into the wall cavity and make sure there is enough room for the Matrix keypad to comfortably fit into the opening. Do not force the keypad up against wiring or other obstructions if it cannot fit flush to the mounting holes because damage can occur to the circuit board of the keypad.

  • Page 30: Connecting Matrix In-Ceiling Speakers

    Wiring and Connections Connecting Matrix In-Ceiling Speakers Overview - Speaker Wire Technology (SWT) Speaker Wire Technology (SWT) allows both data and audio signals to travel over the same four conductor wire. This is the same four conductors that you would run (or is run) in your home wiring installation for a standard speaker and volume control installation.

  • Page 31: Method B (Retrofit)

    Wiring and Connections FIG. 16 Wiring Matrix Active Speakers - Method A Method B (Retrofit) In the configuration illustrated in FIG. 17 (typical in retrofit applications where wiring is in place), each speaker has a 2 wire feed and a “4 wire bridge” connection must be installed between the two so that the active (4 terminal) speaker can receive a full 4 wire input (using 2 of the 4 wires) and then bring audio back to the second speaker through the remaining 2 wires.
  • Page 32 Wiring and Connections FIG. 17 Wiring Matrix Active Speakers - Method B Delta Series Audio Controllers...
  • Page 33 Wiring and Connections Delta Series Audio Controllers...
  • Page 34 Wiring and Connections Delta Series Audio Controllers...

  • Page 35: Programming The Delta System

    Programming the Delta System Overview Programming and IR Capture take place on the front panel of the Delta Controller. Settings such as Bass, Treble, and Balance functions are programmed from within any zone using the keypad. We suggest you read this section carefully in its entirety BEFORE starting to program the Delta Controller. This will allow you to obtain a general understanding of what you will see and what to expect when you go through the programming exercise.
  • Page 36 Programming the Delta System FIG. 18 Programming Worksheet Delta Series Audio Controllers...

  • Page 37: Accommodating Multiple Device Programming

    Accommodating Multiple Device Programming Programming is an interactive exercise between you, the Delta Controller and the audio source remote control, which may vary from unit to unit. You will learn the techniques to best train the Delta Controller through some trial and error and observation. The audio source remote should be located about 6-12 inches away from the IR receiver on the Delta Controller.

  • Page 38: Program Menu Selections

    Programming the Delta System Program Menu Selections Setup is where the user will program Sources, access Tuner and Clock information. Preferences allow user to set up preferences for Backlight and Display Options. About displays the Version # for the Controller firmware. Each of these program menu selections is detailed in the subsequent pages of this section.

  • Page 39: Controller Sub Menu

    Selecting Clock (FIG. 23) will allow the user to set the Clock Time/Date/Day for the System. FIG. 23 Setup Menu - Clock Selecting Exit exits to the Main Menu (FIG. 24). FIG. 24 Setup Menu - Exit Controller Sub Menu Programming Source Components 1.
  • Page 40 Programming the Delta System 5. Press Next /Prev to scroll through the following available source names and profiles: Select Source Type (default) Tuner Satellite Aud Server Other Delphi XM See the keypad functions of each “Profile” in the Keypad Functions By Profile table on page 33.

  • Page 41: Keypad Functions By Profile

    Keypad Functions By Profile Keypad Functions By Profile Source Type Tuner Please note that this selection is intended for an external AM/FM tuner. If you have an internal Matrix tuner module, Delta will have already assigned it to Source #1 SATELLITE Delta Series Audio Controllers IR Commands Learn...
  • Page 42 Programming the Delta System Keypad Functions By Profile (Cont.) Source Type AUDIO SERVER OTHER DELPHI XM MATRIX ON-BOARD TUNER IR Commands Learn... Nav. Button Functions and Result POWER ON Nav. UP = POWER OFF Nav. DOWN = PLAY Nav. LEFT = PAUSE Nav.

  • Page 43: Learning Ir Commands

    Learning IR Commands Before programming any remote commands into Delta, make sure you understand the button labels that Delta assigns a source component’s IR commands based on the “source type” as shown on the previous pages. When the “Learn IR” screen asks for a command, use the exact command from the remote.
  • Page 44 Programming the Delta System Label allows customization of the labels for the IR commands that relate to the keypad navigation buttons: UP/DOWN/LEFT/RIGHT/ CENTER (USER DEF1) / CENTER HOLD (USER DEF2). Some commands cannot be relabeled. Quit returns user to Select Source for Programming screen. When an IR command is taught to Delta, there is an indication that appears on the Controller screen with an option to test the command.

  • Page 45: Labeling Ir Commands

    IR FULL (All memory for storing IR codes has been used). Pressing [OK] returns the user to the same IR command to be re-learned (FIG. 32). FIG. 32 IR FULL If a command is NOT learned, i.e. IR FULL, IR not taught…, IR 0 percent sure, clicking OK will return the user to the same IR command so that it can be re-learned.
  • Page 46 Programming the Delta System FIG. 34 Label Selection When Label is selected, the first letter in the IR command label will begin flashing (FIG. 35): FIG. 35 Labeling IR Commands Nav UP will display the next letter in the alphabet Nav DOWN will display the previous letter in the alphabet Nav RIGHT will move to the next character in the command label (you can only scroll forward, you cannot scroll backward)

  • Page 47: Adding Delay To Ir Commands

    Programming the Delta System Adding Delay to IR Commands On the Select Source Type screen, users have the option to add a “delay” to each IR command learned for the specified source (FIG. 36). A delay is sometimes necessary when the preceding remote command has an extended string or if it takes a small amount of time to “process”...

  • Page 48: Labeling A Room

    Programming the Delta System FIG. 37 Labeling a Source Labeling a Room Any room can be named whatever the user wants (within the character selections) but is limited to 6 characters per zone. To label a room, select Room Label and which of the rooms you want to label. The first letter will begin flashing.
  • Page 49 FIG. 38 Labeling a Room To label a room, select “Room Label” and which of the rooms you want to label. Since the screen defaults to “Exit”, use the navigation buttons to navigate the rooms on the menu and when you want to select one to label, press the center navigation button.

  • Page 50: Check Room Status

    Programming the Delta System Begin labeling the room using the same method as the IR command and source programming from previous pages, selecting the center button to move to the next character. If the room has not already been labeled or defined, RM1-RM6 will be displayed for each zone. Any room can be named whatever the user wants (within the character selections) but is limited to 6 characters per zone.

  • Page 51: Setting Source Levels

    The user can select a room by using Nav RIGHT/LEFT and Nav. CENTER to select a room. Selecting a room will take the user to the Status Screen for that room. The default is Room 1. If there is no Main keypad or Aux keypad, Keypad not Resp. will be displayed instead of Main keypad Vers # or Aux Keypad Vers #.

  • Page 52: Tuner Sub Menu

    Programming the Delta System Tuner Sub Menu From the Setup screen, select Tuner (FIG. 42). If there are no tuner modules installed in the Delta Controller, the Tuner selection will simply not appear. You can select the band (AM/FM) - The AM/FM selection works like a toggle. Select AM and press Nav.

  • Page 53: Clock Sub Menu

    Clock Sub Menu From the Setup screen, select Clock (FIG. 43). To set Hour, Minute, & Second, press Nav UP/DOWN button to scroll up & down. To set Month, Date & Year, p r e s s Nav UP/DOWN button to scroll up & down. To set Day, press Nav.

  • Page 54: Display Options Sub Menu

    Programming the Delta System 1. From the Setup screen, select Preferences. Then from the Preferences screen, select Backlight. The Backlight screen will default to Exit. 2. In the Backlight menu, there are 2 options, Intensity and Mode. Upon initial setup of preferences, begin by selecting Intensity.
  • Page 55 FIG. 47 Display Menu If Room is selected (this is the default), the “M” will be displayed, along with any zones that are turned ON. It will only show active zones and, if the zone has been customized with a label, it will display that label.

  • Page 56: About Program Menu

    Programming the Delta System user to the “Main Menu”. When exiting the Main menu, the Tuner Information will be displayed once again. If none of the zones/rooms are ON, then the “M” will be displayed. When a zone is turned on to the tuner, the Tuner information will be displayed.

  • Page 57: Using Matrix Keypads

    Using Matrix Keypads Using the Matrix KP-4e Keypad Source Selection The Source Selection Key is different than the other function keys. It provides control of the Source On/Off, System On/Off and Play/Pause. When a source button is selected, the following occurs: The SOURCE is turned ON &...

  • Page 58: All Zones On Or Off

    Using Matrix Keypads All Zones ON or OFF To turn ALL zones ON to the same source, press and hold the source button for 4 seconds. To turn that source back OFF in all zones, repeat the process by pressing and holding the active source button for 4 seconds (FIG.

  • Page 59: Volume Control

    Volume Control Control of the system volume is very intuitive because of discrete buttons for the Volume UP and Volume DOWN command (FIG. 54). FIG. 54 Volume Control When increasing or decreasing volume, the progression is in 3dB steps when the volume is half (of maximum) or below.

  • Page 60: Bass (And Balance) Adjustment

    Using Matrix Keypads Bass (and Balance) Adjustment Bass and Balance Adjustment Mode is the first action taken during the setup sequence. The source indicator lights will rotate in a counter-clockwise direction indicating Bass Adjust Mode. Click the navigation button in the up direction to increase the Bass and down to decrease the Bass (FIG. 55). FIG.

  • Page 61: Using The Matrix Kp-Num Keypad

    Using the Matrix KP-NUM Keypad There are several “advanced” functions that are associated with the KP-NUM keypad (FIG. 56). These functions use the “0 through 9” plus the “Star” or “Dot” and “Enter” buttons. FIG. 56 KP-NUM keypad This numeric keypad allows for the use or programming of presets as well as Direct Numeric Access for AM/FM stations, Multi Disc Changers, or other source components that have a numeric keypad on the original remote control.

  • Page 62: Direct Numeric Access - Cd Player Or Changer

    Using Matrix Keypads Direct Numeric Access - CD Player or Changer When selecting direct numeric access for a single disc CD player, the format is ONLY to choose the track (since there is only a single disc from which to choose). When selecting just a track the Delta Controller will recognize a selection of up to 3 characters (1-999).

  • Page 63: Setting Individual Source Component Presets

    FIG. 60 Direct Numeric Access - Satellite Radio or DSS/DBS Tuner Setting Individual Source Component Presets The numbers on the numeric keypad (1-0) can be used to store presets for each source. Each source has 10 possible presets. The presets are source specific and NOT room specific. Any source that utilizes Direct Access can have presets programmed: Matrix on-board AM/FM Tuners External Tuners (such as satellite radio or DSS/DBS)
  • Page 64 Using Matrix Keypads In the examples shown in FIG. 61, the source is first selected, then the channel, station, or track number is entered for bring up the preset you would like to save. Once the selection is playing, press the “dot/preset” button and the numbered position you want and Delta stores the preset when you press and hold ENTER.

  • Page 65: Using The Matrix Touch Panel Keypad

    Using the Matrix Touch Panel Keypad The Matrix touch panel keypads (FIG. 62) have a unique, touch sensitive LCD panel that has 12 individual “grids” (also called “touch fields”) that become different command buttons depending on what source and previous command was selected. It’s really the best of a KP-4e and numeric keypad all in a single unit, yet with even more customizable features as well as visual user feedback.

  • Page 66: Customizing Lcd Keypad Labels

    Using Matrix Keypads The above customized field labels are stored on the Delta Controller so that it can be shared with other LCD keypads, the Network Interface application, or anyone using RS-232 commands to control the Delta Controller. Customizing LCD Keypad Labels Customization of labels displayed on the LCD keypad is done via the Setup menu on the front of the Controller.

  • Page 67: Customizing Source Command Labels

    To delete a letter, use the << BACK button. Press the CENTER button to save the label. Source Names are limited to 6 characters. Customizing SOURCE COMMAND Labels 1. Enter the Setup menu from the front of the Matrix Controller, by pressing the SELECT button. 2.
  • Page 68 Using Matrix Keypads Delta Series Audio Controllers...

  • Page 69: Using The Matrix D-Rc Remote

    Using the Matrix D-RC Remote Overview The IR remote controls that are supplied by the manufacturer of each audio source component are used for programming the Delta Controller. Each keypad has an integrated IR receiver to detect and process IR commands from the Matrix Remote as if the keypad had been accessed directly. However, the IR receiver on the keypads will not “pass”...
  • Page 70 Using the Matrix D-RC Remote Delta Series Audio Controllers...

  • Page 71: Rs-232 Control Commands / Messages

    RS-232 Control Commands / Messages Delta Audio Controllers provide an RS-232 (DB9) port for receiving RS-232 Controller Commands. Refer to the RS-232 Controller Command Messages section on page 55 for a complete listing of supported commands. Connector: DB9 Male Communications: 4800 Baud, 8 data bits, 1 stop bit, no parity The Matrix Distributed Audio, multi-room audio control systems can be externally controlled by sending ASCII text command strings to the Bi-Directional RS-232 serial interface.
  • Page 72 RS-232 Control Commands / Messages RS-232 Controller Command Messages (Cont.) MSBSr,b Set Bass, where: • ‘r’ is the desired room, (1-64) • ‘b’ is the desired bass level, valid values are: 0: level 1...10: -10...-1 dB 11...20: 1...10 dB MGBSr Get Bass, where: ‘r’...
  • Page 73 RS-232 Controller Command Messages (Cont.) MSGLs,i,o Set Gain Level, where: • ‘s’ is the desired source • ‘i’ is the desired input gain, valid values are: 0: 0 dB 1: -3 dB 2: -6 dB 3: -9 dB 4: -12 dB •...
  • Page 74 RS-232 Control Commands / Messages RS-232 Controller Command Messages (Cont.) MGPSs,n Get the preset, where: • ‘s’ is the desired source, (1-8) • ‘n’ is the desired preset, (1-10) MSTPs Get the source type, where: ‘s’ is the desired source, valid values are 1-8 MSSDs,d Send Source Direct Data, where: •...

  • Page 75: Delta Audio Controller Status Messages

    Delta Audio Controller Status Messages Controller Status Messages MVERx MCFr,s,z FNICxx FSICx,a,v,p,d MVLr,v MBSr,b MTRr,t MSCr,s Delta Series Audio Controllers Error Acknowledge Status Firmware Version Status, where ‘x’ is the current firmware version (4 digits) Configuration Status, where: • ‘r’ is the number of rooms connected, (2-6) •...
  • Page 76 RS-232 Control Commands / Messages Controller Status Messages (Cont.) MGLs,i,o MBALr,x MGSTr,v,bb,t,s, r,z,l,p Gain Status, where: • ‘s’ denotes the source • ‘i’ denotes the input gain, valid values are: 0: 0 dB 1: -3 dB 2: -6 dB 3: -9 dB 4: -12 dB •...
  • Page 77 Controller Status Messages (Cont.) MPRSs,n,p MSTPs,t MSSTs,p,x CSTh,m,s,M,D,Y,x Delta Series Audio Controllers Preset Status, where: • ‘s’ is the source, valid values are 1-8 • ‘n’ is the preset, valid values are 1-10 • ‘p’ is the direct tuning string; it can be from 0 to 7 characters long and is translated as specified in the ‘Send Source Direct Data’...

  • Page 78: Source Command Codes

    RS-232 Control Commands / Messages Source Command Codes Source Command Codes referenced by Source Type and Command Index: Source Command Codes Source Type Internal Tuner Seek Down AM/FM Tuner Seek Down CD Changer Prev Track DVD Player Down Satellite Channel Down Audio Server Previous...

  • Page 79: Troubleshooting

    Troubleshooting Overview If you are reading this section, it’s likely that something has gone wrong. You have installed the Delta system and tried to program but something just doesn’t seem to be working right, or it’s not working at all. Try working your way through this troubleshooting section to help isolate the problem. Before Delta units leave the factory they are “burned in”...

  • Page 80: Zone Connection Problems

    Troubleshooting the LED does not light with a keypad press, then it is possible that the device has not been programmed. If the LED does light, there may be a problem with the IR emitter lead. When testing IR problems, it is helpful to carry a blinking emitter or a test emitter to ensure that the commands are being sent to the source.

  • Page 81: Troubleshooting Quick Reference

    Troubleshooting Quick Reference Troubleshooting Quick Reference Symptom Everything is dead, nothing works All keypads are dead No lights on the keypad Some keypads OK, others are dead Sources don’t work manually OR automatically Sources and keypads work but no sound in zone Keypads work but no sound in zone Sources work manually but keypads don’t control device(s)
  • Page 82 Troubleshooting Delta Series Audio Controllers...
  • Page 83 Troubleshooting Delta Series Audio Controllers...
  • Page 84 It’s Your World - Take Control™ 3000 RESEARCH DRIVE, RICHARDSON, TX 75082 USA • 800.222.0193 • 469.624.8000 • 469-624-7153 fax • 800.932.6993 technical support • www.amx.com...
