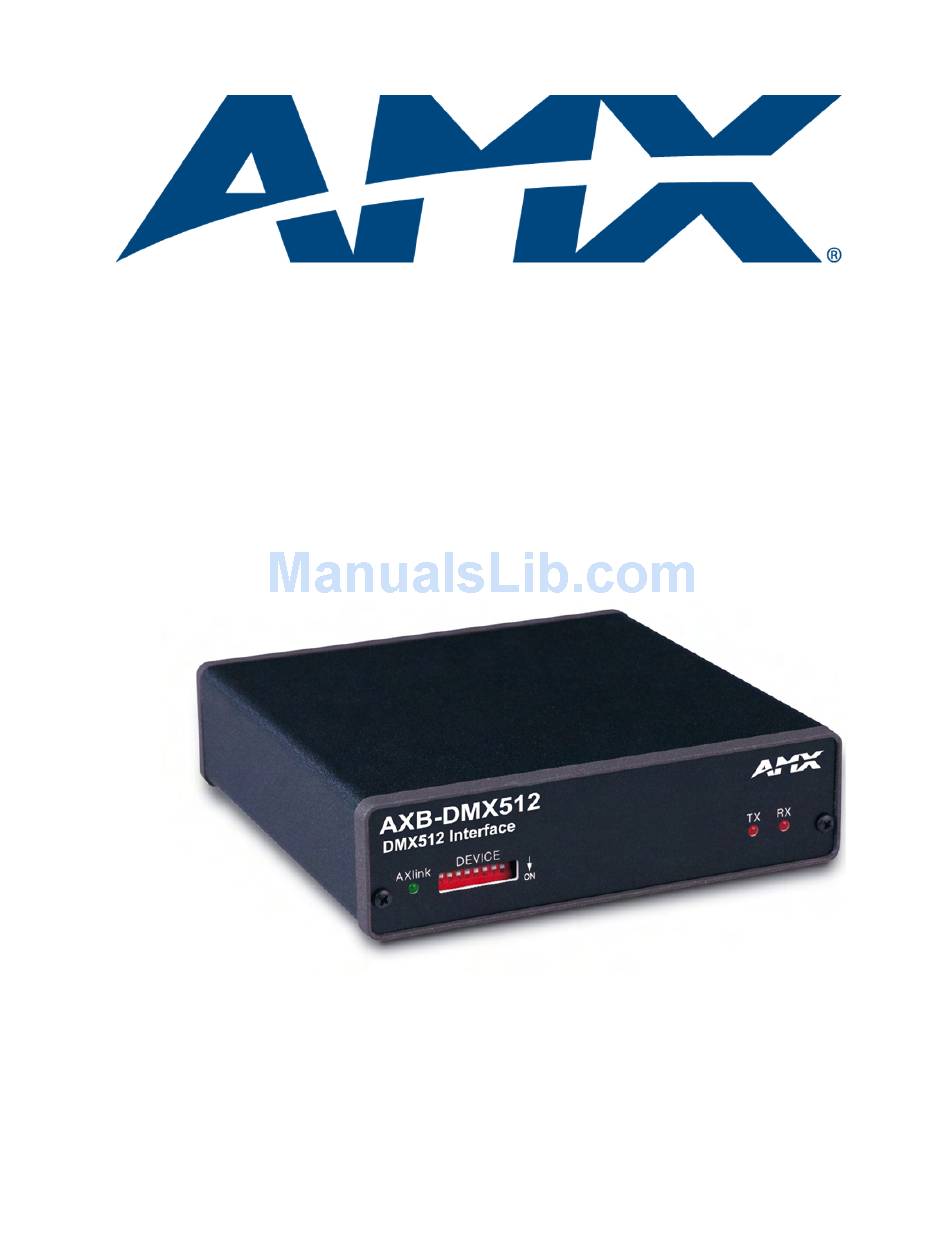

Operation/Reference Guide
AXB-DMX512
DMX512 Interface
A x c e s s C o n t r o l l e r s
L a s t R e v i s e d : 4 / 0 3 / 2 0 0 7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AXB-DMX512 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AMX AXB-DMX512

Summary of Contents for AMX AXB-DMX512

  • Page 1 Operation/Reference Guide AXB-DMX512 DMX512 Interface A x c e s s C o n t r o l l e r s L a s t R e v i s e d : 4 / 0 3 / 2 0 0 7...
  • Page 2 Products repaired under this policy will carry a ninety (90) day warranty on material and labor. • AMX will notify the AMX Authorized Partner with the cost of repair, if cost is greater than the Standard Repair Fee, within five (5) days of receipt.

  • Page 3: Table Of Contents

    Preparing/connecting captive wires ... 4 Wiring guidelines ... 4 Using AXlink communication... 5 Using IN and OUT DMX512 data communication ... 5 Mounting the AXB-DMX512 in a Rack ... 5 Replacing the Lithium Battery... 6 Programming ...7 Buffers ... 7 Direct Control Buffer Send_Commands ...
  • Page 4 Table of Contents AXB-DMX512 DMX512 Interface...

  • Page 5: Product Information

    Onboard processing and memory can create and store channel groups, faders, patches, and up to 72 presets. A DMX lighting board can operate in tandem with the AXB-DMX512, generate levels for storing presets, or pass through the AXB-DMX512 for direct control of channels.
  • Page 6 Product Information AXB-DMX512 DMX512 Interface...

  • Page 7: Configuration And Installation

    Configuration and Installation Setting the Device DIP Switch The 8-position DEVICE the AXB-DMX512. Make sure the device number matches the number assigned in the Axcess software program. DEVICE AXlink Device ID DIP Switch Axlink activity LED FIG. 1 AXB-DMX512 (front view)

  • Page 8: Wiring Devices To The Axb-Dmx512

    FIG. 3). This terminates the incoming DMX input with a 120 ohm resistor. FIG. 3 Termination jumper pin settings for JP4 and JP5 Wiring Devices to the AXB-DMX512 The AXB-DMX512 has three captive-wire connectors on the rear panel (FIG. 4) for DMX512 transmit and receive, and AXlink. FIG. 4 AXB-DMX512 (rear view) Preparing/connecting captive wires 1.

  • Page 9: Using Axlink Communication

    Do the same to remove the other three rubber feet. 4. Place the unit in the appropriate opening in the AC-RK. 5. Place the front panel of the AXB-DMX512 on the front of the rack over the unit and secure the screws. AXB-DMX512 DMX512 Interface...

  • Page 10: Replacing The Lithium Battery

    Contact your AMX dealer before you replace the lithium battery and verify that they have a current copy of the Axcess program for your AXB-DMX512. This will avoid any inadvertent loss of data or a service outage. You will need a flat-blade tool (non-conducting) that can be slipped under the lithium battery to pry it up and out of the socket.

  • Page 11: Programming

    All Send Commands are limited to 64 characters. Buffers The AXB-DMX512 uses a “highest value takes precedence” to determine which DMX value is actually output (see FIG. 1). There are three output buffers: patch, group, and direct control. Each buffer represents all 512 DMX outputs.

  • Page 12: Direct Control Buffer Send_Commands

    Example: SEND_COMMAND DMX,'DR-512L50%T10' Sends all channels to 50% in 1 second. SEND_COMMAND DMX,'DR-512L127T25' Sends all channels to 50% in 2.5 seconds. SEND_COMMAND DMX,'DR10,20-30,35L0T0' Sends channels 10,20 through 30, and 35 to 0%. AXB-DMX512 DMX512 Interface...

  • Page 13: Patch Buffer Send_Commands

    Patch Buffer Send_Commands Command Patches inputs 1-512 in a one-to-one relationship with outputs 1-512. AXB-DMX512 DMX512 Interface Description This is the final output of the DMX512 box and is also affected by the values in the Patch and Group Buffers.
  • Page 14 Unpatches all DMX outputs (the same as the ’PZ’ command). SEND_COMMAND DMX,'PX15,20-25' Unpatches DMX outputs 15 and 20 through 25. Global delete all DMX outputs from any DMX input. Syntax: "'PZ'" All DMX outputs in the Patch Buffer immediately go to zero. AXB-DMX512 DMX512 Interface...

  • Page 15: Group Buffer Commands

    Group Buffer Commands Command Adds one or more DMX outputs to a group. AXB-DMX512 DMX512 Interface Description The list can be single outputs and/or ranges of outputs separated by commas. A DMX output can only belong to one group at a time.
  • Page 16 Connecting multiple groups to a DMX level: The group levels change immediately to reflect the current DMX input level and behave the same as connecting a single group to the DMX input. Example: SEND_COMMAND DMX,'GC1-3,5D8' Connects Groups 1 through 3 and 5 to DMX input 8. AXB-DMX512 DMX512 Interface...
  • Page 17 Functions like the ‘GP’ command, except the Max value for each output is specified in the Send Command. AXB-DMX512 DMX512 Interface Description The group stop (‘GS’), group ramp down (‘GD’), or group direct ramp command (‘GR’) will interrupt this command. It is not possible to use this command on groups that are connected to an Axcess level or to a DMX input.
  • Page 18 Removes DMX channels 1 through 50 from any group. SEND_COMMAND DMX,'GL5,10,20-25' Removes DMX channels 5, 10, and 20 through 25 from any group. This command copies the actual output levels for the AXB-DMX512 box to the Group buffer for one or more groups. Syntax: "'GO<list of groups>'"...
  • Page 19 This is the command typically used to store scenes that were created on a DMX console that is providing the DMX inputs to the AXB-DMX512 unit. When the group is ramped, the outputs retain their same proportional level to each other.
  • Page 20 Stops ‘GU’,’GD’,’GR’. Syntax: "'GS<list of groups>'" The list can be single groups and/or ranges of groups separated by commas. DMX outputs freeze at their current level. Example: SEND_COMMAND DMX,'GS1,3-4' Stops a ramp on Groups 1, 3, and 4. AXB-DMX512 DMX512 Interface...
  • Page 21 Ramps up one or more groups at the current ramp rate set by the ‘GT’ command. AXB-DMX512 DMX512 Interface Description This affects any future group up (‘GU’), group down (‘GD’), or group direct ramp (‘GR’) commands. The specified time determines how long it takes to go full range.

  • Page 22: Axcess Level Send_Commands

    DMX input. Syntax: "'AC<Axcess level>D<DMX input>'" Variables: Axcess level = 1 - 8 DMX input = 1-512 Example: SEND_COMMAND DMX,'AC1D512' Connects DMX Input 512 to Axcess level 1. SEND_COMMAND DMX,'AC1D2' Connects DMX Input 2 to Axcess level 1. AXB-DMX512 DMX512 Interface...
  • Page 23 Ramps a single Axcess level to the chosen L level in T tenths of seconds. Stops any ramp that was initiated. AXB-DMX512 DMX512 Interface Description Ramps until ‘AS’, ‘AR’, or ‘AU’. Note that it is not possible to ramp an Axcess level if it has not been connected to a DMX input (using the ’AC’...
  • Page 24 Axcess level = 1 - 8 Example: SEND_COMMAND DMX,'AU1' Ramps up Axcess level 1. Syntax: "'AX<Axcess level>'" Variable: Axcess level = 1 - 8 Example: SEND_COMMAND DMX,'AX1' Disconnects Axcess level 1 from any DMX input. Stops all ramps. Syntax: "'AZ'" AXB-DMX512 DMX512 Interface...

  • Page 25: Miscellaneous Send_Commands

    Causes a string to be sent to the master. Example: SEND_COMMAND DMX,'MG1?' Sent to the AXB-DMX512 box. The box replies “‘MG1@255’,13,10” indicating that DMX outputs in Group 1 are at full (255). SEND_COMMAND DMX,'MG2?' Sent to the AXB-DMX512 box. The box replies “‘MG2@127’,13,10”...
  • Page 26 Variable: DMX Output = 1-512 Example: SEND_COMMAND DMX,'MO1?' Sent to the AXB-DMX512 box. The box replies “‘MO1@255’,13,10” indicating that DMX output 1 is at 100% (255). SEND_COMMAND DMX,'MI2?' Sent to the AXB-DMX512 box. The box replies “‘MO2@127’,13,10” indicating that DMX output 2 is at 50% (127).

  • Page 27: Channel Commands

    ‘ML, and ‘MM’ to send either 44 or 22 packets per second with 512 channels of DMX outputs. Resets everything. Channel Commands The following table lists the channel commands for the AXB-DMX512: Channel Commands Channel Command Axcess level 1-9 ramp up 9-16...

  • Page 28: Channel Trigger Send_Commands

    Axcess channel 248 will go On if DMX Input 5 >= 127. Syntax: "'CL<Axcess channel>'" Variables: Channels = 209-248 = Programmable DMX input triggers Example: SEND_COMMAND DMX,'CL209' Deletes Axcess channel trigger 209. Syntax: "'CZ'" Example: SEND_COMMAND DMX,'CZ' Deletes all channel triggers. AXB-DMX512 DMX512 Interface...

  • Page 29: Troubleshooting

    The AXB-DMX512 is connected between a lighting console and the dimmers. If I bypass the AXB-DMX512 box, I have control of the dimmers, but when I put the box in the system, I have no control.
  • Page 30 Troubleshooting AXB-DMX512 DMX512 Interface...
  • Page 31 Troubleshooting AXB-DMX512 DMX512 Interface...
  • Page 32 It’s Your World - Take Control™ 3000 RESEARCH DRIVE, RICHARDSON, TX 75082 USA • 800.222.0193 • 469.624.8000 • 469-624-7153 fax • 800.932.6993 technical support • www.amx.com...
