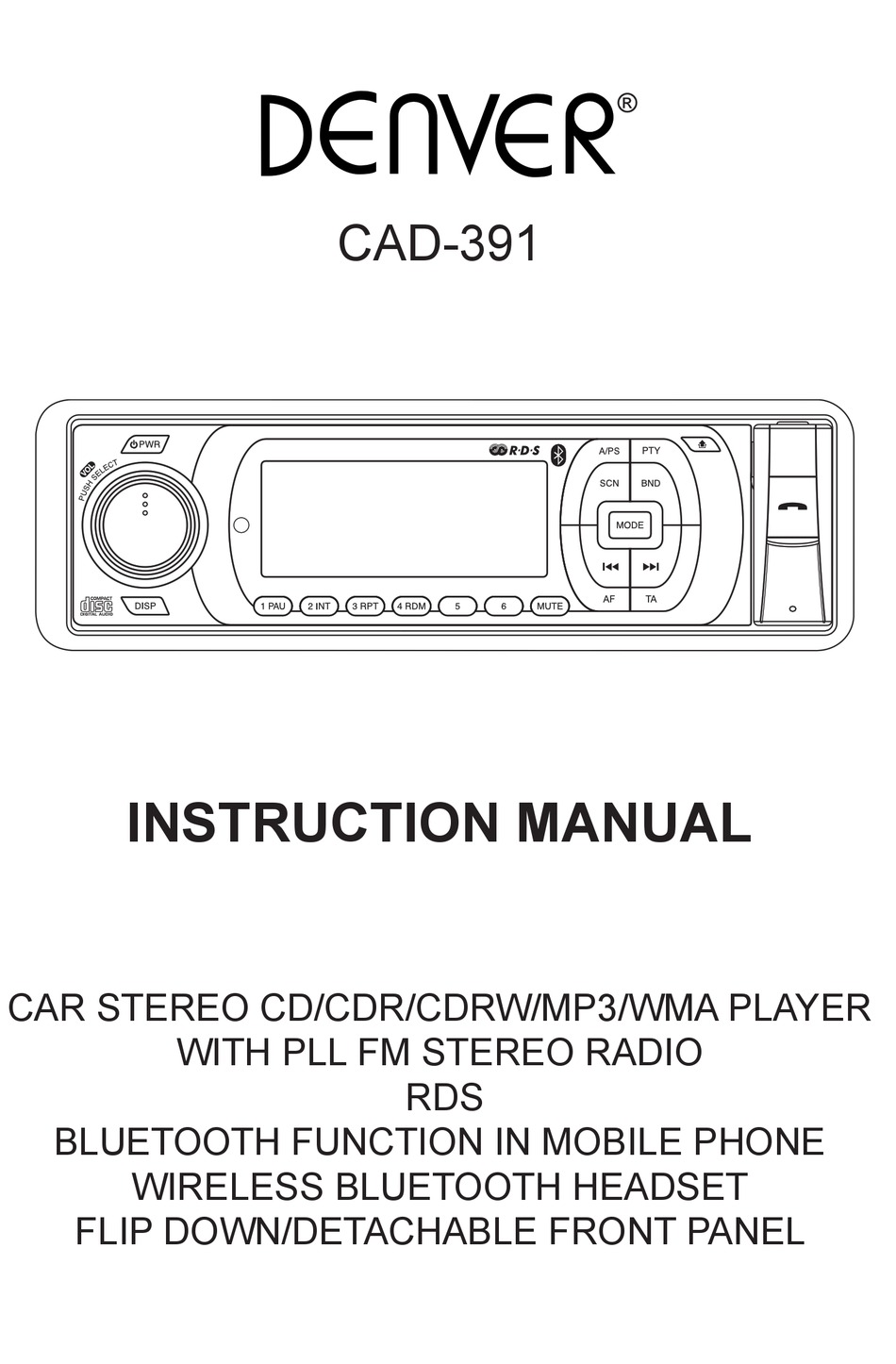

- Page 1 CAD-391 16 10 INSTRUCTION MANUAL CAR STEREO CD/CDR/CDRW/MP3/WMA PLAYER WITH PLL FM STEREO RADIO BLUETOOTH FUNCTION IN MOBILE PHONE (1-6) WIRELESS BLUETOOTH HEADSET FLIP DOWN/DETACHABLE FRONT PANEL RESET...
-
Page 2: Location Of Parts And Controls
LOCATION OF PARTS AND CONTROLS 16 10 (1-6) ENTER 1. POWER ON/OFF ( POWER MODE 2. FUNCTION SELECT BUTTON: BASS/TREBLE/BALANCE/ TUNE/SEEK FADER / TA SEEK/MASK DPI/RETUNE/AUDIO DSP/LOUD- NESS/ESP/CD MULTI/BEEP/SEEK/STEREO/LOCAL 16 10 BAND DISP 3. VOL UP/VOL DOWN FOR BASS/TREBLE/BALANCE/ FADER / TA SEEK/MASK DPI/RETUNE/AUDIO DSP/LOUD- PAUSE AS/PS NESS/ESP/CD MULTI/BEEP/SEEK/STEREO/LOCAL... -
Page 3: Iso Connector
ISO CONNECTOR RCA Jack Line Out: RCA Jack Line In: Red (right) Red (right) White (left) White (left) CONNECTOR A 4. MEMORY +12V 5. AUTO ANTENNA OUTPUT 7. +12V (TO IGNITION KEY) 8. GROUND Note: (connector A no. 7) must be connected by car ignition key in order to avoid that car battery becomes weak when the car will be not used for long period. -
Page 4: To Support The Unit
TO SUPPORT THE UNIT 1. UNIT 2. RELEASE CASE 3. DASH BOARD 4. HEX NUT 5. LOCK WASHER Dashboard 6. PLAIN WASHER 7. CAR BODY 8. REAR SUPPORT STRAP 9. TAPPING SCREW 10. M5 X 15 HEX BOLT Detaching and attaching the front panel The front panel of this unit can be detached in order to prevent the unit from being stolen. -
Page 5: Power On/Off
POWER ON/OFF ( By pressing this key, the unit is on or off. This unit is turned on by pressing any key. 2,3. FUNCTION SELECT BUTTON: BASS/TREBLE/BALANCE/FADER / TA SEEK/MASK DPI/RETUNE/AUDIO DSP/LOUDNESS/ESP/CD MULTI/BEEP/SEEK/STEREO/LOCAL (SEL) Turning the VOL knob Right or Left (3), you can adjust VOL/BASS/TREB/BAL/FAD. To select other functions, press the VOL (3) knob shortly until the desired functions is shown on the display. -
Page 6: Beep Mode
2 sec. TA SEEK MASK DPI RETUNE DSP ON 2 sec. POP M --- ROCK M --- CLASS M --- FLAT M --- DSP OFF TA SEEK MASK DPI MASK DPI / MASK ALL TA SEEK MASK DPI RETUNE RETUNE L / RETUNE S POP M --- ROCK M --- CLASS M --- FLAT M --- DSP OFF 2 sec. - Page 7 MUSIC SPEECH 1. POP M, ROCK M 1. NEWS, AFFAIRS, INFO 2. EASY M, LIGHT M 2. SPORT, EDUCATE, DRAMA 3. CLASSICS, OTHER M 3. CULTURE, SCIENCE, VARIED 4. JAZZ, COUNTRY 4. WEATHER, FINANCE, CHILDREN 5. NATION M, OLDIES 5. SOCIAL, RELIGION, PHONE IN 6.
-
Page 8: How To Select Mp3/Wma Files
14. MUTE BUTTON (MUTE) Press this button, audio will disappear. Press this button again in order to hear audio newly. 15. LCD DISPLAY The Liquid Crystal Display will display the current state of the unit. 16. OPEN THE FRONT PANEL Press ( ) button and the front panel will open. -
Page 9: Power Indicator Led
25. WIRELESS BLUETOOTH HEADSET HOW TO USE BLUETOOTH IN YOUR CAR AUDIO 1. RELEASE BLUETOOTH HANDSET 2. ANSWER / MAKE A CALL 3. VOLUME + 4. VOLUME - 5 LED LIGHT 6. MICROPHONE 7. EAR CLIP Before you can use the Bluetooth headset, you must first perform PAIRING. Pairing is a procedure used to connect 2 Bluetooth devices together. -
Page 10: Technical Specifications
The materials are recyclable as mentioned in this marking. By recycling, material recycling or other forms of re-utilization of old appliances, you are making an important contribution to protect our environment. Please inquire at the community administration for the authorized disposal location. ALL RIGHTS RESERVED COPY RIGHT DENVER ELECTRONICS A/S 024022 www.denver-electronics.com...
