Summary of Contents for Denver CAD-370

  • Page 1: Instruction Manual

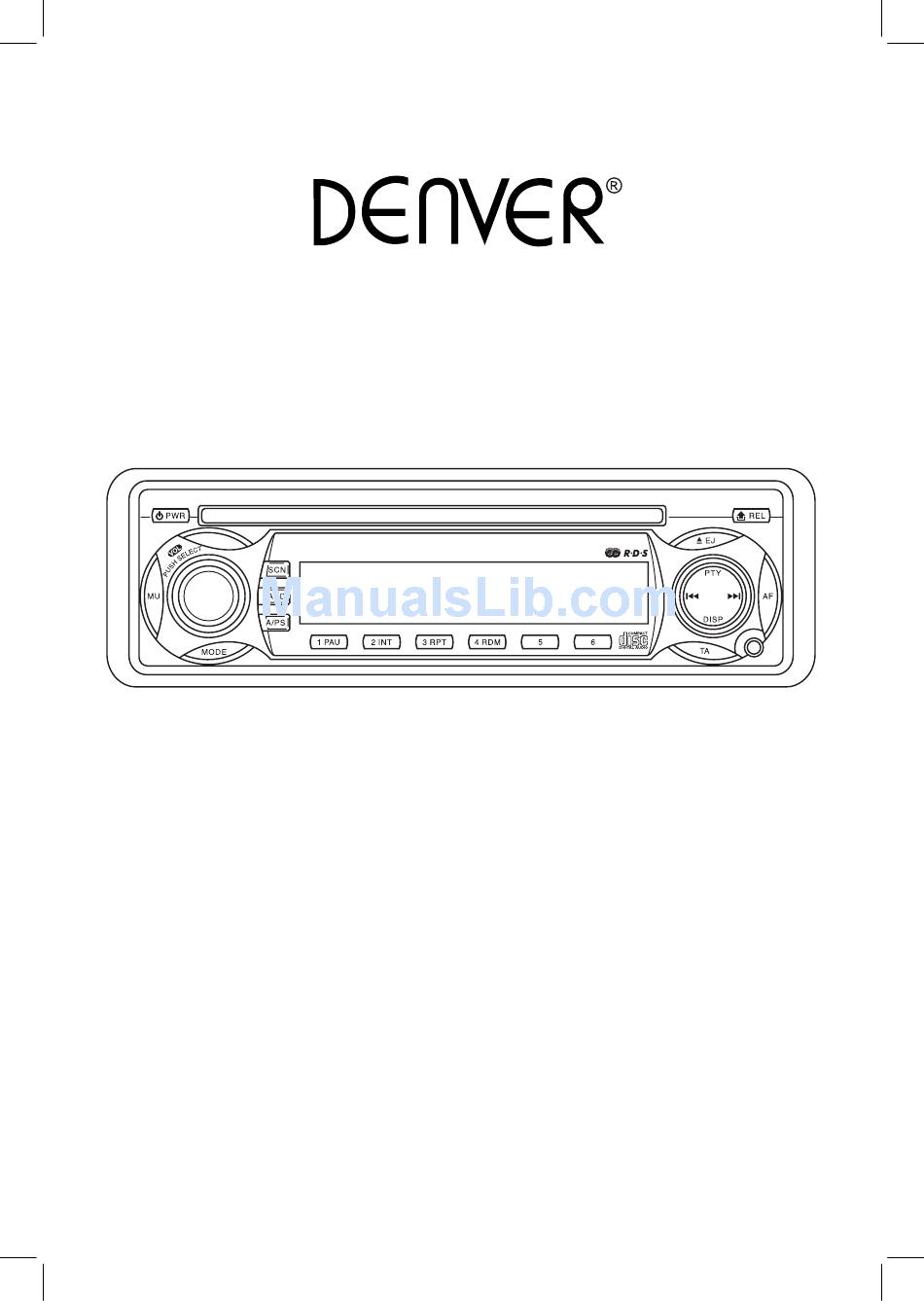

    CAD-370 INSTRUCTION MANUAL CAR STEREO CD/CDR/CDRW/MP3 PLAYER WITH PLL FM STEREO RADIO DETACHABLE FRONT PANEL (1-6) CAD370(eng).indd 1 1/16/07 4:00:0 PM...

  • Page 2: Location Of Parts And Controls

    LOCATION OF PARTS AND CONTROLS (1-6) 1. POWER ON/OFF (PWR) . FUNCTION SELECT BUTTON: BASS/TREBLE/BALANCE/FADER/TA SEEK/ MASK DPI/RETUNE/AUDIO DSP/LOUDNESS/ESP/BEEP/SEEK/STEREO/ LOCAL/VOL LAST (SEL) 3. VOL UP/VOL DOWN FOR BASS/TREBLE/BALANCE/FADER/TA SEEK/ MASK DPI/RETUNE/AUDIO DSP/LOUDNESS/ESP/BEEP/SEEK/STEREO/ LOCAL/VOL LAST (+/-) 4. PRESET STATIONS (1,2,3,4,5,6) 5. ‘AF’ function (ALTERNATIVE FREQUENCIES) 6. ‘TA’ function (TRAFFIC ANNOUNCEMENT) 7. ‘PTY’ function (PROGRAM TYPE) 8. DISPLAY (DISP) 9. MODE BUTTON (MODE) 10. BAND (BAND) 11. AUTOMATIC OR MANUAL TUNING (FREQ UP OR FREQ DOWN 1. AUTO SEEK SEARCH TUNING (A/PS) 13. ‘SCAN’ AUTOMATIC TUNING CONTROL (SCN) 14. MUTE BUTTON (MU) 15. PANEL RELEASE BUTTON ( 16. LCD DISPLAY...

  • Page 3: Iso Connector

    ISO CONNECTOR RCA Jack Line Out: RCA Jack Line In: : Red (right) : Red (right) : White (left) : White (left) CONNECTOR A 4. MEMORY +12V 5. AUTO ANTENNA OUTPUT 7. +12V (TO IGNITION KEY) 8. GROUND Note: (connector A no. 7) must be connected by car ignition key in order to avoid that car battery becomes weak when the car will be not used for long period.

  • Page 4: To Support The Unit

    TO SUPPORT THE UNIT 1. UNIT . RELEASE CASE 3. DASH BOARD 4. HEX NUT 5. LOCK WASHER Dashboard 6. PLAIN WASHER 7. CAR BODY 8. REAR SUPPORT STRAP 9. TAPPING SCREW 10. M5 X 15 HEX BOLT Front panel Detaching and attaching the front panel The front panel of this unit can be detached in order to prevent the unit from being stolen. DETACHING THE FRONT PANEL Before detaching the front panel, be sure to press the POWER OFF button first.
  • Page 5 1. POWER ON/OFF (PWR) By pressing this key, the unit is on or off. This unit is turned on by pressing any key. 2. FUNCTION SELECT BUTTON: BASS/TREBLE/BALANCE/FADER / TA SEEK/MASK DPI/ RETUNE/AUDIO DSP/LOUDNESS/ESP/BEEP/SEEK/STEREO/LOCAL/VOL LAST (SEL) When pressed short, it is activated as selecting mode of electric volume. VOL ---- BASS ---- TREB ---- BAL ---- FADER ---- VOL TA SEEK/TA ALARM When press the SEL button for more than  seconds, it is activated as selecting mode of these function. TA SEEK Mode or TA ALARM mode is selected by 2 sec. TA SEEK TA SEEK / TA ALARM - TA SEEK mode: When newly turned station does not receive TP information for 5 sec., the radio retunes to next 2 sec.

  • Page 6: Beep Mode

    2 sec. TA SEEK TA SEEK / TA ALARM 2 sec. TA SEEK MASK DPI RETUNE RETUNE L / RETUNE S TA SEEK MASK DPI DSP ON RETUNE 2 sec. TA SEEK MASK DPI MASK DPI / MASK ALL 2 sec. POP M --- ROCK M --- CLASS M --- FLAT M --- DSP OFF TA SEEK MASK DPI...
  • Page 7 VOL LAST: The volume level which user adjust lately is selected whenever power is ON and OFF. VOL ADJ: The initial volume level (user can adjust) is selected whenever power is ON and 3. VOL UP/VOL DOWN FOR BASS/TREBLE/BALANCE/FADER By pressing these key, you can adjust VOL/BASS/TREB/BAL/FAD and select the mode of TA SEEK/MASK DPI/RETUNE/AUDIO DSP/LOUDNESS/ESP/BEEP/SEEK/STEREO/LOCAL/VOL LAST. 4. PRESET STATIONS (1,2,3,4,5,6) (A) RADIO MODE: When pressed short, these keys select a preset station directly. When pressed longer than 1 sec., current station is stored in preset memory bank. When PTY mode is selected, the PTY switch is shared as follows: PTY music group ---- PTY speech group ---- OFF MUSIC SPEECH 1. POP M, ROCK M 1. NEWS, AFFAIRS, INFO . EASY M, LIGHT M . SPORT, EDUCATE, DRAMA 3. CLASSICS, OTHER M 3. CULTURE, SCIENCE, VARIED 4. JAZZ, COUNTRY 4. WEATHER, FINANCE, CHILDREN 5. MATION M, OLDIES 5. SOCIAL, RELIGION, PHONEIN 6. FOLK M 6. TRAVEL, LEISURE, DOCUMENT (B) CD/MP3 PLAYER MODE: 1. PAUSE . INTRO 3. REPEAT 4. RANDOM USING THE RDS FUNCTION...

  • Page 8: Display (Disp)

    8. DISPLAY (DISP) When this key is pressed, it is operated as the conversion of each display mode as follow. 1) In case of receiving RDS station. RADIO MODE PS ---- CT ---- FREQ ---- PTY CD/MP3 PLAYER MODE CDP ---- CT ---- PS ---- FREQ ---- PTY 2) In case of receiving NON RDS station RADIO MODE CLOCK ---- FREQ ---- NO PTY CD/MP3 PLAYER MODE CDP ---- CT ----FREQ ---- NO PTY 9. MODE BUTTON (MODE) By pressing this key, user can select. RADIO, CD/MP3 PLAYER or AUX IN mode. 10. BAND (BAND) Each band is toggled cyclically by pressing this key FM1---FM---FM3.
  • Page 9 (1-6) CD/MP3 CONTROL LOCATION OF PARTS TRACK/SEARCH BUTTON FORWARD AND REVERSE TRACK SEARCH (or changing songs) Press the SKIP button ( ) during play to go to the desired track(song)..REVERSE ..FORWARD Press and hold the SKIP button ( ) during play to scan the disc at high speed. When the desired music section of the disc is found, release the button. Normal play will resume. 17. CD EJECT BUTTON Press the EJECT button to remove the CD. 18. CD SLOT 19. PAUSE BUTTON During “PLAY”, press (19) PAU button to “PAUSE”. Press it again to resume play. 20. INTRO BUTTON (Preview all Tracks) Press this switch less than 1 sec.

  • Page 10: Technical Specifications

    Output power 40W x 4CH Sensitivity .8 µV Stereo separation 30 dB Signal to noise ratio 50 dB Channel step 50 kHz Note: Specification and the design are subject to possible modification without notice due to improvements. Instructions on environment protection Do not dispose of this product in the usual household garbage at the end of its lifecycle; hand it over at a collection point for the recycling of electrical and electronic appliances. The symbol on the product, the instructions for use or the packing will inform about the methods for disposal. The materials are recyclable as mentioned in this marking. By recycling, material recycling or other forms of re- utilization of old appliances, you are making an important contribution to protect our environment. Please inquire at the community administration for the authorized disposal location. ALL RIGHTS RESERVED COPY RIGHT DENVER ELECTRONICS A/S www.denver-electronics.com CAD370(eng).indd 10 1/16/07 4:00:16 PM...
