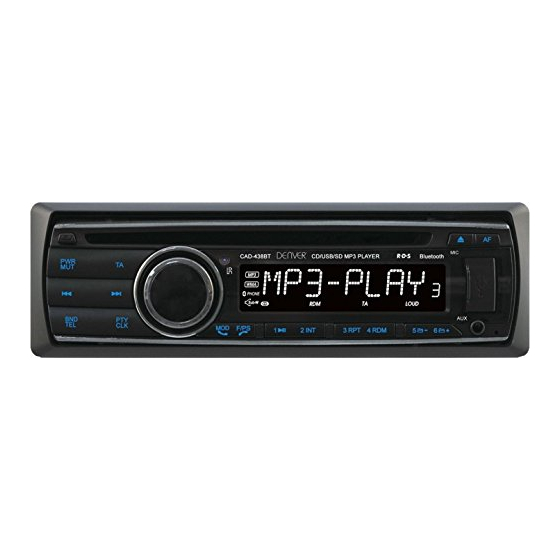

Contents Precautions................3 Warnings Before Installation...........4-6 Before You Install...............7 Installation (DIN Front Mount).............8 Installation (Vehicle's Brackets)..........9 Wiring Connections.............10-11 Bluetooth Operation..............12 Basic Operation..............13 Radio Operation..............14 RDS Operation...............15 CD/MP3/WMA/USB Operation..........16-17 Maintenance................17 Remote Control...............18 Simple Troubleshooting Guide..........19 Specifications................19 Welcome! Thank you for purchasing this high-technology car stereo with CD/MP3 and USB, SD/MMC control.
Precautions • This unit will only play the following discs. Type of disc Label on the disc Recorded material Size of disc 12 cm CD, MP3, WMA Audio only DO NOT ATTEMP TO MODIFY THE UNIT, MODIFYING THE UNIT MAY CAUSE AN ACCIDENT. STOP THE VEHICLE BEFORE CARRYING OUT ANY OPERATION THAT COULD INTERFERE WITH YOUR DRIVING.
Warnings Before Installation Important Warnings to Take Note of BEFORE Com- mencing Installation Damage Caused By Incorrect Installation or Usage is NOT Covered By Warranty. PLEASE Take The Time To Read The Installation Notes Carefully. • To avoid shorts in your vehicles electrical system, be sure to disconnect the battery cable before beginning installa- tion.
Page 5
Warnings Before Installation • If this unit is installed in a vehicle that does not have an ACC (accessory) position on the ignition switch, the red lead of the unit should be connected to a terminal coupled with ignition switch ON/Off operations. If this is not done, the vehicle battery may be drained when you are away from the vehicle for several hours.
Page 6
Warnings Before Installation Warnings Before Installation The area around the ground connection should be clean, bare metal without rust, paint, plastic or dirt for a good electrical connection. • If noise is still experienced when the motor of the vehicle acceler- ates, a choke should be placed in line with the power to the unit.
Before You Install Automotive audio equipment installations can be troublesome at times, even to the most experienced of installation technicians. If you are not confident working with electrical wiring, removing and reinstalling interior panels, carpeting, dashboards or other components of your vehicle, please call your dealer in order to have the unit professionally installed.
Installation WARNING! Disconnect negative battery terminal from battery before starting installation. Consult the vehicle’s owner’s manual for proper instructions. NOTE: Mark the polarity of the existing speaker wires before disconnecting battery. NOTE: Remove the two transport screws from the top of the unit before installing.
Installation NOTE: Outer trim frame, hook, and mounting sleeve are not used for this installation. This is only intended as a general guide; contact the vehicle's manufacturer for specific instructions. This method of installation uses the screw holes at the sides of the unit and the holes of the existing vehicle mounting bracket.
Wiring Connections Make sure that you have a good chassis ground. Good ground connections will eliminate most electrical noise prob- lems. A good chassis ground requires a tight connection to the vehicle’s metal chassis. The area around the ground connection should be clean, bare metal without rust, paint, plastic, dust, or dirt for a good electrical connection.
Wiring Connections White Panel Light Connect to lighting circuit of vehicle. This will illuminate the but- tons on the display for night time operation. This wire can also be connected to the Orange Remote wire to activate the but- tons when the unit is powered on. DO NOT JOIN THE WHITE WIRE TO THE LIGHTING CIRCUIT OF THE VEHICLE IF CONNECTED TO THE ORANGE REMOTE WIRE.
Bluetooth Operation 1. Pairing 6. Auto Connect Press and hold BND/TEL button until This unit support the “Auto Connect the word “PAIRING” appears on the function”. In case the connected cell- display waiting for the bluetooth de- phone is out of range (e.g. the user vice to connect.
Basic Operation 1. Tuning the unit On / Off 9. Fader Press any Button to turn the unit Press SEL Button repeatedly until the on, the display will show a message display shows "FAD F-R", then use WELCOME TO CAR AUDIO to in- the VOL +/- Button to adjust the bal- dicate it is ready for use.
Radio Operation 1. Choose Radio Band tions for each band. While listening to Press the MOD Button to access the a radio station you would like to save radio function. as a pre-set, press and hold one of the The unit comes with five bands- three buttons numbered 1-6 until you hear a FM Bands (FM1, FM2, and FM3) and beep.
RDS Operation RDS Function the PTY button once to show the RDS ( Radio Data System) service music type. Then press 1-6 button availability varies with areas. Please to choose the different music types understand if RDS service is not available.
CD/MP3/WMA/USB/SD Operation 1. Insert / Eject CD Press the SEEK |<< Button to go to a Insert a disc into CD slot with label previous track. Track numbers will be side up. The disc will be automatically shown on the display. Press and hold loaded into the unit, even when it is off the SEEK |<<...
CD/MP3/WMA/USB/SD Operation MAINTENANCE sen track will start to play. C. Folder Search Cleaning the Unit Press the F/PS Button twice and Do not use any liquids to clean this NAVIGATE will be shown on the dis- unit. play.Use the VOL +/- Button to select Do not use petroleum distillates to the folder name.
Remote Control Power on / off / Mute Sound Button Volume + Sound Select Key / Menu Volume - Number 2 / Intro Scan Number 1 / Play / Pause Number 5 / Folder Down Number 4 / Random Play Number 8 / TA Control 10.
Simple Troubleshooting Guide PROBLEM CAUSE/SOLUTION Check and make sure that the fuses did No Power not blow. Errors are displayed on the screen Unplug your car radio then plug it again or no function is active Check the connection of the antenna. No radio reception Make sure the antenna is completely extended and that it is not broken...
Page 20
Hereby, Inter Sales A/S, declares that this product CAD-438BT is in compli- ance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the Declaration of conformity may be obtained at: Inter Sales A/S Stavneagervej 22,...
