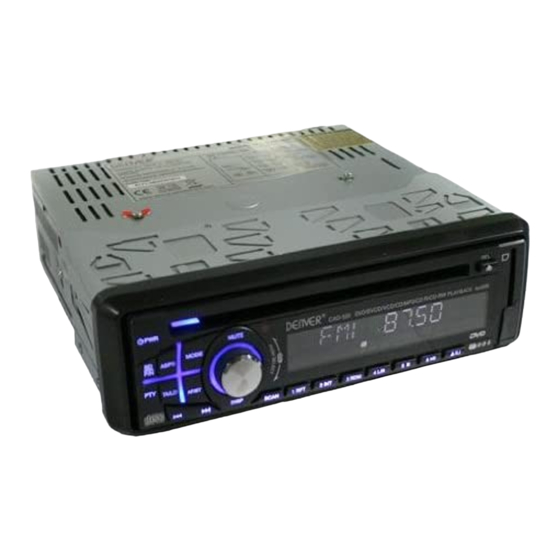

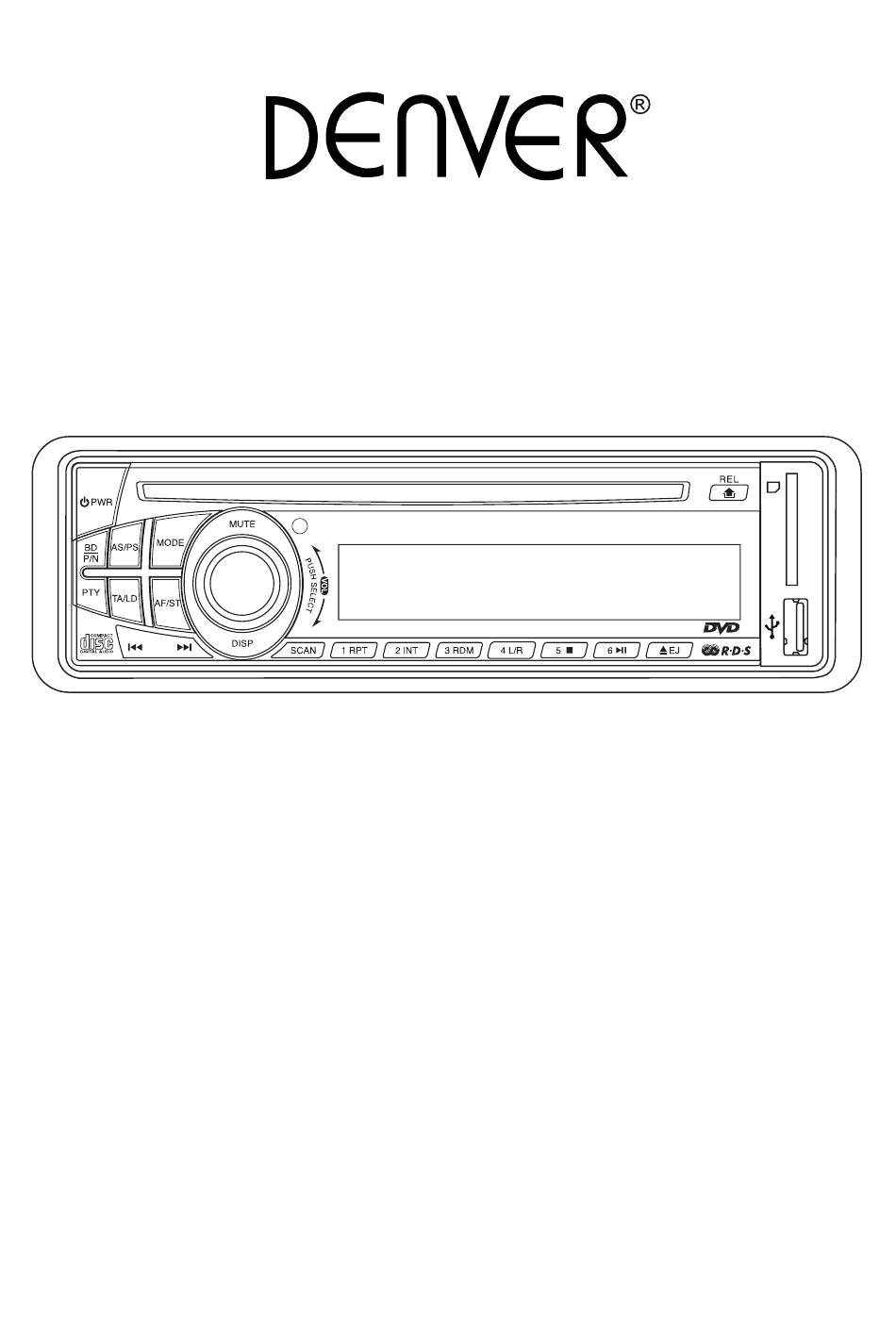

- Page 1 CAD-520 INSTRUCTION MANUAL CAR STEREO DVD/SVCD/VCD/CD/MP3/MP4 PLAYER WITH PLL FM STEREO RADIO USB / SD / MMC CARD INPUT (-6) DETACHABLE FRONT PANEL...
-
Page 2: Before You Begin
BEFORE YOU BEGIN PRECAUTIONS: CAUTION: USE OF CONTROLS OR ADJUSTMENT OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL INCREASE EYE HAZARD. • Keep this manual handy as a reference for operating procedures and precautions. •... -
Page 3: Installation
INSTALLATION PRECAUTIONS • Choose the mounting location carefully so that the unit will not interfere with the normal driving functions of the driver. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight or hot air from the heater, or where it would be subject to dust, dirt or excessive vibration. • Use only the supplied mounting hardware for a safe and secure installation. • Be sure to remove the front panel before installing the unit. NOTE : Inclination angle for car radio installation must not exceed 30˚ otherwise the front panel will not open. Release screw and bracket 8mm 5mm Bend these claws, if necessay NOTE: Keep the release key in the safe place as you may need it in future to remove the unit from the car. Front panel Detaching and attaching the front panel The front panel of this unit can be detached in order to prevent the unit from being stolen. DETACHING THE FRONT PANEL Before detaching the front panel, be sure to press the POWER OFF button first. Then press the button (15) and detach the panel by pulling it towards you as illustrated. -
Page 4: To Support The Unit
TO SUPPORT THE UNIT . UNIT . RELEASE CASE . DASH BOARD 4. HEX NUT 5. LOCK WASHER Dashboard 6. PLAIN WASHER 7. CAR BODY 8. REAR SUPPORT STRAP 9. TAPPING SCREW 0. M5 X 5 HEX BOLT ISO Connector VIDEO OUTPUT (YELLOW): YELLOW (PLUG) AUDIO LINE OUT (GREY): RED (R) WHITE (L) AUDIO LINE IN (BLACK): RED (R) WHITE (L) CONNECTOR A 4. MEMORY +V 5. AUTO ANTENNA OUTPUT 7. +V (TO IGNITION KEY) 8. GROUND NOTE: (connector A no. 7) must be connected by car ignition key in order to avoid that car battery becomes weak when the car will be not used for long period. CONNECTOR B . REAR RIGHT SPEAKER (+) . REAR RIGHT SPEAKER (-) . FRONT RIGHT SPEAKER (+) 4. FRONT RIGHT SPEAKER (-) 5. FRONT LEFT SPEAKER (+) -
Page 5: Power On/Off
Locations of Parts (Main unit) (-6) 1. POWER ON/OFF ( ) 2,3.SELECT BUTTON: VOL/TA VOL/BASS/TREBLE/BALANCE/FADER 4. PRESET STATIONS (1,2,3,4,5,6) 5. ‘AF’ FUNCTION (ALTERNATIVE FREQUENCIES) / STEREO/MONO SELECTOR (AF/ST) 6. ‘TA’ FUNCTION (TRAFFIC ANNOUNCEMENT) / LOUDNESS (TA/LD) 7. ‘PTY’ FUNCTION (PROGRAM TYPE) 8. - Page 6 Locations of Parts (Remote Control) 1. POWER ON/OFF 2. MODE 3. PLAY/PAUSE ( 4. STOP/RETURN ( MODE 5. SELECT 6. SEEK+/SEEK- Title Sub-T 7. VOL +/VOL- 8. KEYPAD Setup ENTER 9. GOTO 10. AUDIO Angle Slow 11. ENTER VOL+/- 12. NAVIGATION VOL+ ZOOM 13.
-
Page 7: General Operations
GENERAL OPERATIONS Turning the unit ON/OFF (PWR) • Head Unit: Press PWR to turn on the unit. To turn off, press this button again. • Remote Control: Press button to turn on the unit. To turn off, press this button again. Setting Time 1 Press DISP button repeatedly until time shows. -
Page 8: Listening To Radio
Reset • Reset button is placed on the housing. • The reset button is to be activated for the following reason: - Initial installation of the unit when all wiring is completed. - All the function button does not operate. - Error symbol on the display. -
Page 9: Beep Mode
- TA SEEK mode: When newly turned station does not receive TP information for 5 sec., the radio retunes to next station which has not the same station (PI) as the last station, but has the TP information. In TA seek mode, the current station can be changed to the completely different station because the unit searches TP station when the field strength of the current station is very weak, or the current sta- tion has no TP signal. - Page 10 ‘TA’ function (Traffic announcement) When pressed short, it is activated as TA mode on or off When TA mode is on and traffic announcement is transmitted. – When the unit is in CD/MP3 mode, it will switch to radiomode temporarily. –...
-
Page 11: Playing Dvd Video
Random Playback You can play the tracks in random/shuffle order instead of normal progression. 1. Press RDM on the head unit or remote control during playback. To turn off, press it again. Program Playback You can set which tracks to play according to your desired sequence using the PROG function. 1. - Page 12 viewing angles during play-back. 1. Press Angle on the remote control during playback of a scene. Slow motion playback This feature lets you slow down playback. 1. Press Slow on the remote control during playback. 2. Pressing it repeatedly will switch you to the following steps: 1/2 – 1/3 – 1/4 – 1/5 – 1/6 – 1/7. Note: •...
- Page 13 PLAYING VCD/SVCD/MP4 Basic operation of Video CD 1. To perform fast forward or reverse, press and hold . To resume normal playback at a desired point, press 2. To skip back or forward to another chapter, press . Pressing skips to the start of the next chapter.
- Page 14 Zooming in during playback You can zoom in into the picture during playback. 1. Press ZOOM on the remote control during playback. 2. Every time you press this button, the unit will zoom 1, 2, 3, 4, 1/2, 1/3, 1/4 times and OFF. Random Playback You can play the tracks/chapters in random/shuffle order.
-
Page 15: Setting Up The Dvd Player
SETTING UP THE DVD PLAYER Important 1. Load any disc into the unit before you can access the settings. 2. Press SETUP on the remote control. 3. Use the navigation key and press ENTER to setup the DVD player. Note: Depending on the type of disc inserted, some features may not be available. SETUP CATEGORY OPTIONS... -
Page 16: Technical Specifications
Do not dispose of this product in the usual household garbage at the end of its lifecycle; hand it over at a collection point for the recycling of electrical and electronic appliances. The symbol on the product, the instructions for use or the packing will inform about the methods for disposal. The materials are recyclable as mentioned in this marking. By recycling, material recycling or other forms of re-utilization of old appliances, you are making an important contribution to protect our environment. Please inquire at the community administration for the authorized disposal location. ALL RIGHTS RESERVED COPY RIGHT DENVER ELECTRONICS A/S www.denver-electronics.com...
