PWR
A/PS
TUNE/TRACK
DISP
1
2
3
PWR

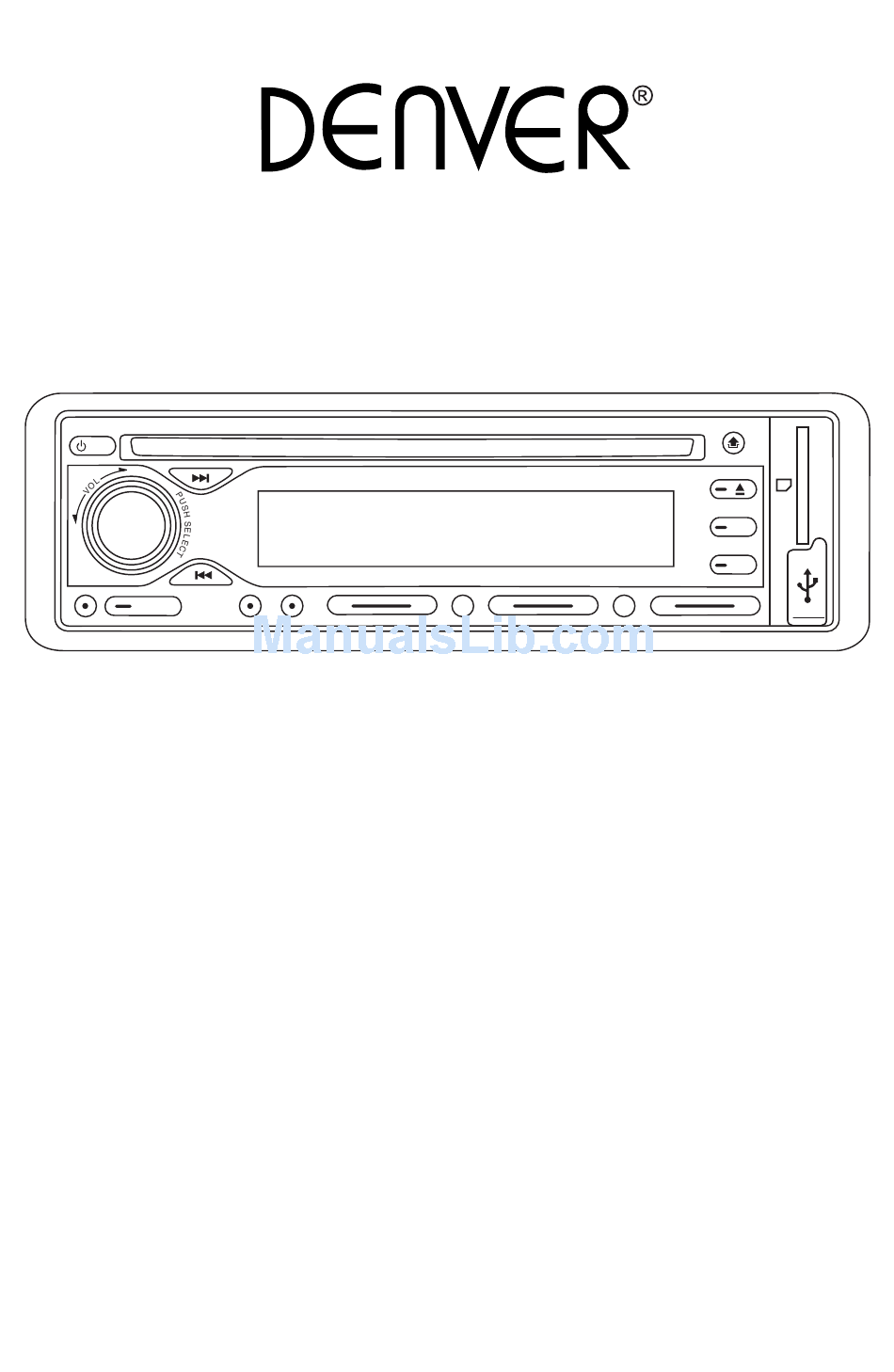

INSTRUCTION MANUAL
A/PS
TUNE/TRACK
DISP

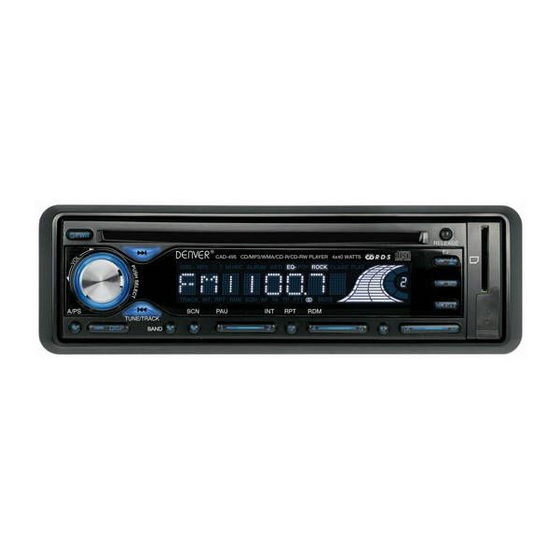

CAR STEREO CD/CDR/CDRW/MP3/WMA PLAYER
WITH PLL FM STEREO RADIO
12
8
CAD-495
SCN
PAU
1
BAND
11
SCN
PAU
1
BAND
10
13
18
USB / SD / MMC CARD INPUT
DETACHABLE FRONT PANEL
INT
RPT
RDM
2
3
4
14
16
INT
RPT
RDM
2
4
3
19
20
21
RDS
4
(1-6)
RESET
26
RELEASE
EJ
MD
PTY
5
6
TA
AF
9
17
15
RELEASE
EJ
MD
PTY
5
6
TA
AF
22
23
6
5
25
7
24
Advertisement
Table of Contents
Related Manuals for Denver CAD-495
Summary of Contents for Denver CAD-495
- Page 1 CAD-495 RELEASE A/PS TUNE/TRACK DISP BAND RELEASE INSTRUCTION MANUAL A/PS TUNE/TRACK DISP BAND CAR STEREO CD/CDR/CDRW/MP3/WMA PLAYER WITH PLL FM STEREO RADIO USB / SD / MMC CARD INPUT (1-6) DETACHABLE FRONT PANEL RESET...
-
Page 2: Location Of Parts And Controls
A/PS TUNE/TRACK DISP BAND LOCATION OF PARTS AND CONTROLS RELEASE A/PS TUNE/TRACK DISP BAND RELEA (1-6) A/PS TUNE/TRACK DISP BAND 1. POWER ON/OFF ( 2. FUNCTION SELECT BUTTON: BASS/TREBLE/BALANCE/FADER / TA SEEK/MASK DPI/ RETUNE/AUDIO DSP/LOUDNESS/CD MULTI/BEEP/SEEK/STEREO/LOCAL 3. VOL UP/VOL DOWN FOR BASS/TREBLE/BALANCE/FADER / TA SEEK/MASK DPI/RETUNE/ AUDIO DSP/LOUDNESS/CD MULTI/BEEP/SEEK/STEREO/LOCAL 4. - Page 3 ISO CONNECTOR RCA Line Out: Red (right) White (left) RCA Line In: Red (right) White (left) CONNECTOR A MEMORY +12V AUTO ANTENNA OUTPUT +12V (TO IGNITION KEY) GROUND Note: (connector A no. 7) must be connected by car ignition key in order to avoid that car battery becomes weak when the car will be not used for long period.
- Page 4 Front panel Detaching and attaching the front panel The front panel of this unit can be detached in order to prevent the unit from being stolen. DETACHING THE FRONT PANEL Before detaching the front panel, be sure to press the OFF button first.
- Page 5 2 sec. TA SEEK TA SEEK / TA ALARM MASK DPI (2) When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function. 2 sec. TA SEEK MASK DPI MASK DPI / MASK ALL MASK DPI: masked only the AF which has different PI.
- Page 6 “Local” position in areas with strong signals to let radio stop at only strong stations during manual tuning (LOC appears). Select Distant position in areas with weak signals to listen to all stations. PRESET STATIONS (1,2,3,4,5,6) (A) RADIO MODE: When pressed shortly, these keys select a preset station directly. When pressed longer than 1 sec., current station is stored in preset memory bank.
- Page 7 14. LCD DISPLAY The Liquid Crystal Display will display the current state of the unit. 15. PANEL RELEASE BUTTON Press button and the right-hand part of the panel will be released. CD/MP3/WMA CONTROL LOCATION OF PARTS TRACK/SEARCH BUTTON (11) FORWARD AND REVERSE TRACK SEARCH (or changing songs) Press the SKIP button ( ) during play to go to the desired track(song).
-
Page 8: Technical Specifications
The materials are recyclable as mentioned in this marking. By recycling, material recycling or other forms of re-utilization of old appliances, you are making an important contribution to protect our environment. Please inquire at the community administration for the authorized disposal location. ALL RIGHTS RESERVED COPY RIGHT DENVER ELECTRONICS A/S www.denver-electronics.com...
Need help?
Do you have a question about the CAD-495 and is the answer not in the manual?
Questions and answers

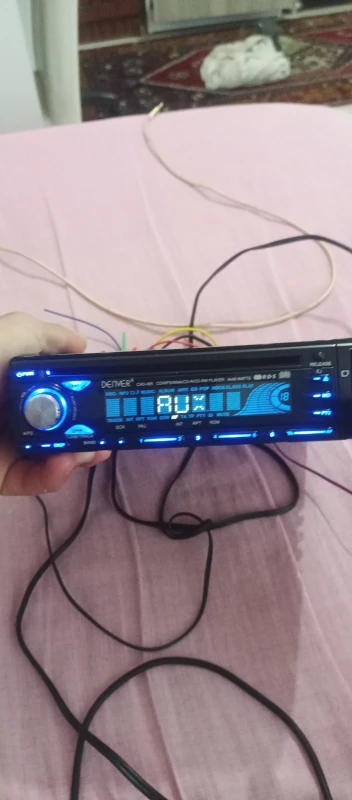

Bu teyibin aux girişi nerede
