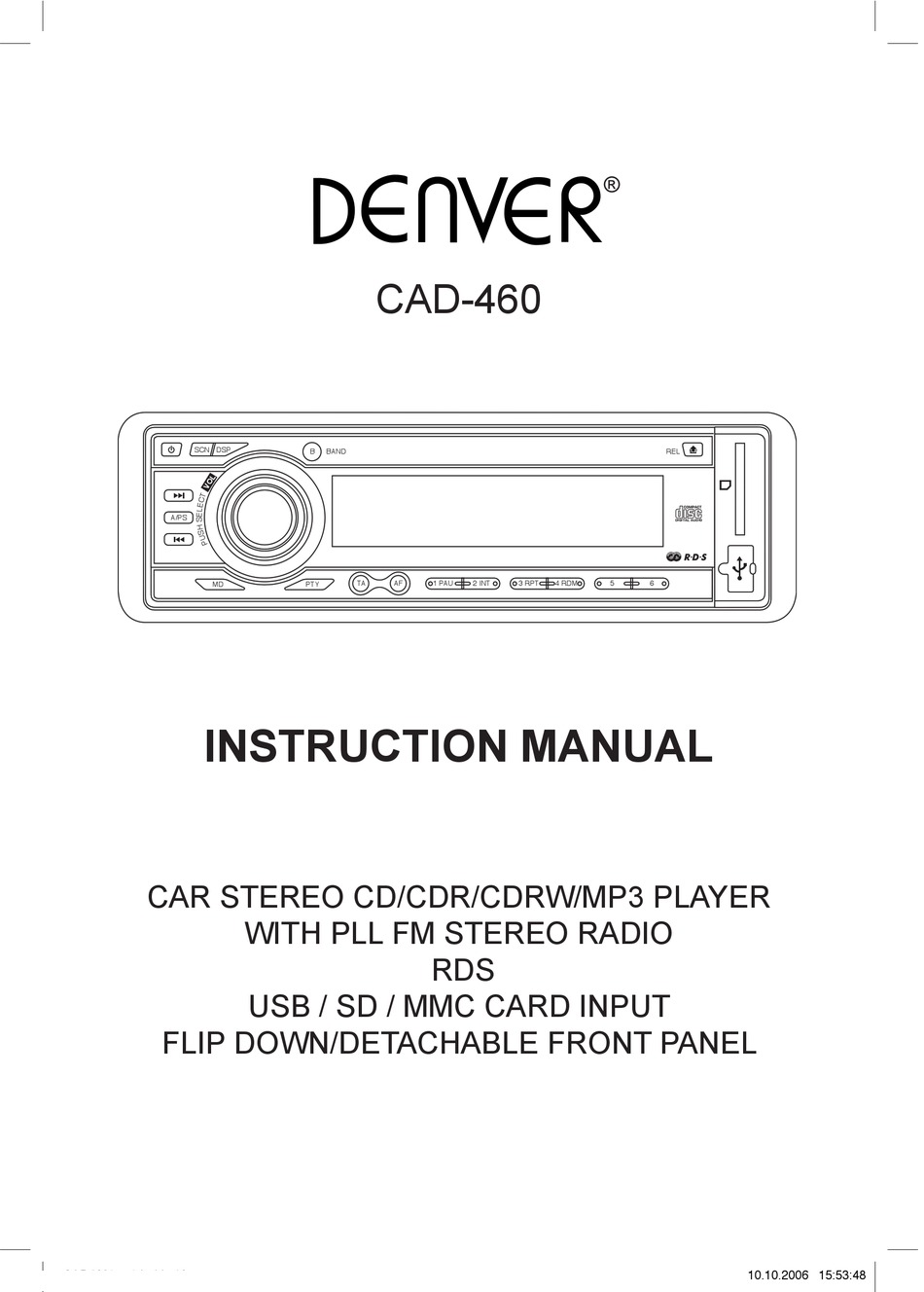

  • Page 1 CAD-460 SCN DSP BAND A/PS  PAU  INT  RPT 4 RDM  8 INSTRUCTION MANUAL SCN DSP BAND A/PS  PAU  INT  RPT 4 RDM CAR STEREO CD/CDR/CDRW/MP3 PLAYER WITH PLL FM STEREO RADIO 0  RDS (-6) USB / SD / MMC CARD INPUT FLIP DOWN/DETACHABLE FRONT PANEL CAD460(eng).indd 0 0.0.006 5:5:48...

  • Page 2: Location Of Parts And Controls

    A/PS  PAU  INT  RPT 4 RDM LOCATION OF PARTS AND CONTROLS  8 SCN DSP BAND A/PS  PAU  INT  RPT 4 RDM SCN DSP BAND A/PS (-6)  PAU  INT  RPT 4 RDM 1. POWER ON/OFF ( 2. FUNCTION SELECT BUTTON: BASS/TREBLE/BALANCE/FADER / TA SEEK/MASK DPI/RETUNE/AUDIO DSP/LOUDNESS/ESP/CD MULTI/BEEP/SEEK/STEREO/LOCAL  8 3. VOL UP/VOL DOWN FOR BASS/TREBLE/BALANCE/FADER / TA SEEK/MASK DPI/ RETUNE/AUDIO DSP/LOUDNESS/ESP/CD MULTI/BEEP/SEEK/STEREO/LOCAL 4. PRESET STATIONS (1,2,3,4,5,6) 5. ‘AF’ function (ALTERNATIVE FREQUENCIES) SCN DSP BAND...

  • Page 3: Iso Connector

    ISO CONNECTOR RCA Jack Line Out: RCA Jack Line In: : Red (right) : Red (right) : White (left) : White (left) CONNECTOR A 4. MEMORY +12V 5. AUTO ANTENNA OUTPUT 7. +12V (TO IGNITION KEY) 8. GROUND Note: (connector A no. 7) must be connected by car ignition key in order to avoid that car battery becomes weak when the car will be not used for long period. CONNECTOR B 1. REAR RIGHT SPEAKER (+) 2. REAR RIGHT SPEAKER (-) 3. FRONT RIGHT SPEAKER (+) 4. FRONT RIGHT SPEAKER (-) 5. FRONT LEFT SPEAKER (+) 6. FRONT LEFT SPEAKER (-) 7. REAR LEFT SPEAKER (+) 8. REAR LEFT SPEAKER (-) Maintenance FUSE REPLACEMENT If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after the replacement, there may be an internal malfunction. In this case, consult your nearest repairing center.

  • Page 4: To Support The Unit

    TO SUPPORT THE UNIT . UNIT . RELEASE CASE . DASH BOARD 4. HEX NUT 5. LOCK WASHER Dashboard 6. PLAIN WASHER 7. CAR BODY 8. REAR SUPPORT STRAP 9. TAPPING SCREW 0. M5 X 5 HEX BOLT Detaching and attaching the front panel The front panel of this unit can be detached in order to prevent the unit from being stolen. FOLDING DOWN AND DETACHING/ATTACHING THE FRONT PANEL Before detaching the front panel, be sure to press the PWR button (1) OFF first. Then press the REL button (15), let the Front Panel arrive in horizontal position and detach the panel by pulling it towards you as illustrated.

  • Page 5: Ta Seek/Ta Alarm

    1. POWER ON/OFF (PWR) By pressing this key, the unit is on and off. This unit is turned on by pressing any key. 2,3. FUNCTION SELECT BUTTON: BASS/TREBLE/BALANCE/FADER / TA SEEK/MASK DPI/RETUNE/ AUDIO DSP/LOUDNESS/ESP/CD MULTI/BEEP/SEEK/STEREO/LOCAL (SEL) Turning the VOL knob Right or Left (3), you can adjust VOL/BASS/TREB/BAL/FAD. To select other functions, press the SEL (2) button shortly until the desired functions is shown on the display. Figure 1 shows how control functions are selected using the SEL button. Fig. 1 Selection of sound control functions 1. VOL 2. SEL 3. BAS 4. TRE 5. BAL 6. FAD Turning the VOL knob Right or Left. Increase or decrease the volume by turning or These buttons can be used to adjust the BASS, TREBLE, BALANCE and FADER. TA SEEK/TA ALARM (2) When press the SEL button for more than 2 seconds, it is activated as selecting mode of these func- tion. TA SEEK Mode or TA ALARM mode is selected by or  sec. TA SEEK TA SEEK / TA ALARM - TA SEEK mode:  sec.

  • Page 6: Beep Mode

    TA SEEK MASK DPI RETUNE RETUNE L / RETUNE S  sec.  sec. TA SEEK MASK DPI MASK DPI / MASK ALL TA SEEK TA SEEK / TA ALARM  sec. TA SEEK MASK DPI RETUNE DSP ON  sec.  sec. TA SEEK MASK DPI RETUNE RETUNE L / RETUNE S...
  • Page 7 “Local” position in areas with strong signals to let radio stop at only strong stations during manual tuning (LOC appears). Press to Distant position in areas with weak signals to listen to all stations. 4. PRESET STATIONS (1,2,3,4,5,6) (A) RADIO MODE: When pressed short, these keys select a preset station directly. When pressed longer than 1 sec., current station is stored in preset memory bank. When PTY mode is selected, the PTY switch is shared as follows: PTY music group ---- PTY speech group ---- OFF MUSIC SPEECH 1. POP M, ROCK M 1. NEWS, AFFAIRS, INFO 2. EASY M, LIGHT M 2. SPORT, EDUCATE, DRAMA 3. CLASSICS, OTHER M 3. CULTURE, SCIENCE, VARIED 4. JAZZ, COUNTRY 4. WEATHER, FINANCE, CHILDREN 5. NATION M, OLDIES 5. SOCIAL, RELIGION, PHONE IN 6. FOLK M 6. TRAVEL, LEISURE, DOCUMENT (B) CD/MP3 PLAYER MODE: 1. PAUSE 2. INT 3. RPT 4. RDM USING THE RDS FUNCTION What is RDS? The RDS (Radio Data System) is a digital information system developed by the EBU (European Broad- cast Union). Piggy-backed on normal FM broadcasts, RDS offers a variety of information services and...
  • Page 8 CD/MP3 PLAYER MODE CDP ---- FREQ ---- CLOCK ---- NO PTY Each display time is several seconds, and come back to 1’st position after several seconds. Notes: • CT = clock time • FREQ = frequency • CDP = CD Player 9. MODE BUTTON (MD) By pressing this key, user can select. AUX/TUNER/CD-MP3/USB or MMC/SD mode. 10. BAND BUTTON (BAND) Each band is toggled cyclically by pressing this key FM1---FM2---FM3. 11. AUTOMATIC OR MANUAL TUNING (FREQ UP OR FREQ DOWN (A) RADIO MODE When pressed short, these keys are operated as MANUAL tuning mode. When pressed longer than 1 sec., they are operated as SEEK tuning mode. (B) CD/MP3 PLAYER MODE When pressed short, they are operated as TRACK UP or TRACK DOWN mode. When pressed longer than 1 sec., they are operated as CUE or REVIEW mode. 12. AUTO SEEK SEARCH TUNING (A/PS) By pressing shortly, the radio searches for each preset station. When field strength level is bigger than the threshold level of stop level, the radio is holding at that preset number for 5 sec. with releasing mute, and then searches again.

  • Page 9: How To Select Mp3 Files

    22, 23. 10 TRACK UP/DOWN SELECT: (In case of MP3 files) M5: 10 Track down / M6: 10 Track up HOW TO SELECT MP3 FILES 1. Searching Track: • Press “A/PS”, then searching track is activated. • Press “SEL”, then the first digit is blinking. • With “VOL / VOL ” knob, select first digit you want. • Press “SEL”, then the first digit is fixed and second digit is blinking. • With “VOL / VOL ” knob, select 2’nd 3’rd respectively.

  • Page 10: Technical Specifications

    The materials are recyclable as mentioned in this marking. By recycling, material recycling or other forms of re-utilization of old appliances, you are making an important contribution to protect our environment. Please inquire at the community administration for the authorized disposal location. ALL RIGHTS RESERVED COPY RIGHT DENVER ELECTRONICS A/S www.denver-electronics.com CAD460(eng).indd 9 0.0.006 5:5:47...
