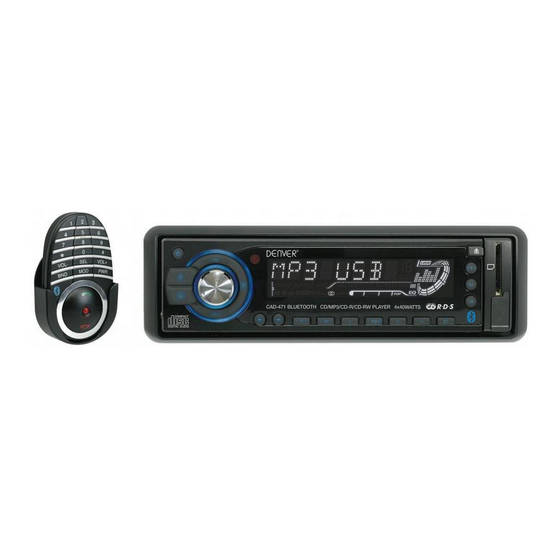

Denver CAD-471 Instruction Manual

Car stereo cd/cdr/cdrw/mp3 player with pll fm stereo radio rds usb / mmc / sd card input bluetooth function in mobile phone flip down and detachable front panel system
Hide thumbs
Table of Contents

Advertisement

Quick Links

CAD-471
1
9
2
3
16
5
7
17
28

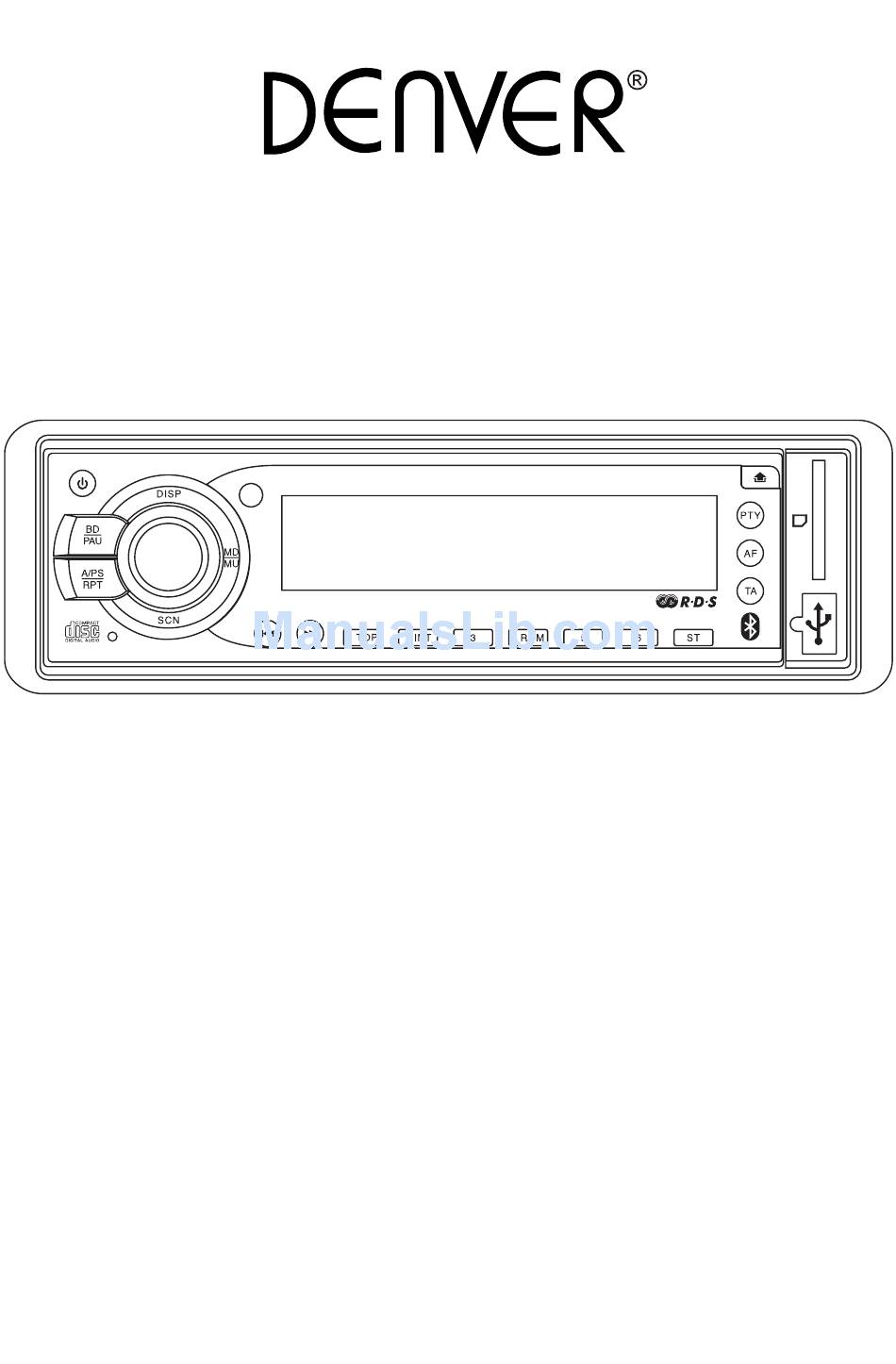

INSTRUCTION MANUAL

Car Stereo CD/CDR/CDRW/MP3 Player
with PLL FM Stereo Radio
RDS
USB / MMC / SD Card Input
13 23
14
10
15
12
20
22
24
25
26
8
6
27
Bluetooth Function in Mobile Phone
Flip Down and Detachable Front Panel System
4
(1-6)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAD-471 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Denver CAD-471

Summary of Contents for Denver CAD-471

  • Page 1: Instruction Manual

    CAD-471 11 21 INSTRUCTION MANUAL Car Stereo CD/CDR/CDRW/MP3 Player with PLL FM Stereo Radio USB / MMC / SD Card Input 13 23 Bluetooth Function in Mobile Phone Flip Down and Detachable Front Panel System (1-6)

  • Page 2: Location Of Parts And Controls

    LOCATION OF PARTS AND CONTROLS 11 21 13 23 11 21 (1-6) 1. POWER ON/OFF ( 2. FUNCTION SELECT BUTTON: BASS/TREBLE/BALANCE/FADER/TA SEEK/MASK DPI/ RETUNE/AUDIO DSP/LOUDNESS/ESP/CD MULTI/SCROLL/BEEP/STEREO/ LOCAL/PAIRING 3. VOL UP/VOL DOWN FOR BASS/TREBLE/BALANCE/FADER/TA SEEK/MASK DPI/ RETUNE/AUDIO DSP/LOUDNESS/ESP/CD MULTI/SCROLL/BEEP/STEREO/ LOCAL/PAIRING 4. PRESET STATIONS (1,2,3,4,5,6) 5.
  • Page 3 REMOTE CONTROLS FUNCTIONS POWER ON / OFF ANSWER A CALL VOLUME + DISP / END A CALL BAND / CD PLAY / PAUSE TUNE / SEEK SEL / MENU CD REPEAT / AUTO STORE / PRESET SCAN VOLUME - 10. MUTE / MODE 11.

  • Page 4: Iso Connector

    ISO CONNECTOR RCA Jack Line Out : Red (right) White (left) RCA Jack Line In : Red (right) White (left) CONNECTOR A 4. MEMORY +12V 5. AUTO ANTENNA OUTPUT 7. +12V (TO IGNITION KEY) 8. GROUND Note: (connector A no. 7) must be connected by car ignition key in order to avoid that car battery being drained when the car will be not used for long period.

  • Page 5: To Support The Unit

    TO SUPPORT THE UNIT . UNIT . RELEASE CASE . DASH BOARD . HEX NUT 5. LOCK WASHER Dashboard 6. PLAIN WASHER 7. CAR BODY 8. REAR SUPPORT STRAP 9. TAPPING SCREW 0. M5 X 5 HEX BOLT Detaching and attaching the front panel The front panel of this unit can be detached in order to prevent the unit from being stolen. FOLDING DOWN AND DETACHING/ATTACHING THE FRONT PANEL Before detaching the front panel, be sure to press the PWR button (1) OFF first.

  • Page 6: Power On/Off

    1. POWER ON/OFF ( By pressing this key, the unit is turned on or off. This unit is turned on by pressing any key. 2. FUNCTION SELECT BUTTON: BASS/TREBLE/BALANCE/FADER / TA SEEK/MASK DPI/RETUNE/ AUDIO DSP/LOUDNESS/ESP/CD MULTI/SCROLL/BEEP/STEREO/LOCAL/PAIRING Turning the VOL knob Right or Left (3), you can adjust VOL/BASS/TREB/BAL/FAD. To select other functions, press the SEL (2) button shortly until the desired functions is shown on the display.

  • Page 7: Scroll Mode

    TA SEEK MASK DPI RETUNE RETUNE L / RETUNE S 2 sec. POP --- ROCK --- CLASSIC --- FLAT --- DSP OFF TA SEEK MASK DPI MASK DPI / MASK ALL 2 sec. 2 sec. TA SEEK TA SEEK / TA ALARM 2 sec.

  • Page 8: Preset Stations

    2 sec. TA SEEK MASK DPI RETUNE LOUD PAIRING MODE (2) When press the SEL button for more than 2 seconds, it is activated as selecting mode of these func- MULT BEEP LOCAL LOCAL/DX SCROLL STEREO tion. (Please refer to HOW TO PERFORM PAIRING on page 11) 2 sec.

  • Page 9: Cd Control Location Of Parts

    1) In case of receiving RDS station. RADIO MODE PS ---- CT ---- FREQ ---- PTY CD/MP3 PLAYER MODE CDP ---- CT ---- PS ---- FREQ ---- PTY 2) In case of receiving NON RDS station RADIO MODE FREQ ---- CLOCK ----NO PTY CD/MP3 PLAYER MODE CDP ---- FREQ ---- CLOCK ---- NO PTY Each display time is several seconds, and come back to 1’st position after several seconds.

  • Page 10: How To Select Mp3 Files

    TRACK/SEARCH BUTTON (12) FORWARD AND REVERSE TRACK SEARCH (or changing songs) Press the SKIP button ( ) during play to go to the desired track(song)..REVERSE ..FORWARD Press and hold the SKIP button ( ) during play to scan the disc at high speed. When the desired music section of the disc is found, release the button.

  • Page 11: How To Use Bluetooth In Your Car Audio

    HOW TO USE BLUETOOTH IN YOUR CAR AUDIO HOW TO PERFORM PAIRING Before you can dial out from the car stereo, you must first perform PAIRING. Pairing is a procedure used to connect 2 Bluetooth devices together. 1. Press and hold SEL button for 2 seconds. 2.

  • Page 12: Technical Specifications

    The materials are recyclable as mentioned in this marking. By recycling, material recycling or other forms of re- utilization of old appliances, you are making an important contribution to protect our environment. Please inquire at the community administration for the authorized disposal location. ALL RIGHTS RESERVED COPY RIGHT DENVER ELECTRONICS A/S www.denver-electronics.com...
