Digisol DG-BG4011N User Manual

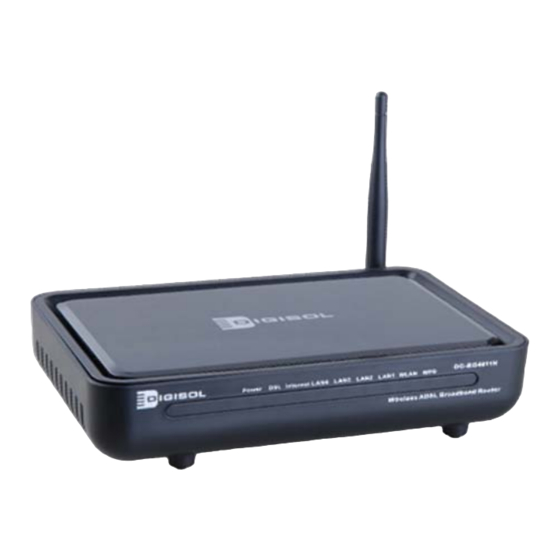

150mbps wireless adsl router
Hide thumbs Also See for DG-BG4011N:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

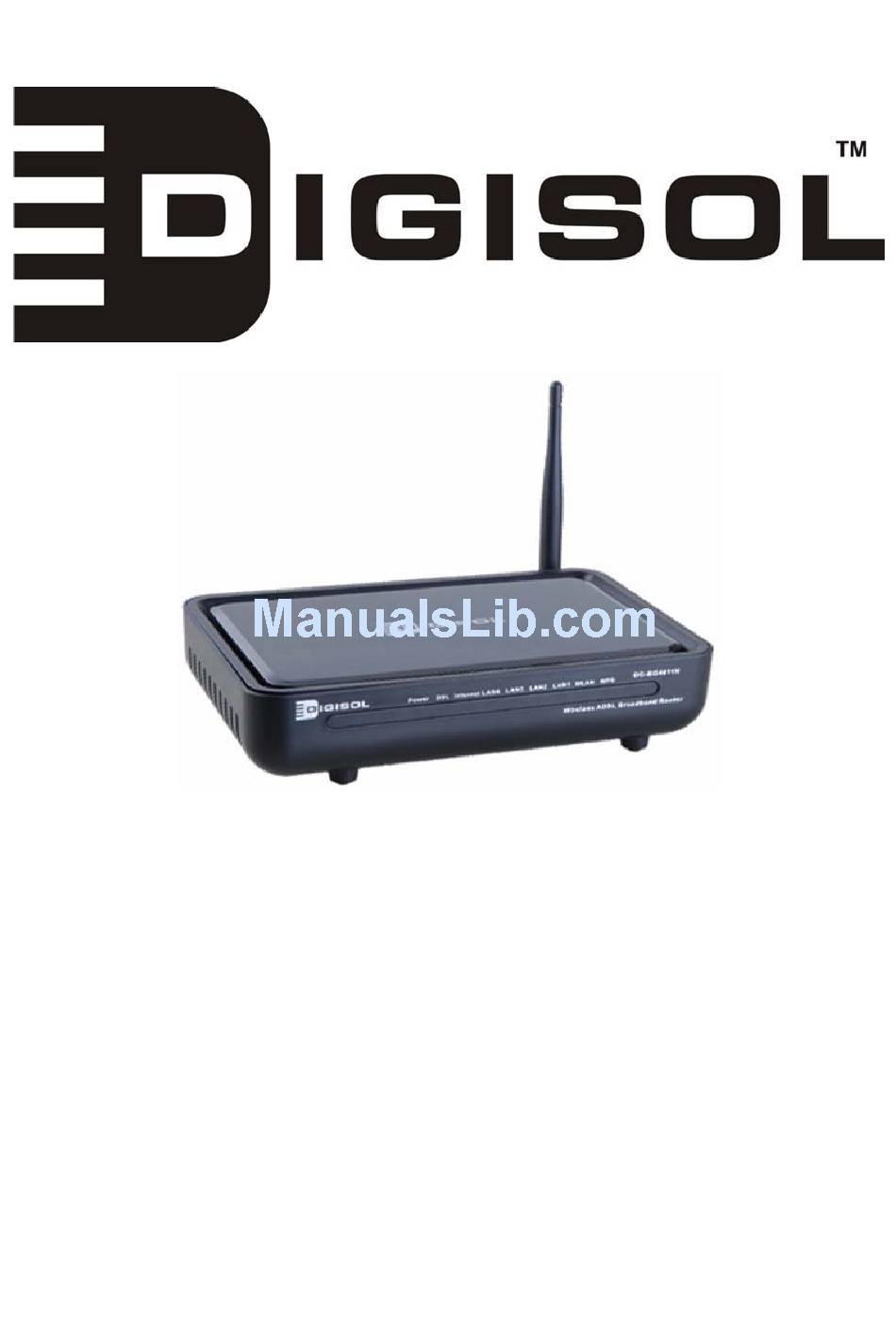

DG-BG4011N
150Mbps Wireless ADSL Router

User Manual

V1.1
2011-09-07
As our products undergo continuous development the specifications are subject to change without prior notice

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DG-BG4011N and is the answer not in the manual?

Questions and answers

Related Manuals for Digisol DG-BG4011N

Summary of Contents for Digisol DG-BG4011N

  • Page 1: User Manual

    DG-BG4011N 150Mbps Wireless ADSL Router User Manual V1.1 2011-09-07 As our products undergo continuous development the specifications are subject to change without prior notice...

  • Page 2: Table Of Contents

    DG-BG4011N User Manual Contents Overview…………………… ................4 Safety Precautions ................4 LEDs and Interfaces ................5 System Requirements ................7 Features ....................8 Hardware Installation ..................9 Web Configuration ................... 12 Accessing the Device ................12 General Configuration ................. 14 3.2.1...
  • Page 3 DG-BG4011N User Manual 3.3.13 Logout..................83 Management..................85 3.4.1 System..................85 3.4.2 Firmware Update ..............87 3.4.3 Access Controls................ 88 3.4.4 Diagnostics ................95 3.4.5 Log Configuration ..............96 3.4.6 Logout..................97 Status....................97 3.5.1 Device Information..............98 3.5.2 Wireless Clients ................ 99 3.5.3...

  • Page 4: Overview

    DG-BG4011N User Manual Overview The DG-BG4011N supports multiple line modes. It provides four 10/100 base-T Ethernet interfaces at the user end. The device provides high speed ADSL broadband connection to the Internet or Intranet for high-end users, such as net cafes and office users.

  • Page 5: Leds And Interfaces

    DG-BG4011N User Manual  Do not connect this device to any PCs or electronic products, unless our customer engineer or your broadband provider instructs you to do this, because any wrong connection may cause power or fire risk.  Do not place the device on an unstable surface or support.
  • Page 6 DG-BG4011N User Manual Color Status Description Internet connection fails after successful synchronization in the routing mode (for example: PPP dial-up is failed). The LAN connection is normal. LAN4, Data is being transmitted through the LAN LAN3, Green Blinks interface, or the Internet data is being LAN2, transmitted in the brige mode.

  • Page 7: System Requirements

    DG-BG4011N User Manual The following table describes the interfaces and buttons of the device. Interface/Button Description RJ-11 interface, for connecting the interface of the Line telephone set through the telephone cable. WLAN Button to enable or disable WLAN. Restore to factory defaults. To restore factory defaults,...

  • Page 8: Features

    DG-BG4011N User Manual 1.4 Features The device supports the following features:  802.11b/g/n  Various line modes  External PPPoE dial-up access  Internal PPPoE and PPPoA dial-up access  1483 Bridged, 1483 Routed, and MER access  Multiple PVCs (up to eight) that can be isolated from each other ...

  • Page 9: Hardware Installation

    DG-BG4011N User Manual  Ethernet interface supports crossover detection, auto-correction and polarity correction  UPnP Hardware Installation Step 1 Connect the Line interface of the device and the Modem interface of the splitter with a telephone cable. Connect the phone set to the Phone interface of the splitter through a telephone cable.
  • Page 10 DG-BG4011N User Manual Connection 1: Figure 3 shows the connection of the device, PC, splitter, and telephone sets, when no telephone set is placed before the splitter. This type of connection is recommended. Figure 3 Connection diagram (without a telephone set before the splitter) Connection 2: Figure 4 shows the connection of the device, PC, splitter, and telephone sets, when a telephone set is placed before the splitter.
  • Page 11 DG-BG4011N User Manual Note: When connection 2 is used, the filter must be installed close to the telephone cable. See Figure 4. Do not use a splitter to replace the filter. Installing a telephone directly before the splitter may lead to failure of connection between the device and the central office, failure of Internet access, or slow connection speed.

  • Page 12: Web Configuration

    DG-BG4011N User Manual Web Configuration This chapter describes how to configure the device by using the Web-based configuration utility. 3.1 Accessing the Device The following describes how to access the device for the first time in detail. Step 1 Open the Internet Explorer (IE) browser and enter http://192.168.1.1 in the address bar.
  • Page 13 DG-BG4011N User Manual In this page, enter the user name and the password. Then, click login.  The user name and the password of the super user are admin and admin respectively.  The user name and the password of the normal user are user and user respectively.

  • Page 14: General Configuration

    DG-BG4011N User Manual Note: In the LAN, you can use either of the following two levels of user accounts (displayed in the user name/password format) to access the device: admin/admin and user/user. In the WAN, you can use one of the following three levels of user accounts (displayed in the user name/password format) to access the device: admin/admin, user/user, and support/support.
  • Page 15 DG-BG4011N User Manual Step 1 Choose Setup > Wizard. The page as shown in the following figure appears: Step 2 Click Setup Wizard. The page as shown in the following figure appears: There are four steps to configure the device. Click Next to continue.
  • Page 16 DG-BG4011N User Manual Step 4 Configure the Internet connection. Select the protocol and the encapsulation mode. Set the VPI and the VCI. If the Protocol is set to PPPoE or PPPoA, the page as shown in the following figure appears:...
  • Page 17 DG-BG4011N User Manual You need to enter the user name and password for PPPoE or PPPoA dialup. If the Protocol is set to Dynamic IP, the page as shown in the following figure appears: Figure 5 If the Protocol is set to Static IP, the page as shown in the following...
  • Page 18 DG-BG4011N User Manual You need to enter the information of the IP address, subnet mask, and gateway. If the Protocol is set to Bridge, the page as shown in the following figure appears: After setting the VPI and VCI for the Bridge connection, click Next.
  • Page 19 DG-BG4011N User Manual Step 5 Configure the wireless network. Enter the information and click Next.
  • Page 20 DG-BG4011N User Manual Step 6 View the configuration information of the device. To modify the information, click Back. To effect the configuration, click Apply. Note: In each step of the Wizard page, you can click Back to review or modify the...

  • Page 21: Internet Setup

    DG-BG4011N User Manual 3.2.2 Internet Setup Choose Setup > Internet Setup. The page as shown in the following figure appears: In this page, you can configure the WAN interface of the device. Click Add and the page as shown in the following figure appears:...
  • Page 22 DG-BG4011N User Manual The following table describes the parameters in this page. Field Description ATM PVC CONFIGURATION Virtual Path Identifier (VPI) is the virtual path between two points in an ATM network. Its value range is from 0 to 255.

  • Page 23: Wireless Setup

    DG-BG4011N User Manual 3.2.3 Wireless Setup This section describes the wireless LAN and some basic configuration. Wireless LANs can be as simple as two computers with wireless LAN cards communicating in a pear-to-pear network or as complex as a number of computers with wireless LAN cards communicating through access points that bridge network traffic to a wired LAN.
  • Page 24 DG-BG4011N User Manual In this page, you can configure the parameters of wireless LAN clients that may connect to the device. The following table describes the parameters in this page. Field Description Select or deselect the check box to enable or disable Enable Wireless the wireless function.
  • Page 25 DG-BG4011N User Manual 3.2.3.2 Wireless Security In the WIRELESS SETTINGS page, click Wireless Security. The page as shown in the following figure appears: Wireless security is vital to your network to protect the wireless communication among wireless stations, access points and the wired network. This device provides the following encryption modes: None, WEP, Auto (WPA or WPA2), WPA2 Only, and WPA Only.
  • Page 26 DG-BG4011N User Manual If the Security Mode is set to WEP, the page as shown in the following figure appears:...
  • Page 27 DG-BG4011N User Manual The following table describes the parameters in this page. Field Description...
  • Page 28 DG-BG4011N User Manual Field Description You can select 64 bits or 128 bits from the drop-down list.  If you select 64 bits, you need to enter 10 WEP Key Length hexadecimal numbers or 5 characters.  If you select 128 bits, you need to enter 26 hexadecimal numbers or 13 characters.
  • Page 29 DG-BG4011N User Manual If the Security Mode is set to Auto (WPA or WPA2), the page as shown in the following figure appears: The following table describes the parameters in this page.
  • Page 30 DG-BG4011N User Manual Field Description You can select Auto (WPA or WPA2)-PSK or Auto WPA Mode (WPA or WPA2)-Enterprise from the drop-down list. Group Key Update Set the interval for updating the key. Interval Pre-Shared Key Set the preshared key to identify the workstation.
  • Page 31 DG-BG4011N User Manual You need to enter the IP address, port, shared key of the RADIUS server. Click Apply to save the settings. WPA2 Only If the Security Mode is set to WPA2 only, the page as shown in the following figure...
  • Page 32 DG-BG4011N User Manual Parameters in this page are similar to those in the page for Auto (WPA or WPA2). Click Apply to save the settings. WPA Only If the Security Mode is set to WPA only, the page as shown in the following figure appears: Parameters in this page are similar to those in the page for Auto (WPA or WPA2).

  • Page 33: Local Network

    DG-BG4011N User Manual 3.2.4 Local Network You can configure the LAN IP address according to the actual application. The preset IP address is 192.168.1.1. You can use the default settings and DHCP service to manage the IP settings of the private network. The IP address of the device is the base address used for DHCP.
  • Page 34 DG-BG4011N User Manual By default, Enable DHCP Server is selected for the LAN interface of the device. DHCP service provides IP settings to workstations configured to automatically obtain IP settings that are connected to the device through the Ethernet port. When the device is used for DHCP, it becomes the default gateway for DHCP client connected to it.
  • Page 35 DG-BG4011N User Manual Click Add to add static DHCP reservation. The page as shown in the following figure appears: Figure 6 The following table describes the parameters in this page. Field Description Select the check box to reserve the IP address for the Enable designated PC with the configured MAC address.

  • Page 36: Time And Date

    DG-BG4011N User Manual 3.2.5 Time and Date Choose Setup > Time and Date. The TIME AND DATE page as shown in the following figure appears: In the TIME AND DATE page, you can configure, update, and maintain the time of the internal system clock.

  • Page 37: Logout

    DG-BG4011N User Manual Select the appropriate time server and the time zone from the corresponding drop-down lists. Select Enable Daylight Saving if necessary. Enter the correct the start and end time of the daylight saving. Click Apply to save the settings.
  • Page 38 DG-BG4011N User Manual Choose Advanced > Advanced Wireless. The ADVANCED WIRELESS page as shown in the following figure appears:...
  • Page 39 DG-BG4011N User Manual 3.3.1.1 Advanced Settings In the ADVANCED WIRELESS page, click Advanced Settings. The page as shown in the following figure appears:...
  • Page 40 DG-BG4011N User Manual The following table describes the parameters in this page. Field Description ADVANCED WIRELESS SETTINGS Select the transmission rate of the wireless network Transmission Rate from the drop-down list. Select the multicast transmission rate of the wireless Multicast Rate network from the drop-down list.
  • Page 41 DG-BG4011N User Manual Field Description scanning. Select whether users of the AP can communicate with each other. You can select Off or On from the User Isolation drop-down list. On indicates that computers connected to the device cannot communicate with each other.
  • Page 42 DG-BG4011N User Manual 3.3.1.2 MAC Filtering In the ADVANCED WIRELESS page, click MAC Filtering. The page as shown in the following figure appears: Figure 7 Click “Enable Access Control Mode” for enabling MAC Filter. Click Add and the page as shown in the following figure appears:...
  • Page 43 DG-BG4011N User Manual Click Apply to save the settings. 3.3.1.3 Security Settings In the ADVANCED WIRELESS page, click Security Settings. The page as shown in the following figure appears: Select the desired SSID from the drop-down list. Select the encryption type from the Security Mode drop-down list. You can select None, WEP, AUTO (WPA or WPA2), WPA Only, or WPA2 Only.
  • Page 44 DG-BG4011N User Manual 3.3.1.4 WPS Settings In the ADVANCED WIRELESS page, click WPS Setting. The WIRELESS WPS page as shown in the following figure appears: Enabled: The WPS service is enabled by default. Note: Ensure that the network card supports the WPS function.

  • Page 45: Port Forwarding

    DG-BG4011N User Manual click PIN. PIN entry is a mandatory method of setup for all WPS certified devices. Note: If you are using the PIN method, you need to select the mode to “Registrar”. 3.3.2 Port Forwarding This function is used to open ports in your device and re-direct data through these ports to a single PC in your network (WAN-to-LAN traffic).
  • Page 46 DG-BG4011N User Manual Select a service for a preset application or enter the name in the Custom Server field. Enter an IP address in the Server IP Address field, to appoint the corresponding PC to receive forwarded packets. The port table displays the ports that you want to open on the device. The Protocol indicates the type of protocol used by each port.

  • Page 47: Dmz

    DG-BG4011N User Manual 3.3.3 Choose Advanced > DMZ. The page as shown in the following figure appears:...

  • Page 48: Parental Control

    DG-BG4011N User Manual In this page, you can enable a DMZ host. In this way, access from Internet to the WAN IP address of the device is forwarded to the DMZ host and network server of the internal LAN is protected.
  • Page 49 DG-BG4011N User Manual 3.3.4.1 Block Website In the PARENTAL CONTROL page, click Block Website. The page as shown in the following figure appears: Click Add. The page as shown in the following page appears: Enter the website in the URL field. Select the time to block websites from the Schedule drop-down list, or select Manual Schedule and set the corresponding time and days.
  • Page 50 DG-BG4011N User Manual Click Submit to add the website to the BLOCK WEBSITE table. The page as shown in the following figure appears: 3.3.4.2 Block MAC Address In the PARENTAL CONTROL page, click Block MAC Address. The page as shown in the following figure appears:...
  • Page 51 DG-BG4011N User Manual Click Add. The page as shown in the following figure appears: The following table describes the parameters in this page. Field Description Enter the name that identifies your configuration. For User Name example, kids. Current PC’s MAC...

  • Page 52: Filtering Options

    DG-BG4011N User Manual Enter the use name and MAC address. Select the corresponding time and days. Then, click Submit to add the MAC address to the BLOCK MAC ADDRESS table. The page as shown in the following figure appears: 3.3.5 Filtering Options Choose Advanced >...
  • Page 53 DG-BG4011N User Manual 3.3.5.1 IP Filtering In the FILTERING OPTIONS page, click IP Filtering. The IP FILTER page appears as shown in the following figure: Click Add Filter to add an IP filter. The page as shown in the following figure...
  • Page 54 DG-BG4011N User Manual Enter the Filter Name, Interface, Traffic Direction and default action & chain. Click “Add Rule” and specify at least one of the following criteria as shown in the figure below. Select Enable to activate the rule. Specify at least one of the following criteria:...
  • Page 55 DG-BG4011N User Manual 3.3.5.2 Bridge Filtering In the FILTERING OPTIONS page, click Bridge Filtering. The page as shown in the following figure appears: This page is used to configure bridge parameters. In this page, you can modify the settings or view the information of the bridge and its attached ports.

  • Page 56: Qos Config

    DG-BG4011N User Manual The following table describes the parameters in this page. Field Description Select the protocol type to be mapped from the Protocol Type drop-down list. You can select PPPoE, IPv4, IPv6, AppleTalk, IPX, NetBEUI, or IGMP. Destination MAC Enter the destination MAC address to be mapped.
  • Page 57 DG-BG4011N User Manual 3.3.6.1 Configure QoS Global Options In the QoS CONFIG page, click Configure QoS Global Options. The page as shown in the following figure appears. Select “Enable Queuing Operation” to enable QoS.
  • Page 58 DG-BG4011N User Manual 3.3.6.2 Interface Configuration In the QoS CONFIG page, click QoS Queue Config. The page as shown in the following figure appears: In this page you set the Direction for which you need to enable the QoS, set the...
  • Page 59 DG-BG4011N User Manual 3.3.6.3 QoS Classification In the QoS CONFIG page, click QoS Classification. The page as shown in the following figure appears: This page displays the classes. Click Add and the page as shown in the following figure appears:...
  • Page 60 DG-BG4011N User Manual Figure 8...
  • Page 61 DG-BG4011N User Manual The following table describes the parameters in this page. Field Description Traffic Class Name Enter the name of the traffic class. Select or deselect the check box to enable or disable QoS Enable Classification classification. SPECIFY TRAFFIC CLASSIFICATION RULES Select L1&L2 or L3&L4 from the drop-down list.

  • Page 62: Firewall Settings

    DG-BG4011N User Manual Field Description Mark DSCP Attach the DSCP mark to the mapped packet. Mark 802.1p Priority Attach the 802.1p mark to the mapped packet. Click Apply to save the settings. 3.3.7 Firewall Settings A denial-of-service (DoS) attack is one of the most common network attacks and is characterized by an explicit attempt by attackers to prevent legitimate users of a service from using that service.

  • Page 63: Dns

    DG-BG4011N User Manual 3.3.8 Domain name system (DNS) is an Internet service that translates domain names into IP addresses. Because domain names are alphabetic, they are easier to remember. The Internet, however, is actually based on IP addresses. Each time you use a domain name, a DNS service must translate the name into the corresponding IP address.

  • Page 64: Dynamic Dns

    DG-BG4011N User Manual The following table describes the parameters in this page. Field Description Obtain DNS server If you select this radio button, the device automatically address obtains IP address of the DNS server from the ISP. You automatically need not manually enter the IP address of the server.
  • Page 65 DG-BG4011N User Manual Choose Advanced > Dynamic DNS. The page as shown in the following page appears: Click Add to add dynamic DNS. The page as shown in the following figure appears: The following table describes the parameters in this page.

  • Page 66: Network Tools

    DG-BG4011N User Manual 3.3.10 Network Tools Choose Advanced > Network Tools. The NETWORK TOOLS page as shown in the following figure appears: This page contains the following function items: port mapping, IGMP proxy, IGMP snooping, UPnP, ADSL, SNMP, TR-069, certificate and ,pptpd.
  • Page 67 DG-BG4011N User Manual 3.3.10.1 Port Mapping In the NETWORK TOOLS page, click Port Mapping. The page as shown in the following figure appears: Figure 10 In this page, you can bind the WAN interface and the LAN interface to the same group.
  • Page 68 DG-BG4011N User Manual To create a mapping group, do as follows: Step 1 Enter the group name.
  • Page 69 DG-BG4011N User Manual Step 2 Select interfaces from the Available Interfaces list and click the <- arrow button to add them to the grouped interface list, in order to create the required mapping of the ports. The group name must be unique.
  • Page 70 DG-BG4011N User Manual 3.3.10.3 IGMP Snooping When IGMP snooping is enabled, only hosts that belong to the group receive the multicast packets. If a host is deleted from the group, the host cannot receive the multicast packets any more. In the NETWORK TOOLS page, click IGMP Snooping. The page as shown in the following figure appears: Click Apply to save the settings.
  • Page 71 DG-BG4011N User Manual In this page, you can enable universal plug and play (UPnP) and then the system serves as a daemon. UPnP is widely applied in audio and video software. It automatically searches devices in the network. If you are concerned about UPnP security, you can disable it.
  • Page 72 DG-BG4011N User Manual 3.3.10.6 SNMP In the NETWORK TOOLS page, click SNMP. The page as shown in the following figure appears: In this page, you can set the SNMP parameters. The following table describes the parameters in this page. Field...
  • Page 73 DG-BG4011N User Manual Field Description Select the trap version from the drop-down list. You can Trap Version select v1 or v2c. Click Apply to save the settings. 3.3.10.7 TR-069 In the NETWORK TOOLS page, click TR-069. The page as shown in the following...
  • Page 74 DG-BG4011N User Manual In this page, you can configure the TR-069 CPE. The following table describes the parameters in this page. Field Description You can select Disabled or Enabled to disable or enable notification.  Disabled indicates that the device does not automatically send requests to the TR069 server.
  • Page 75 DG-BG4011N User Manual 3.3.10.8 Certificates In the NETWORK TOOLS page, click Certificates. The Certificates page as shown in the following figure appears: Click Trusted CA and the page as shown in the following figure appears: Note: Before importing a certificate, you must synchronize the system time with time...
  • Page 76 DG-BG4011N User Manual Click Input Certificate to import a certificate. The page as shown in the following figure appears: 3.3.10.9 PPTP The Point-to-Point Tunneling Protocol (PPTP) is a method for implementing virtual private networks. PPTP uses a control channel over TCP and a GRE tunnel...
  • Page 77 DG-BG4011N User Manual In the NETWORK TOOLS page, click PPTP. The page as shown in the following figure appears. The following table describes the parameters in this page. Field Description Local IP Start The started IP address of the local network.

  • Page 78: Routing

    DG-BG4011N User Manual The following table describes the parameters in this page. Field Description The user name that is used for dialup to connect the Username modem to the PPTP. The password that is used for dialup to connect the Password modem to the PPTP.
  • Page 79 DG-BG4011N User Manual This page contains the following function items: static route, default gateway, and Policy Route settings. 3.3.11.1 Static Route Choose Advanced > Routing and click Static Route. The page as shown in the following figure appears: This page displays the information of existing static routes. Click Add and the page...
  • Page 80 DG-BG4011N User Manual Figure 11 The following table describes the parameters in this page. Field Description Destination Network The destination IP address of the device. Address Subnet Mask The subnet mask of the destination IP address. Use Gateway IP The gateway IP address of the device.
  • Page 81 DG-BG4011N User Manual 3.3.11.2 Default Gateway Choose Advanced > Routing and click Default Gateway. The page as shown in the following figure appears: In this page, you can select Enable Automatic Assigned Default Gateway, or enter the information in the Use Gateway IP Address and Use Interface fields.

  • Page 82: Schedules

    DG-BG4011N User Manual Click Apply to save the settings. 3.3.12 Schedules Choose Advanced > Schedules. The page as shown in the following figure appears: Click Add to add a schedule rule. The page as shown in the following figure appears:...
  • Page 83 DG-BG4011N User Manual The following table describes the parameters in this page. Field Description Name Set the name of the schedule. You can select one, more, or all of the seven days in a Day(s) week. If you select the check box, the rule applies throughout All Day –...

  • Page 84: Logout

    DG-BG4011N User Manual Click Add for adding a NAT entry and the following screen appears: Click Apply to save the settings. 3.3.14 Logout Choose Advanced > Logout. The page as shown in the following figure appears: Click Logout to log out of the configuration page.

  • Page 85: Management

    DG-BG4011N User Manual 3.4 Management 3.4.1 System Choose Management > System Management. The System page as shown in the following figure appears:...
  • Page 86 DG-BG4011N User Manual In this page, you can restart the device, back up the current settings to a file, update the backup file, and restore the factory default settings. The following table describes the buttons in this page.

  • Page 87: Firmware Update

    DG-BG4011N User Manual Button Description Reboot Restart the device. Specify the path to back up the current configuration in a configuration file on Backup Setting your computer. You can rename the configuration file. Click Browse… to select the Update configuration file of device and click...

  • Page 88: Access Controls

    DG-BG4011N User Manual In this page, you can upgrade the firmware of the device. To update the firmware, do as follows: Step 1 Click Browse…to select the file. Step 2 Click Update Firmware to update the configuration file. The device loads the file and reboots automatically.
  • Page 89 DG-BG4011N User Manual This page contains Account Password, Services, and IP Address. 3.4.3.1 Account Password In the ACCESS CONTROLS page, click Account Password. The page as shown in the following figure appears:...
  • Page 90 DG-BG4011N User Manual In this page, you can change the password and set the time for automatic logout. You are recommended to change the default password to ensure the security of your network. Ensure that you remember the new password or write it down and keep it in a safe location for future reference.
  • Page 91 DG-BG4011N User Manual Field Description ACCOUNT PASSWORD Select a user name from the drop-down list to access Username the device. You can select admin, support, or user. Current Password Enter the password of the user. New Password Enter the new password.
  • Page 92 DG-BG4011N User Manual 3.4.3.2 Services In the ACCESS CONTROLS page, click Services. The page as shown in the following figure appears: In this page, you can enable or disable the services that are used by the remote host. For example, if telnet service is enabled at port 23, the remote host can access the device by telnet through port 23.
  • Page 93 DG-BG4011N User Manual 3.4.3.3 IP Address In the ACCESS CONTROLS page, click IP Address. The page as shown in the following figure appears: In this page, you can configure the IP address in the access control list (ACL). If ACL is enabled, only devices of the specified IP addresses can access the device.
  • Page 94 DG-BG4011N User Manual Click Add. The page as shown in the following figure appears: Enter the IP address of the desired device in the IP Address field and click Apply to apply the settings.

  • Page 95: Diagnostics

    DG-BG4011N User Manual 3.4.4 Diagnostics Choose Management > Diagnosis. The page as shown in the following figure appears: In this page, you can test the connection status of the device. Click Return Diagnostics Test to run diagnostics. The page as shown in the following figure...

  • Page 96: Log Configuration

    DG-BG4011N User Manual 3.4.5 Log Configuration Choose Management > Log Configuration. The SYSTEM LOG page as shown in the following figure appears: In this page, you can enable the log function. You can set Mode to Local, Remote, or Both. Local indicates to save the log in the local computer. Remote indicates to send the log to the remote log server.

  • Page 97: Logout

    DG-BG4011N User Manual 3.4.6 Logout Choose Management > Logout. The page as shown in the following figure appears: Click Logout to log out of the configuration page. 3.5 Status In the Status page, you can view the system information and monitor the...

  • Page 98: Device Information

    DG-BG4011N User Manual 3.5.1 Device Information Choose Status > Device Info. The page as shown in the following figure appears:...

  • Page 99: Wireless Clients

    DG-BG4011N User Manual The page displays the summary of the device status, including the system information, WAN connection information, wireless information, and local network information. 3.5.2 Wireless Clients Choose Status > Wireless Clients. The page as shown in the following page appears: The page displays authenticated wireless stations and their statuses.

  • Page 100: Logs

    DG-BG4011N User Manual This page displays all client devices that obtain IP addresses from the device. You can view the host name, IP address, MAC address, and expiration time of the IP address. 3.5.4 Logs Choose Status > Logs. The page as shown in the following figure appears: This page displays the system log.

  • Page 101: Statistics

    DG-BG4011N User Manual 3.5.5 Statistics Choose Status > Statistics. The page as shown in the following figure appears:...

  • Page 102: Route Information

    DG-BG4011N User Manual This page displays the statistics information of the network and data transmission. The information helps technicians to identify whether the device is functioning properly. The information does not affect the functions of the device. 3.5.6 Route information Choose Status >...

  • Page 103: Faqs

    DG-BG4011N User Manual FAQs Question Answer  Check the connection between the power adapter Why are all the and the power socket. indicators off?  Check whether the power switch is turned on. Check the following:  The connection between the device and the PC, the hub, or the switch.
  • Page 104  IP address: 192.168.1.1 configuration?  Subnet mask: 255.255.255.0.  Password of user admin: admin  Password of user user: user This product comes with Life time warranty. For further details about warranty policy and Product Registration, please visit support section of www.digisol.com...
