GE Monogram ZV30RS Technical Service Manual page 8

3. Disconnect the electrical connector and
remove the heat lamp panel.

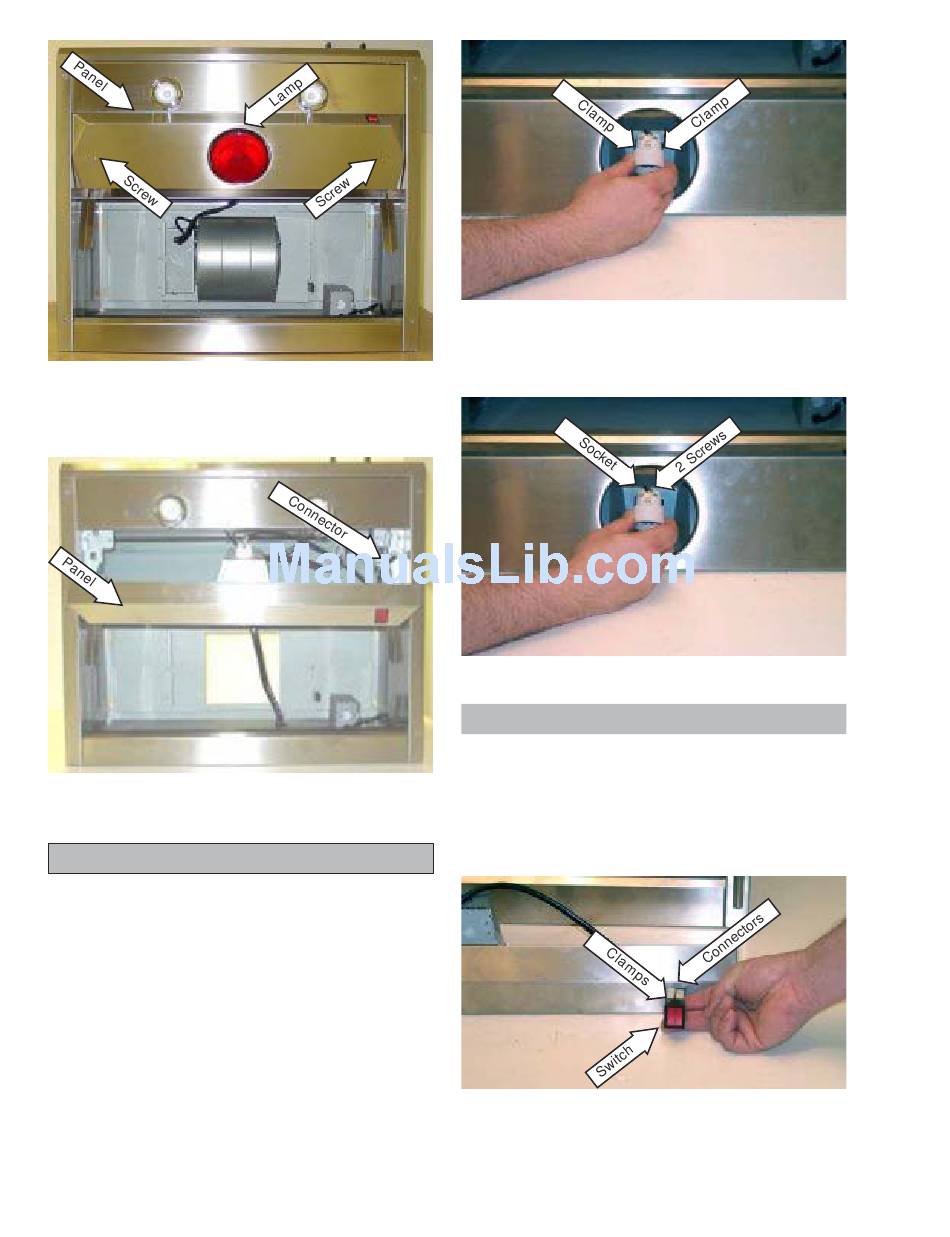

Heat Lamp Socket
Removal and Replacement
WARNING: Heat lamp socket may be hot.
Tech Tip: Use of a plastic putty knife or a taped
metal putty knife helps prevent scratching of
metal surfaces.
1. Remove the
Heat Lamp Panel
2. Press the socket clamps in and pull the heat
lamp socket from the heat lamp panel.
3. Loosen the 2 wire retaining screws and
Heat Lamp Switch
Removal and Replacement
1. Remove the
2. Press the switch clamps in and pull the
.
3. Label and disconnect the 4 electrical
– 8 –
remove the wires from the heat lamp socket.
Heat Lamp Panel
switch from the heat lamp panel.
connectors from the heat lamp switch.
.
