GE Monogram ZV30RS Technical Service Manual page 7

ZV30, ZV36, and ZV48 Components

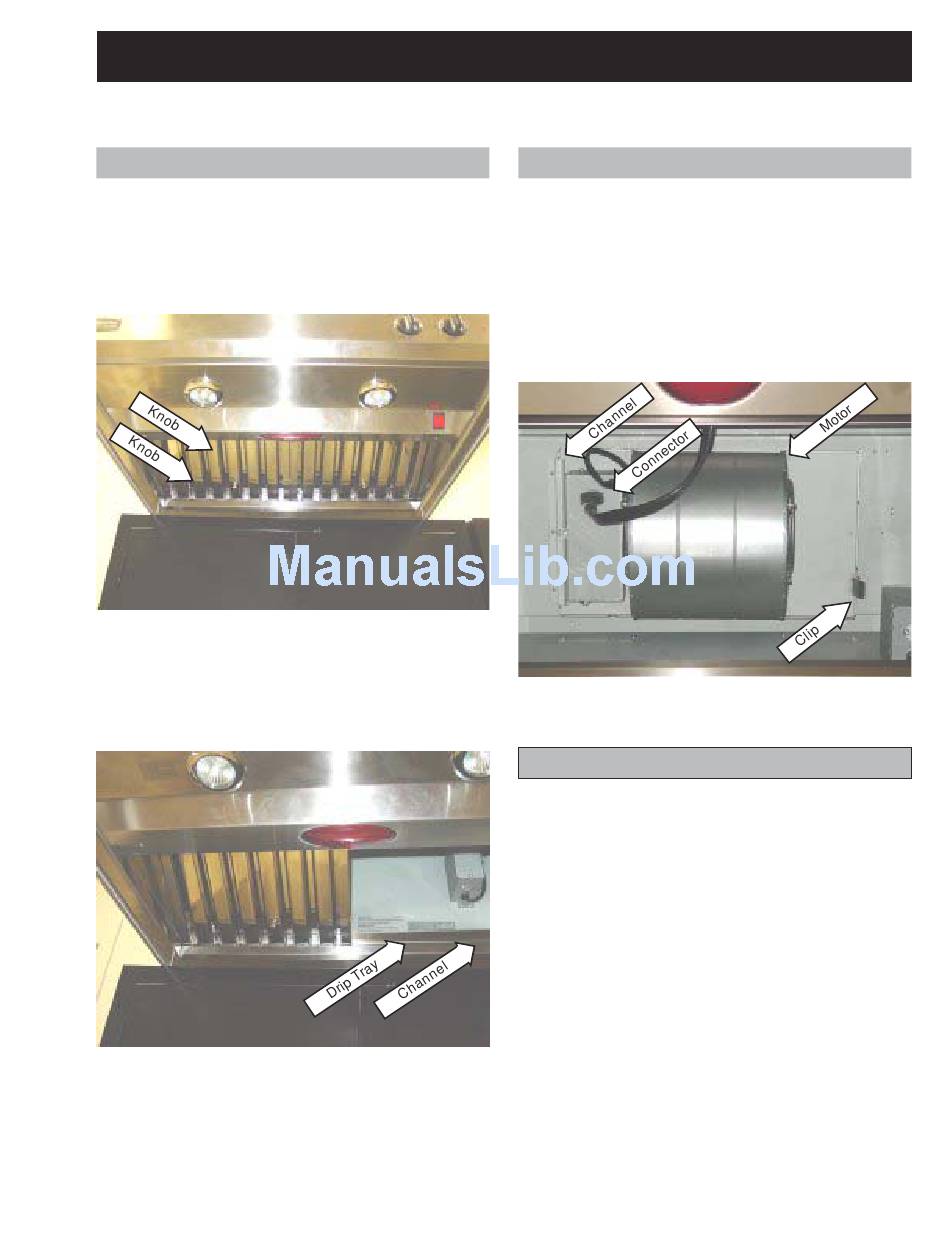

Baffle Grease Filter and Drip Trays
Removal and Replacement
1. Grasp the 2 handle knobs. Slide the grease
filter forward and up until it clears the drip tray
and remove. Remove the drip trays.
2. Remove the 2 drip trays from drip tray
channel.
Fan Motor
Removal and Replacement
1. Disconnect the electrical connector from the
fan motor.
2. Press back the motor mount retaining clip.
3. Slide the motor mount from the channel and
remove the fan motor.
Heat Lamp Panel
Removal and Replacement
WARNING: Heat lamp may be hot.
The bulb is a 120 volt, 175 watt, par-38 infrared
bulb. Part No. - WB08X10029.
1. Remove the heat lamp.
2. Remove the 2 screws from the heat lamp
panel, then lower the panel from the range
hood.
.
– 7 –
(Continued next page)
