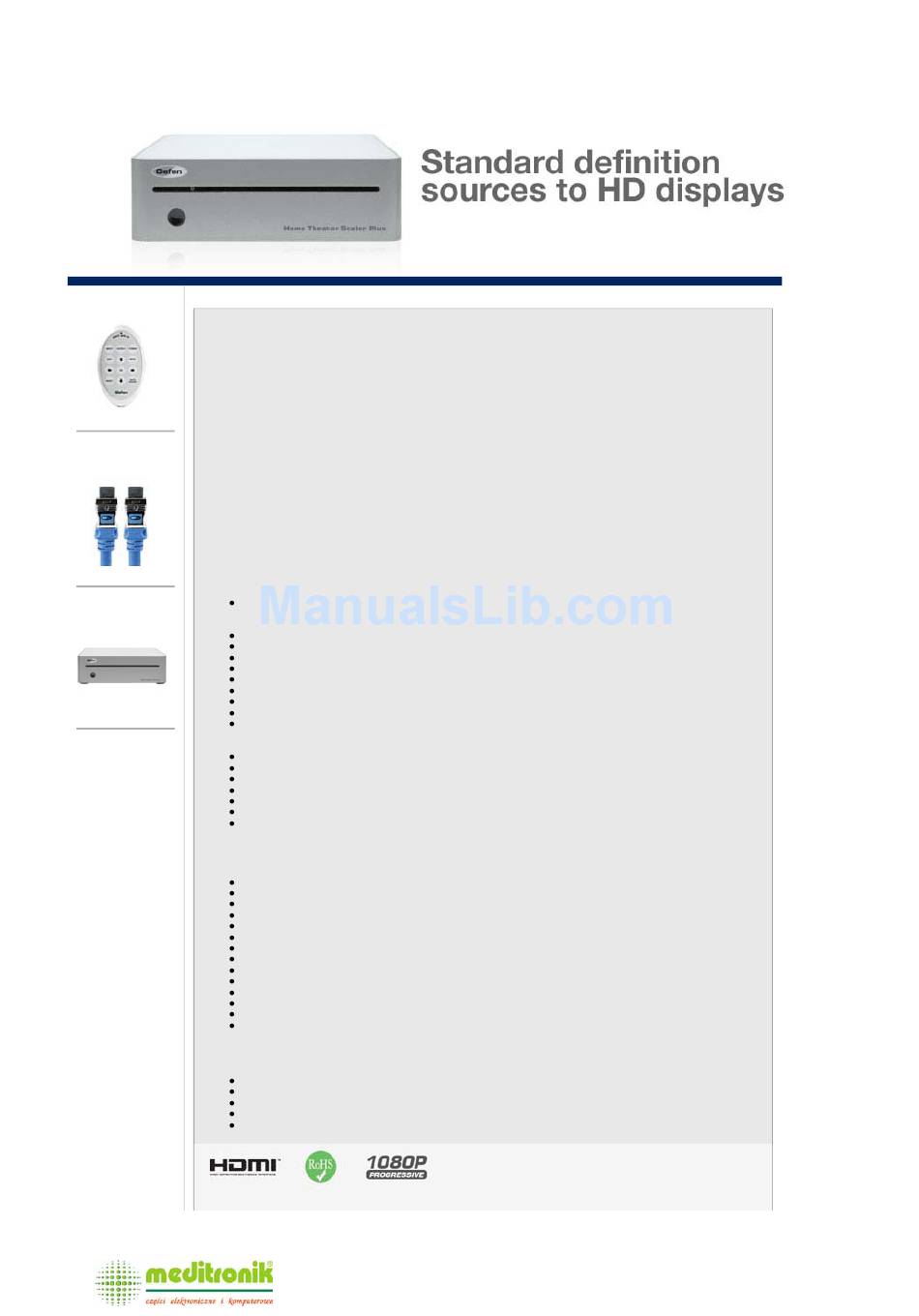

Home Theater Scaler PLUS
Products
Scaling and switching solution for Svideo, Composite, Component and
HDMI sources

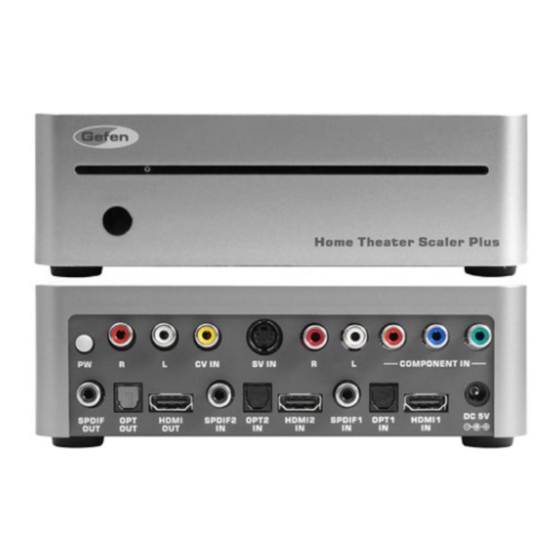

The Gefen Home Theater Scaler Plus allows you to upscale and switch your standard definition or
high definition Component, Composite, S-Video, and HDMI sources to resolutions up to 1080p.
Anything from set-top boxes, DVD players to the next generation of gaming consoles including the
Xbox 360 and PS3 can be plugged into the Home Theater Scaler.
RMT-SR-IR
The Home Theater Scaler Plus supports one component source with analog audio, one composite
or S-video source with analog audio, and two HDMI sources with digital audio. The analog audio
Optional
from the analog sources is digitized and outputted to the HDMI connection as well as the digital
audio outs. The HDMI inputs also have separate digital audio inputs, so you can combine DVI
Accessories
sources-using a DVI to HDMI cable-and separate digital audio signals together. The Home Theater
Scaler Plus will embed the separate video and audio signals together into the HDMI output.
Easy to use on-screen menus accessible through the IR remote control allow for effortless setup
and image adjustment to accommodate different viewing modes and screen sizes.
Note:
Scalers Defined
HDMI Cables
Features:
Related Products
Both digital and analog inputs are format converted and pixel re-scaled through the Home
Theater Scaler Plus. It outputs a large range of formats and resolutions that will easily
match the native resolution/ format of your display to ensure highest picture quality.
DVI/HDCP/HDMI compliant input: Operates up to 165Mhz (Up to UXGA @60Hz)
Supports digital HD output up to 1080p.
Integrated 8-bit triple-ADC/PLL.
Integrated DVI/HDCP/HDMI compliant receiver.
Dual high quality scaling engines.
Dual 3-D motion video adaptive de-interlacers with smooth low-angle edge.
Automatic 3:2 pull-down & 2:2 pull-down detection and recovery.
High performance frame rate conversion engine.
Home Theater Scaler
The Proprietary Advanced Color Engine technology gives: Brilliant and fresh color,
Intensified contrast and details, Vivid skin tone, Sharp edge, Accurate and independent
color control
Option to select audio input from HDMI or TOSlink/SPDIF audio source.
3D noise reduction on analog inputs only.
Operates through on-screen OSD menu control and remote control.
Aspect Ratio Control
Digital Audio Delay to match audio/video timing
Less then one frame delay allowing for gaming
Operates through an OSD menu controlled via the included remote control
Specifications:
Digital Video Amplifier Bandwidth: 165 MHz
Component Video Bandwidth: 350 Mhz
Input DDC Signal: 5 Volts p-p (TTL)
Input Video Signal: 1.2 Volts p-p
Single Link Range: 1080p/1920 x 1200
Input/Output HDMI Connector: Type A 19 Pin Female
Analog Video Connector 1: 3 RCA Component
Analog Video Connector 1: 1 RCA Composite or 1 S-video
Digital Audio Connector: 2x Optical TOSlink and Coax SPDIF
Analog Audio Connector: 2x 2 RCA L+R Audio
Power Supply: 5V 4A DC
Power Consumption: 20 watts (max)
Dimensions: 6.875"W x 2.125"H x 6.875"D
Shipping Weight: 6 lbs.
Package Includes:
Home Theater Scaler Plus
One 6 ft HDMI cable (M-M)
One 5V 4A Power Supply
IR Remote control
User's Manual
