Summary of Contents for Gefen Home Theater Scaler PLUS

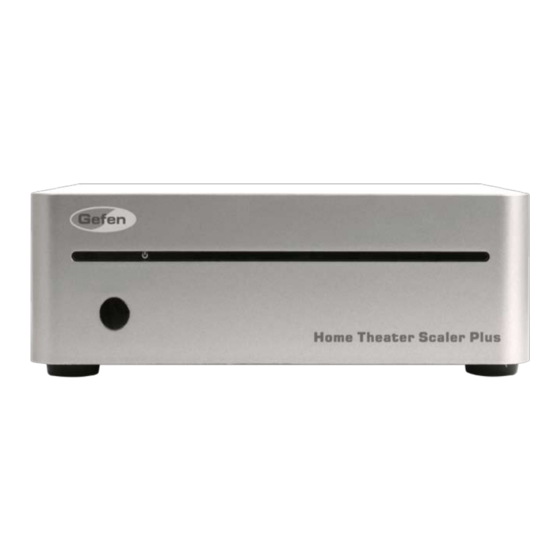

- Page 1 Home Theater Scaler Plus U S E R M A N U A L www.gefen.com...
- Page 2 Woodland Hills, CA 91367-9897 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. The Home Theater Scaler Plus is a trademark of Gefen Inc.
-
Page 3: Table Of Contents
Features Panel Layout Operation Controls and Functions Operation Controls and Functions Operation Controls and Functions / Color Settings Output Settings / OSD Adjustment / Information Using the Home Theater Scaler Plus RMT-SR-IR Installation Pin Confi guration Specifi cations Terminology Warranty... -
Page 4: Introduction / Operation Notes
The HDMI inputs also have separate digital audio inputs, so you can use DVI sources and separate digital audio and the Home Theater Scaler Plus will embed the digital audio into the HDMI output as well as the digital audio outs. -
Page 5: Features
• The Proprietary Advanced Color Engine technology gives: Brilliant and fresh color, Intensifi ed contrast and details, Vivid skin tone, Sharp edge, Accurate and independent color control Includes: (1) Home Theater Scaler Plus (1) 6 ft HDMI cable (M-M) (1) 5V Power Supply (1) IR Remote control... -
Page 6: Panel Layout
PANEL LAYOUT Composite Video and Component Video and Analog Audio 2 Input Analog Audio 1 Input Power S-Video On/Off Input Connects 5V Digital Audio and Digital Audio and Digital Audio and Power Supply HDMI Input 5 HDMI Output HDMI Input 4 IR Extender Eye... -
Page 7: Operation Controls And Functions
When connecting to a HDMI source, use an HDMl cable to connect the HDMl output of a STB or DVD to the HDMI input connector of the Home Theater Scaler Plus. The Home Theater Scaler Plus can automatically detect the input resolution of all four... -
Page 8: Operation Controls And Functions
OPERATION CONTROLS AND FUNCTIONS After you power on the unit, press the menu button and it will bring up the main menu as follows: Video (or PC): When Video is selected, a sub menu as shown below, will come up. -
Page 9: Operation Controls And Functions / Color Settings
OPERATION CONTROLS AND FUNCTIONS Picture mode: There are 4 picture modes for customer to choose from. User: Select to adjust to your favorite setting and store it. Standard: Standard factory default setting for optimal display in a normal environment. Vivid: High saturation picture for optimal display in a bright room. Movie: Picture for comfortable low brightness display in a dark room. -
Page 10: Output Settings / Osd Adjustment / Information
OUTPUT SETTINGS Output: The Home Theater Scale Plus can output a wide variety of PC and HD \ resolutions as follows: DVI/HDMI (up to 165 MH) Resolution 1/p* Format 480i 720x480 RGBHV 480p 720x480 RGBHV 576i 720x576 RGBHV 576p 720x576 RGBHV 720p @ (50/60) 1280x720... -
Page 11: Using The Home Theater Scaler Plus
(picture centering) on the screen. *Note for computers connected to the Home Theater Scaler Plus- When your computer boots up, it looks for an EDID (extended display identifi cation data) from the display to tell it what monitor is connected and what resolution to output. - Page 12 RMT8-IR INSTALLATION 1. Remove battery cover from the back of the RMT-SR-IR remote. 2. Verify that dip switches 1 & 2 are in the down (OFF) position. 3. Insert the battery, hold the battery so that you can see the positive side facing up. The side that is not marked must be facing down.
-
Page 13: Pin Confi Guration
PIN CONFIGURATION HDMI Output Pin Assignment Pin # Function Assignment Pin # Function Assignment TMDS Data2+ TMDS Data2 Shield TMDS Data2- TMDS Data1+ TMDS Data1 Shield TMDS Data1- TMDS Data0+ TMDS Data0 Shield TMDS Data0- TMDS Clock+ TMDS Clock Shield TMDS Clock- Reserved (N.C. -
Page 14: Specifi Cations
SPECIFICATIONS Digital Video Amplifi er Bandwidth...............1.65 Gbps Component Video Bandwidth................350 Mhz Input DDC Signal..................5 volts p-p (TTL) Input Video Signal...................1.2 volts p-p Single Link Range................1080p/1920 x 1200 Input/Output HDMI Connector............Type A 19 pin female Analog Video Connector 1..............3 RCA Component Analog Video Connector 2..............1 RCA Composite Analog Video Connector 3..................S-video Digital Audio Connector..........Optical TOSlink and Coax SPDIF... -
Page 15: Terminology
TERMINOLOGY Short form for Display Data Channel. It is a VESA standard for communication between a monitor and a video adapter. Using DDC, a monitor can inform the video card about its properties, such as maximum resolution and color depth. The video card can then use this information to ensure that the user is presented with valid options for confi... -
Page 16: Warranty
Gefen Inc. warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen Inc. is notifi ed within two (2) year from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
