Summary of Contents for Gefen HDSDI-2-DVIS

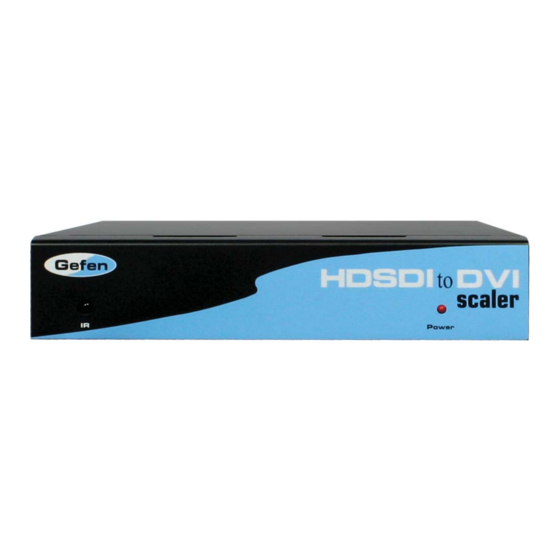

- Page 1 HD-SDI to DVI Scaler U S E R M A N U A L www.gefen.com...
- Page 2 Chatsworth, CA 91311 www.gefen.com support@gefen.com Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. The HD-SDI to DVI Scaler is a trademark of Gefen Inc.
-
Page 3: Table Of Contents
Introduction Operation Notes Panel Descriptions Menu Functions Supported Input/Output Resolutions RMT-8HDS-IR Installation Firmware Update Procedure Specifi cations Warranty TABLE OF CONTENTS... -
Page 4: Introduction
Gefen's HDSDI to DVI Scaler is the newest revision of our HDSDI conversion line in- corporating SD/HDSDI Single or Dual link mode conversion scaled to Full Single link DVI-D. Resolutions of up to 1080p are supported over the DVI link for those that want true “High Defi... -
Page 5: Operation Notes
OPERATION NOTES On power up, the HD-SDI to DVI Scaler will automatically detect the input format of the input. The unit is controlled using the included 8 button remote. Pressing the OUTPUT button cycles the HD-SDI to DVI Scaler through the following output modes: 640x480 - 800x600 - 720p - 1080i Other functions and output modes can be accessed through the onscreen menu. -
Page 6: Panel Descriptions
PANEL DESCRIPTIONS Power Indicator Infrared Eye Light HD-SDI HD-SDI RS-232 Input 2 Loop Out 2 Audio Output Uplink Port 5V Power HD-SDI HD-SDI DVI-D Output Connector Input 1 Loop Out 1... -
Page 7: Menu Functions
Aspect: -Full Screen: Stretches input to fi ll the Monitor. -Letter / Pillar Box: Sets the aspect ratio to fi t a letter or pillar box format. -Panoramic: Panoramic Zoom feature -Extract: Feature to magnify the signal. -Size: Adjusts signal magnifi cation. -Horizontal / Vertical Position: Moves the magnifi... - Page 8 MENU FUNCTIONS (CONTINUED...) Input Menu Continued... -Audio: Selects which audio pair to use for audio output (1 - 8); Default is Channel 1. -Remote Channel: Changes the IR code of the HD-SDI to DVI Scaler to one of 4 different settings between 0 and 3. When the remote channel is changed, dip switches in the 16 button remote must be changed to the corresponding code in order to continue operating the HD-SDI to DVI Scaler.
-
Page 9: Supported Input/Output Resolutions
SUPPORTED INPUT/OUTPUT RESOLUTIONS Input video formats supported: 480i 480p 576i 576p 720p/23.97 720p/24 720p/25 720p/29.97 720p/30 720p/50 720p/60 720p/59.94 Output Video Formats Supported: 483p/59.94 576p/50 720p/23.97 720p/24 720p/25 720p/29.97 720p/30 720p/50 720p/59.94 1035i/60 1080i/50 1080i/50M 1080i/59.94 1080i/60 1080p/23.98 1080p/24 1080p/25 1080p/29.97 1080p/30 1080p/50... -
Page 10: Rmt-8Hds-Ir Installation
RMT-8HDS-IR INSTALLATION 1. Remove battery cover from the back of the RMT-8HDS-IR remote. 2. Verify that dip switches 1 & 2 are in the down (OFF) position. 3. Insert the battery, hold the battery so that you can see the positive side facing up. The side that is not marked must be facing down. -
Page 11: Firmware Update Procedure
FIRMWARE UPDATE PROCEDURE Please check http://www.gefen.com/kvm/support/download.jsp for fi rmware updates and procedures. -
Page 12: Specifi Cations
SPECIFICATIONS Input Video Bandwidth...2x 1.485 Gbps (dual link HD-SDI) Output Video Bandwidth...1.65 Gbps (single link DVI-D) Maximum Output Resolution... 1920x1200@60Hz DVI Connector... DVI-I 29 pin female (digital only) SDI/HDSDI Connector... BNC female Data Port... Serial RS-232 Audio Port... 2 channel RCA analog audio Power Supply ...5V DC Power Consumption ... -
Page 13: Warranty
If equipment fails because of such defects and Gefen Inc. is notifi ed within two (2) year from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
