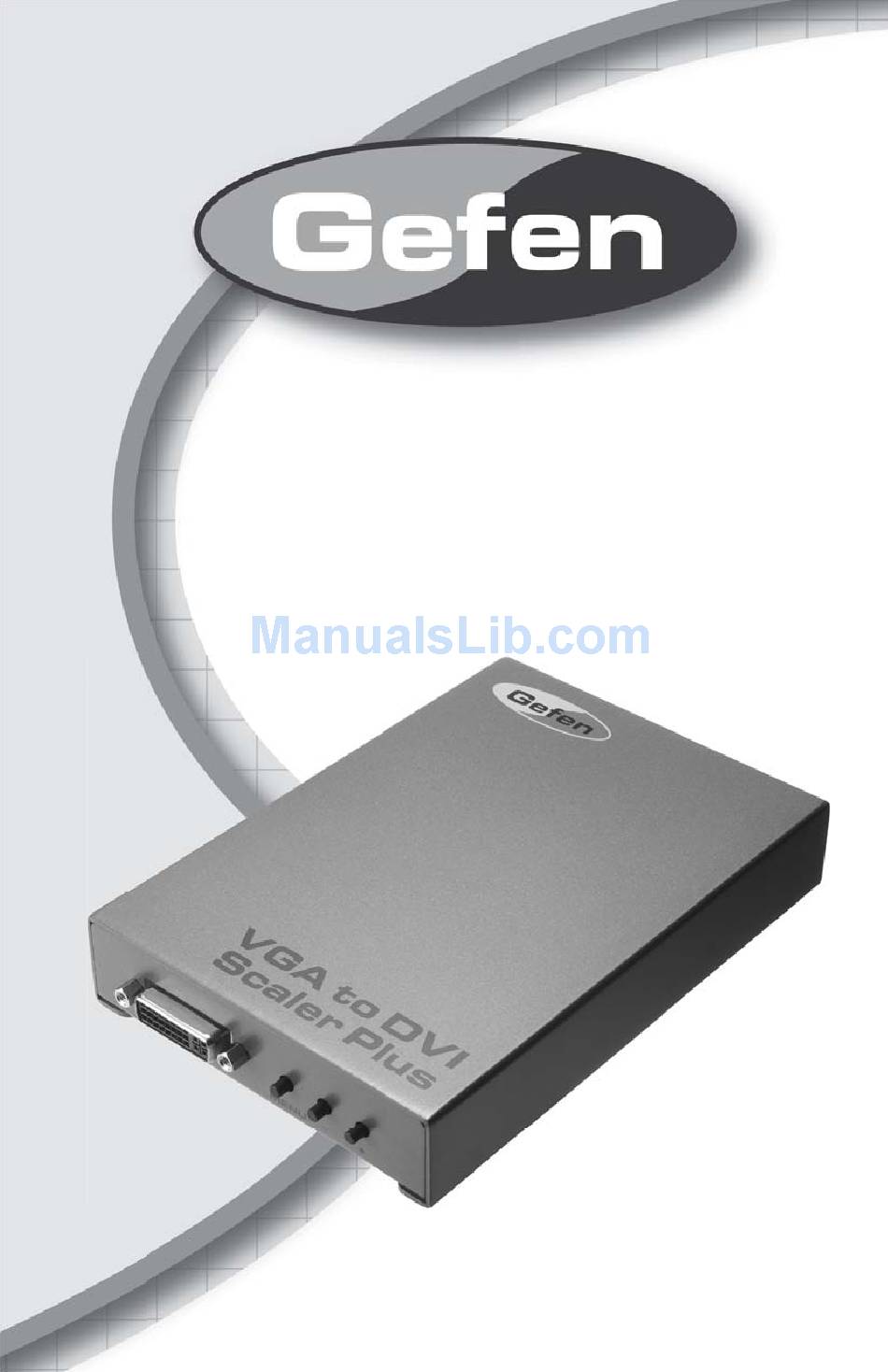

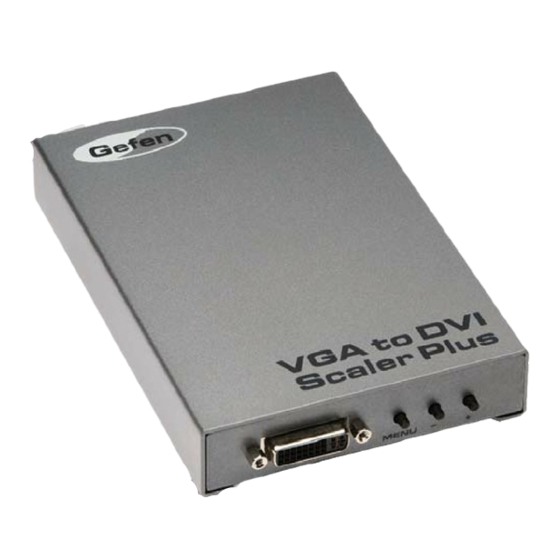

- Page 1 ® VGA To DVI Scaler PLUS E X T - V G A - 2 - D V I S P U S E R M A N U A L www.gefen.com...
- Page 2 Chatsworth, CA 91311 support@gefen.com www.gefen.com Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. is a trademark of Gefen Inc. VGA To DVI Scaler Plus ©...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction Features Panel Descriptions Connecting and Operating the VGA to DVI Scaler Menu Functions Troubleshooting Specifi cations Warranty... -
Page 4: Introduction
Our Commitment Gefen will always offer the fi nest quality product at the best possible price. Included in that price is a lifetime of free support from a team of outstanding engineers. Introduction The VGA to DVI Scaler PLUS connects traditional analog video graphic cards (VGA) to DVI compliant digital monitors. -
Page 5: Features
FEATURES Features • The input is analog PC or HDTV signal in the format of either RGBHV, YPbPr or YCbCr. • The output is digital+analog PC or HDTV signal in the format of digital RGBHV bit stream plus analog RGBHV, known as DVI-I (Integrated digital and analog) •... -
Page 6: Panel Descriptions
PANEL DESCRIPTIONS Input side VGA Input Power Supply Input Power Indicator Output side Level Adjustment Menu Button DVI Output Level Adjustment/ Auto Adjust... -
Page 7: Connecting And Operating The Vga To Dvi Scaler
CONNECTING AND OPERATING THE VGA TO DVI SCALER PLUS How to Connect the VGA to DVI Scaler Plus Connect your analog video card to the HD-15 female connector at the input side of the VGA to DVI Scaler Plus. (Note: The Menu button of the VGA to DVI Scaler Plus will not work without a source plugged in) Connect the DVI (M-M) cable between the DVI connector on the digital display and the DVI output of the VGA to DVI Scaler Plus. -
Page 8: Menu Functions
MENU FUNCTIONS PC Menu System Information Screen Source: Displays what source is Contrast: Adjusts the picture contrast connected Brightness: Input: Adjusts the picture brightness Displays the current Input resolution H POS: Adjusts the picture's Output: Horizontal position Displays the current Output resolution V POS: Version:... -
Page 9: Troubleshooting
TROUBLESHOOTING No Picture appears on bootup: If no picture appears on bootup, fi rst reset the VGA to DVI Scaler Plus to the native mode of the display it is connected to. Monitors without an internal scaler (Any Apple Display as well as the Dell 30" monitor) require the VGA to DVI Scaler Plus to output the monitor's exact native resolution to display a picture. -
Page 10: Specifi Cations
SPECIFICATIONS DVI Video Amplifi er Bandwidth...............165 MHz VGA Amplifi er Bandwidth................350 Mhz Max. input resolution: ........1920x1200 / 2048 x 1080 (2K) at 60Hz Max. output resolution: ........1920x1200 / 2048 x 1080 (2K) at 60Hz Input DDC Signal................5 Volts p-p (TTL) DVI Output Connector..............DVI-I (29 pin) female VGA Input Connector.............. - Page 14 Rev X4 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com...
