Summary of Contents for Gefen HDSDI-2-DVISP

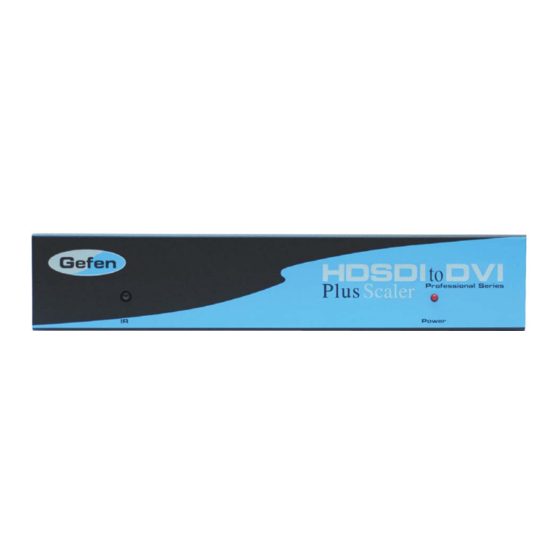

- Page 1 HD-SDI to DVI Scaler PLUS U S E R M A N U A L www.gefen.com...
- Page 2 Chatsworth, CA 91311 www.gefen.com gsinfo@gefen.com Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. The HD-SDI to DVI Scaler PLUS is a trademark of Gefen Inc.
-
Page 3: Table Of Contents
Introduction Panel Descriptions Menu Functions Menu Functions Supported Input/Output Resolutions RMT-8HDS-IR Installation RMT-8HDS-IR Installation RS-232 Interface / Firmware Update Procedure Specifi cations Warranty TABLE OF CONTENTS... -
Page 4: Introduction
The HDSDI to DVI PLUS Scaler is the newest revision of our HDSDI conversion line incorporating SD/HDSDI Single or Dual link mode conversion scaled to Full Single link DVI-D. Resolutions of up to 1080p are supported over the DVI link for those that want true “High Defi... -
Page 5: Panel Descriptions
PANEL DESCRIPTIONS Infrared Eye Power Indicator Light RS-232 Uplink Port 5V Power DVI-D Output HD-SDI Connector HD-SDI Audio Output Input 1 Input 2 / Loop / Loop Out 2 Out 1... -
Page 6: Menu Functions
Aspect: -Full Screen: Stretches input to fi ll the Monitor. -Letter / Pillar Box: Sets the aspect ratio to fi t a letter or pillar box format. -Panoramic: Panoramic Zoom feature -Extract: Feature to magnify the signal. -Exact Size: Adjusts signal magnifi cation. -Horizontal / Vertical Position: Moves the magnifi... -
Page 7: Menu Functions
Input Menu Continued... -Audio: Selects which audio pair to use for audio output (1 - 8); Default is Channel 1. -Remote Channel: Changes the IR code of the HD-SDI to DVI Scaler to one of 4 different settings between 0 and 3. When the remote channel is changed, dip switches in the 16 button remote must be changed to the corresponding code in order to continue operating the HD-SDI to DVI Scaler. -
Page 8: Supported Input/Output Resolutions
SUPPORTED INPUT/OUTPUT RESOLUTIONS Input Video Formats Supported: 480i 720p/50 480p 720p/59.94 576i 720p/60 576p 1035i/59.94 720p/23.98 1035i/60 720p/24 1080i/50 720p/25 1080i/50M 720p/29.97 1080i/59.94 720p/30 1080i/60 Output Video Formats Supported: 480i 720p/50 480p 720p/59.94 576i 720p/60 576p 1035i/59.94 720p/23.98 1035i/60 720p/24 1080i/50 720p/25 1080i/50M... -
Page 9: Rmt-8Hds-Ir Installation
RMT-8HDS-IR INSTALLATION On power up, the HD-SDI to DVI Scaler will automatically detect the input format of the input. The unit is controlled using the included 8 button remote. Pressing the OUTPUT button cycles the HD-SDI to DVI Scaler through the following output modes: 640x480 - 800x600 - 720p - 1080i Other functions and output modes can be accessed through the onscreen menu. -
Page 10: Rmt-8Hds-Ir Installation
RMT-8HDS-IR INSTALLATION Remove battery cover from the back of the RMT-8HDS-IR remote. Verify that dip switches 1 & 2 are in the down (OFF) position. Insert the battery, hold the battery so that you can see the positive side facing up. The side that is not marked must be facing down. -
Page 11: Rs-232 Interface / Firmware Update Procedure
The HDSDI to DVISP can be controlled via IR remote and through the RS-2323 Uplink port. Check the download section on our website for fi rmware updates and information on how to control this unit. Go to http://www.gefen.com/kvm/support/download.jsp to fi nd the necessary documents and fi les. -
Page 12: Specifi Cations
SPECIFICATIONS Input Video Bandwidth...2x 1.485 Gbps (Dual Link HD-SDI) Output Video Bandwidth...1.65 Gbps (Single Link DVI-D) Maximum Output Resolution...1920x1200@60Hz Audio Output...2 channel Analog Audio Rack Mountable...Yes Power Supply...5V DC Shipping Weight...5 lbs. Dimensions...8.25”W x 1.75”H x 7.5”H...
